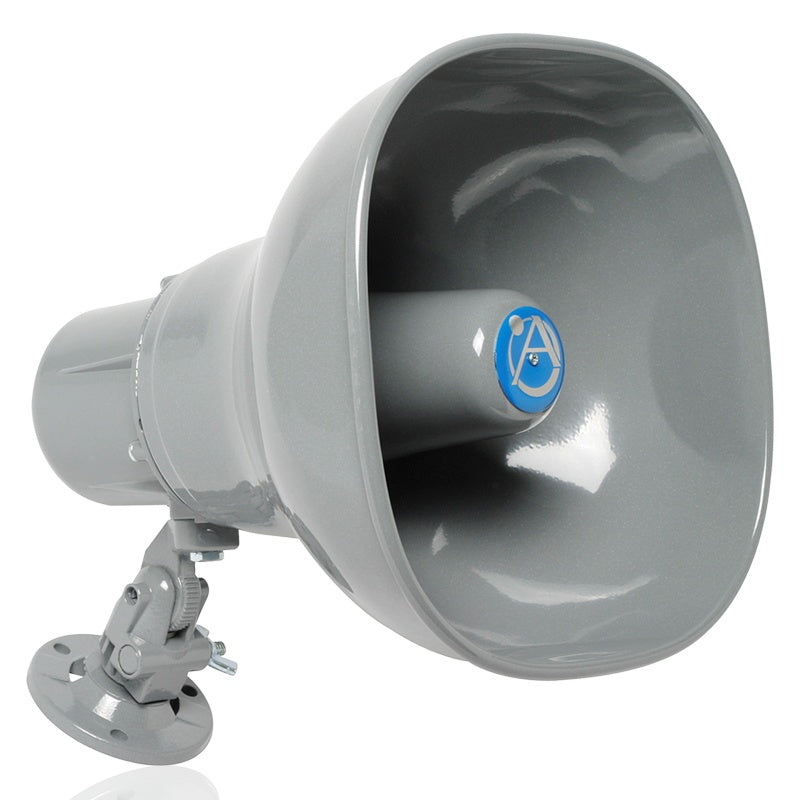

AtlasIED AP-15TUC Emergency Horn Loudspeaker With Line Supervision
AtlasIED AP-15TUC Emergency Horn Loudspeaker With Line Supervision
SoundPro Item: 13477 | Part Number: AP-15TUC
Usually ships in 5-7 business days
- UL1480 And California State Fire Marshal Title 19 Certified For Life-Safety Signaling
- Double Re-Entrant Horn Design Maximizes Intelligibility In Reverberant Environments
- Built-In Vari-Tap Transformer Enables Selectable Power Taps On 70V Distributed Systems
- Five-Microfarad Capacitor Provides On-Board Line Supervision Without External Components
- Omni-Purpose Bracket Supports Surface And I-Beam Strap Mounting With Single Adjustment
- Vandal-Resistant Weatherproof Construction For Indoor And Outdoor Installation
- US-Made With Grey Epoxy-Finished Metal Components For Long-Term Service Reliability
The AtlasIED AP-15TUC is engineered for life-safety and mass notification applications where intelligibility and code compliance are non-negotiable. Systems integrators deploying paging, intercommunication, or fire protective signaling in commercial, industrial, or institutional facilities will find this speaker purpose-built for the task, carrying UL1480 certification and California State Fire Marshal Title 19 listing out of the box.
The double re-entrant horn topology delivers high-efficiency voice reproduction across a wide coverage angle, making it the appropriate choice for reverberant corridors, warehouses, stairwells, and exterior mounting positions where conventional cone drivers fall short. The built-in Vari-Tap transformer provides selectable power taps for straightforward 25V and 70V distributed audio system design without external components, and the 5 mfd capacitor enables line supervision compliance directly at the device.
US-manufactured with weather-resistant metal and ABS construction finished in grey epoxy, the AP-15TUC is built for long-term reliability in demanding environments. The included Omni-Purpose mounting bracket supports both conventional surface mounting and strap mounting on I-beams or pillars, allowing precise vertical and horizontal positioning with a single adjustment — a practical advantage during large-scale system installations.
