AtlasIED AP-S15HRIP Half-Rack IP Addressable Power Distribution Unit
AtlasIED AP-S15HRIP Half-Rack IP Addressable Power Distribution Unit
SoundPro Item: 124363 | Part Number: AP-S15HRIP
Usually ships in 5-7 business days

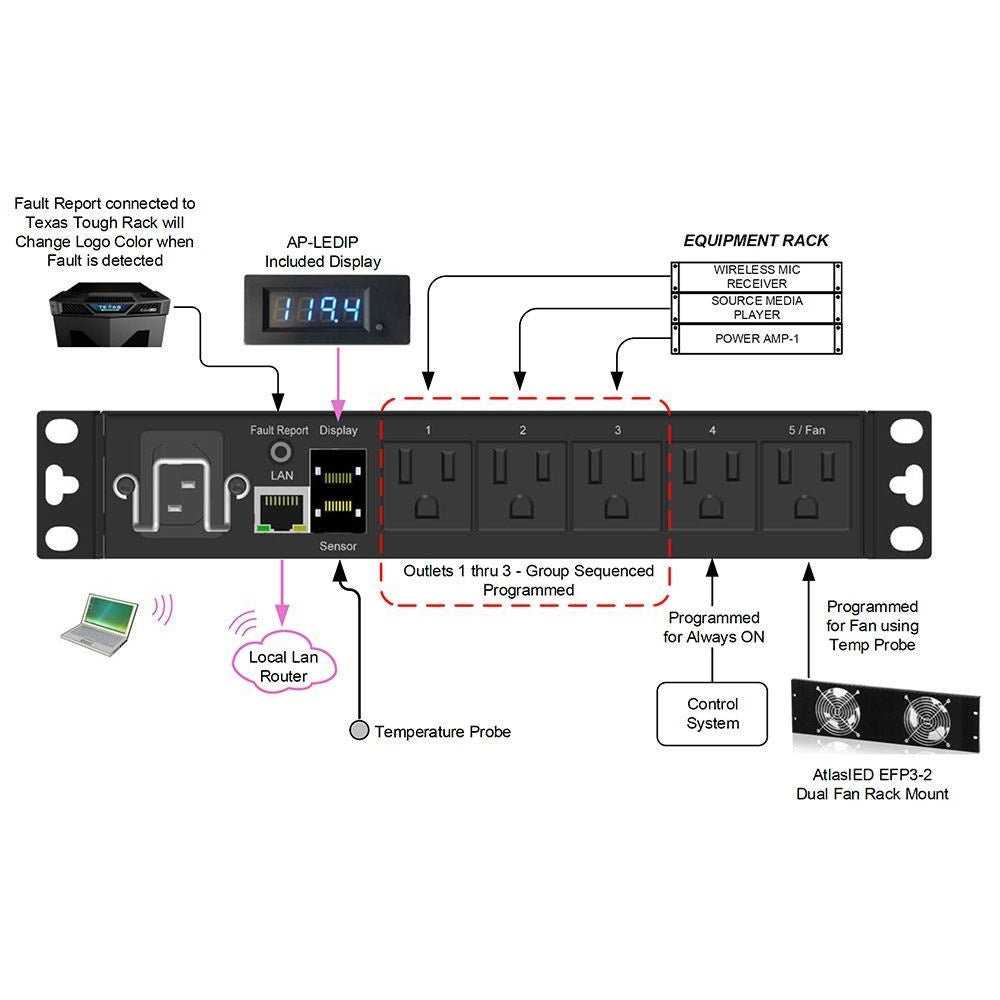

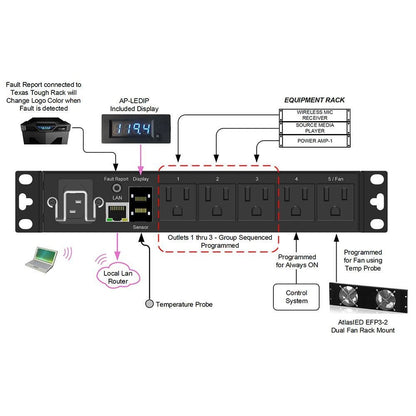

- Per-Outlet Scheduling Enables Automated 24/7 System Power Sequencing
- Web-Based UI Provides Remote Monitoring And Control Over LAN
- Auto Ping Reset Automatically Power-Cycles Unresponsive Network Devices

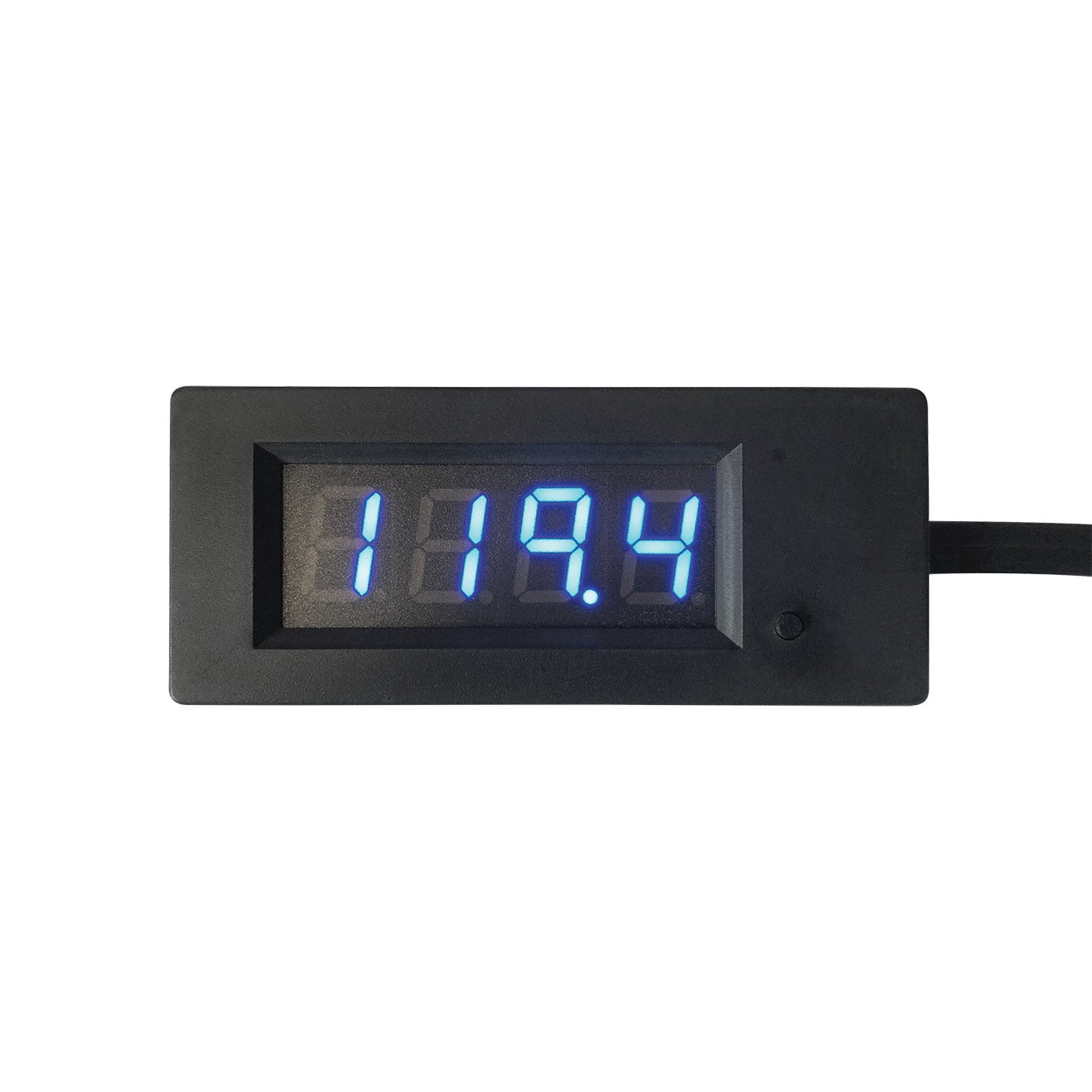

- Included AP-LEDIP Panel Displays Live Power And Climate Data On The Rack Face
- RFI Noise Filtering Protects Audio And Video Signals From AC Line Interference
- Configurable Alarms And Fault Log Support Proactive System Maintenance
- Password Protection And Outlet-Level Lock-Out Prevent Unauthorized Switching
The AtlasIED AP-S15HRIP is engineered for AV integrators and system designers who need granular, network-based control over AC power distribution in installed rack environments. Its half-rack, 1RU form factor makes it an efficient choice for compact equipment rooms, control rooms, and distributed AV deployments where rack space is at a premium.

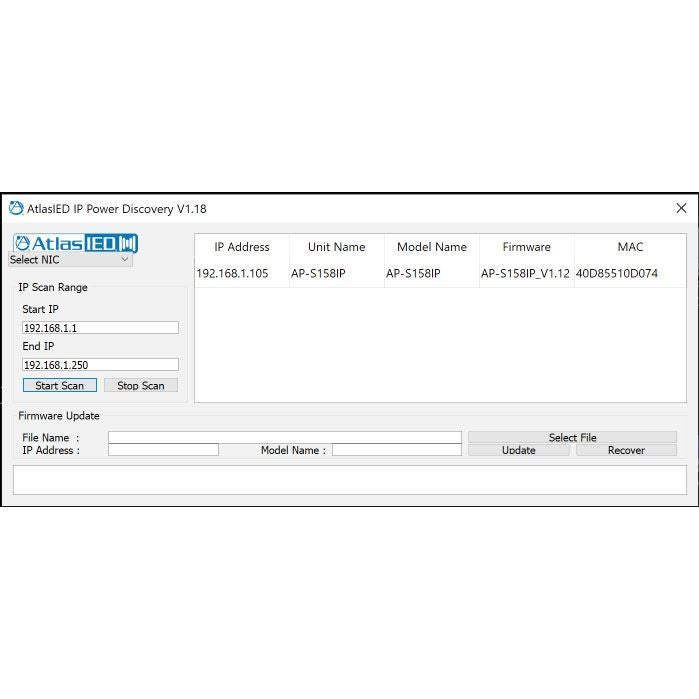

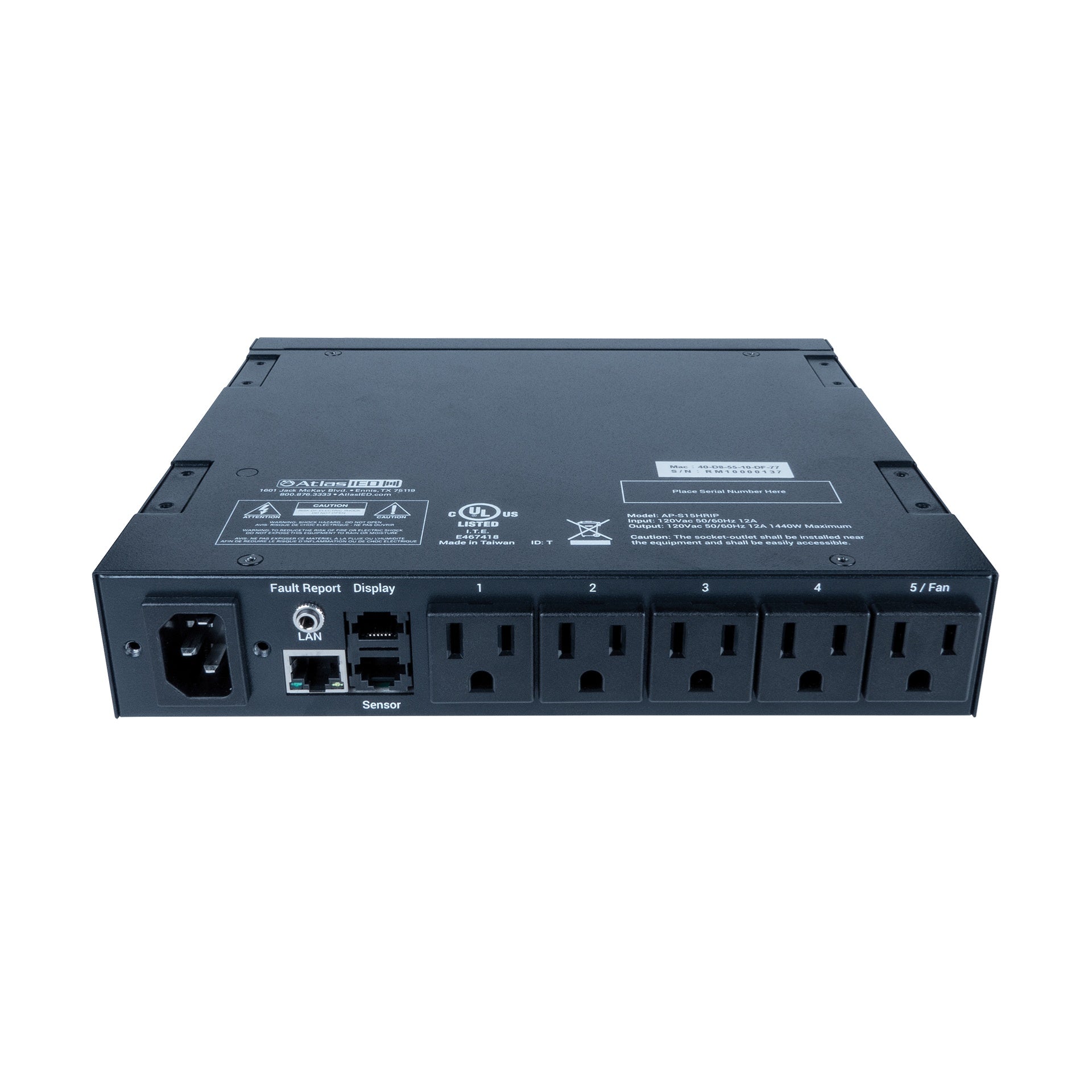

For permanent installs in education, corporate AV, and house-of-worship environments, the AP-S15HRIP delivers the kind of remote management that reduces truck rolls and simplifies commissioning. Five rear-panel switched outlets can be individually named, sequenced, and scheduled on a 24/7 timer — enabling automated system power-up and shutdown without manual intervention. The web-based UI provides real-time visibility into voltage, current, temperature, and humidity, with configurable alarms and a fault log for proactive troubleshooting. The included AP-LEDIP display panel surfaces that data directly on the rack face, removing the need to access discovery software for routine checks.
The auto ping reset function allows the unit to monitor connected network devices and cycle power to restore unresponsive equipment — a critical capability for unattended deployments. RFI noise filtering protects sensitive audio and video signals from interference introduced by nearby transmitters or wireless systems. The removable IEC power cord with retainer bracket lets installers select the appropriate cable length for each installation, and optional rack mount kit PA702-RMK enables integration into a standard 19" rack alongside other AtlasIED half-rack products.
Specifications
