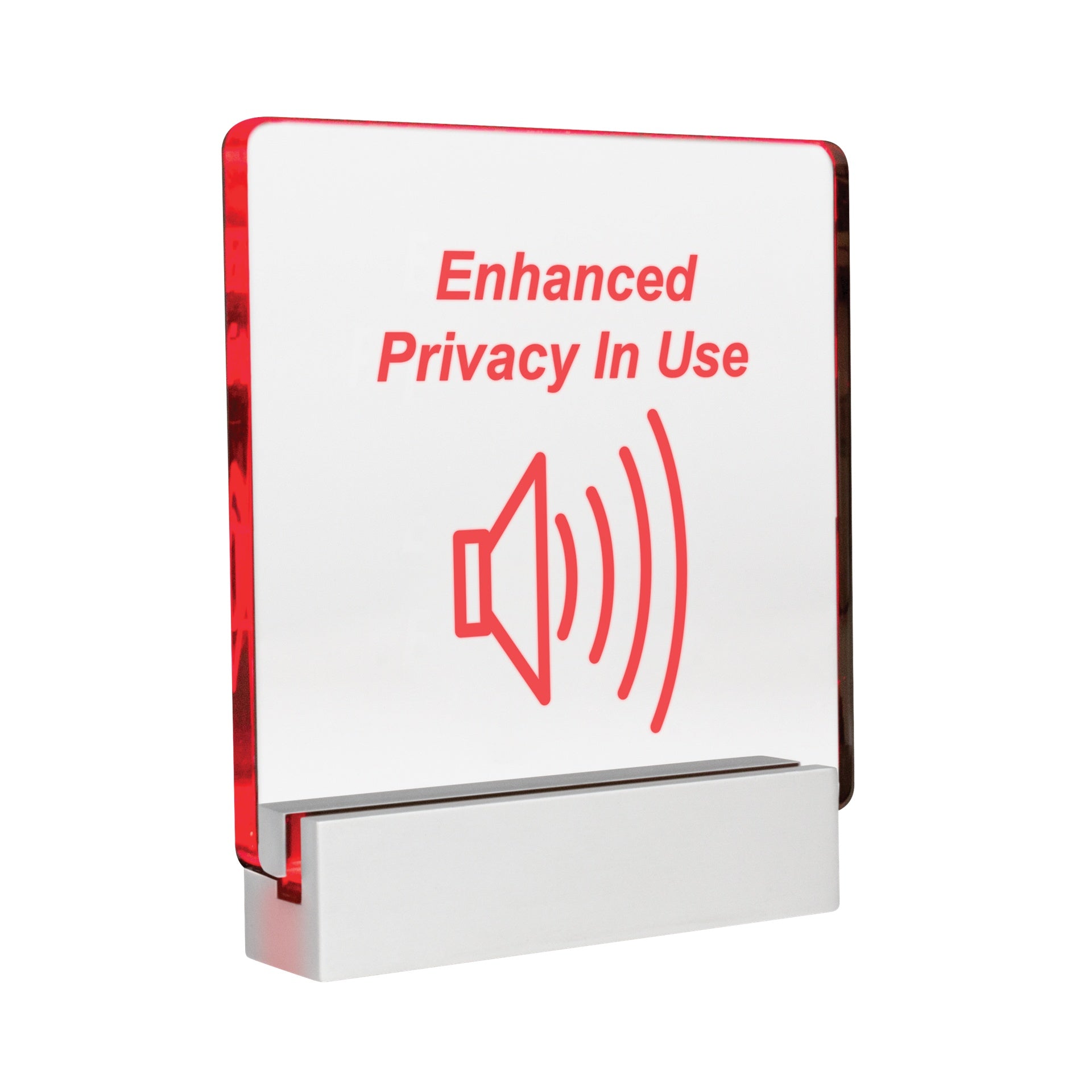

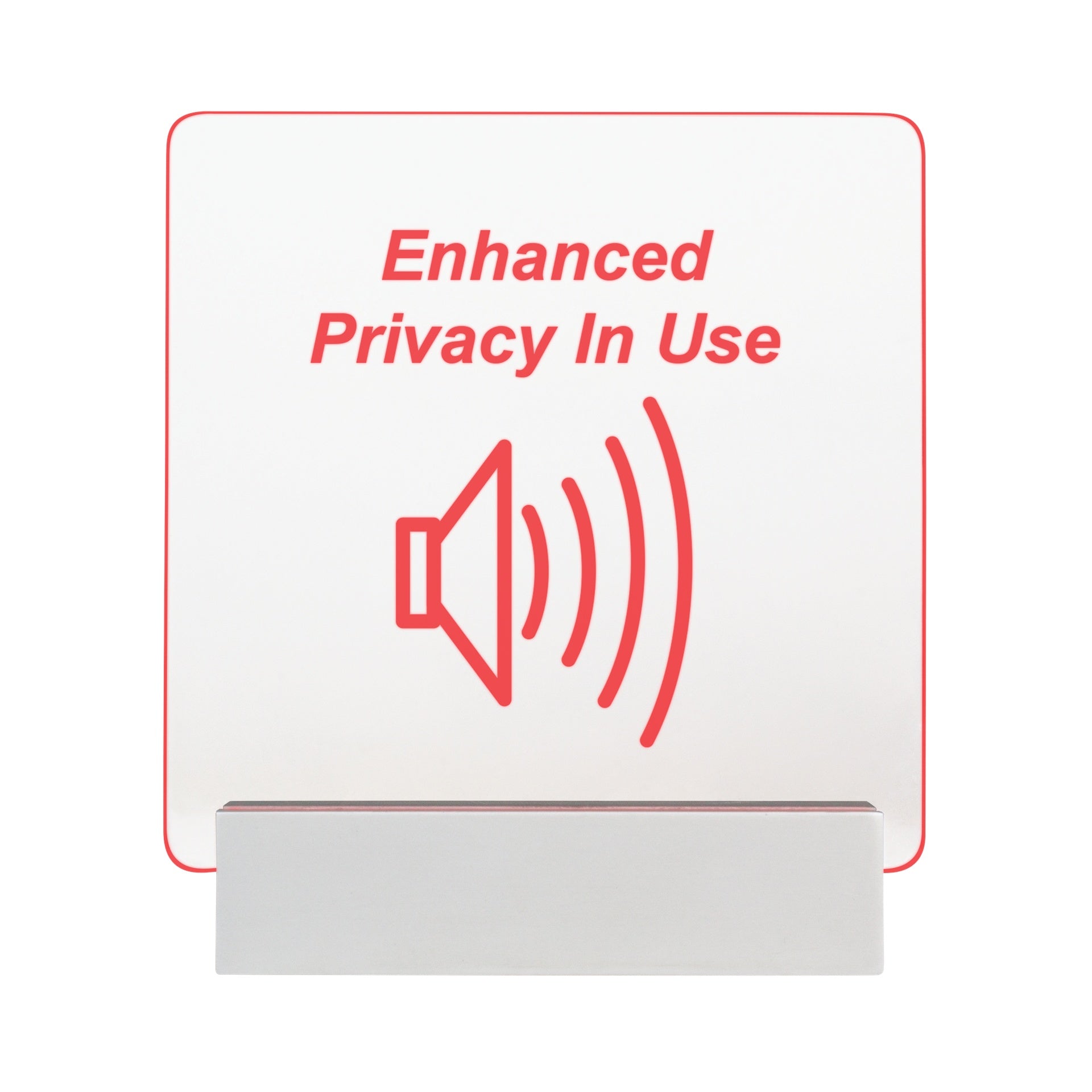

AtlasIED ASP-MG2240S Enhanced Privacy LED Sign for Sound Masking

The AtlasIED ASP-MG2240S is purpose-built for corporate, legal, medical, and government environments where occupant awareness of sound masking is required. Installed alongside the ASP-MG2240 Amplified Sound Masking System, this LED sign provides a clear visual cue to building occupants that a sound masking system is actively protecting their conversation — supporting compliance and transparency in privacy-sensitive spaces.

Integration is straightforward for AV installers and systems integrators: a remote CC latching switch connected to the ASP-MG2240 triggers the sign to illuminate and simultaneously engages the preset masking level configured during commissioning. The ASP-MG2240 supports up to two ASP-MG2240S signs wired in parallel, making it practical for dual-entry conference rooms, interview suites, or corridors where signage on multiple sides is needed.

At a low 30mA current draw on a 10V DC supply, the sign adds negligible load to the host system. The slim profile fits cleanly into wall or partition installations without requiring additional raceway depth, making it a clean solution for finish-conscious commercial interiors. The included 36-month warranty reflects AtlasIED's commitment to long-term reliability in installed AV systems.
