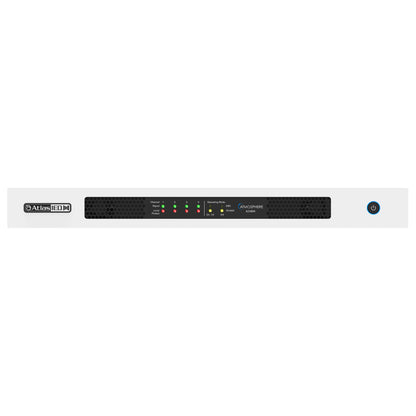

AtlasIED AZA804 Networkable 4-Channel Commercial Power Amplifier
AtlasIED AZA804 Networkable 4-Channel Commercial Power Amplifier
SoundPro Item: 60515 | Part Number: AZA804
Usually ships in 5-7 business days
- Configurable Output Modes Per Channel Pair Support Mixed Speaker Arrays In One Rack Unit
- Class AB Switching Hybrid BASH Topology Balances Efficiency With Full-Bandwidth Fidelity
- Out-Of-The-Box 70V Operation Eliminates Configuration Requirements For Standard Installs
- Web Interface Enables Remote Output Mode Changes And System Monitoring
- Optional Dante Accessory Card Slot Adds AoIP Capability Without External Hardware
- Four Balanced Inputs With High Input Impedance Maintain Signal Integrity From Processors
The AtlasIED AZA804 is a 1U, four-channel power amplifier engineered for installed commercial audio systems built around the AtlasIED Atmosphere ecosystem. AV integrators deploying distributed audio in corporate, hospitality, education, or house-of-worship environments gain a flexible amplification platform that pairs directly with AZM series processors without requiring additional configuration or network setup to begin operating in four-channel 70V mode.
Output flexibility is a core strength of the AZA804. Channel pairs can be independently configured for 70V, 100V, 8Ω, or 4Ω loads, allowing a single rack unit to address mixed speaker arrays within the same installation. Paired AZA804 units can be bridged to deliver maximum power allocation, scaling output to match demanding zone requirements. The Class AB switching hybrid BASH topology maintains efficiency without sacrificing audio fidelity across the full 20Hz–20kHz bandwidth.
For integrators requiring networked audio transport, an optional accessory card slot accepts the DPA-DAC4 four-channel Dante receiver, adding AoIP capability without external conversion hardware. The onboard web interface provides remote output mode switching and system monitoring, reducing the need for on-site adjustments post-installation. A 36-month warranty and auto-switching universal power supply round out a specification set built for professional install confidence.
- Power Output
- 4 x 200-Watts @ 70.7V
- 4 x 200-Watts @ 100V
- 4 x 150-Watts @ 8Ω
- 4 x 100-Watts @ 4Ω
- 2 x 200-Watts @ 70.7V, 2 x 150-Watts @ 8Ω
- 2 x 200-Watts @ 100V, 2 x 100-Watts @ 4Ω
- Amplifier Topology Class AB Switching Hybrid -BASH
- Input Sensitivity 750mV Balanced, 0dBU
- Input Impedance Balanced 40k
- Maximum Input Signal +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante™
- THD1% @ Rated Output
- Frequency Response 20Hz - 20kHz (DSP Filters Set to Flat)
- Signal to Noise Ratio >100dB Below Rated output (A-Weighted)
- Crosstalk 73dB @ 1kHz
- Voltage 110V - 120V & 220V - 240V Auto Switch Over, 50/60Hz
- Rack Units 1
- Dimensions (H x W x D) 1.75 x 19 x 15.5 inches (45 x 483 x 394 mm)
- Weight 13 lbs (5.92kg)
