AtlasIED AZMP8-DW 8-Zone DSP Amplifier With Dante Wall Mount
AtlasIED AZMP8-DW 8-Zone DSP Amplifier With Dante Wall Mount
SoundPro Item: 146041 | Part Number: AZMP8-DW
Usually ships in 5-7 business days
- Amplifier Power Sharing Allows Per-Channel Software Wattage Assignment From 5 To 600W
- Dante Networking Via Brooklyn 3 Card Enables Seamless Multi-Device Audio Distribution

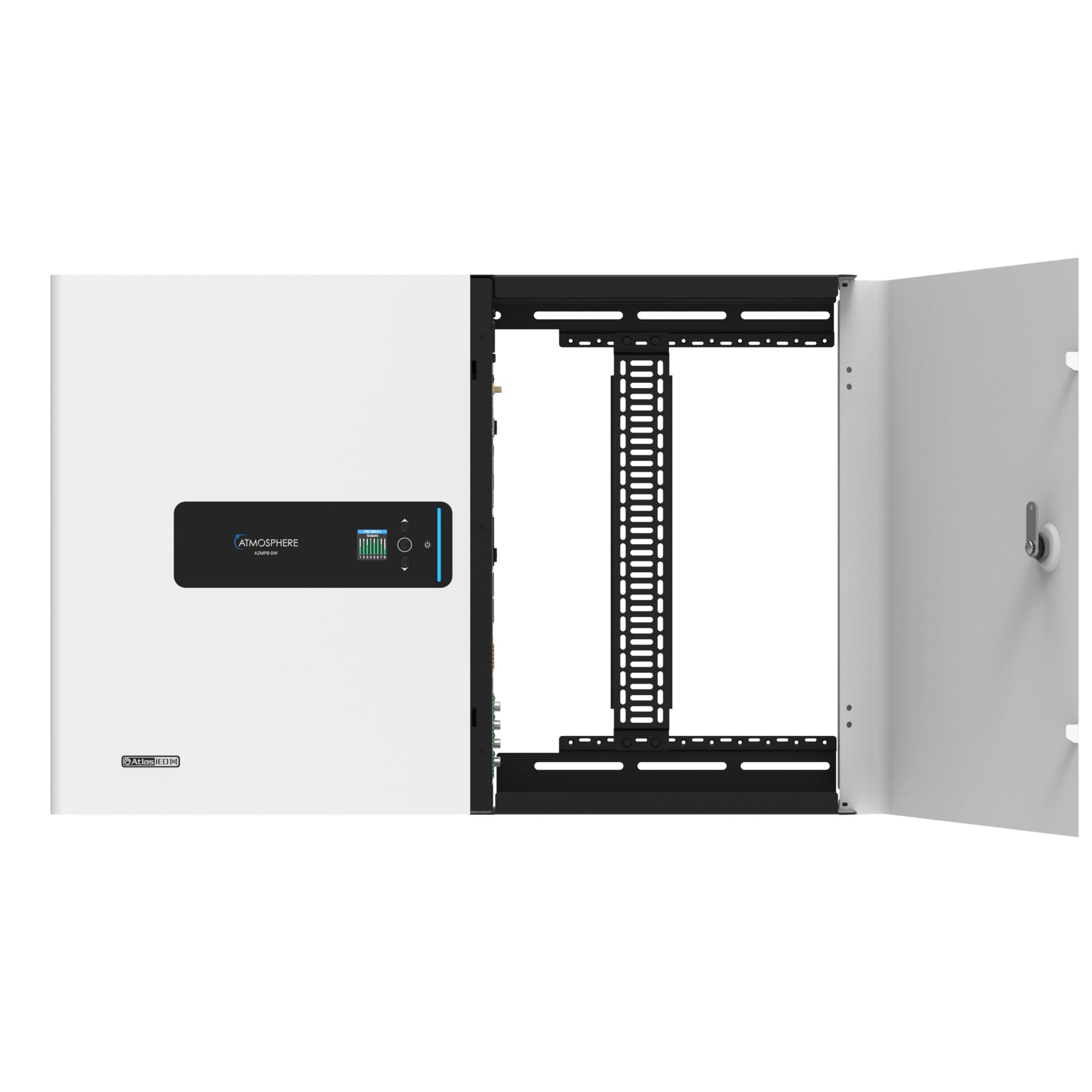

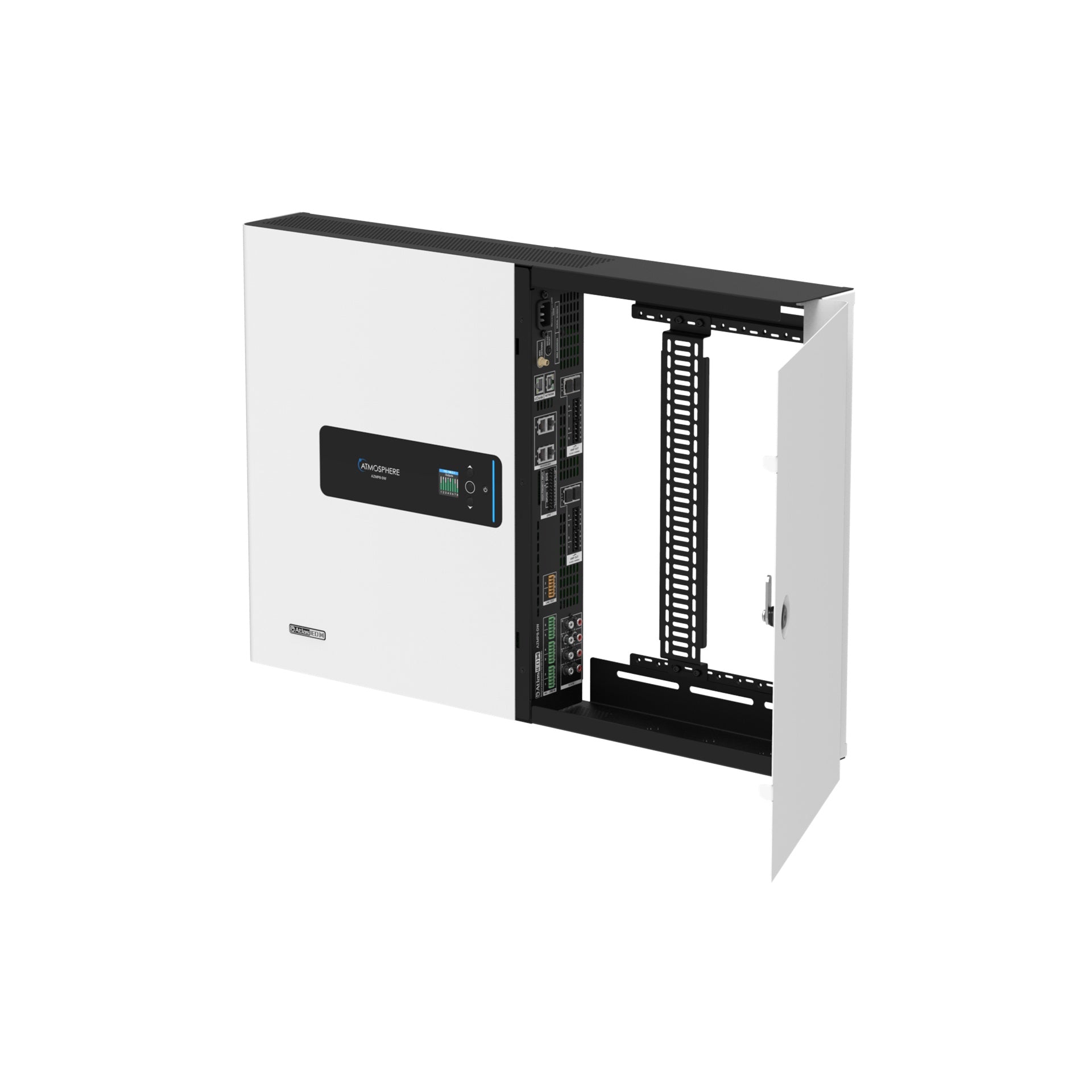

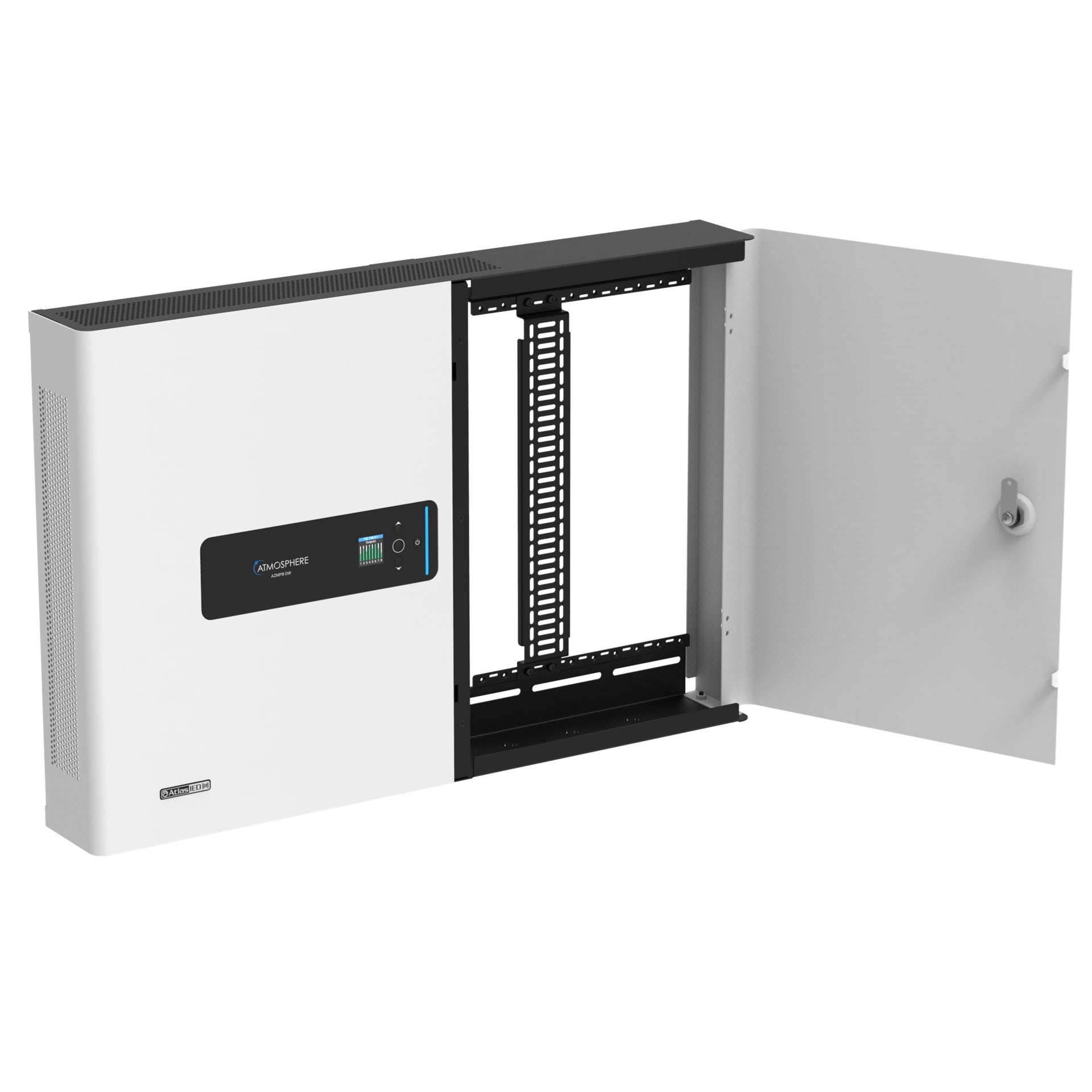

- Wall-Mount Locking Cabinet Eliminates Rack Room Requirement For Commercial Installs
- Built-In Wi-Fi Operates As Access Point Or Client For Flexible Commissioning Access
- Up To 16 Plug-And-Play Accessories Per Unit With Reliable Performance Up To 1000ft Per Port
- Progressive Web App Interface Is Device-Agnostic And Requires No Proprietary Software
- Third-Party Control Support For RTI, Crestron, Extron, And AMX Integration
The AtlasIED AZMP8-DW is engineered for commercial AV integrators who need a complete, rack-free audio control solution for multi-zone installations in corporate, hospitality, retail, education, or house-of-worship environments. The on-wall locking cabinet eliminates traditional rack infrastructure while providing room for peripheral devices like a network switch or music streamer, making it a practical choice for spaces where rack rooms aren't feasible.
At the core of the AZMP8-DW is a powerful DSP engine with amplifier power sharing technology, allowing each of the eight output channels to be software-assigned anywhere from 5W to 600W rather than fixed at a static rating — a critical advantage for avoiding overdesign and tailoring power delivery to actual loudspeaker loads. Dante networking via an onboard Brooklyn 3 card supports 14x8 source and zone channels with full signal processing, plus additional Dante outputs for on-ramping audio into a broader Dante infrastructure. Up to 16 Atmosphere wall plate accessories across four ports extend control, remote audio input, and ambient noise sensing up to 1,000 feet per port.
Programming is handled through a Progressive Web App interface accessible via Ethernet or built-in Wi-Fi, making commissioning and adjustment straightforward from any device without proprietary software. Third-party control integration with RTI, Crestron, Extron, and AMX ensures the AZMP8-DW fits into existing control ecosystems. The built-in message player, bell scheduler, room combine, sound masking suite, auto noise compensation, and GPIO round out a feature set that scales from simple BGM systems to complex paging and scheduling environments.
Downloads
Downloads
- Atmosphere Signal Processor Data Sheet
- Atmosphere AZMP8 DW Installation Guide
- Atmosphere Quick Start Guide (5 pages)
- Atmosphere Dante Getting Started
- Atmosphere Cloud User Guide
- Atmosphere Platform Firmware Release Notes
- Atmosphere Cloud Updating Firmware Remotely
- AZM4 AZM8 3rd Party Control Instruction Manual (7 pages)
Specifications
