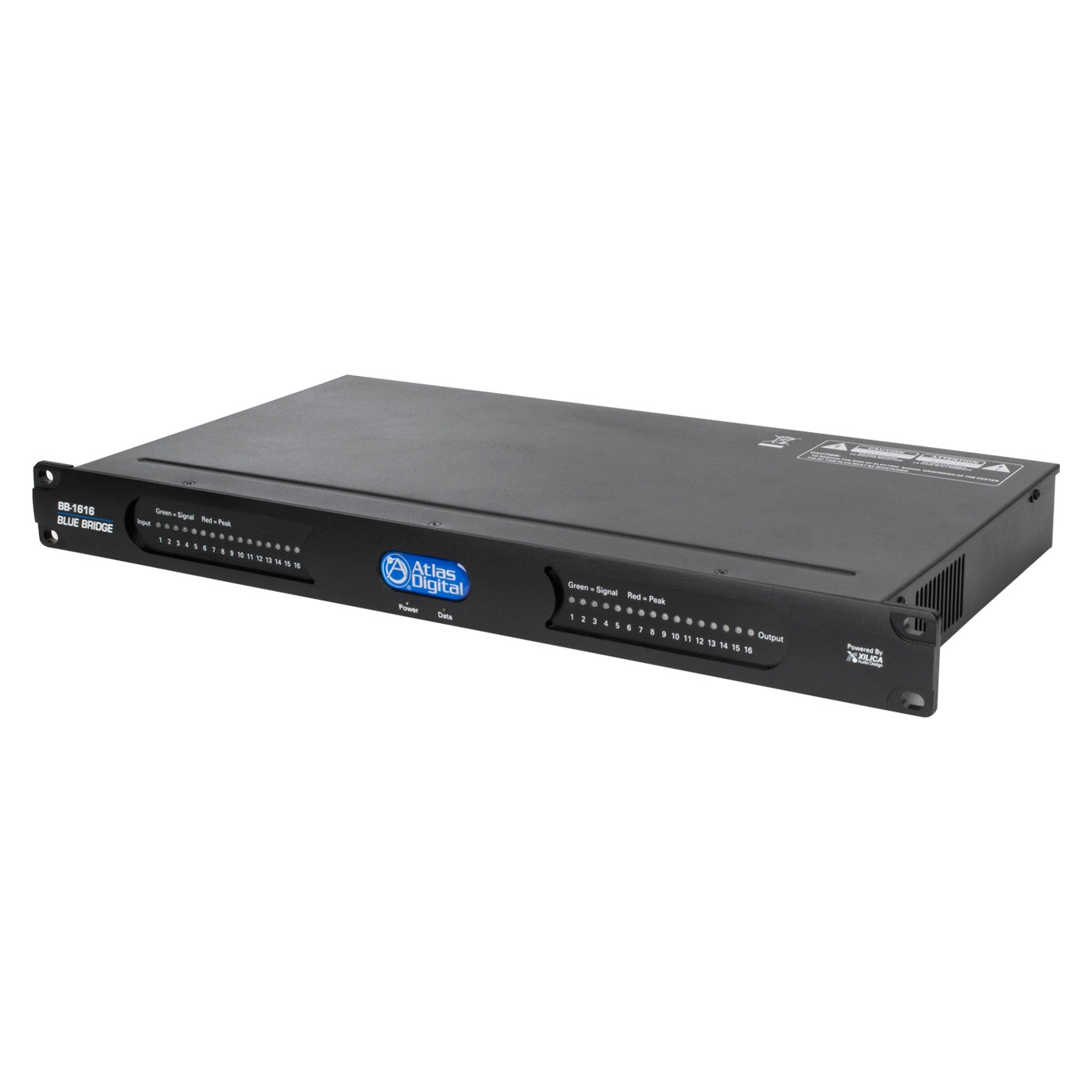

AtlasIED BlueBridge Networkable DSP Device With TCP/IP Control | Standard | 16 Input x 16 Output
AtlasIED BlueBridge Networkable DSP Device With TCP/IP Control | Standard | 16 Input x 16 Output
SoundPro Item: 13861 | Part Number: BB-1616
Usually ships in 5-7 business days
- Open Architecture Drag-And-Drop Software Enables Fast, Flexible System Design
- THAT Corp Mic Preamps With 24-Bit Converters Achieve An Ultra-Low Noise Floor
- 40-Bit Floating Point DSP Engine Prevents Digital Clipping In Complex Designs
- Ethernet Connectivity With TCP/IP Control Supports Third-Party System Integration
- Auto-Recognition On Network Simplifies Multi-Unit Installation And Commissioning
- BluePanel Software Allows Custom End-User Interfaces Via Wall Controllers Or PC
- Four Logic Inputs And Outputs Expand Control Routing And System Automation
The AtlasIED BlueBridge family is purpose-built for AV integrators who need a scalable, networkable DSP platform across demanding installed environments — from house of worship and courtrooms to conference rooms, multi-zone restaurants, and campus paging systems. Each unit auto-recognizes on the network during setup, making commissioning straightforward without requiring a dedicated control network in applications where TCP/IP control is not needed after deployment.
Where BlueBridge separates itself from competing DSP platforms is its 40-bit floating point processing engine, which eliminates digital clipping even under complex algorithm loads, and its THAT Corp microphone preamps paired with 24-bit converters — yielding an ultra-low noise floor suited to speech intelligibility-critical spaces. The open architecture drag-and-drop software environment gives system designers full control without proprietary programming lock-in, and the BluePanel interface lets integrators build end-user control screens accessible via networked computers or programmed wall controllers like the BB-TOUCH7 touch panel.
The processing module library covers the full range of installed audio signal management needs: gain-sharing and gating auto-mixers for multi-mic conferencing, parametric and graphic EQ, anti-feedback, Butterworth, Linkwitz-Riley, and Bessel crossovers with slopes from 6 to 48dB per octave, dynamics processing including compression, limiting, and ducking, plus signal generators for system verification. Pre-configured design templates from AtlasIED's BlueBridge training program provide certified integrators with validated starting points for common deployment types, reducing design time on repeat project categories.
Specifications
