AtlasIED BB-EB1616DT BlueBridge 16x16 Dante Expansion I/O Box
AtlasIED BB-EB1616DT BlueBridge 16x16 Dante Expansion I/O Box
SoundPro Item: 13870 | Part Number: BB-EB1616DT
Usually ships in 5-7 business days
- THAT Corp Microphone Preamps Deliver Premium Analog Front-End Performance
- 40-Bit Floating DSP Engine Maintains Headroom Across Complex Signal Chains
- 48V Phantom Power Supports Condenser Microphones On Any Input
- Dual Dante RJ-45 Ports Enable Redundant Network Audio Routing
- Selectable Mic/Line Inputs Provide Flexible Source Compatibility
- Dual-Color Per-Channel Signal LEDs Allow Fast Visual Monitoring
- Full BlueBridge Software Integration For System-Wide Parameter Control

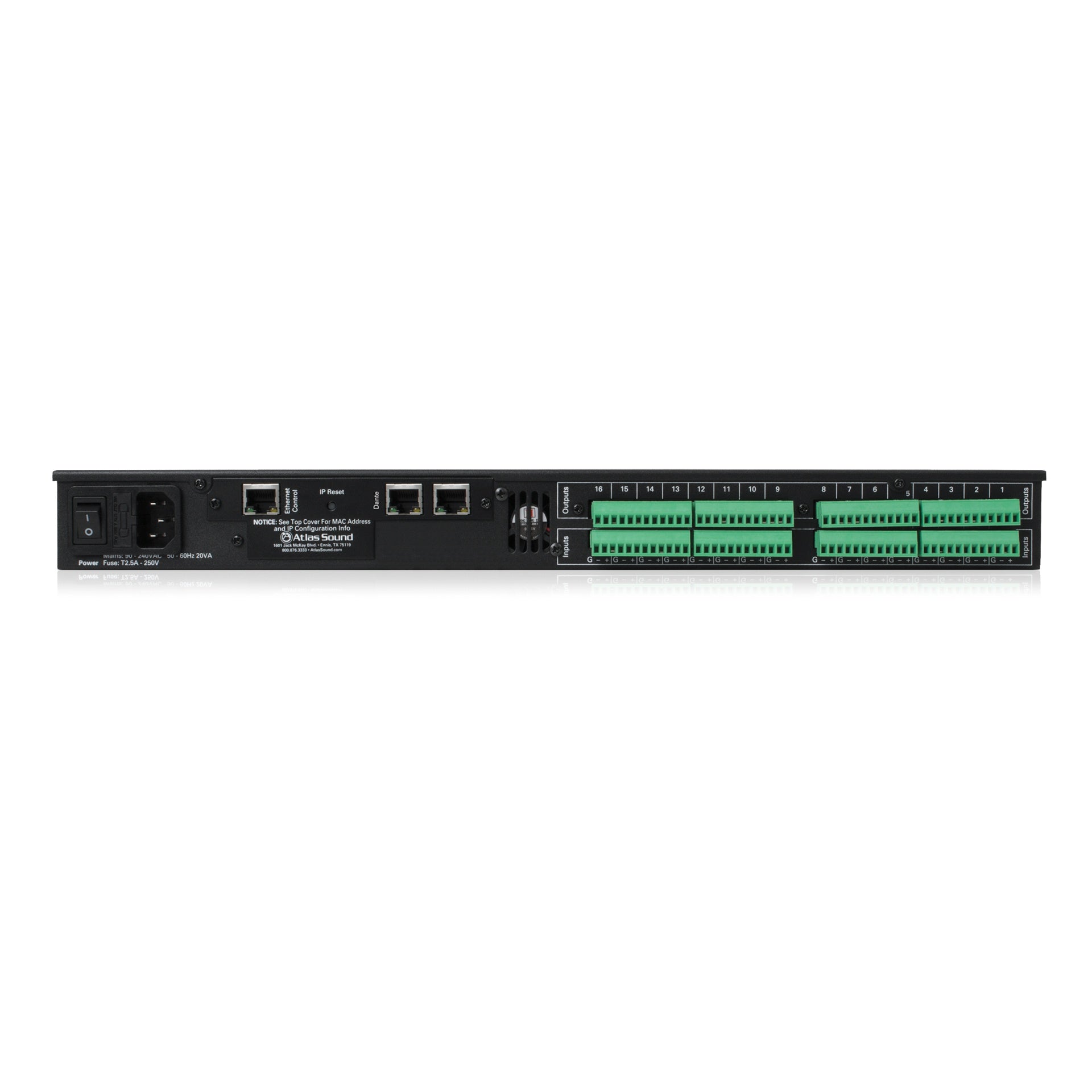

The AtlasIED BB-EB1616DT is a single-rackspace Dante-enabled I/O box built for systems integrators and live production engineers who need scalable, network-distributed audio routing. Whether deployed as an expansion module within an existing BlueBridge DSP ecosystem or operated independently as a Dante digital snake, it delivers 16 balanced mic/line inputs and 16 balanced line outputs over Euro Block/Phoenix connectors alongside dual RJ-45 Dante ports and a dedicated RJ-45 network control port.

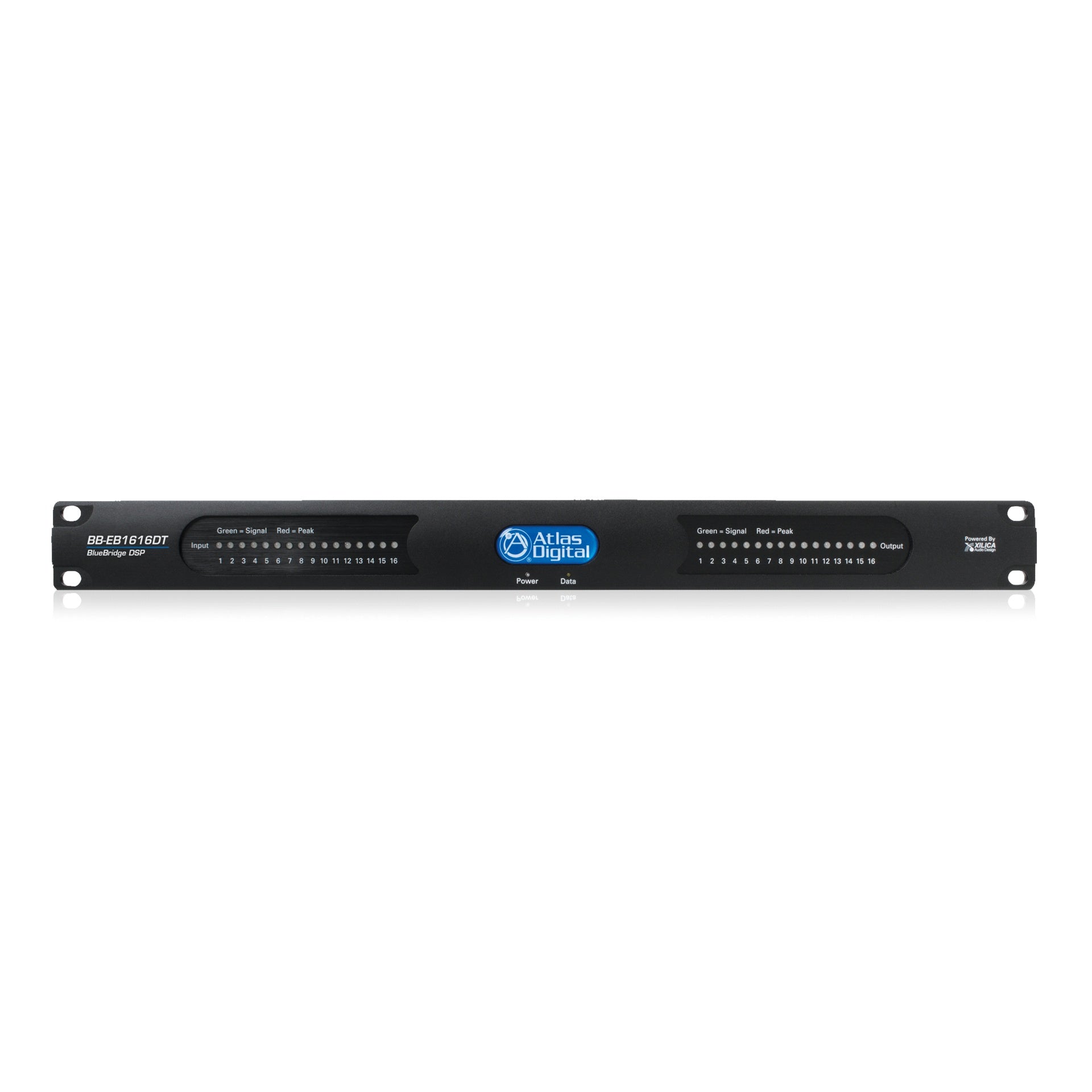

Front-panel dual-color signal LEDs per channel, power status indicators, and data LEDs give engineers at-a-glance system feedback without additional metering hardware. Input configuration, mutes, analog and digital trim, 48V phantom power, and live level meters are all accessible through any BlueBridge software platform, making it compatible across the full BlueBridge product family.
The 40-bit floating-point DSP engine paired with high-performance 24-bit converters and premium THAT Corp microphone preamps positions this unit well above entry-level digital snakes. With a frequency response extending across the full audible range, greater than 100 dB CMRR, and crosstalk better than -100 dB, the BB-EB1616DT meets the signal integrity demands of installed sound, broadcast infrastructure, and touring rigs running Dante-based networks.
