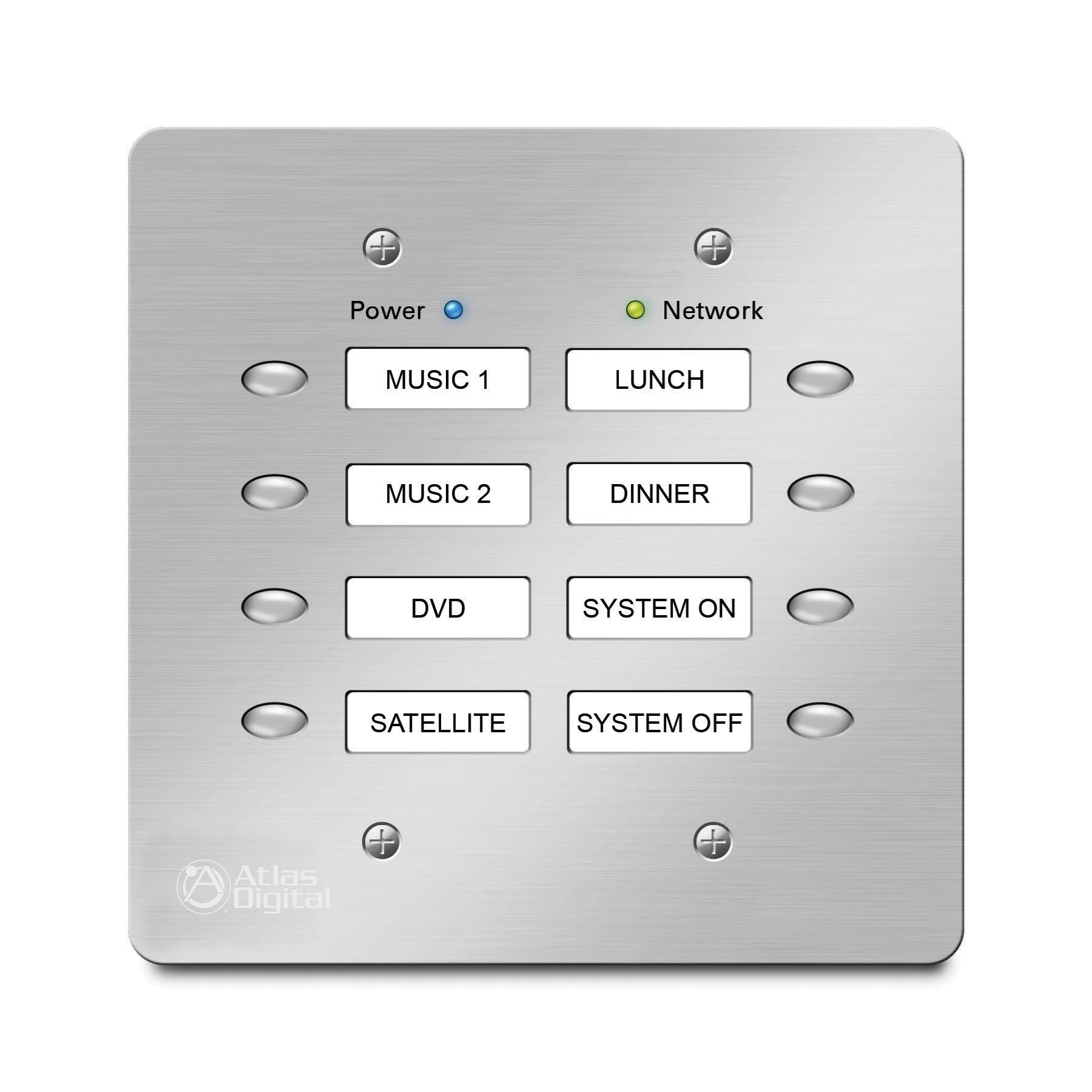

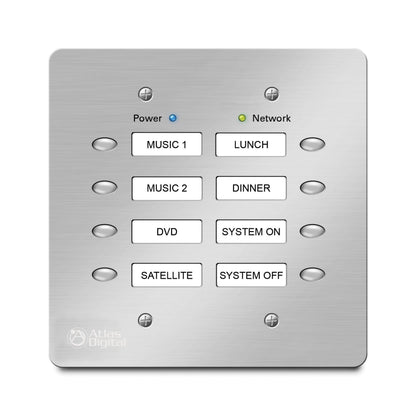

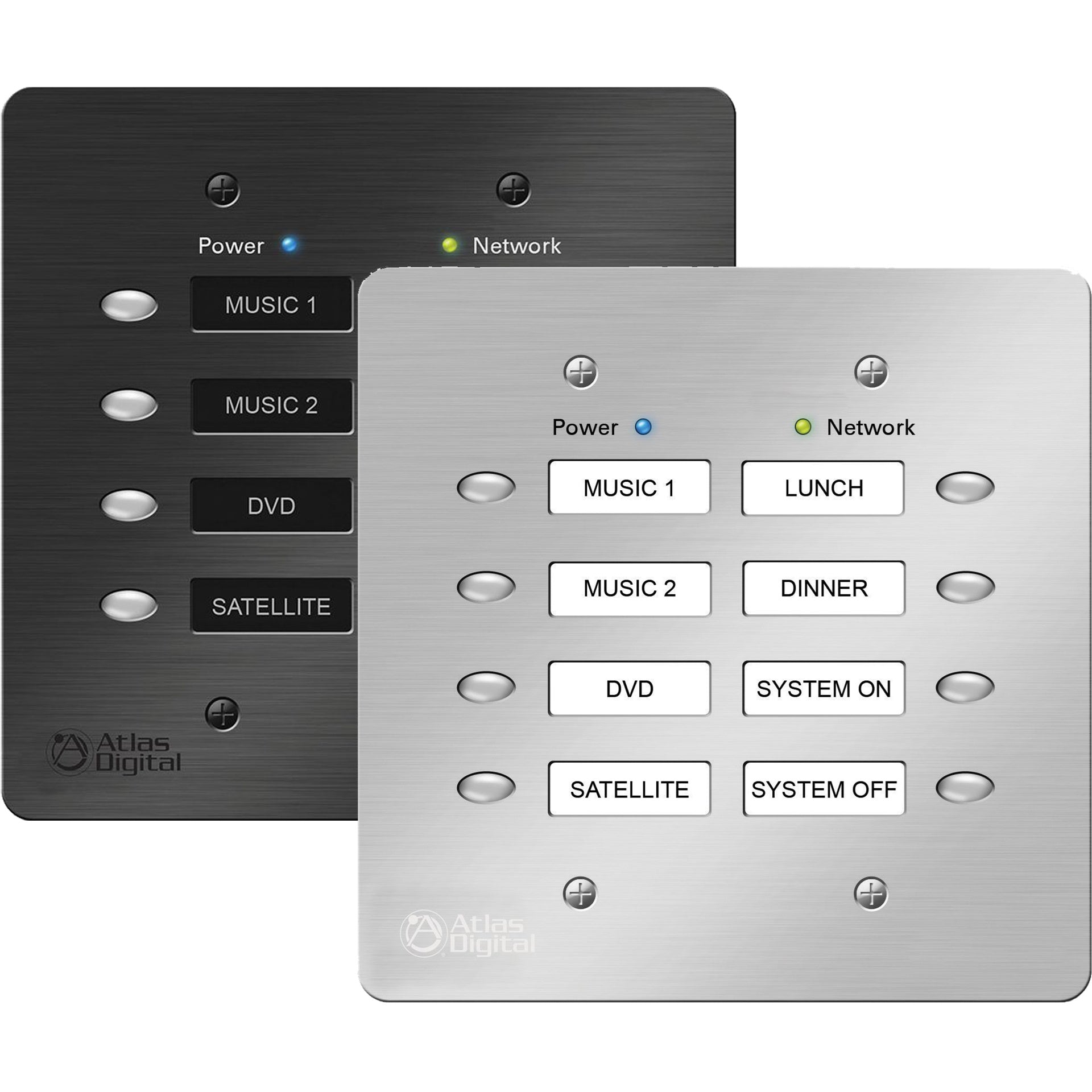

AtlasIED BlueBridge 8-Button Wall Controller For DSP Control | White
AtlasIED BlueBridge 8-Button Wall Controller For DSP Control | White
SoundPro Item: 13890 | Part Number: BBWP-S8W
Usually ships in 5-7 business days
- Stackable Button Actions Allow Multiple DSP Functions Assigned To A Single Control
- PoE Or 5V DC Power Flexibility Simplifies Installation Wiring
- Eight Labeled Button Slots With Protective Plastic Covers For Clean End-User Interface
- Power And Network Status Indicator LEDs Enable Fast On-Site Diagnostics
- RJ45 Ethernet Connectivity Integrates Directly Into Standard Network Infrastructure
- Aluminum Front Panel Provides Durable, Professional Finish For Client-Facing Spaces
- IP Reset Switch Allows Fast Controller Recovery Without System Downtime
The AtlasIED BlueBridge 8-Button Wall Controller is designed for installed AV environments where distributed DSP control needs to be accessible at the room level. Integrators deploying BlueBridge DSP systems can mount this controller in any standard 2-gang back box, connecting it via RJ45 to the network and powering it through PoE or a 5V DC supply — no additional wiring infrastructure required beyond a standard data run.
Each of the eight buttons is individually configurable through BlueBridge Designer software, supporting preset recall, matrix connect, mute toggling, and level assignments. Multiple actions can be stacked to a single button press, reducing the number of controls end users need to interact with. This makes the controller well-suited for conference rooms, classrooms, houses of worship, and any installed application where non-technical users require simplified, reliable access to DSP functions.
The aluminum front panel and labeled button slots with protective plastic covers give the unit a finished, professional appearance appropriate for client-facing installations. Power and network status LEDs provide at-a-glance confirmation of system connectivity, reducing troubleshooting time during commissioning and service calls.
