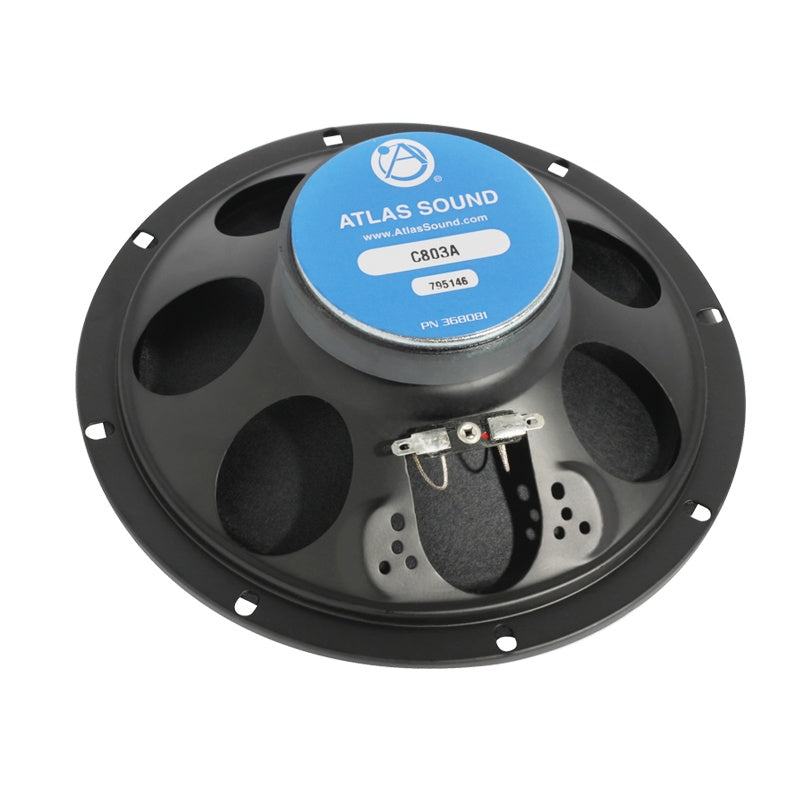

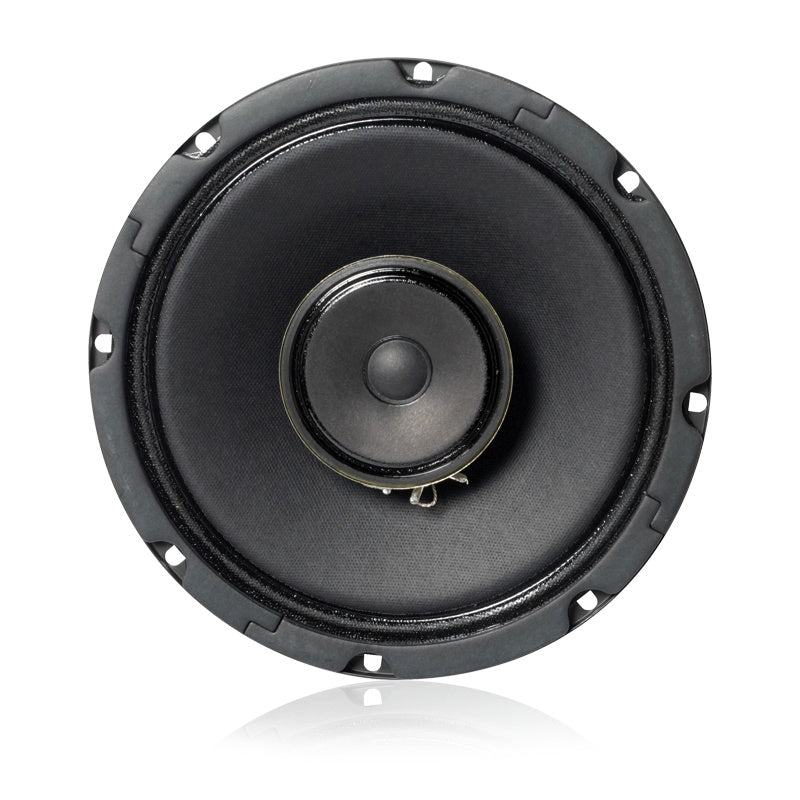

AtlasIED C803AT167 8" In-Ceiling Coaxial Speaker With 70V Transformer
AtlasIED C803AT167 8" In-Ceiling Coaxial Speaker With 70V Transformer
SoundPro Item: 14224 | Part Number: C803AT167
Usually ships in 5-7 business days
- Factory-Installed 70.7V Transformer With Selectable Power Taps Simplifies Constant-Voltage Wiring
- Built-In Crossover Network Couples Woofer And Tweeter Without External Components
- Post-Mounted Tweeter Design Reinforces Assembly Integrity And Improves Ceiling Aesthetics
- Broad Uniform Dispersion Pattern Supports Consistent Coverage Across Large Commercial Spaces
- Compatible With Wide Range Of AtlasIED Baffles And Enclosures For Flexible Install Layouts
- Treated Paper Cone Delivers Reliable Performance In Commercial And Institutional Environments
The AtlasIED C803AT167 is engineered for systems integrators and AV professionals specifying distributed audio in commercial, institutional, and industrial environments. Its factory-installed 70.7V line-matching transformer with selectable 4W, 8W, and 16W taps eliminates field wiring complexity and speeds up large-scale deployments across constant-voltage systems.
The coaxial two-way design pairs a full-size low-frequency reproducer with a post-mounted high-frequency reproducer coupled through a built-in crossover network. The post-mounted tweeter configuration provides structural rigidity and a cleaner aesthetic — an important consideration in architectural installs where ceiling aesthetics matter. A 120° dispersion pattern delivers consistent coverage across large rooms without hot spots, supporting highly intelligible speech reproduction in challenging acoustic environments.
Compatibility with a wide variety of AtlasIED baffles and enclosures gives integrators layout flexibility, while the sealed enclosure recommendation provides a defined path for premium performance applications. The 60-month warranty period reflects the reliability standard expected in commercial audio infrastructure, making the C803AT167 a defensible long-term specification for installed sound contractors.
Specifications
