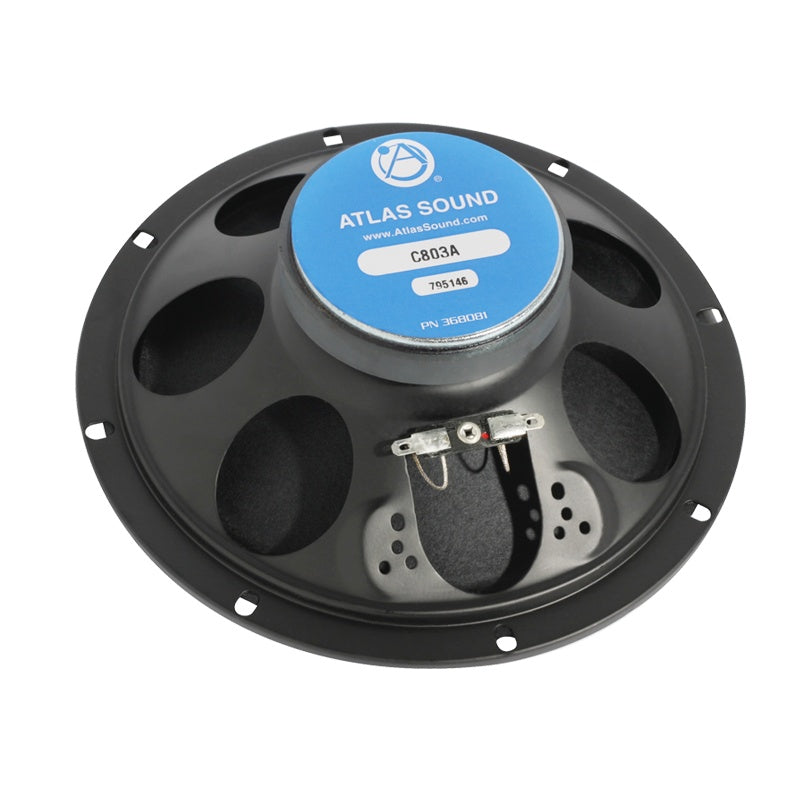

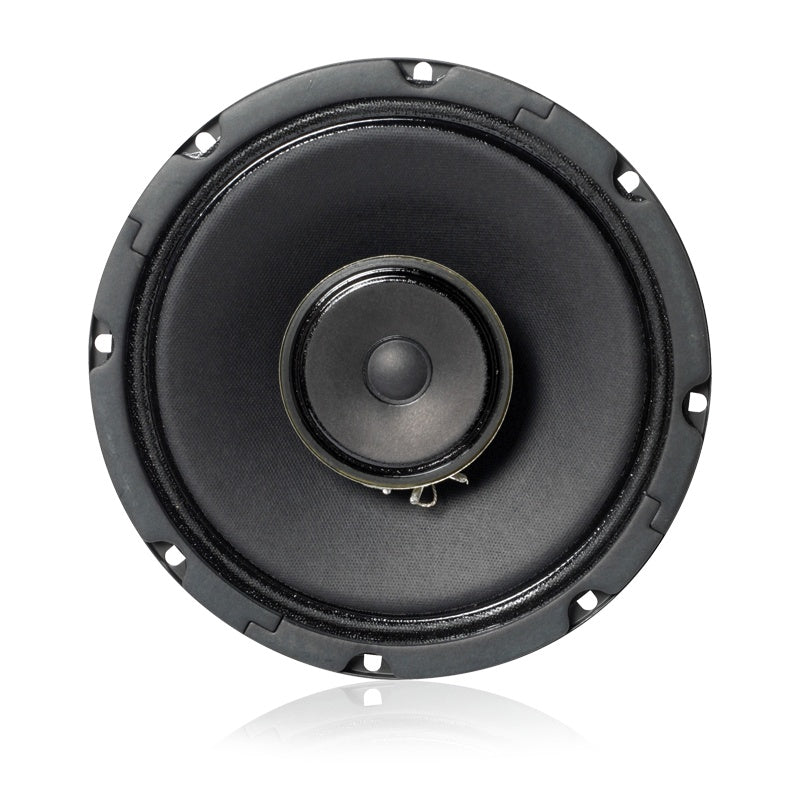

AtlasIED C803AT47 8" In-Ceiling Coaxial Speaker With 70V Transformer
AtlasIED C803AT47 8" In-Ceiling Coaxial Speaker With 70V Transformer
SoundPro Item: 14225 | Part Number: C803AT47
Usually ships in 5-7 business days
- Factory-Installed 70.7V Transformer With Selectable Taps Simplifies Multi-Zone Distributed Audio Wiring
- Post-Mounted Tweeter Design Adds Structural Rigidity And A Clean Finished-Ceiling Appearance
- Built-In Crossover Network Couples Woofer And Tweeter For Coherent Coaxial Reproduction
- Broad Uniform Dispersion Pattern Supports Wide Coverage In Large Or Irregular Spaces
- Dual UL Certification Meets Plenum And Fire-Rated Ceiling Installation Code Requirements
- Compatible With Wide Range Of AtlasIED Baffles And Enclosures For Flexible System Design
The AtlasIED C803AT47 is engineered for integrators and systems contractors deploying 70V distributed audio in commercial, industrial, and institutional environments. Its factory-installed 70.7V transformer with selectable 0.5, 1, 2, and 4-watt taps eliminates the need for external transformer accessories and simplifies multi-zone ceiling installations where consistent SPL coverage is a priority.
The coaxial driver configuration pairs a full-size low-frequency cone with a post-mounted high-frequency reproducer, coupled through a built-in crossover network. The post-mounted tweeter design adds mechanical rigidity to the assembly while maintaining a clean aesthetic suited to finished ceiling environments. A broad, uniform 120° dispersion pattern supports wide coverage in corridors, classrooms, retail spaces, and houses of worship where intelligibility across the listening area is critical.
UL certification to both UL1480A and UL2043 satisfies fire-rated plenum requirements, making this speaker code-compliant for above-ceiling installations. With a 60-month warranty and compatibility with a wide range of AtlasIED baffles and enclosures, the C803AT47 is a reliable long-term specification for integrators building scalable distributed audio systems.
Specifications
