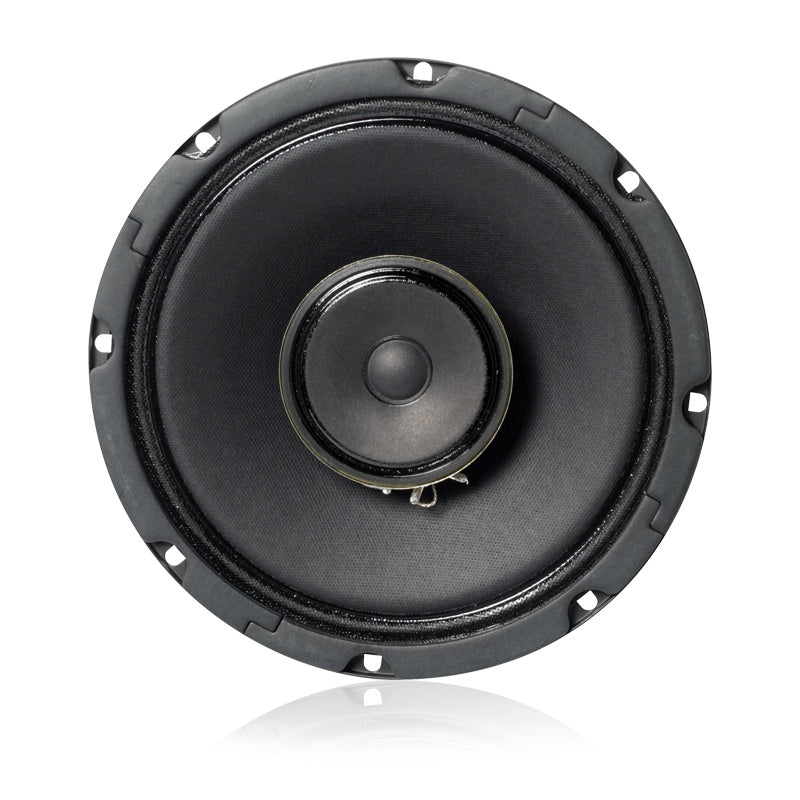

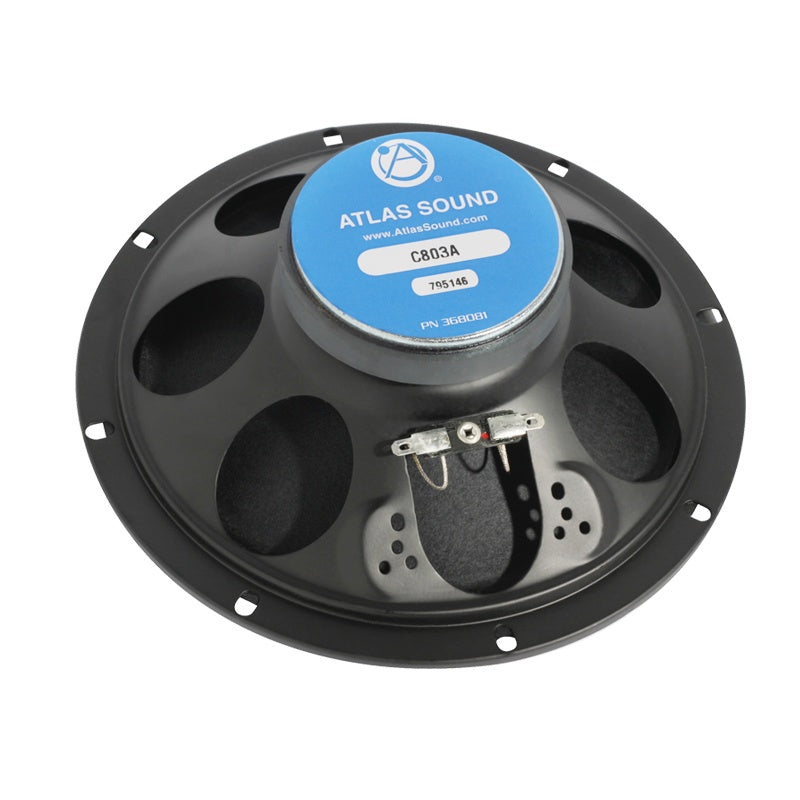

AtlasIED C803AT70 8" In-Ceiling Coaxial Speaker With 70V Transformer
AtlasIED C803AT70 8" In-Ceiling Coaxial Speaker With 70V Transformer
SoundPro Item: 14226 | Part Number: C803AT70
Usually ships in 5-7 business days
- Factory-Installed 70.7V Transformer Supports Direct Constant-Voltage Amplifier Connection
- Selectable Power Taps Allow Per-Speaker Level Matching Across Distributed Zones
- Post-Mounted Tweeter Reinforces Driver Assembly While Improving Visual Appearance
- Built-In Crossover Network Eliminates Need For External Frequency Division Components
- 120° Dispersion Pattern Ensures Broad, Even Coverage For Intelligibility-Critical Spaces
- Treated Paper Cone Construction Tuned For Commercial And Institutional Sound Reproduction
The AtlasIED C803AT70 is engineered for integrators and systems contractors specifying distributed audio in commercial, industrial, and institutional environments. The factory-installed 70.7V transformer eliminates field wiring complexity and supports direct connection to constant-voltage amplifier systems — a critical advantage on multi-zone installs where speaker count and run lengths demand 70V distribution.
At the heart of this loudspeaker is a full-size coaxial design pairing an 8" low-frequency cone with a post-mounted 3" high-frequency reproducer. The post-mounted tweeter contributes structural rigidity to the assembly while keeping the acoustic center aligned for consistent off-axis performance. A built-in crossover network handles frequency division between the two drivers without external components. With a 120° dispersion pattern and a 98dB peak sensitivity rating, this speaker delivers even coverage across wide areas with minimal gap zones — an important consideration for intelligibility in larger rooms.
The C803AT70 is compatible with a wide range of AtlasIED baffles and enclosures, giving specifiers flexibility in ceiling or wall mounting configurations. Selectable power taps at .5, 1, 2, and 5 watts allow precise level matching across zones within a shared amplifier circuit, supporting scalable system design without additional attenuation hardware.
Specifications
