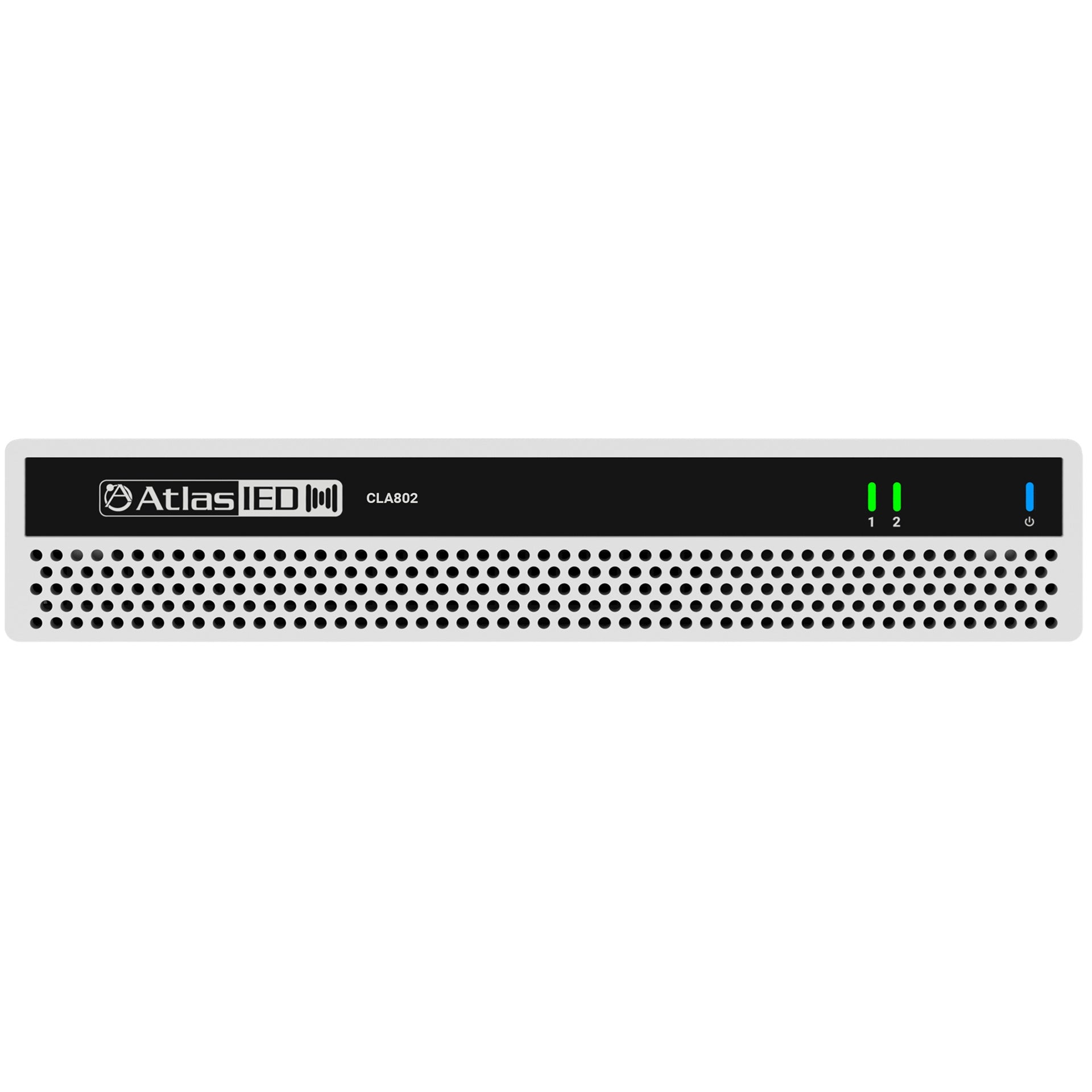

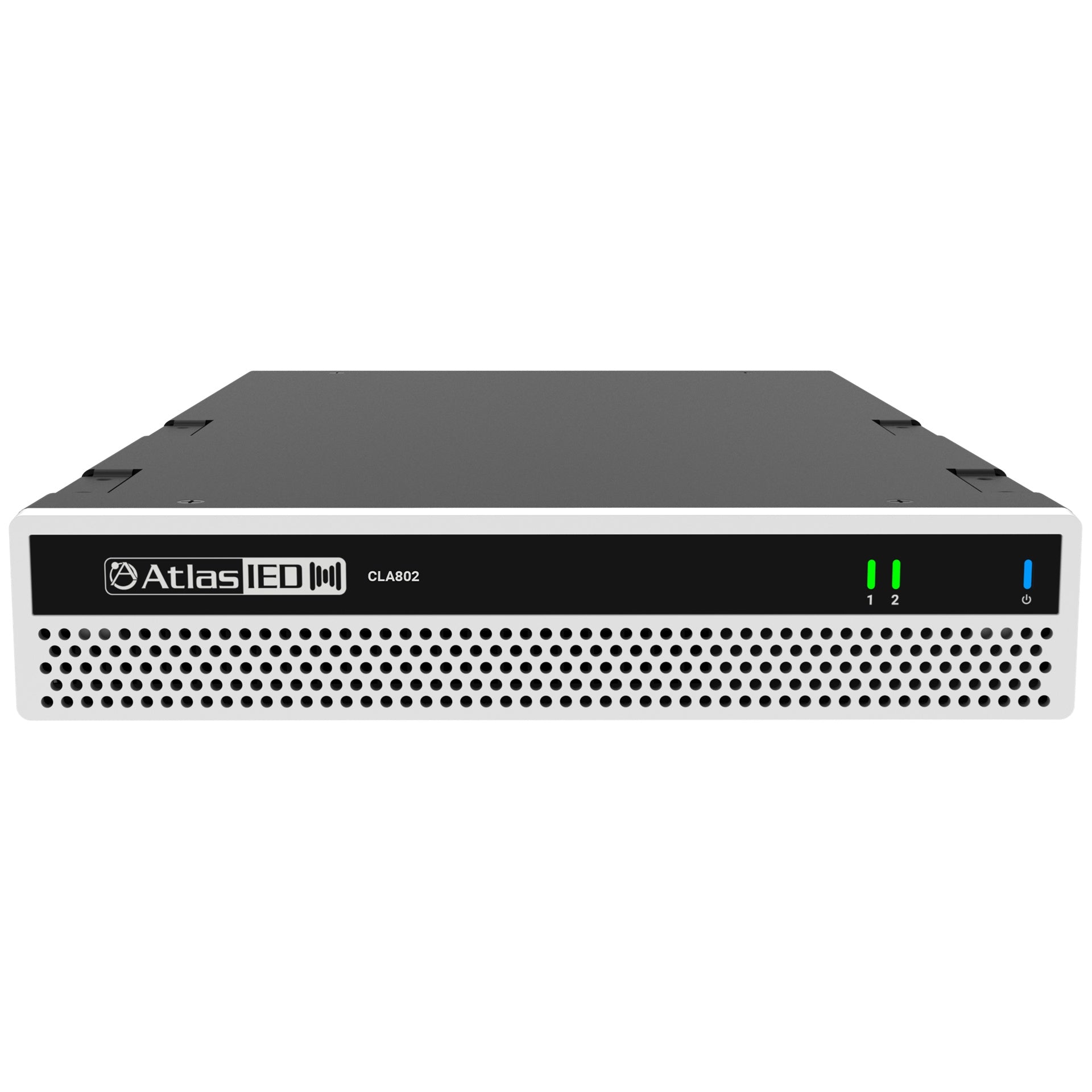

AtlasIED CLA802 Two-Channel 800W Multi-Impedance Power Share Amplifier
AtlasIED CLA802 Two-Channel 800W Multi-Impedance Power Share Amplifier
SoundPro Item: 207872 | Part Number: CLA802
Usually ships in 5-7 business days
- Patent-Pending Power Share Assigns Controllable Power Levels Per Zone Regardless Of Load
- Independent Per-Channel Load Configuration Covers 2Ω, 4Ω, 8Ω, 25V, 70.7V, And 100V
- Class D Topology With Direct-Coupled Thermal Transfer Maintains Stability Across All Loads
- Convection Cooling With On-Demand Variable-Speed Fans Minimizes Acoustic Interference
- Energy Star Compliant Standby Mode Reduces Operating Costs In Always-On Installs

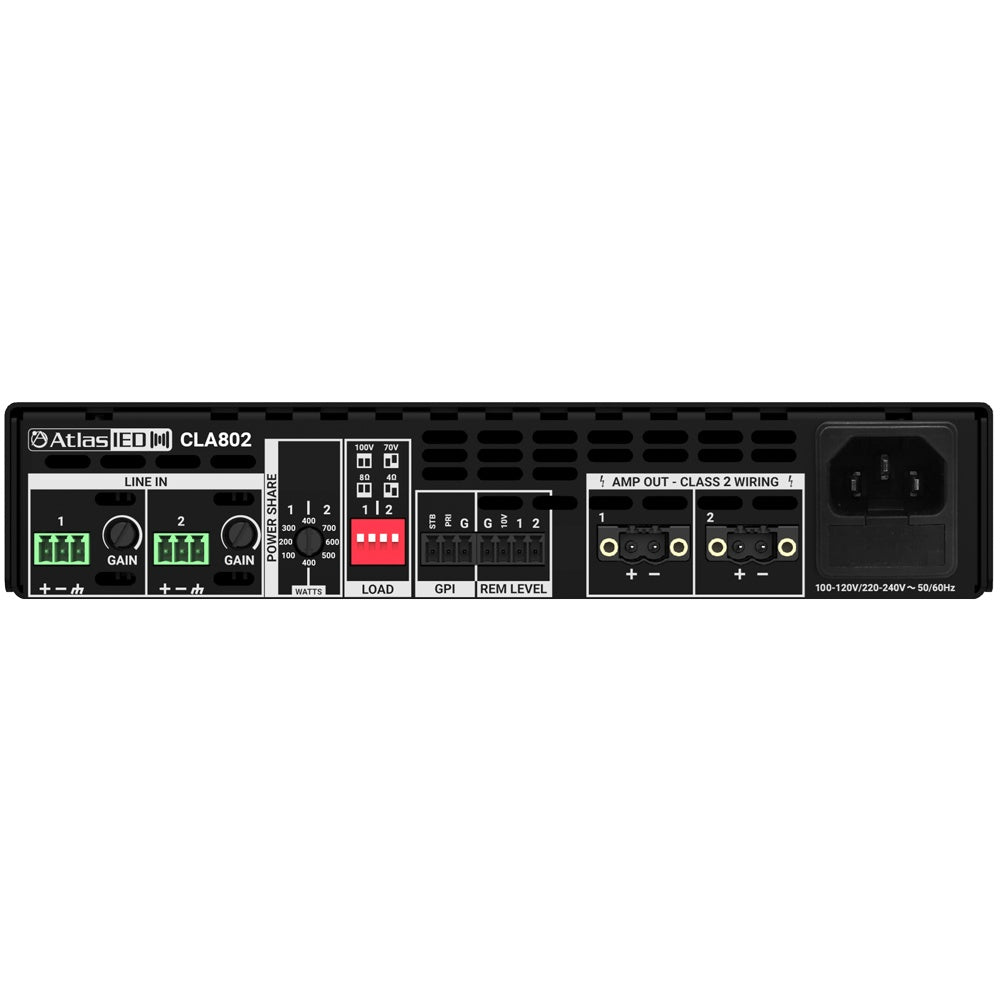

- Rear Attenuators And Remote Level Control Enable Flexible Zone Management Post-Install

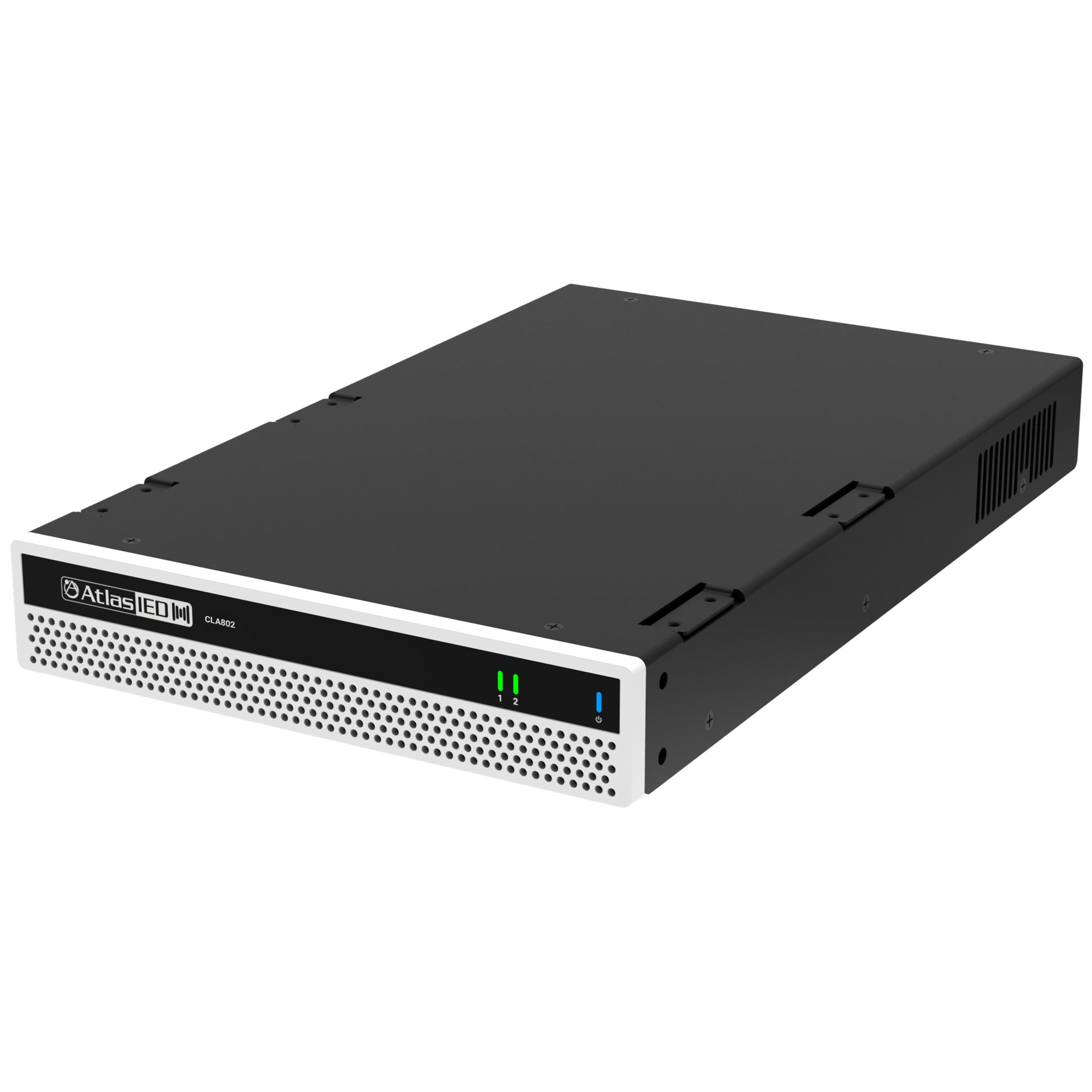

- Half-Rack 1RU Chassis Maximizes Rack Space In Dense Multi-Zone Installations
The AtlasIED CLA802 is built for AV integrators and system designers who need a single amplifier platform that bridges constant-voltage distributed audio and low-impedance sound reinforcement without compromise. Supporting 2, 4, and 8-ohm loads alongside 25V, 70.7V, and 100V distributed systems on each independently configurable channel, it eliminates the need to stock separate amplifier models for different project types. This makes it a practical choice for corporate campus installs, houses of worship, hospitality venues, and education facilities where zone layouts mix background music distribution with higher-SPL reinforcement areas.
Power Share, a patent-pending feature unique to the CLA Series, lets installers accurately assign controllable power levels to different zones regardless of speaker load impedance. Load type and power level are set directly from rear-panel switches, reducing commissioning time and keeping configuration changes straightforward for service visits. The Class D output stage pairs a low-resistance, direct-coupled thermal transfer design with a switch-mode global auto-sensing power supply, delivering stable high-voltage and high-current output simultaneously across virtually any loudspeaker load without thermal compromise.
Energy efficiency is a practical advantage in rack-dense environments. The CLA802 operates in convection-cooled mode under typical loads, with variable-speed fans engaging only when additional cooling is required. Standby draw stays below 1W, meeting Energy Star standards and reducing long-term operating costs in always-on installed systems. For integrators evaluating alternatives in the two-channel installed amplifier category, the combination of multi-impedance flexibility, patent-pending zone power control, and a 36-month warranty in a half-rack 1RU footprint positions the CLA802 as a cost-effective multi-functional solution.
