AtlasIED DD87W-HC 8" In-Ceiling Coaxial Speaker With Transformer and Baffle
AtlasIED DD87W-HC 8" In-Ceiling Coaxial Speaker With Transformer and Baffle
SoundPro Item: 44976 | Part Number: DD87W-HC
Usually ships in 5-7 business days
- Coaxial Driver Design With Built-In Crossover For Seamless Two-Way Coverage
- Sonic Match To AtlasIED C803A Enables Drop-In System Expansion Without Retuning
- 70.7V Transformer With Four Power Taps Supports Flexible Distributed Audio Zoning
- Hyfidrophobic Treatment Coating Resists Moisture For High-Humidity Environment Use
- Factory-Installed CRS Baffle With Concealed Studs Simplifies Ceiling Installation
- White Powder Coat Epoxy Finish Delivers Clean Aesthetic For Visible Ceiling Mounts

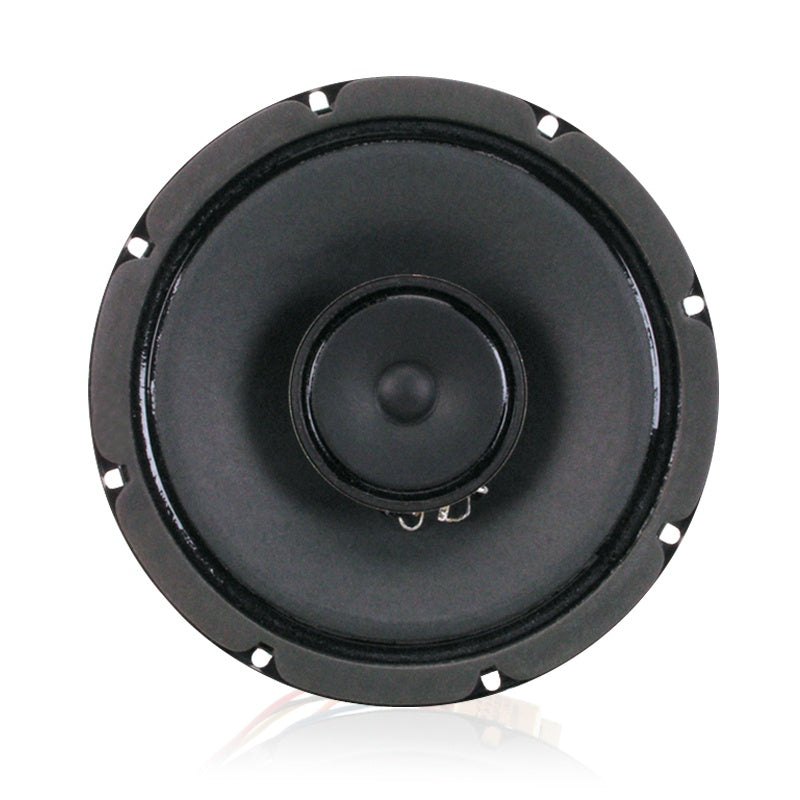

The AtlasIED DD87W-HC is engineered for commercial integrators who need a complete, install-ready in-ceiling speaker package without sourcing separate components. The coaxial design pairs an 8-inch low-frequency driver with a 3-inch high-frequency reproducer coupled through a built-in crossover, delivering consistent, uniform coverage across a 105-degree dispersion pattern — ideal for open ceiling grids in restaurants, retail environments, houses of worship, and hospitality spaces where even coverage is critical.

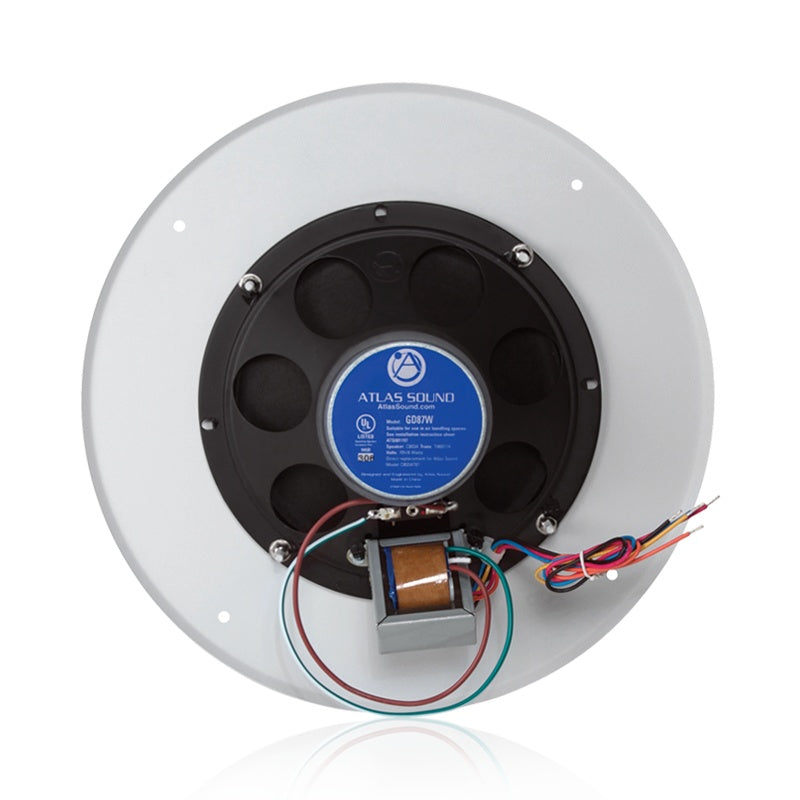

Sonic compatibility with the legacy C803A model makes the DD87W-HC a reliable choice for expanding or refreshing existing AtlasIED distributed audio systems without re-equalization or noticeable tonal mismatch. The integrated 70.7V transformer supports 1, 2, 4, and 8-watt primary taps, giving system designers flexibility in zoning and coverage density on 70V distributed systems. The transformer is wound with audio-grade laminations and maintains a full-range response with minimal insertion loss, preserving program quality across the tap range.

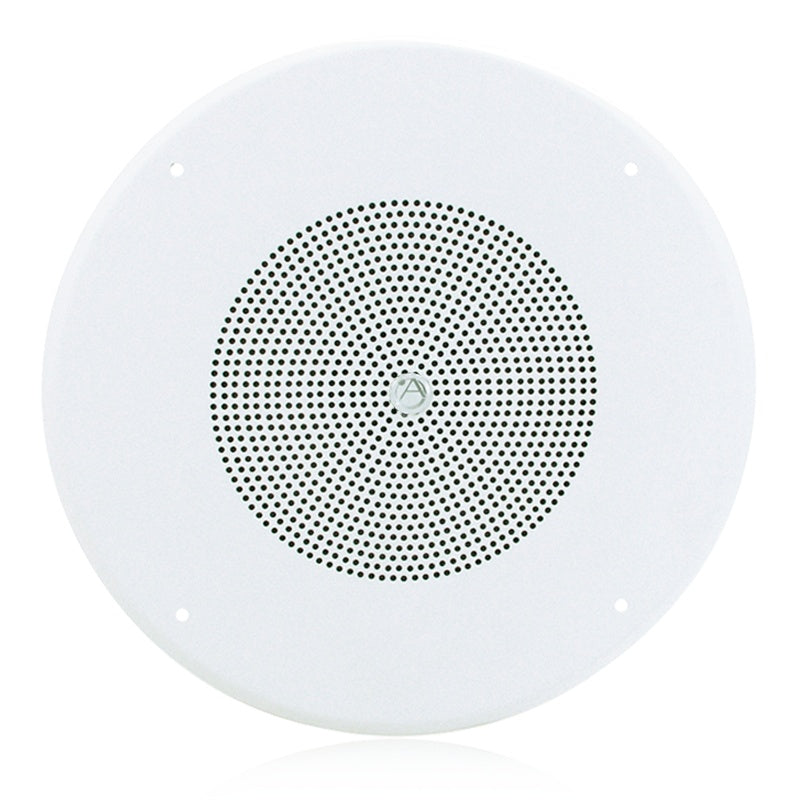

The factory-installed 62-8 style CRS baffle with concealed mounting studs simplifies installation and delivers a clean finished appearance. AtlasIED's proprietary Hyfidrophobic treatment coating on the baffle resists moisture absorption, making this package suitable for high-humidity environments such as pool areas, covered outdoor spaces, and food service facilities where standard speakers would degrade prematurely.
Specifications
