AtlasIED DMA-V Remote Volume Control Wall Plate for DMA LMA
AtlasIED DMA-V Remote Volume Control Wall Plate for DMA LMA
SoundPro Item: 207130 | Part Number: DMA-V
Usually ships in 5-7 business days
- Dedicated Remote Level Control Keeps Amplifiers Secured In Equipment Rooms
- Color-Coded RJ45 Interface Accelerates Installation And Reduces Wiring Errors
- Cat5/6 Compatibility Leverages Existing Low-Voltage Infrastructure
- Signal And Limiter Indicators Provide Passive On-Wall Diagnostics
- Assignable Across Up To Four Sources For Flexible Zone Configuration
- Surface Mount Design Fits Single-Gang Boxes Without A Separate Cover Plate
- Meets Low-Voltage Electrical Codes For Compliant Commercial Installs

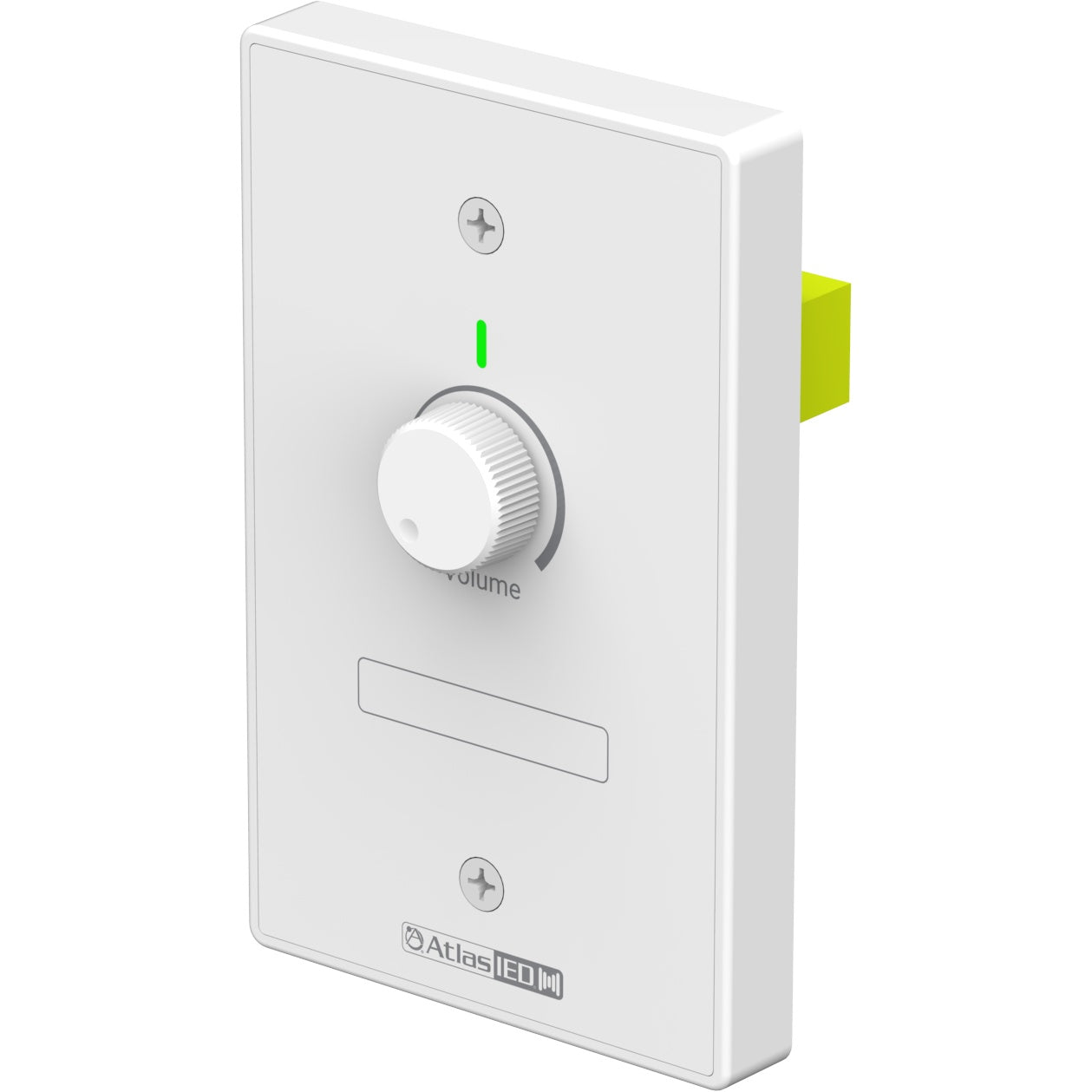

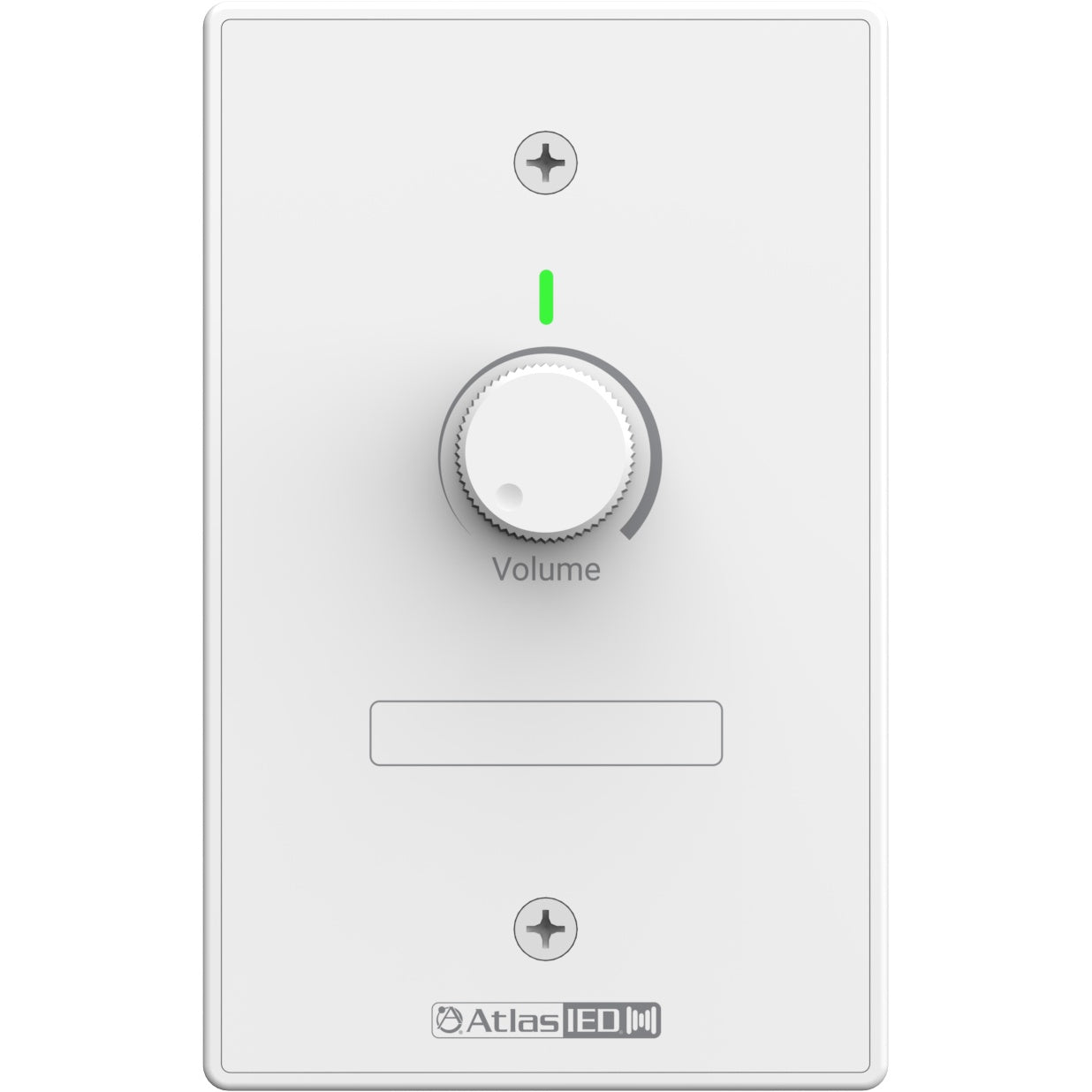

The AtlasIED DMA-V is purpose-built for integrators deploying DMA or LMA amplifier systems in commercial installed audio environments. It decouples user-accessible volume control from the amplifier itself, keeping signal processing and source equipment secured in a rack or equipment room while giving occupants straightforward level adjustment at the wall. This is a practical solution for classrooms, conference rooms, hospitality venues, and multi-room commercial installations where end-user simplicity and system predictability are both required.

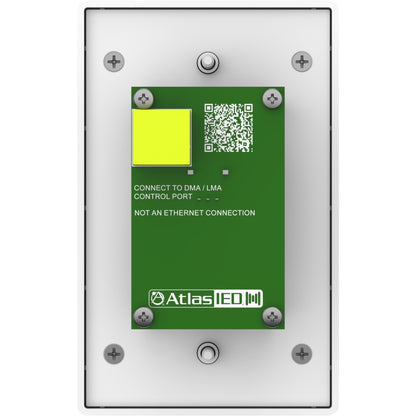

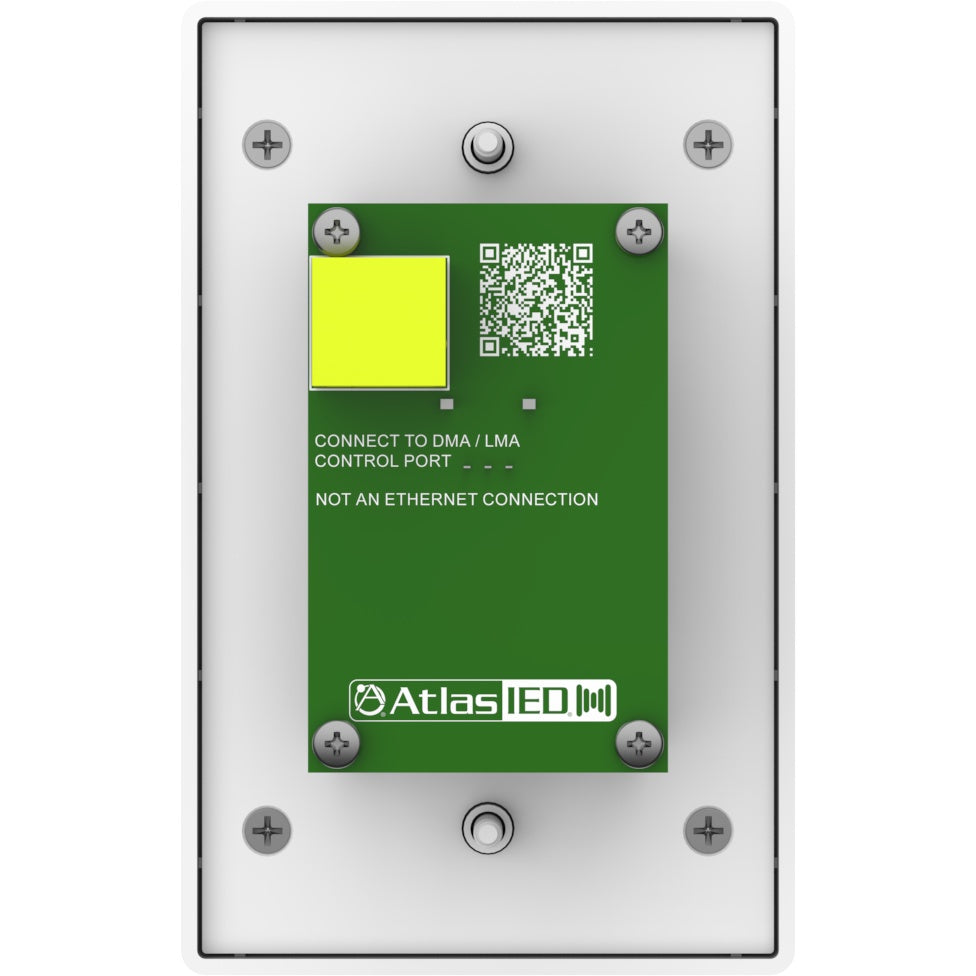

Wiring the DMA-V into an installation is straightforward for any low-voltage technician. The plate uses industry-standard Cat5/6 cable terminated with RJ45 connectors on a color-coded scheme, eliminating guesswork during rough-in and reducing troubleshooting time on commissioning day. With a supported cable run of up to 100 meters, the DMA-V offers genuine architectural flexibility for larger spaces. It fits standard single-gang electrical boxes and low-voltage mounting rings without requiring a separate cover plate, keeping the finished wall appearance clean and professional.

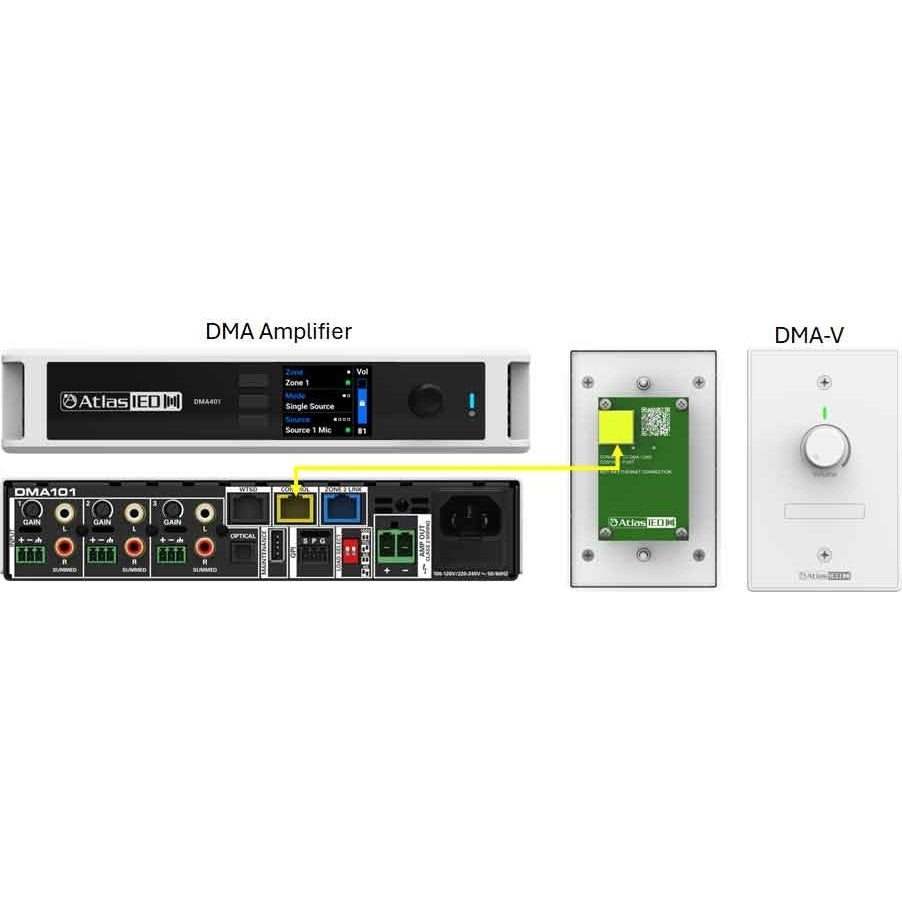

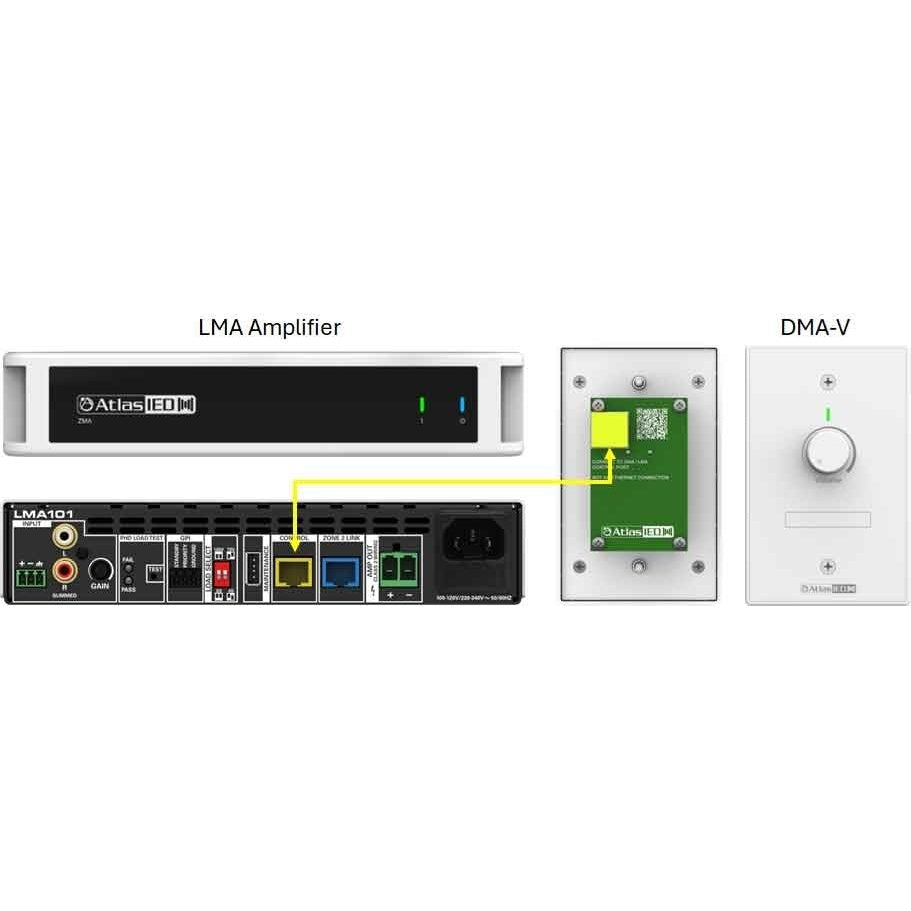

For single-zone installations, the DMA-V connects directly to a DMA amplifier for Zone 1 remote control. Two-zone configurations pair a DMA with an LMA amplifier for Zone 2, with a second DMA-V at the LMA providing independent control. The plate also supports assignment across up to four sources and includes onboard signal and limiter indicators, giving installers a passive diagnostic reference without pulling rack covers.
Specifications
