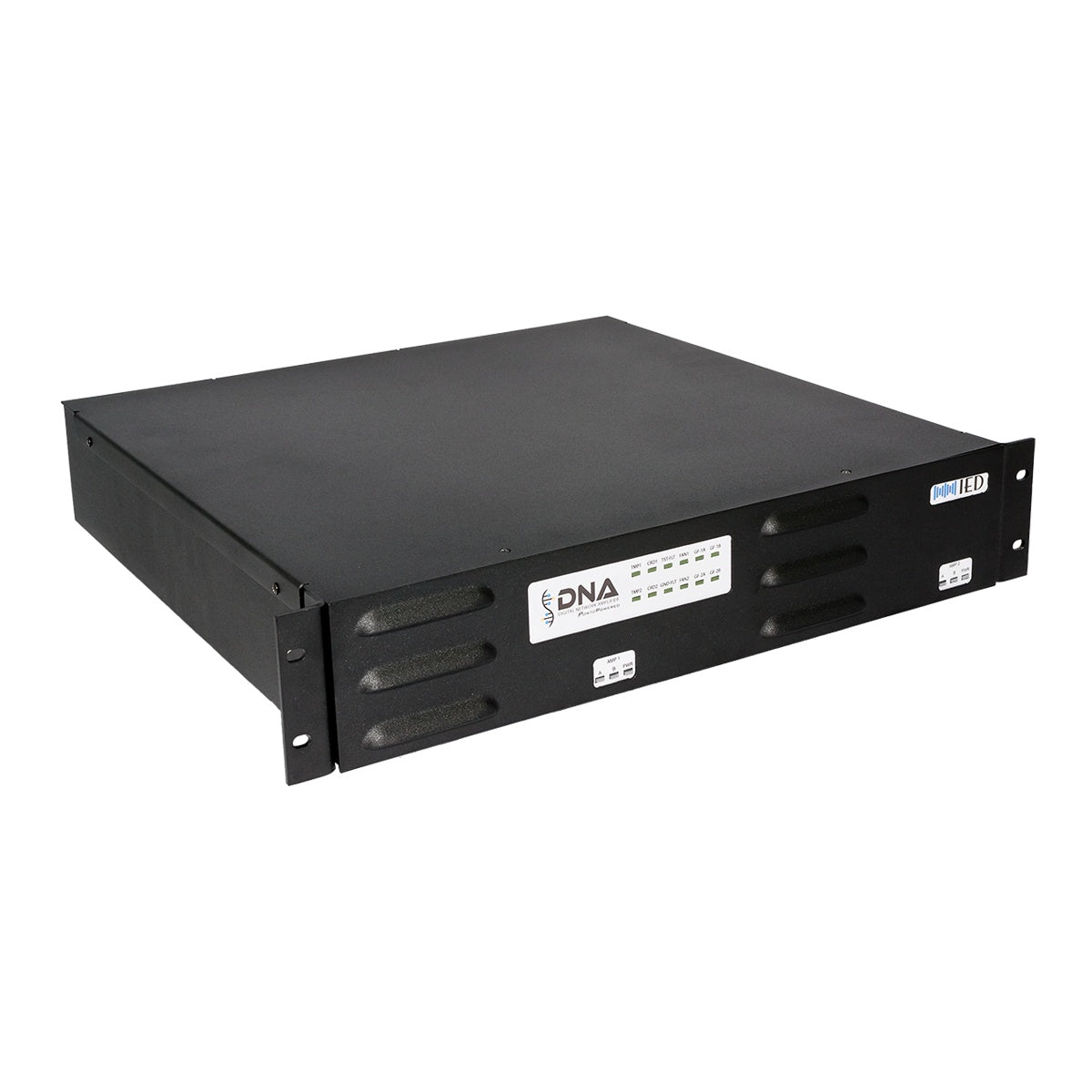

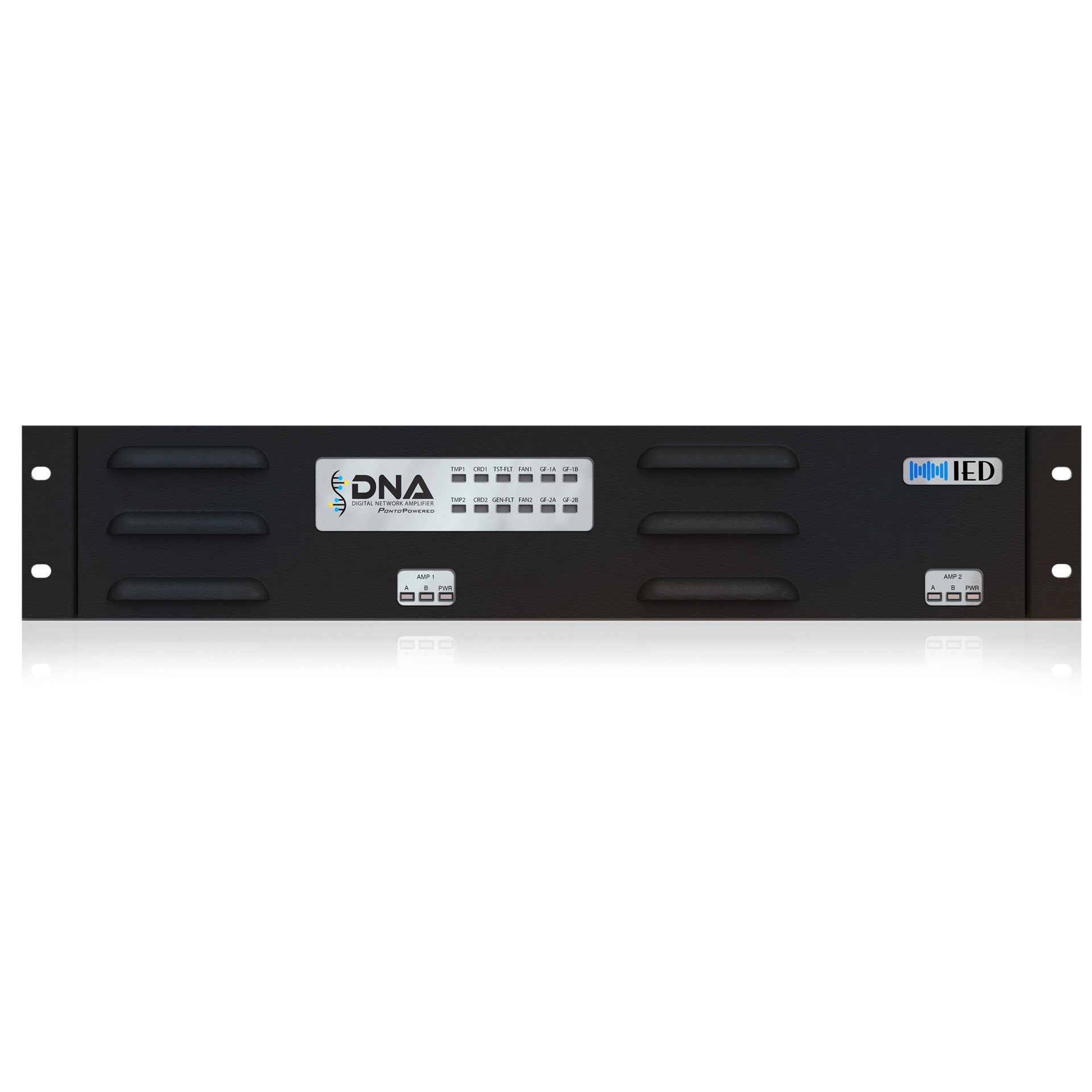

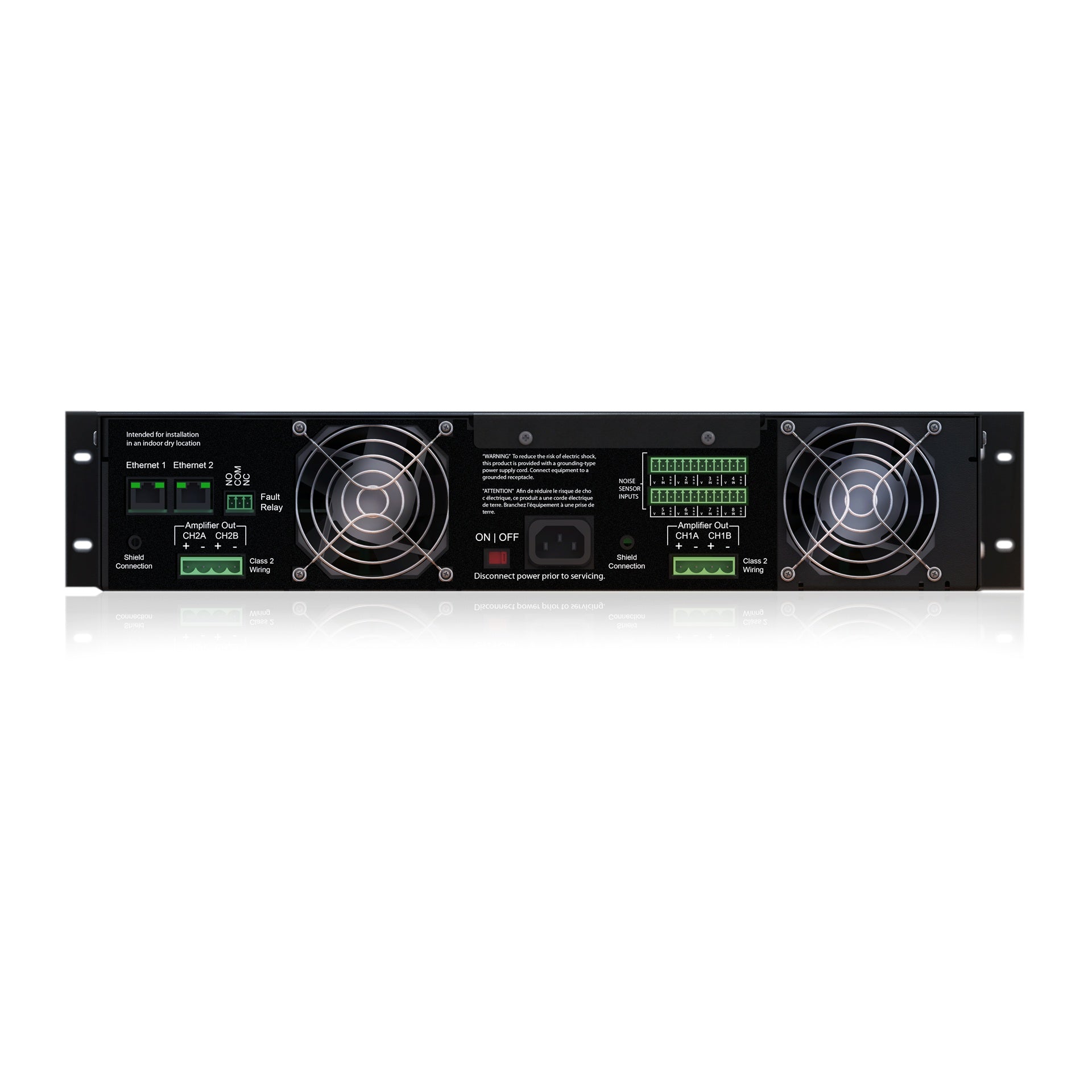

AtlasIED DNA2404CH 100V 4-Channel CobraNet Network Amplifier

AtlasIED DNA2404CH 100V 4-Channel CobraNet Network Amplifier

SoundPro Item: 44939 | Part Number: DNA2404CH

$7,244.99
$9,052.99 $7,244.99
Your Price Sold out
MSRP: $9,052.99 | MAP: $7,244.99

Usually ships in 5-7 business days

  • CobraNet Digital Audio Input Compatible With IED GLOBALCOM And Third-Party Devices
  • Dual-Redundant Ethernet Ports Ensure Network Continuity In Critical Installations
  • Class D Switching-Mode Design Eliminates Heavy Transformers And Reduces Operating Cost
  • Built-In Automatic Loudspeaker Line Testing Detects Ground Faults And Load Changes
  • Per-Channel Ambient Noise Sensing Enables Real-Time Automatic Output Level Control
  • SNMP Protocol Support Delivers Fault Reports And Amplifier Status Over Ethernet
  • Independent Background Music Per Channel With Automatic Ducking During Paging
Log in or register for YOUR best price

The AtlasIED DNA2404CH is engineered for installed distributed audio applications where a full 16-zone T9160 frame is unnecessary but network-managed amplification is still required. Designed as a core component of the IED GLOBALCOM Communications System, it also accepts third-party CobraNet sources, making it a flexible fit for mixed infrastructure deployments in airports, campuses, healthcare facilities, and large commercial installs.

Class D amplification paired with a switching-mode power supply eliminates the need for heavy output transformers while delivering high efficiency and stable performance under varying load conditions across phase angles from 0 to 360 degrees. Input routing, EQ, delay, and output levels are all managed through network commands — either via the GLOBALCOM System Management Center or a standalone configuration utility — removing the need for local analog control hardware.

For integrators managing complex acoustic environments, the DNA2404CH supports up to eight 540S ambient noise sensors across its four channels, enabling real-time automatic output level adjustment per zone. Combined with sound masking, 18-band per-channel EQ, automatic paging ducking, and built-in loudspeaker line testing for detecting ground faults and load changes, this amplifier handles demanding life-safety and paging system requirements that general-purpose install amps cannot match.

Downloads

View full details

Specifications

Audio
Output Power
600W x 4 Channels
Output Voltage
100V
Performance
Amplifier Class
Class D
Gain
34 dB (analog input to speaker output)
EQ
7-band parametric EQ plus high-pass and low-pass filter per channel
Sound Masking EQ
18 bands per channel
Ambient Noise Sensor Inputs
2 per output channel (8 total, supports 540S sensors)
Dimensions
Width
19" (48.3cm) with rack ears
Height
3.5" (8.9cm)
Depth
17" (43.2cm)
Weight
Unit Weight
19.2 lbs (8.7kg)
Electrical
Voltage Compatibility
220V – 240V
Environmental
Operating Temperature Range
+32°F – +104°F (0°C – +40°C)
Storage Temperature Range
-40°F – +158°F (-40°C – +70°C)
Certifications
Fault Output
Form C relay
Identifiers
Warranty
36 months from date of purchase
