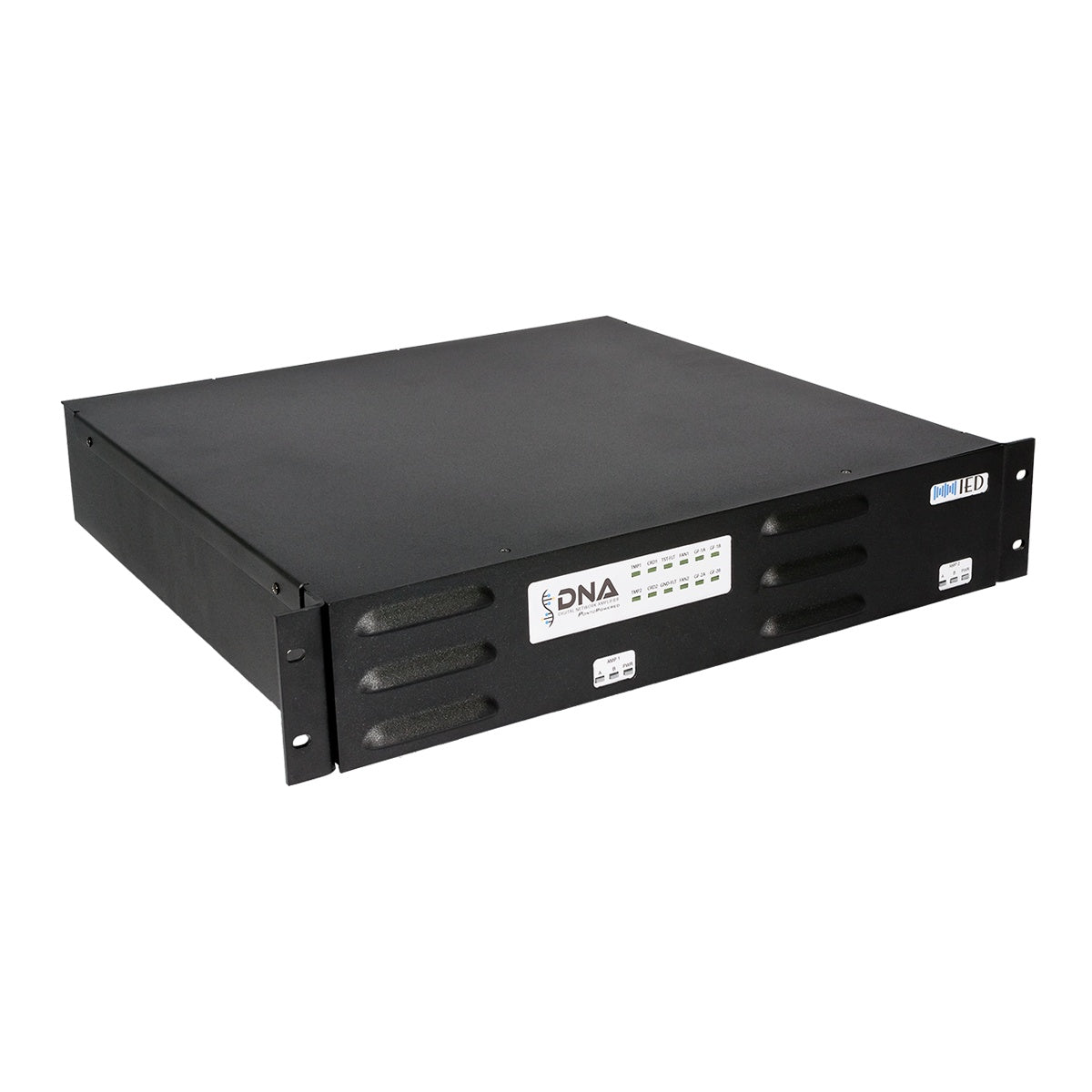

AtlasIED DNA2404DH 4-Channel 100V Dante Network Power Amplifier

AtlasIED DNA2404DH 4-Channel 100V Dante Network Power Amplifier

SoundPro Item: 44941 | Part Number: DNA2404DH

$7,244.99
$9,052.99 $7,244.99
Your Price Sold out
MSRP: $9,052.99 | MAP: $7,244.99

Usually ships in 5-7 business days

  • Dante Network Audio Input With CobraNet Compatibility For Flexible Source Integration
  • Class D Switching Mode Amplification Delivers Higher Efficiency And Lower Operating Cost
  • Per-Channel 7-Band Parametric EQ With High-Pass And Low-Pass Filtering For Precise Tuning
  • Up To 40ms Signal Delay Per Channel Enables Time-Alignment Across Distributed Zones
  • Ambient Noise Sensing Per Channel Automatically Adjusts Output To Match Zone Conditions
  • Built-In Loudspeaker Line Testing Detects Ground Faults, Breaks, And Load Changes
  • SNMP Fault Reporting Integrates Amplifier Status Into Enterprise Network Monitoring
Log in or register for YOUR best price

The DNA2404DH is purpose-built for installed audio professionals deploying IED GLOBALCOM Communications Systems where a full 16-zone T9160 frame exceeds the scope of the project. It delivers four channels of Class D amplification with Audinate Dante digital audio input, making it a natural fit for campus paging, commercial intercom, and life-safety audio distribution in facilities that rely on transformer-distributed 100-volt speaker systems.

System integrators benefit from deep network control: input routing, per-channel 7-band parametric EQ, high-pass and low-pass filters, and up to 40ms of signal delay are all configurable via network commands through the GLOBALCOM configuration utility or System Management Center. SNMP protocol support means fault reporting and amplifier status integrate cleanly into enterprise IT monitoring infrastructure without additional hardware.

For installations where background noise levels vary — arenas, transit hubs, warehouses, or manufacturing floors — the DNA2404DH supports up to eight 540S ambient noise sensors, two per output channel, enabling continuous real-time output level adjustment. Built-in automatic loudspeaker line testing monitors for ground faults, open circuits, and load changes, reducing field troubleshooting time and supporting proactive maintenance on large distributed speaker networks.

Downloads

View full details

Specifications

Audio
Output Power
600 watts x 4 channels at rated power
Output Voltage
100V
Amplifier Class
Class D
Gain
34 dB (analog input to speaker output)
Signal Delay
Up to 40 ms per channel
EQ
7-band parametric EQ plus high-pass and low-pass filter per channel
Ambient Noise Sensor Inputs
8 total (2 per output channel), compatible with 540S sensors
Electrical
Voltage Compatibility
220V–240V
Dimensions
Width
19" (48.3 cm) with rack ears
Height
3.5" (8.9 cm)
Depth
17" (43.2 cm)
Weight
Product Weight
19.2 lbs (8.7 kg)
Environmental
Operating Temperature Range
+32 °F – +104 °F (0 °C – +40 °C)
Storage Temperature Range
-40 °F – +158 °F (-40 °C – +70 °C)
Certifications
Warranty
36 months from date of purchase
