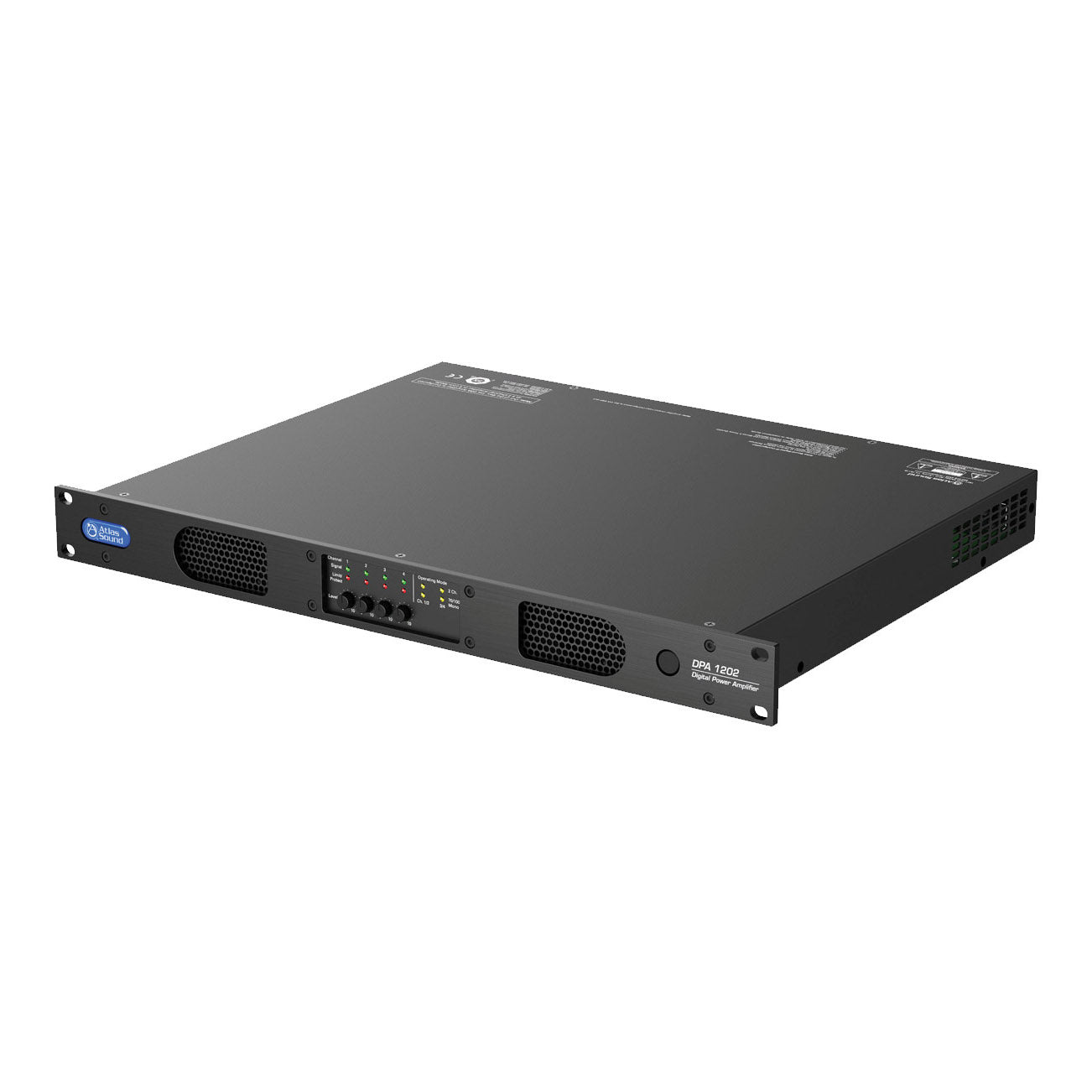

AtlasIED DPA1202 Networkable 4-Channel Power Amplifier 70V

The AtlasIED DPA1202 is engineered for commercial AV integrators who need a single amplifier chassis to serve multiple zone types without adding rack space. Its three switchable configurations — dual 70V, quad low-impedance, or hybrid 70V-plus-stereo — make it practical for facilities where paging, background music, and foreground reinforcement coexist on one system. The factory default two-channel 70V mode ships ready for distributed speaker systems, while the remaining configurations are accessible through the onboard GUI, eliminating the need for outboard processing or additional units.

DSP is handled entirely on-device and accessed via any browser on a PC, iOS device, or Android tablet — no proprietary software required for daily operation. Each output channel carries a full suite of tools including parametric EQ, limiters, high- and low-pass filters, and delay, giving system designers precise tuning without a separate signal processor in the rack. The optional accessory slot accepts either the DPA-DAC4 four-channel Dante receiver card or the DPA-AMIX mic/line and aux input card, expanding the system to eight inputs and enabling integration with networked audio infrastructure or simple mic paging stations.

The DPA Site Manager software adds network-layer visibility for multi-amplifier installations, automatically discovering all DPA units on a subnet and providing fault reporting, I/O status monitoring, standby control, and scheduler-based remote activation from a single interface. Wired remote level control, contact-closure muting, and audio-sense turn-on round out the control feature set, making the DPA1202 a complete solution for hospitality, corporate, and institutional installs where reliability and remote manageability are non-negotiable.
