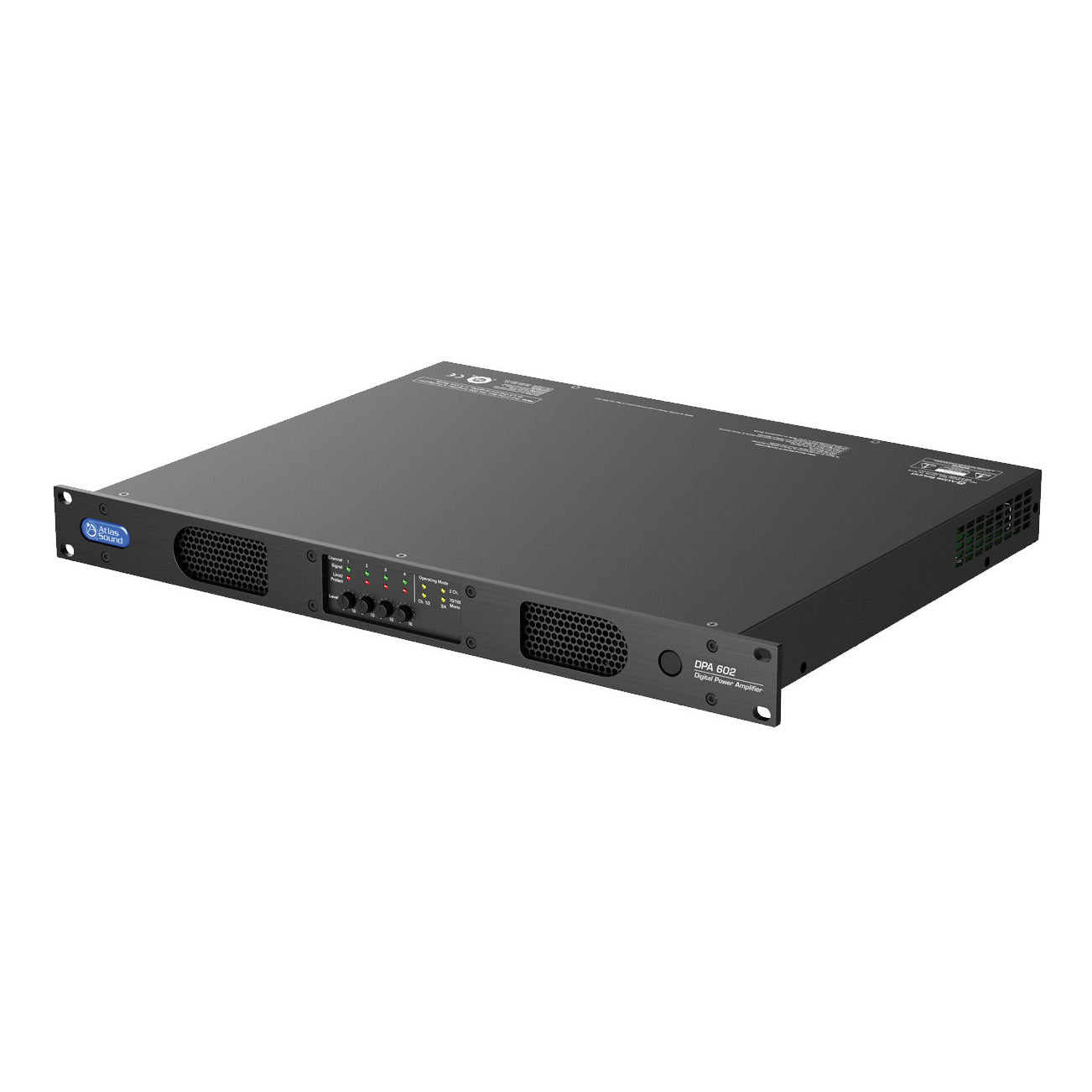

AtlasIED DPA602 Networkable 4-Channel DSP Power Amplifier

The AtlasIED DPA602 is built for commercial AV integrators who need a single amplifier platform flexible enough to serve paging systems, background music zones, and foreground stereo simultaneously. Its three configurable output arrangements—2-channel 70.7V/100V, 4-channel 4Ω/8Ω, or a mixed single 70V channel plus two 4Ω channels—eliminate the need to stock separate amplifier models for different installation types, reducing rack space and project cost.

Where the DPA602 distinguishes itself from fixed-topology commercial amplifiers is in its onboard DSP and network control architecture. Each of the four output channels carries independent EQ, limiting, high and low pass filters, delay, and level control, all accessible through a web browser on any PC, iOS, or Android device without proprietary software. An optional accessory card slot accepts either a four-channel Dante receiver card or a mic/line and AUX input card, expanding the input count to eight and supporting modern networked audio infrastructure without external converters.

For facilities management and multi-site deployments, the included DPA Site Manager software auto-discovers all DPA amplifiers on a network, centralizes fault reporting, monitors input and output status, and enables remote standby scheduling—capabilities that save significant commissioning and service time on large installed sound projects. Contact closure and audio-sense triggers, wired remote level control, and password-protected DSP settings round out a control suite suited for houses of worship, corporate campuses, hospitality venues, and education facilities.
