AtlasIED ECS-6RM AC Sequence Controller and Monitor 1RU

The AtlasIED ECS-6RM is a 1RU modular AC sequence controller and monitor engineered for permanent AV installations where controlled power-on order and continuous AC line health visibility are critical. It is purpose-built for systems integrators and AV engineers who need deterministic sequencing across amplifiers, DSPs, displays, and other rack-mounted equipment that cannot tolerate simultaneous inrush or unmonitored AC conditions.

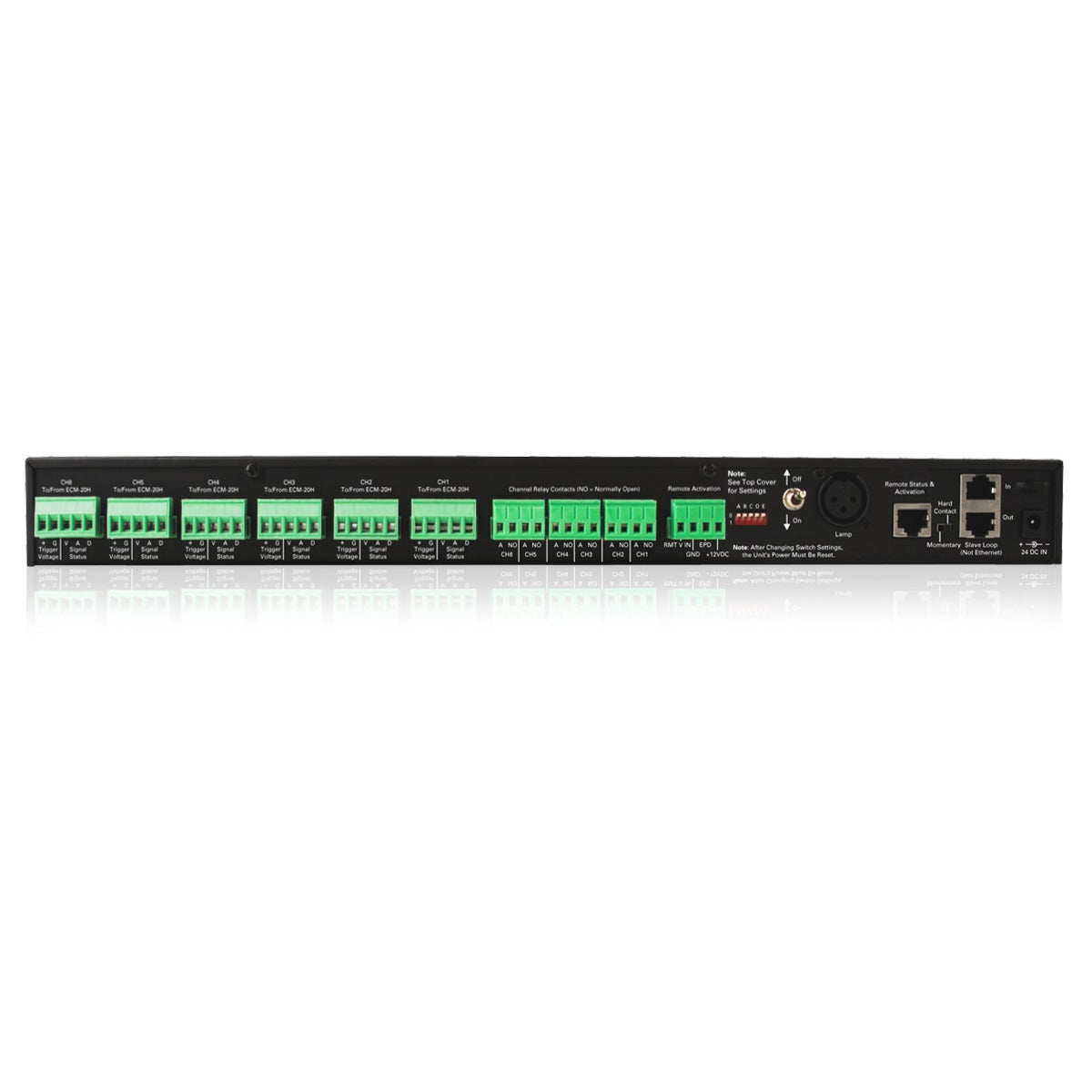

Each of the six sequencer sections drives an independent ECM (Electrically Controlled Module) output and a parallel relay contact closure, giving integrators flexibility to control both AC loads and signal-path switching from a single controller. Up to three ECS-6RM units can be daisy-chained for a total of 18 sequenced outlets, scaling cleanly to large installed racks without additional control infrastructure. Sequence timing is field-selectable at 1, 3, or 6-second intervals per section, accommodating systems with varied stabilization requirements.

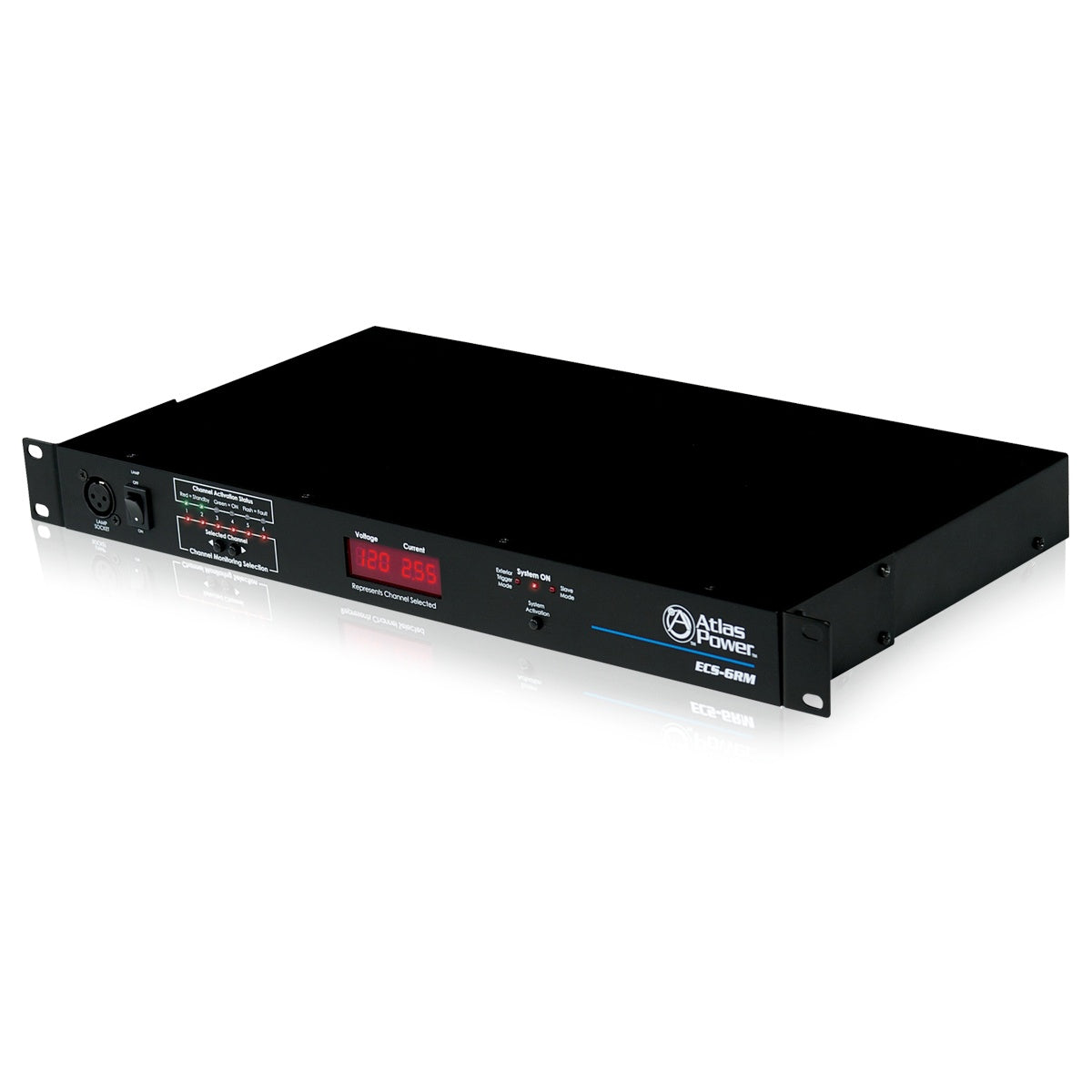

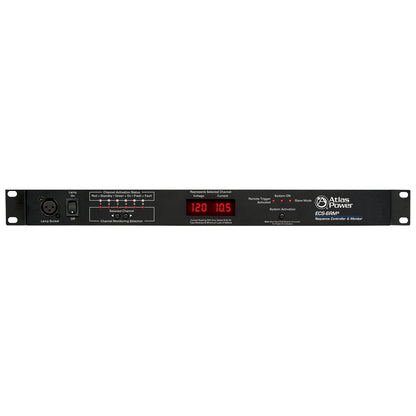

Front-panel laboratory-grade digital meters display real-time voltage and current across up to six independent 20A AC mains, with built-in abnormal voltage detection that alerts technicians before damage occurs. Activation is supported via front-panel momentary switch, external switch contact, 5–24VDC remote trigger, or the optional ECS-KSW6 key switch mountable up to 1,000 feet away — making the ECS-6RM equally practical for equipment rooms with remote user control points. A front and rear XLR output provides 12VDC for an optional gooseneck work lamp, a practical detail for rack service in low-light conditions.
