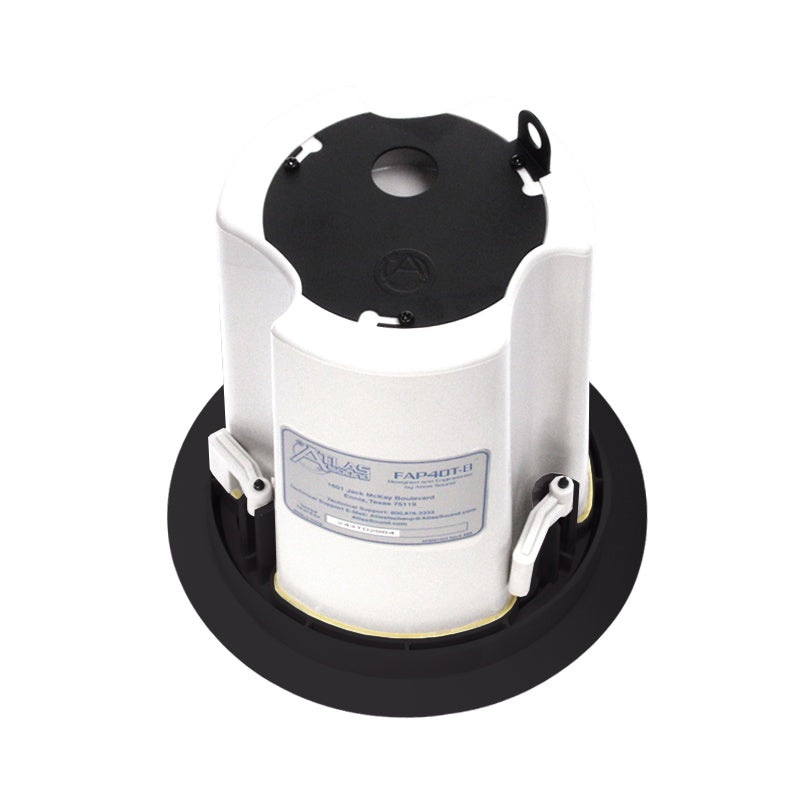

AtlasIED FAP40T-B 4" In-Ceiling Speaker With Ported Enclosure
AtlasIED FAP40T-B 4" In-Ceiling Speaker With Ported Enclosure
SoundPro Item: 15541 | Part Number: FAP40T-B
Usually ships in 5-7 business days
- Patent-Pending Tap Selector Doubles As Diffuser Cone For Simplified Installation
- Tuned And Ported Enclosure Extends Low-Frequency Response Beyond Sealed Designs
- Single-Cone Polypropylene Driver Achieves Natural HF Response Without Coaxial Complexity
- 70V And 100V Transformer With Full Tap Selection For Distributed System Flexibility
- Daisy-Chain Terminal Strip Wiring Simplifies Multi-Speaker Commercial Runs

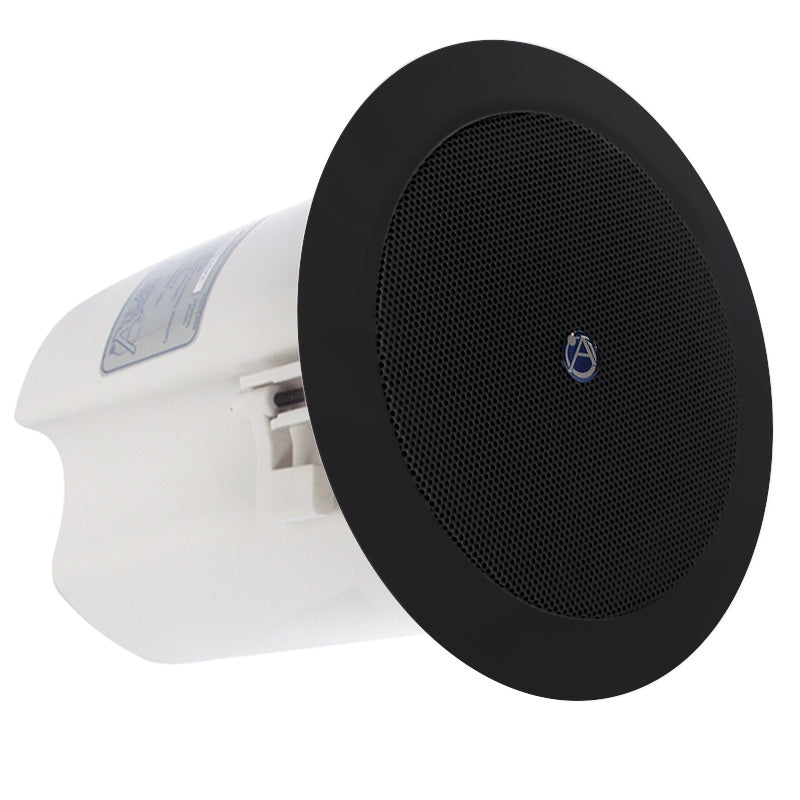

- Press-Fit Grille Integrates Cleanly With Contemporary Ceiling Architecture
- Lightweight Enclosure Eliminates Need For Additional Drywall Ceiling Support
The AtlasIED FAP40T-B is engineered for system designers and architects who need high-performance distributed audio in a compact ceiling footprint. Its single-cone polypropylene driver achieves a notably natural high-frequency response — one that many listeners mistake for a coaxial design — while the tuned and ported enclosure extends low-frequency reproduction well beyond what a sealed cavity of this size would allow. These characteristics make it a strong fit for commercial, industrial, and institutional environments where speech intelligibility and music quality both matter.

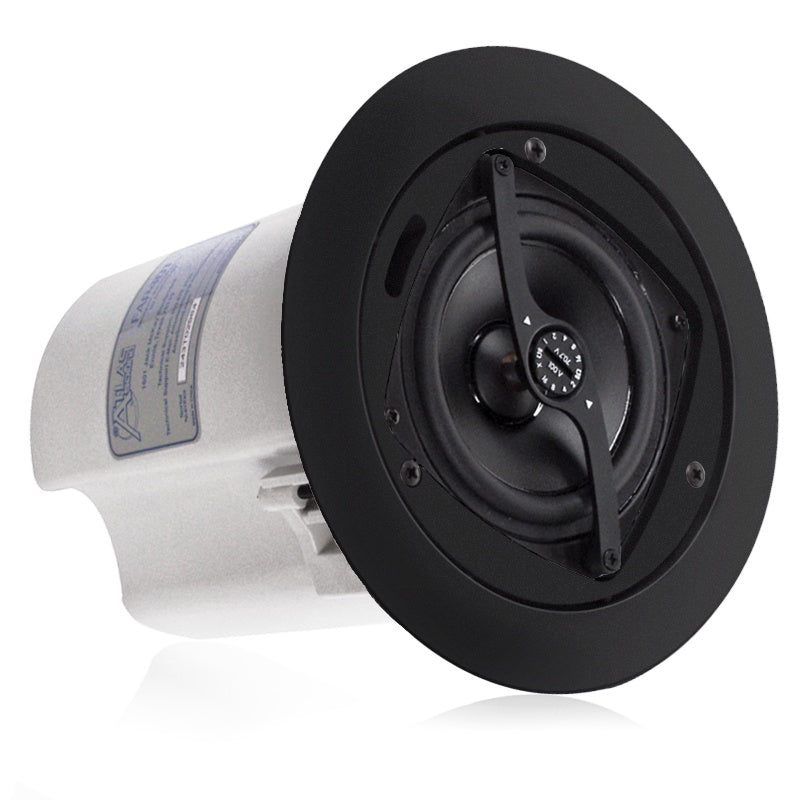

A patent-pending tap selector switch gives installers flexible system tuning on-site, with full 70V and 100V power tap options up to 16 watts and an 8-ohm transformer bypass for direct-drive applications. The switch also functions as the HF diffuser cone, reducing part count and supporting the speaker's low-profile geometry. A two-pole terminal strip with daisy-chain capability simplifies wiring runs, and the press-fit grille integrates cleanly into contemporary ceiling finishes. The lightweight injection-molded enclosure eliminates the need for additional drywall support hardware, reducing installation time in commercial build-outs. Pairs directly with the FASUB70 subwoofer for extended system bandwidth.
Specifications
