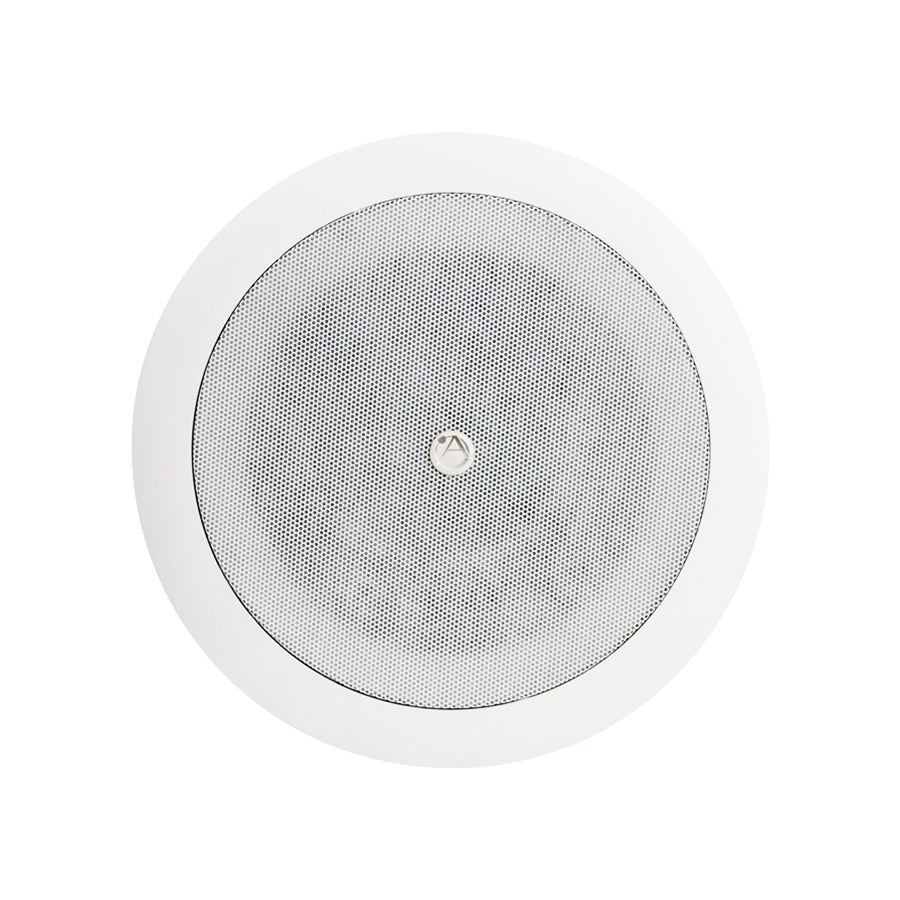

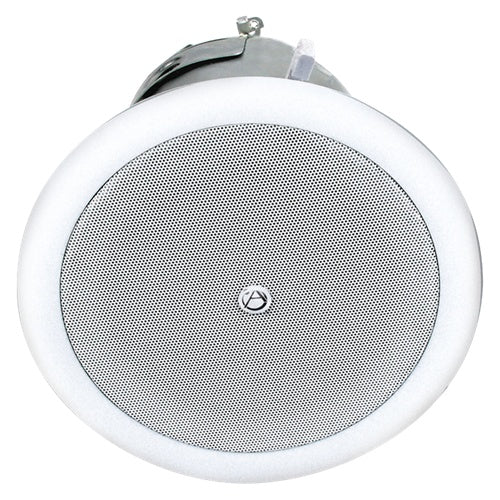

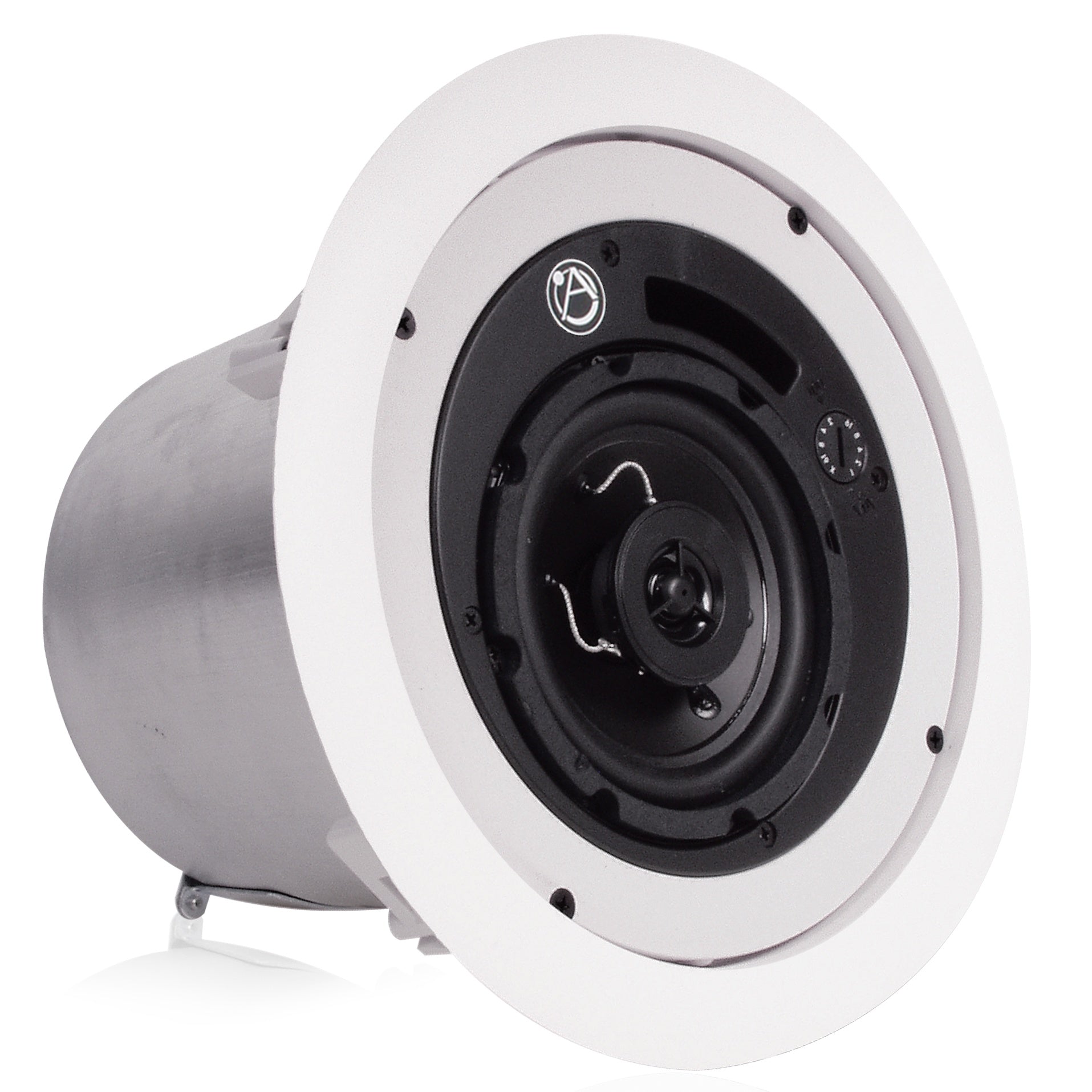

AtlasIED FAP42T-UL2043 4" Coaxial In-Ceiling Speaker With Transformer
AtlasIED FAP42T-UL2043 4" Coaxial In-Ceiling Speaker With Transformer
SoundPro Item: 15549 | Part Number: FAP42T-UL2043
Usually ships in 5-7 business days
- UL 2043 And UL 1480 Certifications Enable Legal Deployment In True Plenum Spaces
- Coaxial Driver Design Provides Wide, Even Coverage Suited For Low-Ceiling Environments
- Front-Mounted Tap Selector Allows Post-Installation Level Adjustments Without Ceiling Removal
- Phoenix-Style Detachable Connector Supports Pre-Wiring And Zone Daisy-Chaining
- Ported Galvanized Steel Enclosure Extends Low-Frequency Response Beyond Sealed Alternatives
- Press-Fit Grille Integrates Cleanly Into Contemporary Commercial Ceiling Aesthetics
- Includes C-Ring/V-Rail Tile Bridge And Dog-Leg Hardware For Drop Tile Or Sheetrock Installs
The FAP42T-UL2043 is built for audio integrators and systems contractors who need a UL2043-certified in-ceiling speaker for true plenum air-handling spaces — environments where most standard ceiling speakers cannot be legally deployed. Its coaxial driver design delivers wide 130° dispersion from a low-profile enclosure, making it especially well-suited for low-ceiling commercial, institutional, and industrial spaces where maintaining even coverage without visible speaker stacking is a priority.
For installed sound engineers, the internal 70.7V/100V transformer is engineered to minimize insertion loss and preserve low-frequency response at higher tap settings — a common weak point in budget distributed audio hardware. The front-mounted tap selector switch lets technicians adjust system levels after installation without pulling the speaker from the ceiling, which reduces commissioning time in large deployments. A 4-pole detachable Phoenix-style connector simplifies pre-wiring and supports daisy-chaining to additional full-range speakers or subwoofers across distributed zones.
The optimally tuned and ported deep-drawn galvanized steel enclosure extends bass response beyond what sealed in-ceiling designs of this footprint typically achieve. The press-fit grille integrates cleanly into contemporary ceiling aesthetics, and the included C-ring/V-rail tile bridge with dog-leg mounting hardware accommodates both drop tile and sheetrock ceiling installations. When sub bass is required, the FAP42T-UL2043 pairs directly with the FAPSUB subwoofer system.
