AtlasIED FAP42TC-UL2043 4" Shallow Coaxial In-Ceiling Speaker
AtlasIED FAP42TC-UL2043 4" Shallow Coaxial In-Ceiling Speaker
SoundPro Item: 15547 | Part Number: FAP42TC-UL2043
Usually ships in 5-7 business days
- UL 2043 Plenum Certification Qualifies Speaker For Air Handling Space Installation
- Front Mounted Tap Selector Switch Allows Post-Install System Tuning Without Opening Ceiling
- Transformer Bypass Setting Enables 8 Ohm Direct Coupled Zone Operation
- High-Efficiency 70.7V/100V Internal Transformer Maintains Low Frequency Response At Higher SPL
- C-Ring/V-Rail Mounting System Supports Drop Tile And Existing Drywall Ceilings
- Phoenix Style 4-Pole Connector Simplifies Daisy Chaining Between Multiple Speakers
- Press-Fit Grilles Provide Clean Contemporary Appearance Without Visible Fasteners
The AtlasIED FAP42TC-UL2043 is engineered for commercial audio installers who need UL 2043-certified plenum-rated performance in spaces where above-ceiling depth is at a premium. At just 4 inches of overall depth, it fits into most drop-tile and drywall ceiling assemblies — and even qualifies for stud-wall installations in applications such as tanning salons or surround sound rooms where conventional shallow-mount speakers won't reach compliance.
System integrators working on distributed audio projects will appreciate the 4-pole Phoenix-style input connector, which simplifies daisy-chaining across multiple speaker runs without additional junction hardware. The front-mounted tap selector switch allows wattage adjustments from the face of the speaker after installation — a critical time-saver during commissioning — and includes a transformer bypass for 8-ohm direct-coupled zones. The included C-ring/V-rail tile bridge and dog-leg mounting hardware accommodate both drop acoustic tile and existing drywall construction, while the optional FAP42-TR rough-in bracket supports new construction drywall applications.

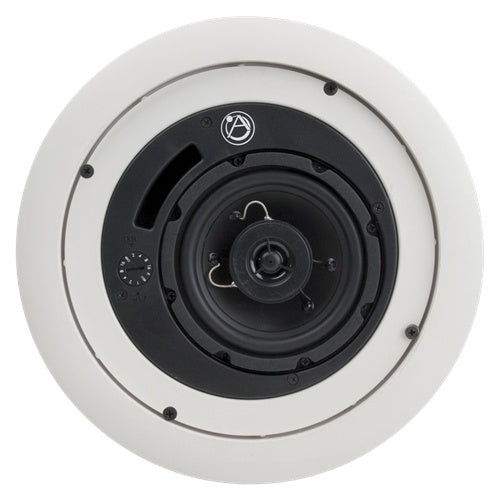

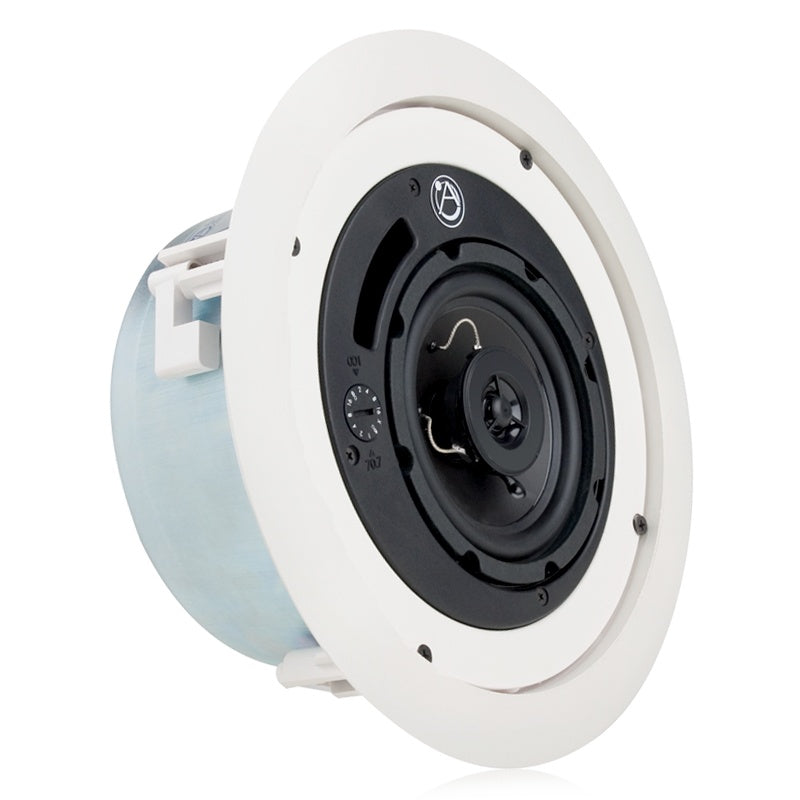

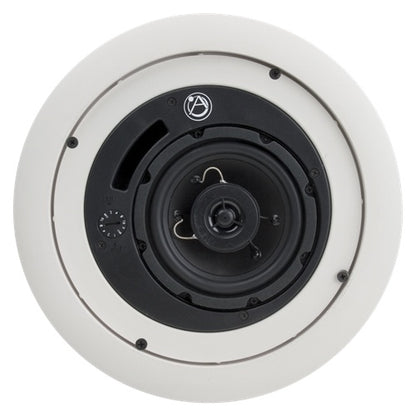

The coaxial driver pairing — a 4-inch polypropylene cone woofer with a 3/4-inch PEI tweeter and precision crossover — delivers 130-degree wide dispersion with smooth, even coverage across the listening area. For engineers spec'ing installed systems in healthcare, hospitality, retail, or commercial office environments where plenum compliance is non-negotiable, the FAP42TC-UL2043 provides the certification, hardware, and acoustic performance to satisfy both inspectors and end users.
Specifications
