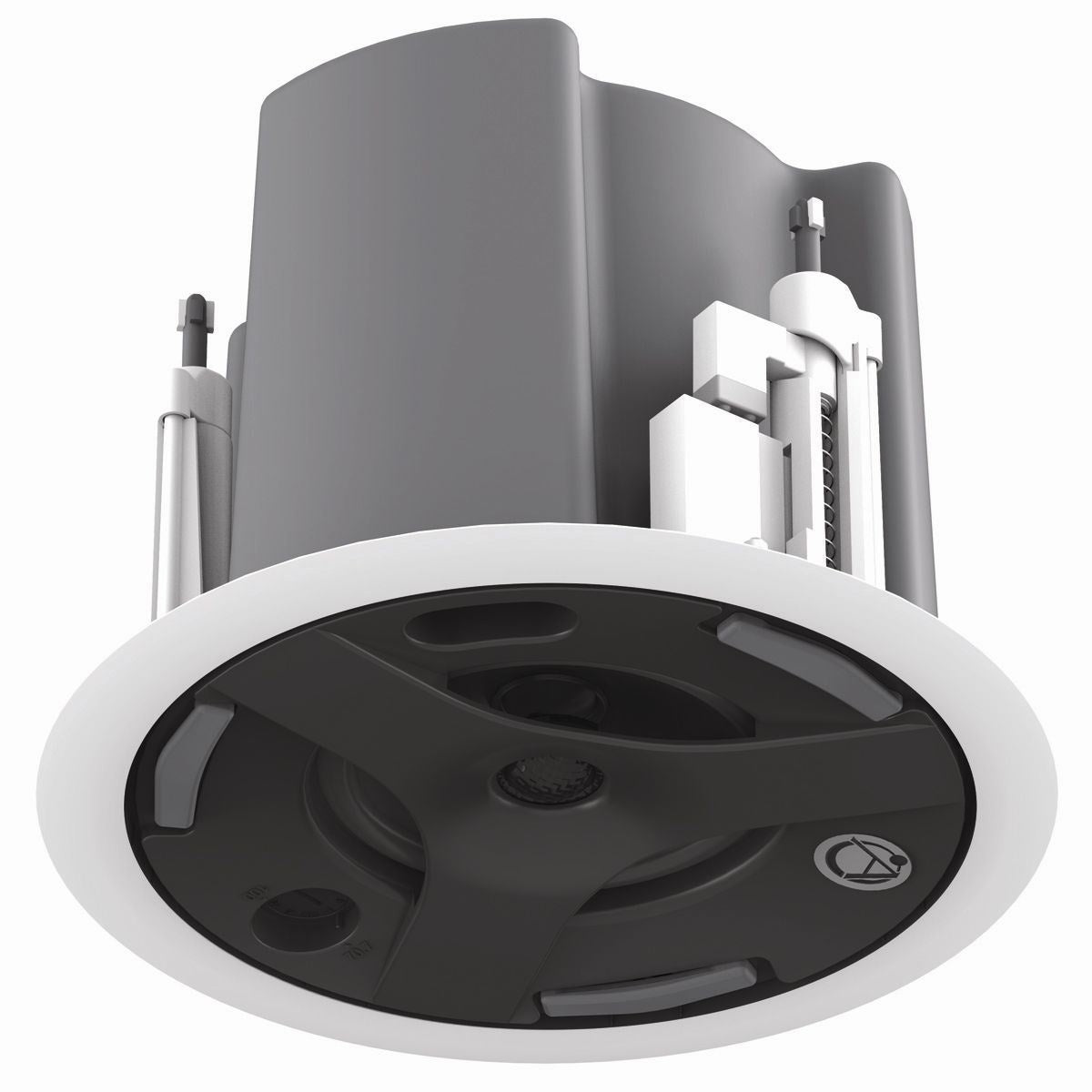

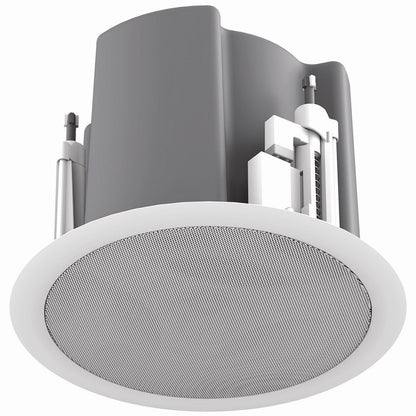

AtlasIED FAP43T-WEGR 4.5" Coaxial In-Ceiling Speaker With Transformer

The AtlasIED FAP43T-WEGR is purpose-built for integrators and AV professionals specifying distributed audio systems in retail, hospitality, convention, and commercial environments. It combines a 4.5" coaxial driver with a 32-watt 70V/100V transformer, making it a direct fit for constant-voltage distributed systems without requiring additional line-matching transformers or external tap selectors — the front-accessible 70V tap selector handles level assignment at the speaker itself.

Where this model separates from competitive in-ceiling offerings is its Safety First Mounting System (SFMS), a patent-pending mechanism that eliminates over-torque damage to mounting tabs during installation. The tool-free t-handle design accommodates ceiling materials from sheet metal up to 3/4" thick, and the absence of metal screws on the doglegs removes the corrosion failure point common in humidity-exposed installations. For contractors billing by the hour, the SFMS reduces installation time by up to 60%, directly impacting labor margins on large-footprint projects.

The improved waveguide and bridge-mounted tweeter deliver 110° dispersion, allowing wider speaker spacing while maintaining uniform coverage — a meaningful cost reduction on high-ceiling or large-area installs. A removable 4-pole euro-style connector supports pre-wiring and daisy-chaining for subwoofers and additional speakers, streamlining rough-in on multi-speaker runs. Dual UL1480 and UL2043 safety listings satisfy plenum and fire code requirements across the installation types this speaker is designed for.
