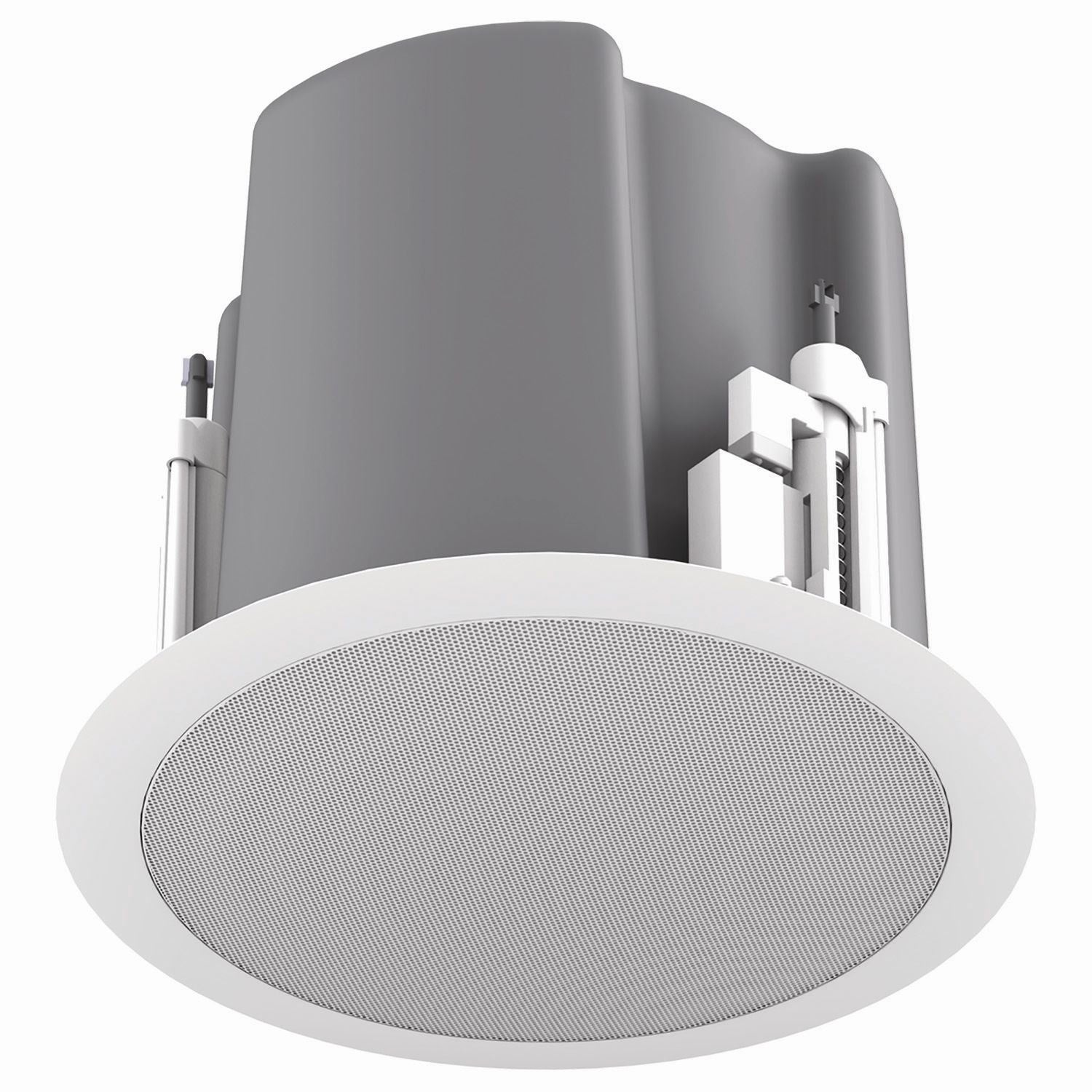

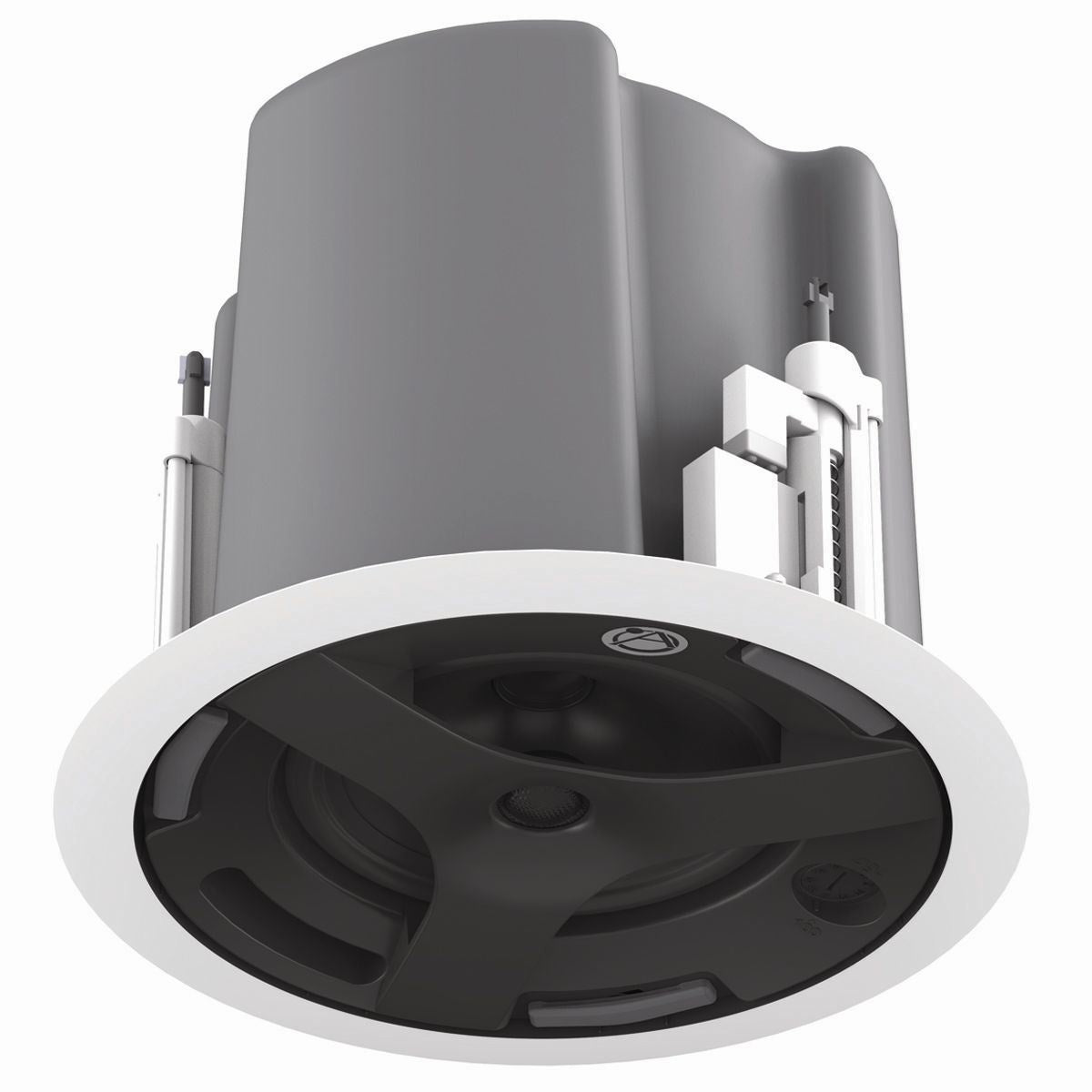

AtlasIED FAP63T-BEGS 6.5" Coaxial In-Ceiling Speaker With Transformer
AtlasIED FAP63T-BEGS 6.5" Coaxial In-Ceiling Speaker With Transformer
SoundPro Item: 44959 | Part Number: FAP63T-BEGS
Usually ships in 5-7 business days
- Safety First Mounting System Prevents Tab Damage From Over-Torqueing During Install
- Tool-Free T-Handle Design Accommodates Ceiling Materials From Sheet Metal Through 3/4"
- Corrosion-Free Dogleg Hardware Eliminates Rust Failures In Humid Environments
- Front-Mounted 70V Tap Selector Allows On-Site Power Configuration Without Rewiring
- Removable 4-Pole Euro Connector Supports Pre-Wiring And Daisy Chaining
- Optimized Low-Frequency Port Enhances Bass Definition For Music Reproduction
- UL1480 And UL2043 Listed For Plenum-Rated Commercial Ceiling Installations
The AtlasIED FAP63T-BEGS is engineered for AV integrators and systems contractors who need a reliable, high-performance in-ceiling speaker for distributed audio installations in retail stores, restaurants, hotels, convention centers, and recreational facilities. Its 6.5" coaxial driver delivers strong speech intelligibility and music reproduction across a wide 110° dispersion pattern, reducing the total speaker count required to achieve uniform coverage in a space — a direct impact on project budgets and labor hours.
The Safety First Mounting System (SFMS) addresses a common failure point in competitive products: mounting tab damage caused by over-torqueing during installation. The patent-pending t-handle design integrates into the speaker baffle and accommodates ceiling materials from sheet metal up to 3/4" thick, all without requiring any tools. Corrosion-free dogleg hardware eliminates the rust-related failures that plague steel-screw designs in humid environments, reducing long-term callback risk for installers.
A front-mounted 70V tap selector and removable 4-pole euro-style connector support quick configuration and daisy chaining without pulling wire back through the ceiling. With dual UL1480 and UL2043 safety listings, the FAP63T-BEGS is suited for plenum-rated installations and meets the compliance requirements demanded by commercial building owners and facility managers. A 60-month warranty further supports specification on long-term facility contracts.
