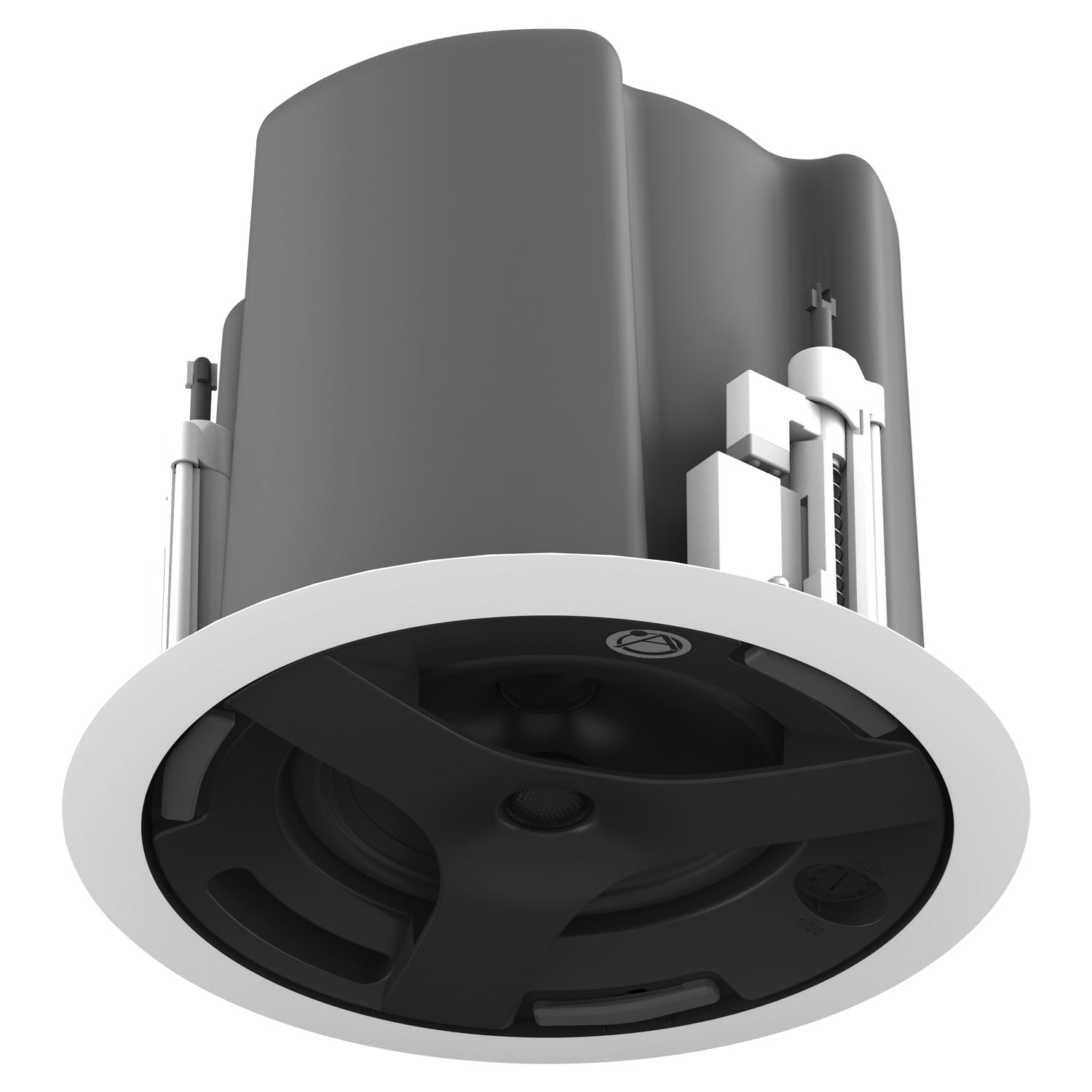

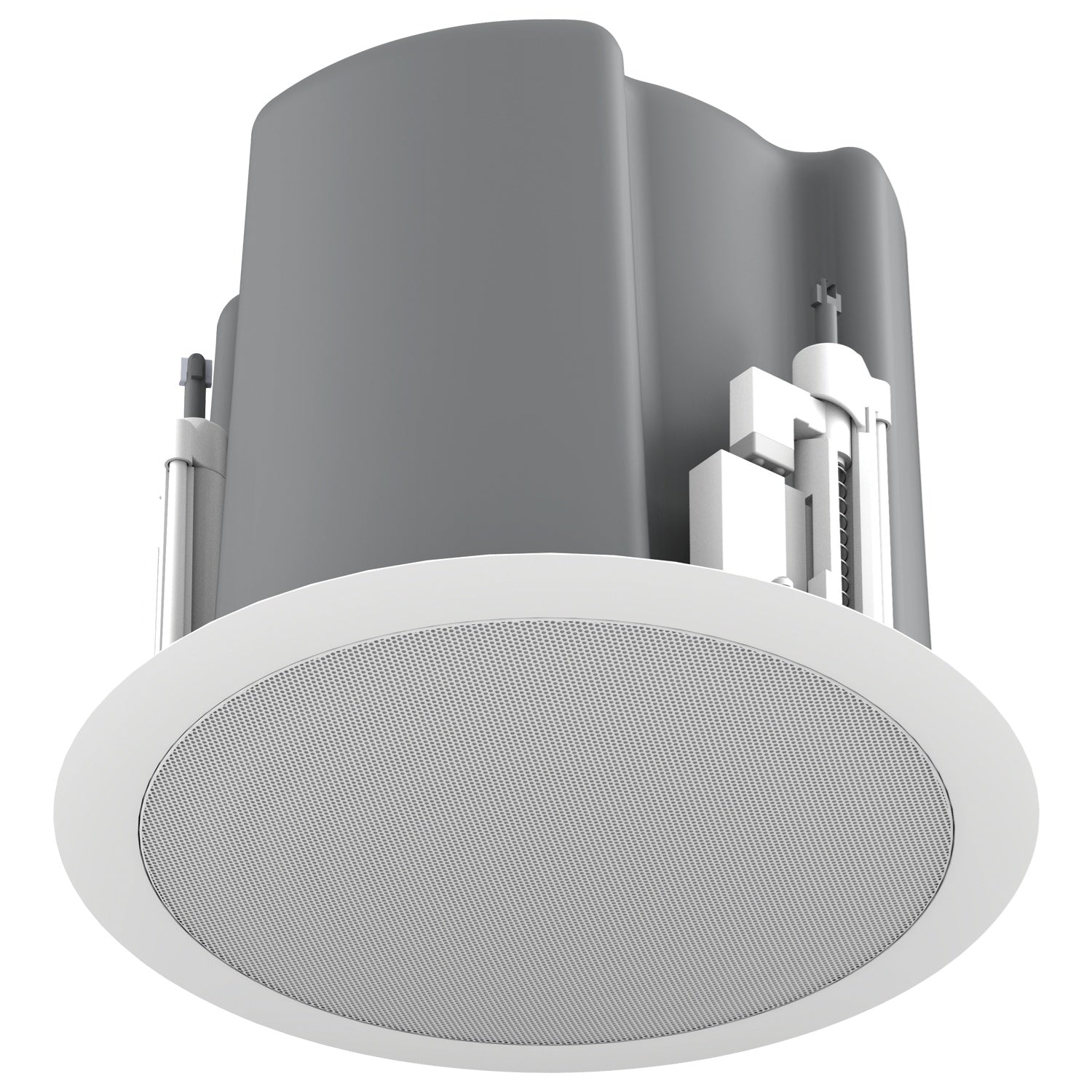

AtlasIED FAP63TUC-W 6.5" Coaxial In-Ceiling Speaker With 70V Transformer

The AtlasIED FAP63TUC-W is engineered for commercial integrators who need a code-compliant, high-intelligibility in-ceiling speaker that installs faster and performs more reliably than standard competitive offerings. Its UL 1480 certification qualifies it for use in NFPA 72 fire alarm and signaling systems, making it a legitimate single-source solution for facilities where life-safety compliance and background music share the same infrastructure — including retail environments, restaurants, hotels, convention centers, and casinos.

The coaxial driver design paired with an improved waveguide delivers 110-degree dispersion, allowing integrators to cover larger areas with fewer speaker drops without sacrificing uniform sound pressure across the listening plane. The ported enclosure is tuned for improved low-frequency extension, addressing the common complaint of thin, lifeless sound from standard in-ceiling models. An internal 70.7V/100V transformer with front-mounted tap selector supports 4, 8, 16, and 32-watt settings and includes a direct-coupled bypass for low-impedance operation — all adjustable from the front face without pulling the speaker.

The patent-pending Safety First Mounting System uses integrated t-handles on the baffle face to secure mounting tabs without tools, eliminating the over-torque failures that cause dog-leg damage and long-term ceiling drop risk. Corrosion-free hardware and a removable 4-pole euro-style connector supporting daisy-chain wiring further reduce callbacks and labor costs on large-scale installations.
