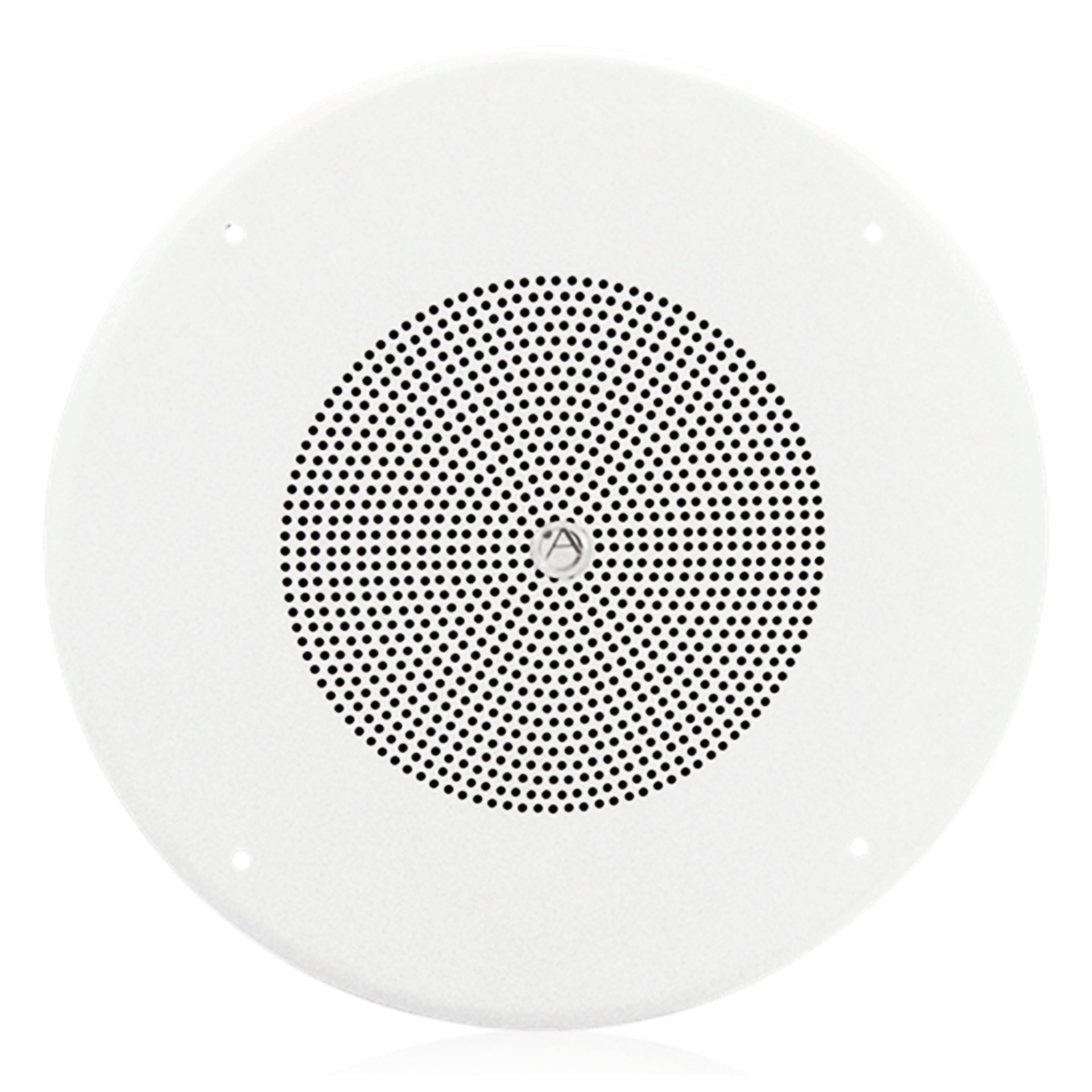

AtlasIED FD25W 8" In-Ceiling Speaker With 25V Transformer Assembly
AtlasIED FD25W 8" In-Ceiling Speaker With 25V Transformer Assembly
SoundPro Item: 15590 | Part Number: FD25W
Usually ships in 5-7 business days
- Factory-Assembled Speaker, Transformer, And Grille Reduces Installation Steps And Separate Sourcing
- Selectable Power Taps Allow Flexible Load Distribution Across 25V Distributed Audio Systems
- Wide Dispersion Pattern Supports Consistent Coverage In Commercial Ceiling Environments
- Treated Paper Cone With 1" Voice Coil Optimized For Voice Intelligibility And Music Reproduction
- Compatible With Standard Tile Bridges, Plaster Rings, And Enclosures For Broad Install Flexibility
- Attractive White Finish Blends With Standard Commercial Drop-Ceiling Aesthetics
The AtlasIED FD25W is a factory-assembled in-ceiling speaker solution designed for integrators and AV contractors who need a reliable, cost-effective single-SKU order for commercial paging and background music systems. Rather than sourcing speaker, transformer, and baffle separately, the FD25W ships as a complete unit with an 8" treated paper cone speaker, 25V transformer, and screw-type grille already mounted on a 62-8 style baffle.
With a 1" diameter voice coil and a frequency response suited to voice and music reproduction, this assembly fits the demands of retail, hospitality, corporate, and institutional audio installations where consistent intelligibility across large areas is the priority. The 105° dispersion characteristic supports wide coverage in low-ceiling environments, and selectable power taps from 0.5 to 5 watts give system designers flexibility in distributing load across a 25V line.
Compatibility with standard tile bridges, plaster rings, and enclosures means the FD25W drops into most commercial ceiling grid systems without custom hardware. The white finish suits standard drop-ceiling aesthetics, and the 60-month warranty provides long-term confidence for installed systems in commercial environments where service access is limited.
Specifications
