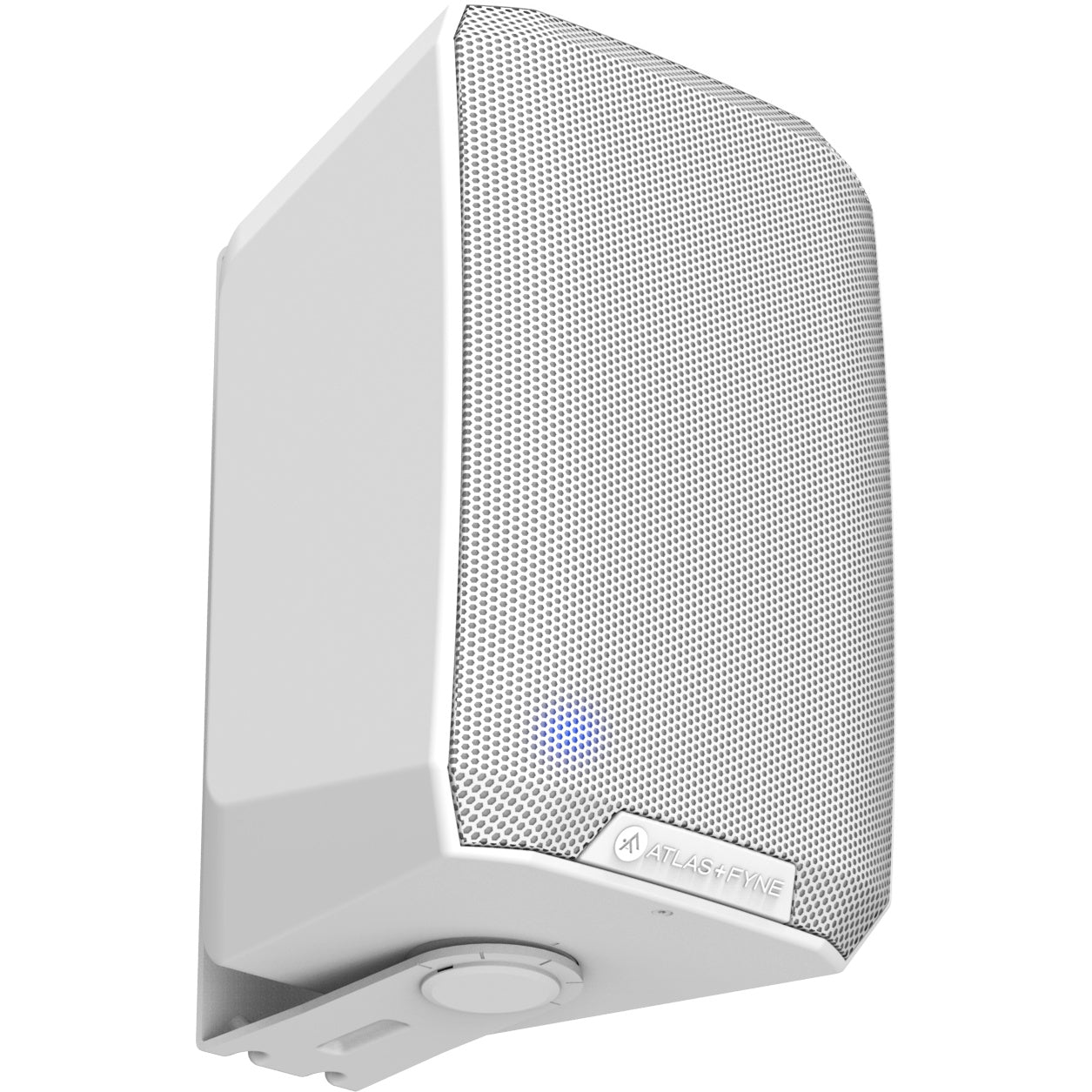

AtlasIED FS IsoFlare Series Dante PoE Active Surface Mount Loudspeaker | White | 4"
AtlasIED FS IsoFlare Series Dante PoE Active Surface Mount Loudspeaker | White | 4"
SoundPro Item: 207879 | Part Number: FS-4D-W
Usually ships in 5-7 business days
- IsoFlare Point Source Driver Aligns HF And LF Sources For Consistent Tonal Balance Across The Room
- Single CAT Cable Delivers Dante Or AES67 Audio, PoE Power, And Control With No Additional Wiring
- PoE++ Type 4, Type 3, And PoE+ Type 2 Compatible For Flexible Network Infrastructure Deployment
- Integrated Class D Amplification And DSP Eliminate The Need For External Processing Or Amplifiers
- Secondary Amplifier Output Powers A Passive Atlas+Fyne Loudspeaker For Zone Extension
- AtlasIED Discover Software Provides Remote Configuration, Supervision, And Telemetry
- IP55-Rated High-Impact ABS Enclosure With UV Inhibitor For Indoor And Protected Outdoor Use

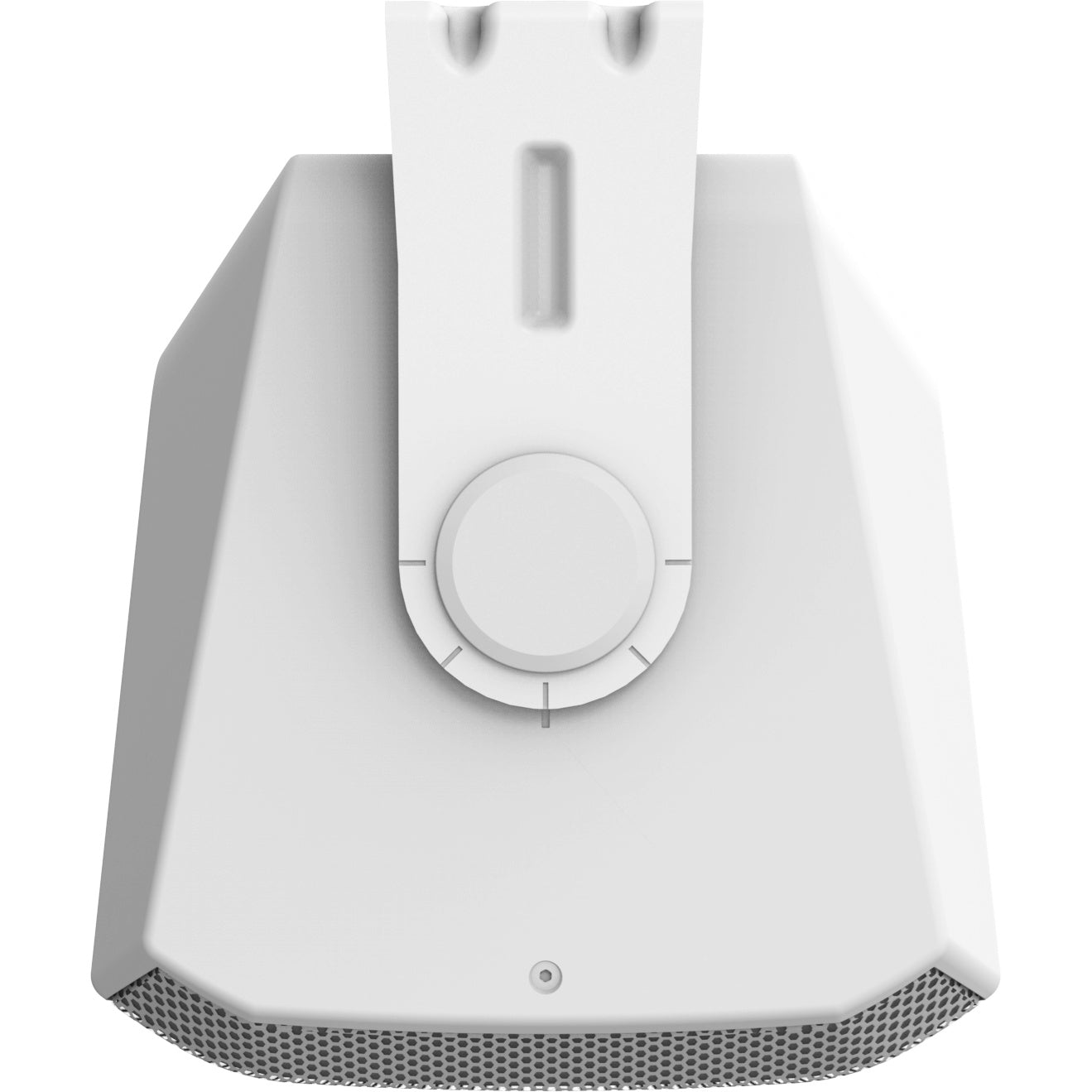

- Slip-Free Yoke Mount Included With Optional VESA And Pan-And-Tilt Bracket Compatibility
- Visual And Audible Locator Speeds Commissioning In Multi-Speaker Installations
The AtlasIED FS IsoFlare Series is built for AV integrators and system designers who need high-fidelity, network-managed audio in architecturally sensitive commercial installations. Boardrooms, hotel lobbies, airports, houses of worship, performing arts centers, and premium retail spaces all benefit from a solution that requires no external amplifier, no separate power supply, and no dedicated speaker wire runs. A single CAT cable handles audio transport via Dante or AES67, PoE power, and control, dramatically reducing infrastructure cost and installation time while enabling centralized configuration and live supervision through the AtlasIED Discover software platform.
At the core of the family is IsoFlare transducer technology, a point source driver design that aligns high-frequency and low-frequency sources on the same acoustic axis. The result is a spherical wavefront with consistent tonal balance across the listening area and exceptional off-axis performance that discrete or coaxial alternatives cannot match. Available in 4" and 6" driver sizes to suit spaces with different SPL requirements and coverage needs, the FS Series offers the right balance of output and bandwidth for each application. Both sizes support multiple PoE power tiers and include a secondary amplifier output for connecting a passive Atlas+Fyne loudspeaker, enabling zone extension without adding network nodes.
The IP55-rated high-impact ABS enclosure with UV inhibitor supports demanding indoor and protected outdoor deployments. A slip-free yoke mount ships with every unit, and compatibility with optional pan-and-tilt brackets and third-party VESA mounts provides maximum flexibility for installations where sightlines and architectural constraints are priorities. Dante Domain Manager compatibility, a visual and audible locator for fast commissioning, and a three-year manufacturer warranty make the FS Series a complete, professional-grade solution from design through long-term operation.
