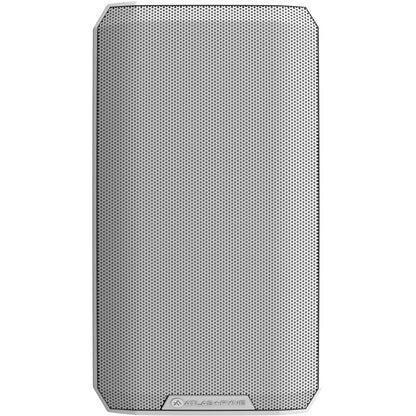

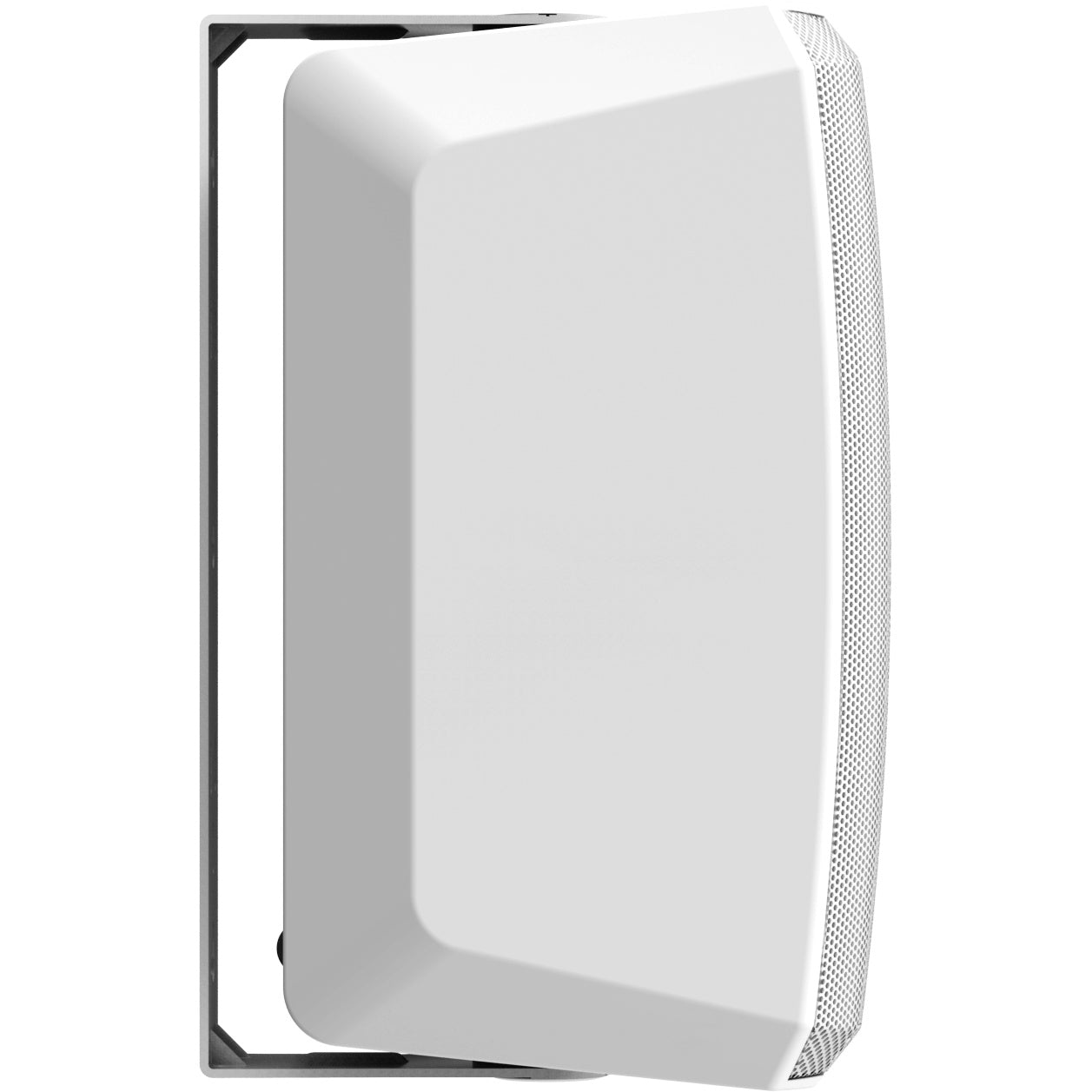

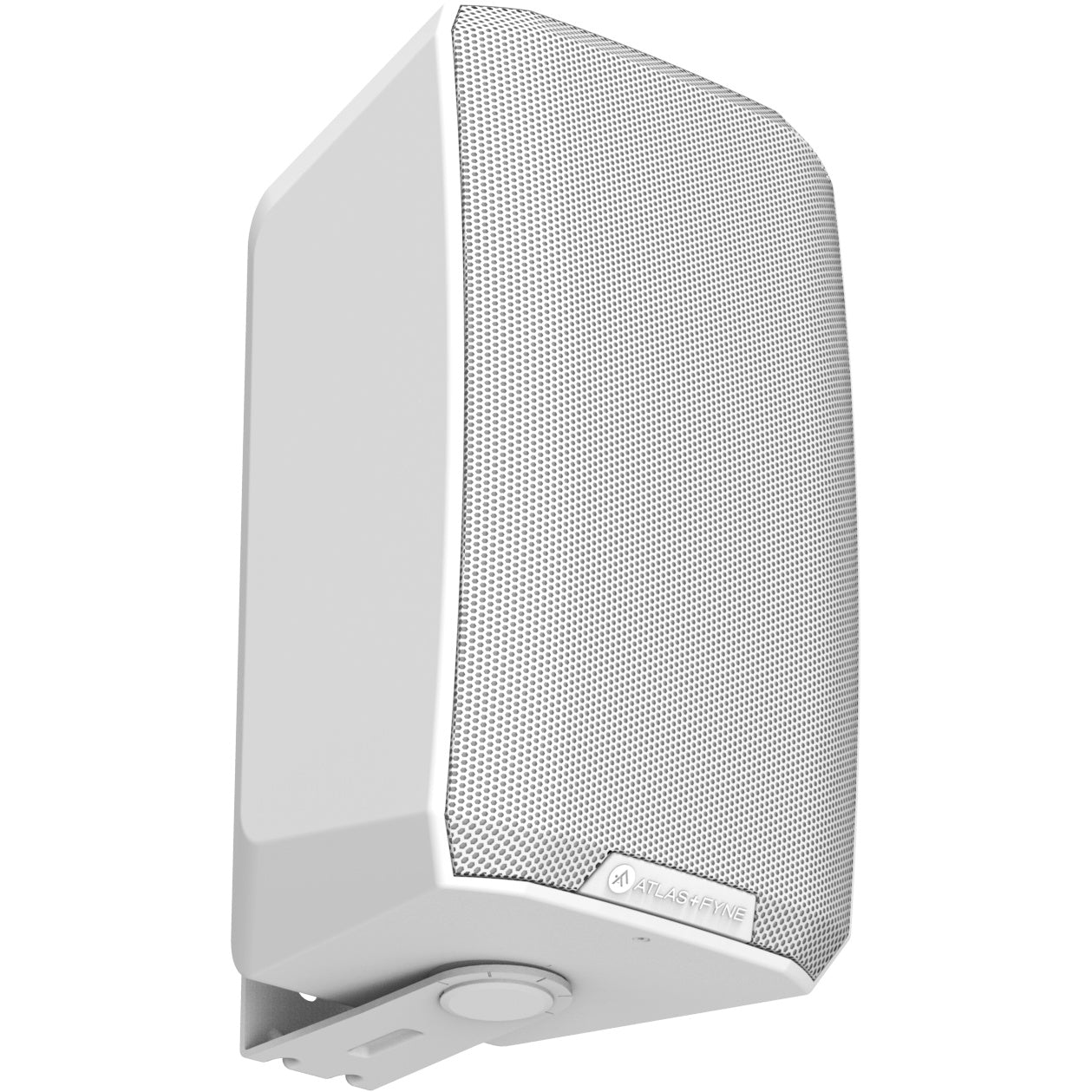

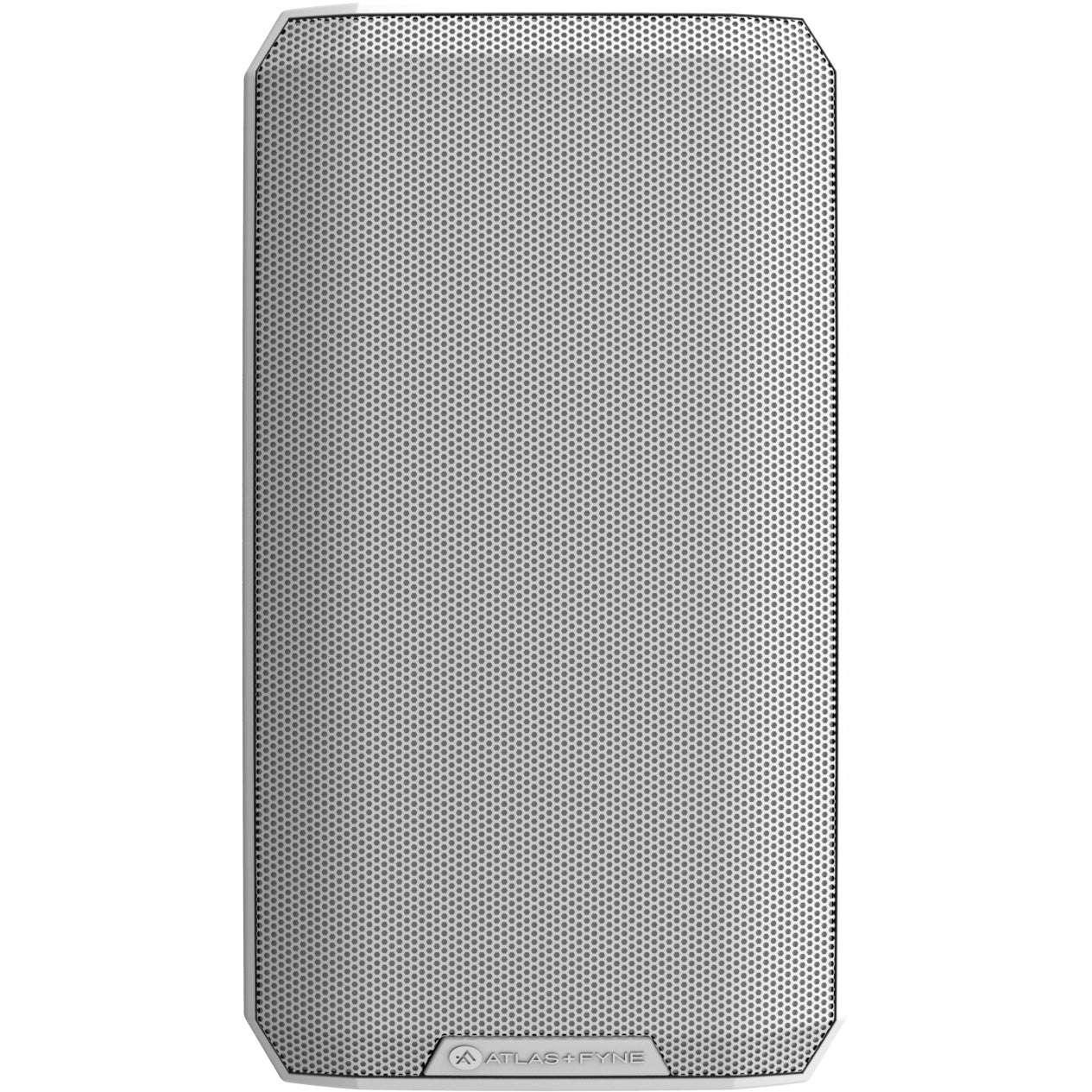

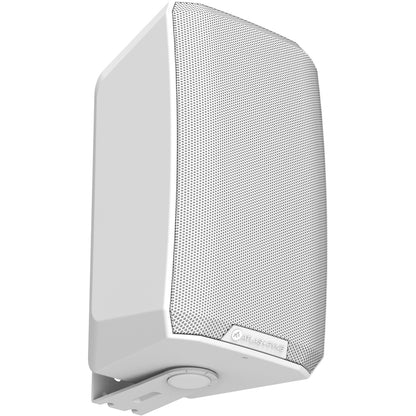

AtlasIED FS-6T-W 6" IsoFlare Surface Mount Loudspeaker
AtlasIED FS-6T-W 6" IsoFlare Surface Mount Loudspeaker
SoundPro Item: 201103 | Part Number: FS-6T-W
Usually ships in 5-7 business days
- IsoFlare Point-Source Driver Ensures Uniform Coverage And Consistent Off-Axis Response
- IP65 Rated Enclosure Withstands Moisture And Dust In Demanding Install Environments
- Integrated Low-Insertion-Loss Transformer Supports 70V And 100V Distributed Systems
- Rear Slide Selector With Security Cover Allows Post-Install Tap And Impedance Adjustment
- Slip-Free Yoke Mount And VESA Compatibility Simplify Multi-Scenario Rigging
- AtlasIED Atmosphere Platform Integration Enables Enhanced Voicing Presets Without External DSP
- Corrosion-Resistant Powder-Coated Aluminum Grille Provides Long-Term Durability
The AtlasIED FS-6T-W is engineered for AV integrators and system designers working in high-end commercial environments where audio fidelity and architectural discretion are non-negotiable. Its IsoFlare point-source driver propagates a spherical wavefront with homogeneous alignment on all axes, producing a constant time delay across the full frequency spectrum — a meaningful advantage over conventional coaxial designs that suffer from harmonic misalignment between HF and LF sources.
For installed sound applications in hotels, corporate boardrooms, retail flagships, and performing arts spaces, the FS-6T-W delivers the same consistent voicing as every other IsoFlare Series format — ceiling, pendant, or surface — enabling seamless system-wide tonal integration. The onboard 60W transformer supports 70V and 100V distributed lines with selectable wattage taps and a low-impedance bypass, all accessible via a rear-mounted slide switch with security cover for post-installation access control.

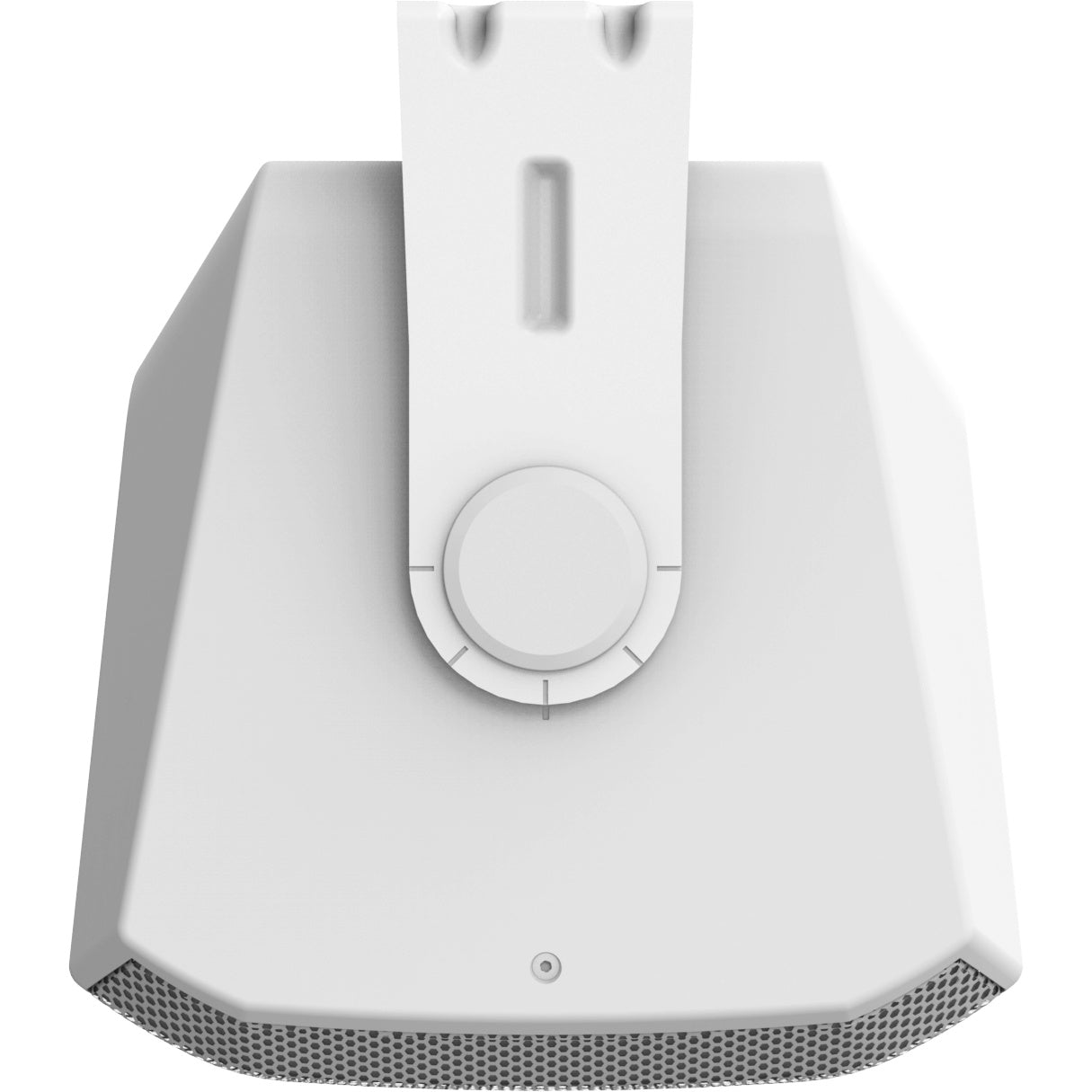

Installation flexibility is built in: the supplied slip-free yoke mount, optional pan-and-tilt bracket, and VESA mount compatibility give integrators multiple rigging paths without sourcing additional hardware. Full EASE, EASE Focus, CF2, 3D CAD, and BIM/Revit files are available for system modeling, and enhanced voicing presets are accessible through the AtlasIED Atmosphere platform for refined tuning without signal processing add-ons.
Specifications
