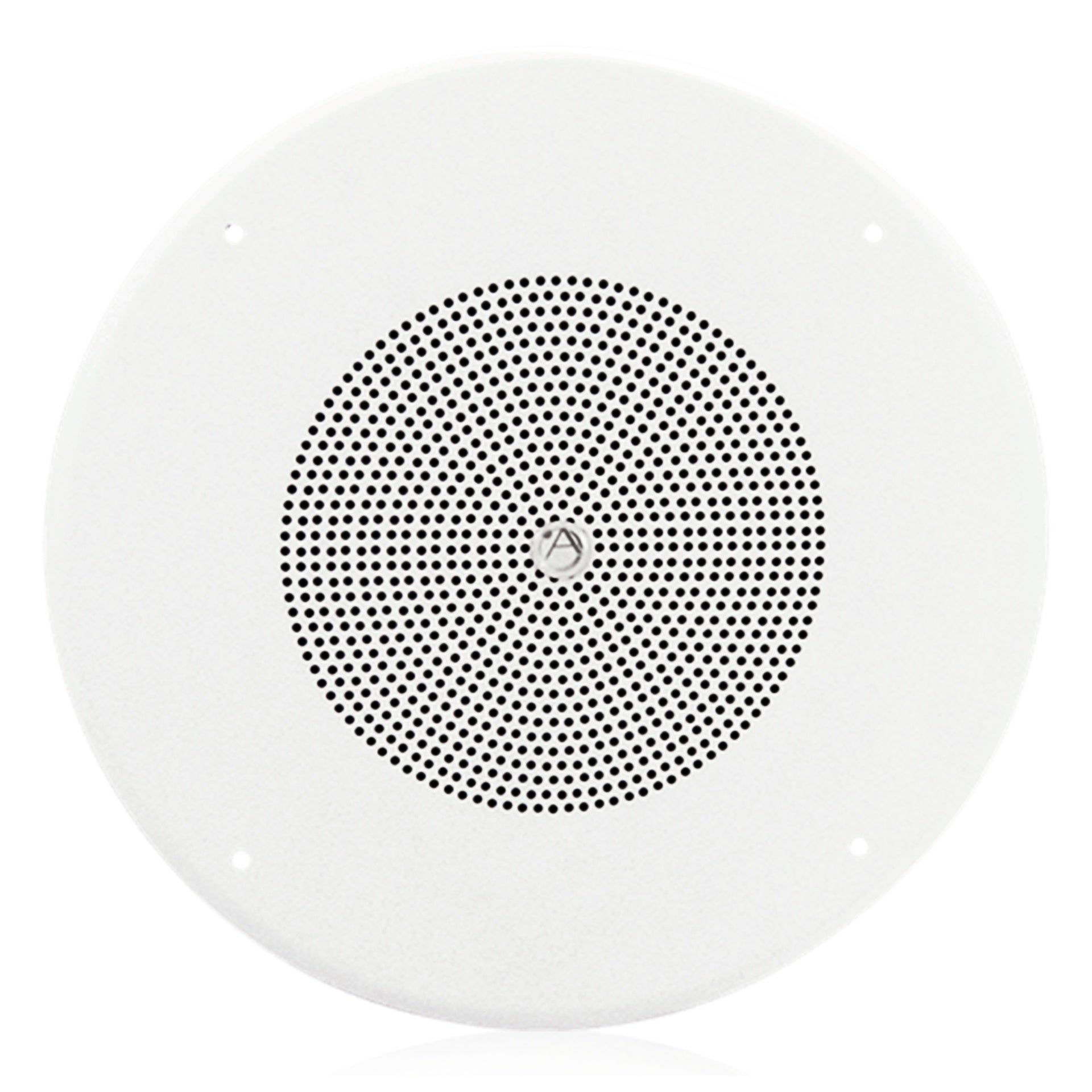

AtlasIED HD70W 8" In-Ceiling Speaker With 70V Transformer Assembly
AtlasIED HD70W 8" In-Ceiling Speaker With 70V Transformer Assembly
SoundPro Item: 16715 | Part Number: HD70W
Usually ships in 5-7 business days
- Factory-Assembled Speaker, Transformer, And Baffle Reduces Jobsite Installation Labor
- Multiple Power Tap Settings Allow Flexible Zone Level Balancing On 70V Systems
- Treated Paper Cone With 1" Voice Coil Delivers Clear Voice And Music Reproduction
- Wide Dispersion Pattern Ensures Even Coverage In Low-Ceiling Commercial Spaces
- Low Transformer Insertion Loss Preserves Signal Integrity Across Distributed Runs
- 24-Gauge CRS Baffle With Textured White Epoxy Finish Blends Into Standard Ceiling Grids
The AtlasIED HD70W is a pre-assembled in-ceiling speaker solution engineered for commercial distributed audio applications where installation efficiency and reliable performance are critical. Targeted at AV integrators and contractors deploying 70V paging or background music systems in retail, hospitality, corporate, or institutional environments, the HD70W arrives factory-assembled with the speaker, transformer, and baffle ready to mount — eliminating jobsite assembly steps and reducing labor cost.
The conventional cone speaker pairs a treated paper diaphragm with a 1-inch voice coil to deliver clear voice intelligibility and musical reproduction across its operating range. The factory-mounted 70.7V transformer introduces less than 1.5dB of insertion loss and supports multiple power tap settings, giving installers the flexibility to balance zone coverage without compromising headroom. The wide 105-degree dispersion pattern makes it well-suited for low-ceiling commercial spaces where even coverage is required across the listening area.
The included 62-8 style baffle is constructed from 24-gauge cold-rolled steel and finished in textured white epoxy — an industry-standard aesthetic that blends into suspended ceiling grids without calling attention to the installation. For integrators specifying a cost-effective, code-friendly 70V speaker that ships complete and installs fast, the HD70W is a dependable choice backed by a five-year manufacturer warranty.
