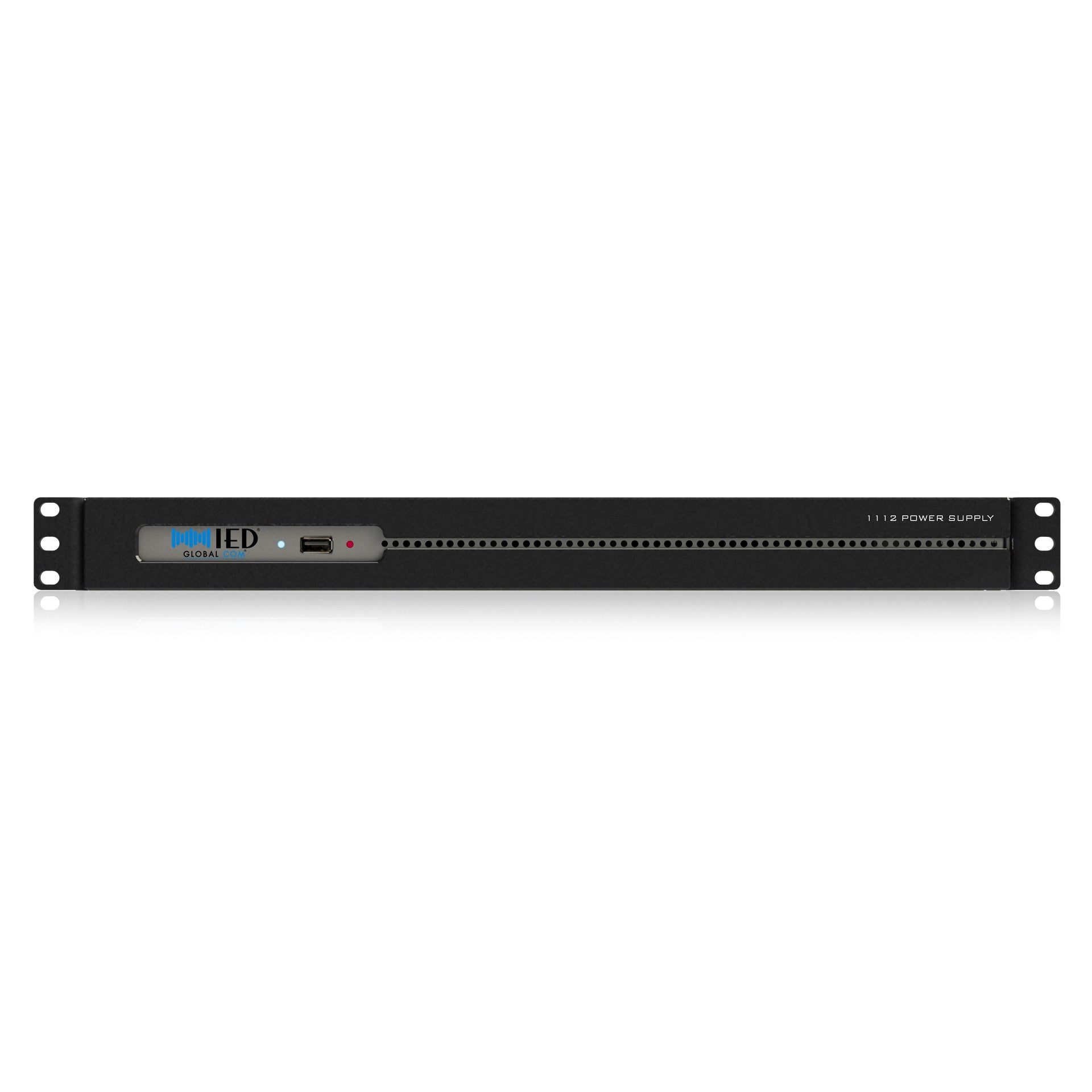

AtlasIED IED1112PS Rack Mount Power Supply for GLOBALCOM Systems

AtlasIED IED1112PS Rack Mount Power Supply for GLOBALCOM Systems

SoundPro Item: 45010 | Part Number: IED1112PS

$3,667.99
$4,581.99 $3,667.99
Your Price Sold out
MSRP: $4,581.99 | MAP: $3,667.99

Usually ships in 5-7 business days

  • Individually Fused Outputs Protect Each Connected GLOBALCOM Device Independently
  • Hot-Swap Redundant Module Support Maintains Power If Primary Supply Fails
  • Fault Relay Output Enables Supervision System Integration For Automated Alerts
  • Rear Security Cover Locks Output Connectors To Prevent Accidental Disconnection
  • Universal AC Input Supports Worldwide Deployment Without Manual Voltage Switching
  • Single 1RU Chassis Consolidates Power For Up To Eight GLOBALCOM Units
Log in or register for YOUR best price

The AtlasIED IED1112PS is purpose-built for system integrators and broadcast engineers deploying GLOBALCOM intercom infrastructure in rack-based environments. It consolidates 12V DC distribution for up to eight devices — including 1100ACS, 1200ACS, 1100MSG, 1200MSG, IP100 Series, and 1100DAB Series units — into a single 1RU chassis, eliminating the need for multiple wall-wart adapters or unmanaged power distribution.

Where reliability is non-negotiable, the IED1112PS supports a second hot-swappable 1112PSM module for full redundancy. If the primary module fails, the secondary assumes the full load without interrupting power to any connected device, and a fault relay provides a closure signal that integrates directly into the GLOBALCOM supervision system for automated alerting.

Universal AC input accommodates worldwide deployments without voltage switching, and a rear security cover locks all output connectors in place to prevent accidental disconnection during live operation. For integrators commissioning permanent or touring intercom rigs where downtime is unacceptable, the IED1112PS provides the centralized, protected power architecture that professional GLOBALCOM installations require.

Downloads

View full details

Specifications

Electrical
Power Supply Voltage
100 - 240VAC
Rated Input Current (Per Supply)
8 Amps Max
Rated Output Voltage
+12VDC (±5%)
Rated Output Current (Total)
37 Amps
Rated Output Current (Per Output)
4.6 Amps
Relay Contact Rating
Form C, 1A 30VDC, 0.3A 125VAC
Connectivity
Input
IEC 60320 Type C-13
Output
2-Pin Phoenix, 5.08mm Spacing
Fault Relay
3-Pin Phoenix, 3.8mm Spacing
Dimensions
Height
1.75" (4.4cm)
Width (Without Rack Mount Ears)
17" (43.2cm)
Depth
12.25" (31.1cm)
Recommended Mounting Depth
18" (45.7cm)
Weight
Weight (With Single IED1112PSM Module)
13 lbs. (5.9kg)
Weight (With Dual IED1112PSM Modules)
15.6 lbs. (7.1kg)
Environmental
Operating Temperature Range
32°F - 104°F (0°C - 50°C)
Storage Temperature Range
-40°F - 158°F (-40°C - 70°C)
Warranty
Warranty Period
36 months from date of purchase
