AtlasIED IED1112PSM Plug-In Power Supply Module for Intercom Redundancy

AtlasIED IED1112PSM Plug-In Power Supply Module for Intercom Redundancy

SoundPro Item: 45012 | Part Number: IED1112PSM

$1,323.99
$1,652.99 $1,323.99
Your Price Sold out
MSRP: $1,652.99 | MAP: $1,323.99

Usually ships in 5-7 business days

  • Dual-Module Load Sharing Enables Hot-Swap Redundancy Without Interrupting Intercom Systems
  • Automatic Fault Transfer Shifts Full Load to Remaining Module on Failure
  • Built-In Fan With Internal Speed Control Optimizes Cooling to Ambient Conditions
  • Fan Failure Monitoring Reports Faults to Prevent Undetected Thermal Issues
  • Universal Input Voltage Supports Worldwide Deployment Without Reconfiguration
  • Three Rear-Panel Status LEDs Provide Immediate Visual Diagnostics Per Module
  • Overcurrent Protection Prevents Downstream Damage to Connected Intercom Equipment
Log in or register for YOUR best price

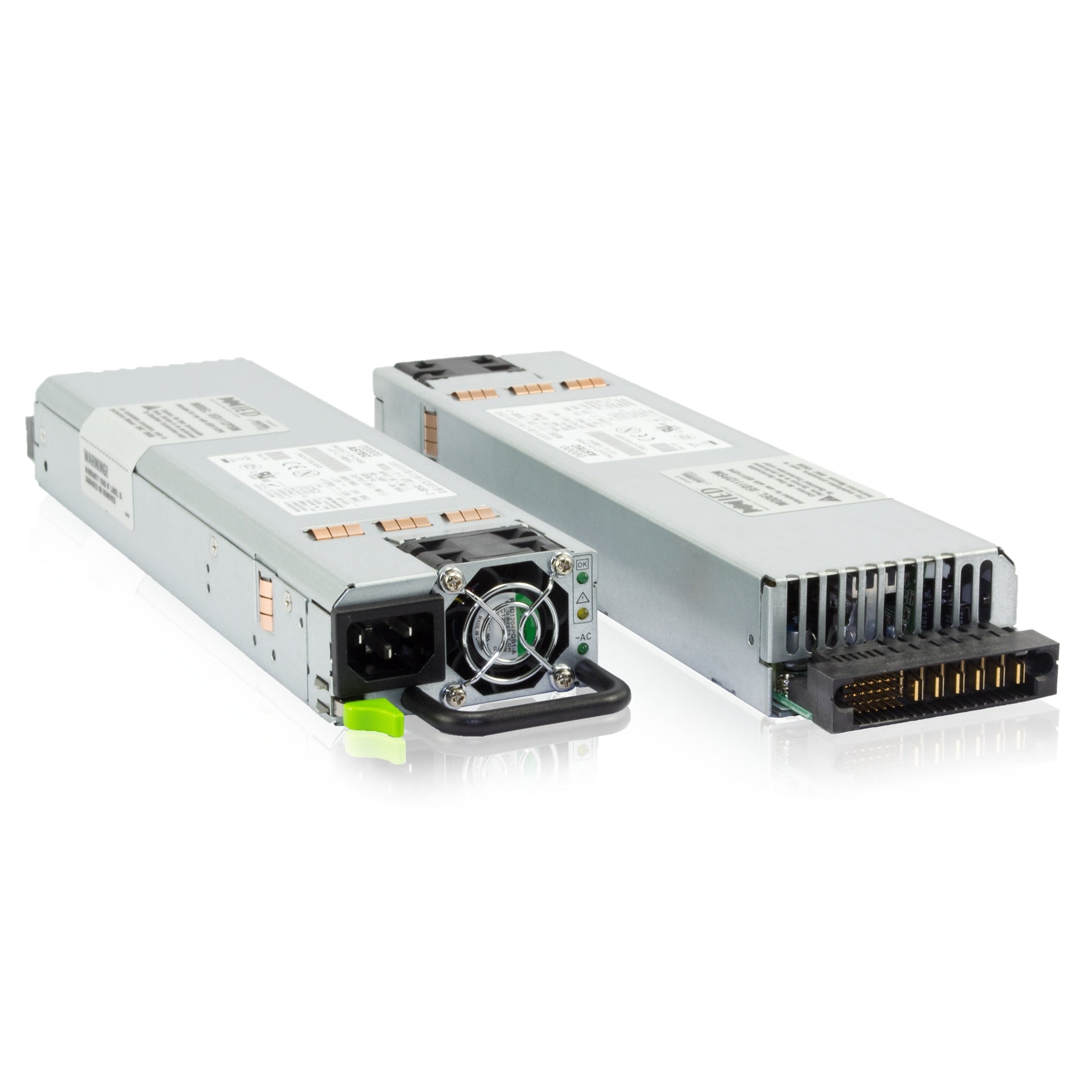

The AtlasIED IED1112PSM is a plug-in replacement and redundancy module designed for use with the AtlasIED 1112PS rack-mount power supply, targeting systems integrators and broadcast engineers who require uninterrupted 12VDC distribution in wired intercom installations. A single module delivers up to 37 amps of regulated 12VDC output, and two modules installed in a single 1112PS chassis operate in load-sharing redundancy — ensuring that a single module failure does not interrupt critical intercom infrastructure.

For live production environments, broadcast control rooms, or permanently installed intercom systems where downtime is not acceptable, the automatic load transfer behavior eliminates single points of failure at the power layer. Universal input voltage acceptance allows the same module to deploy globally without reconfiguration. The built-in cooling fan with internal speed control adjusts dynamically to thermal load rather than running at a fixed speed, reducing acoustic output in low-demand conditions while maintaining safe operating temperatures. Fault communications are relayed upstream to the 1112PS front panel, giving rack technicians immediate visual diagnostics without opening the chassis.

Compared to fixed power supply modules, the hot-swap design of the IED1112PSM reduces maintenance windows and supports N+1 redundancy strategies that are standard practice in broadcast and installed AV environments. The rear-panel status LEDs for AC input, DC output, and fault state provide independent local verification of module health.

Downloads

View full details

Specifications

Electrical
Power Supply Voltage
100 - 240VAC (50-60Hz)
Rated Input Current
8 Amps Max
Rated Output Voltage
+12VDC (±5%)
Rated Output Current
37 Amps
Efficiency
>84% at full load
Connectivity
Input Connector
IEC 60320 Type C-13
Output Connector
FCI Power Blade
Dimensions
Height
1.52" (3.9cm)
Width
3.07" (7.8cm)
Depth
13.29" (33.8cm)
Weight
Product Weight
2.6 lbs. (1.2kg)
Environmental
Operating Temperature Range
14°F - 122°F (-10°C - 50°C)
Storage Temperature Range
-40°F - 158°F (-40°C - 70°C)
Warranty
Warranty Period
36 months from date of purchase
