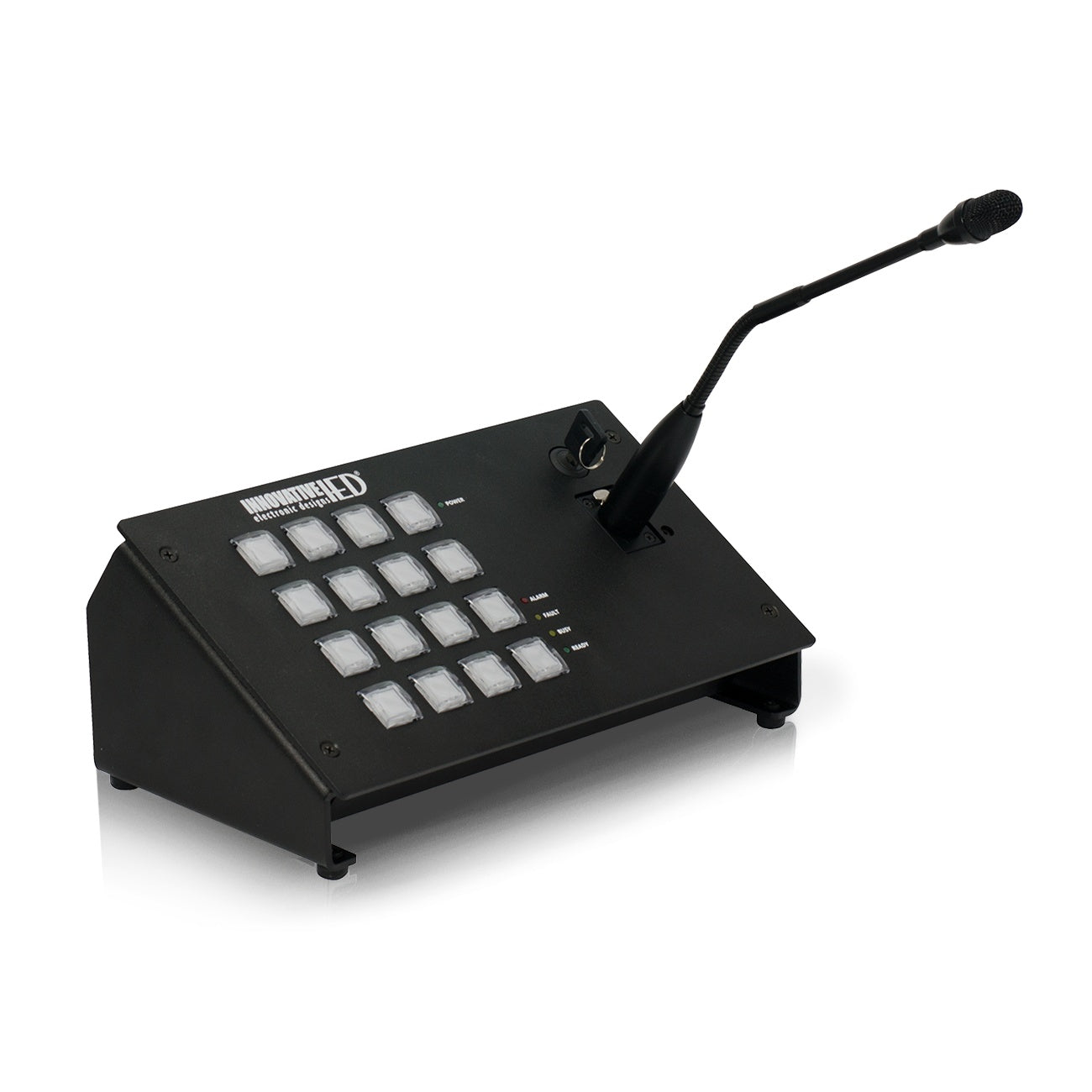

AtlasIED IED5416CS-G 16-Button Digital Communications Station
AtlasIED IED5416CS-G 16-Button Digital Communications Station
SoundPro Item: 45033 | Part Number: IED5416CS-G
Usually ships in 5-7 business days
- Fully Programmable 16-Button Interface For Custom Zone And Function Assignment
- Omnidirectional Gooseneck Mic Eliminates Proximity Effect For Consistent Voice Clarity
- Auxiliary Line-Level Input Supports Local Background Music Source Integration
- Line-Level Audio Output Configurable As A Dedicated Zone Output
- Network Appliance Architecture Supports Automatic Or Static IP Address Assignment
- Electret Condenser Cartridge Positioned For Enhanced Acoustical Coupling And Intelligibility
The AtlasIED IED5416CS-G is designed for system integrators and AV professionals deploying paging and announcement systems in commercial, institutional, or facility environments. As a network appliance compatible with the 5400 Series Announcement Control Systems, it supports automatic or manually assigned IP addressing, simplifying deployment across distributed installations without complex configuration overhead.
The station's electret condenser microphone cartridge is precisely positioned within the housing to optimize acoustical coupling, delivering a full-bodied, highly intelligible voice signal — a critical requirement for life-safety paging, facility-wide announcements, and mass notification scenarios. The included gooseneck microphone uses an omnidirectional pattern, eliminating the proximity effect that introduces low-frequency coloration when users speak at close range, which is a common issue with directional capsules in staff-operated stations.
Beyond microphone input, the IED5416CS-G provides an auxiliary line-level audio input for local background music sourcing and a line-level audio output configurable as a zone output, giving integrators flexible signal routing options within larger installed audio architectures. The 16 fully programmable buttons allow precise zone and function assignments tailored to the specific announcement workflow of each deployment site.
Specifications
