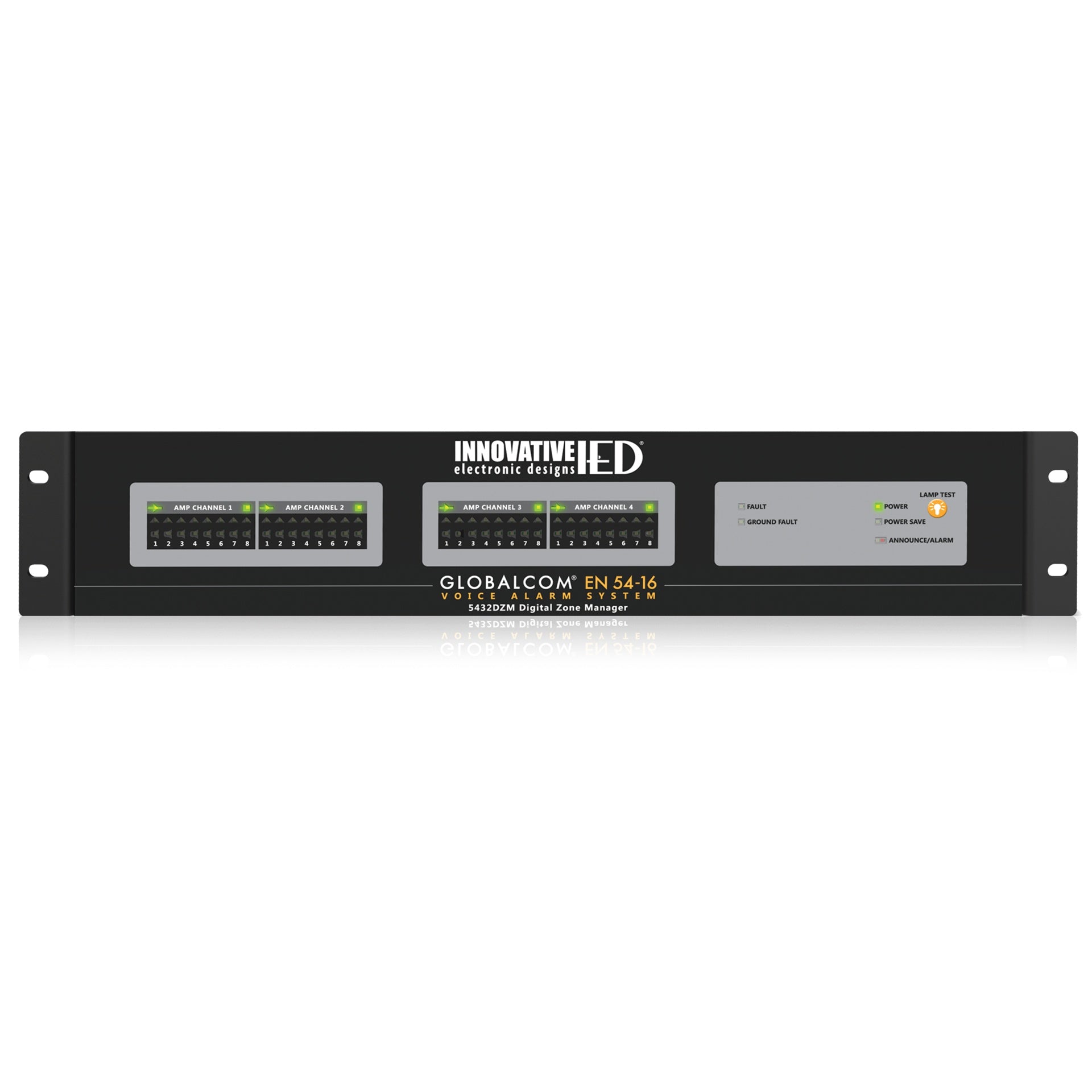

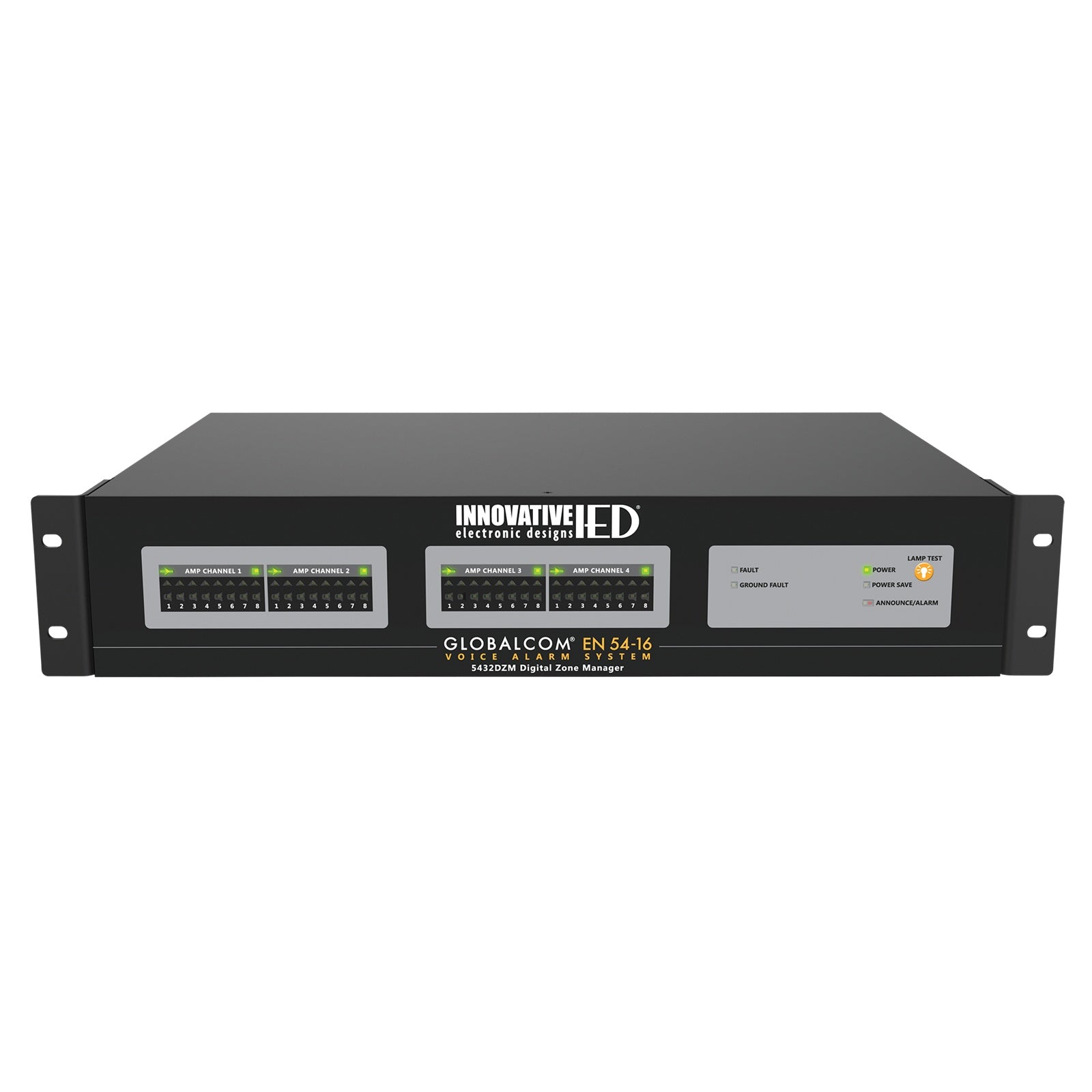

AtlasIED Digital Zone Manager For IED 5400 Systems | Up to 32 Zones

AtlasIED Digital Zone Manager For IED 5400 Systems | Up to 32 Zones

SoundPro Item: 45035 | Part Number: IED5432DZM

$9,452.99
$11,812.99 $9,452.99
Your Price Sold out
MSRP: $11,812.99 | MAP: $9,452.99

Usually ships in 5-7 business days

  • Per-Channel DSP With EQ, Delay, And Ducking Enables Precise Zone-Level Audio Tuning
  • Patented Ambient Analysis Automatically Adjusts Levels To Changing Environmental Noise
  • Backup Amplifier Switching Maintains Paging Continuity When Primary Amplifier Fails
  • Integrated Signal Path Supervision Reports Faults Directly To The 5400ACS

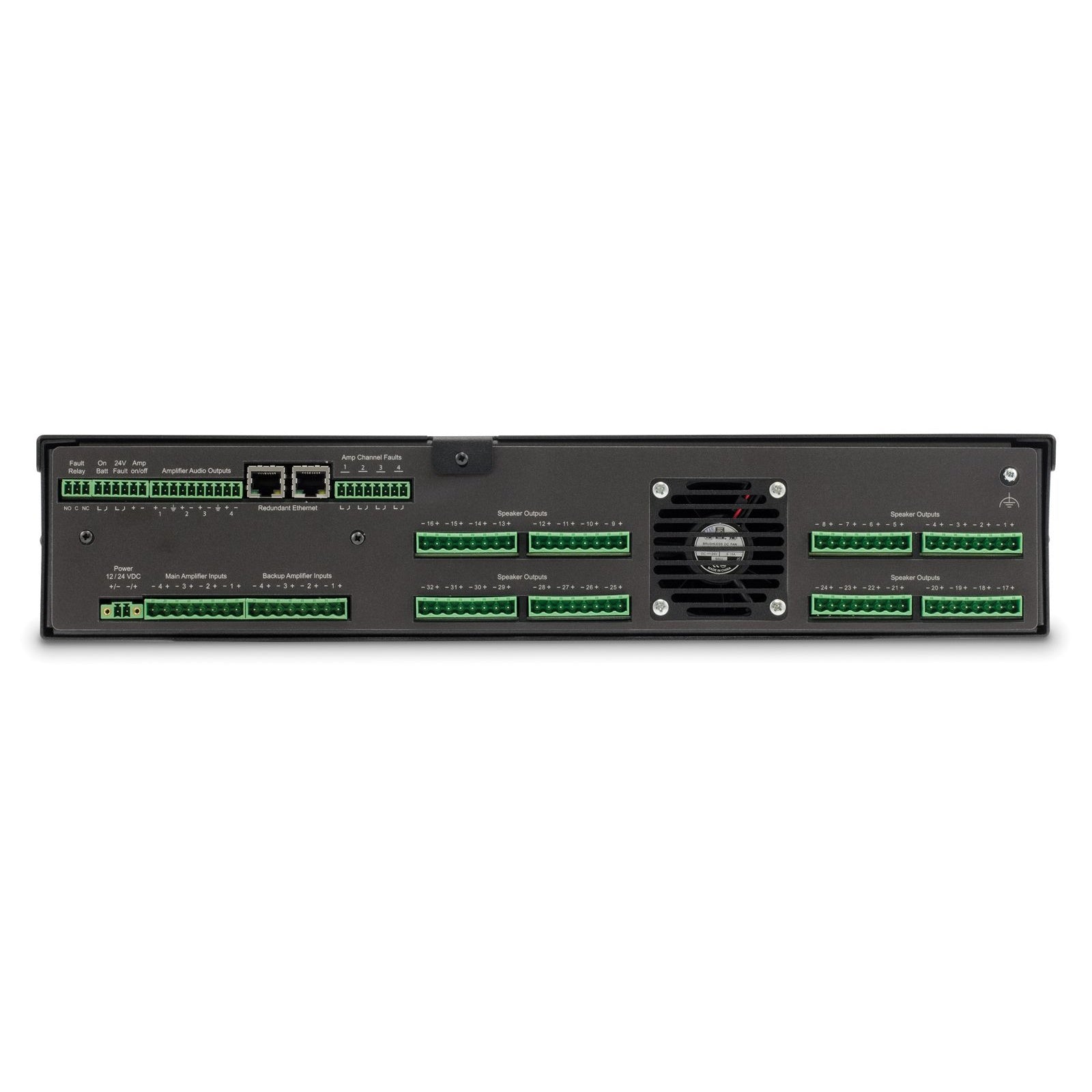

  • Front-To-Back Airflow Cooling Suits Standard AV And Life-Safety Rack Enclosures
Log in or register for YOUR best price

The AtlasIED Digital Zone Manager is engineered for life-safety and large-scale paging installations where precise zone-level control and system integrity are non-negotiable. Designed to integrate directly with the IED 5400 Announcement Control System, it handles processing and management of paging zones while delivering line-level audio to a paired amplifier unit — making it the functional core of a distributed paging architecture in facilities such as transit hubs, hospitals, campuses, and public assembly venues.

Each output channel benefits from a full DSP chain including input level control, paging routing, automatic background music ducking, high and low pass filtering, parametric equalization, and delay — giving system integrators fine-grained tuning capability without external processing hardware. AtlasIED's patented ambient analysis automatically adjusts output levels in response to changing environmental noise conditions, a critical feature in high-traffic or acoustically variable spaces. Backup amplifier switching ensures continuity of paging operations by automatically transferring speaker loads to a backup amplifier when a primary failure is detected.

The unit mounts in a standard 19" equipment rack and uses front-to-back airflow cooling, making it compatible with typical AV and life-safety rack enclosures. Integrated supervision continuously monitors each signal path and reports faults to the 5400ACS, supporting the system-level accountability required in EN54-16 compliant installations.

Downloads

View full details

Specifications

General
Warranty Period
36 months from date of purchase
Dimensions
Rack Height
2U (3.5")
Rack Width
19"
Performance
Maximum Paging Zones
32
Amplifier Output Channels
4
Speaker Line Outputs Per Amplifier Channel
8
Total Supervised Speaker Lines
32
Delay Per Amplifier Channel
Up to 40 ms
Parametric Bands Per Amplifier Channel
Up to 7
Identifiers
MPN
IED5432DZM
