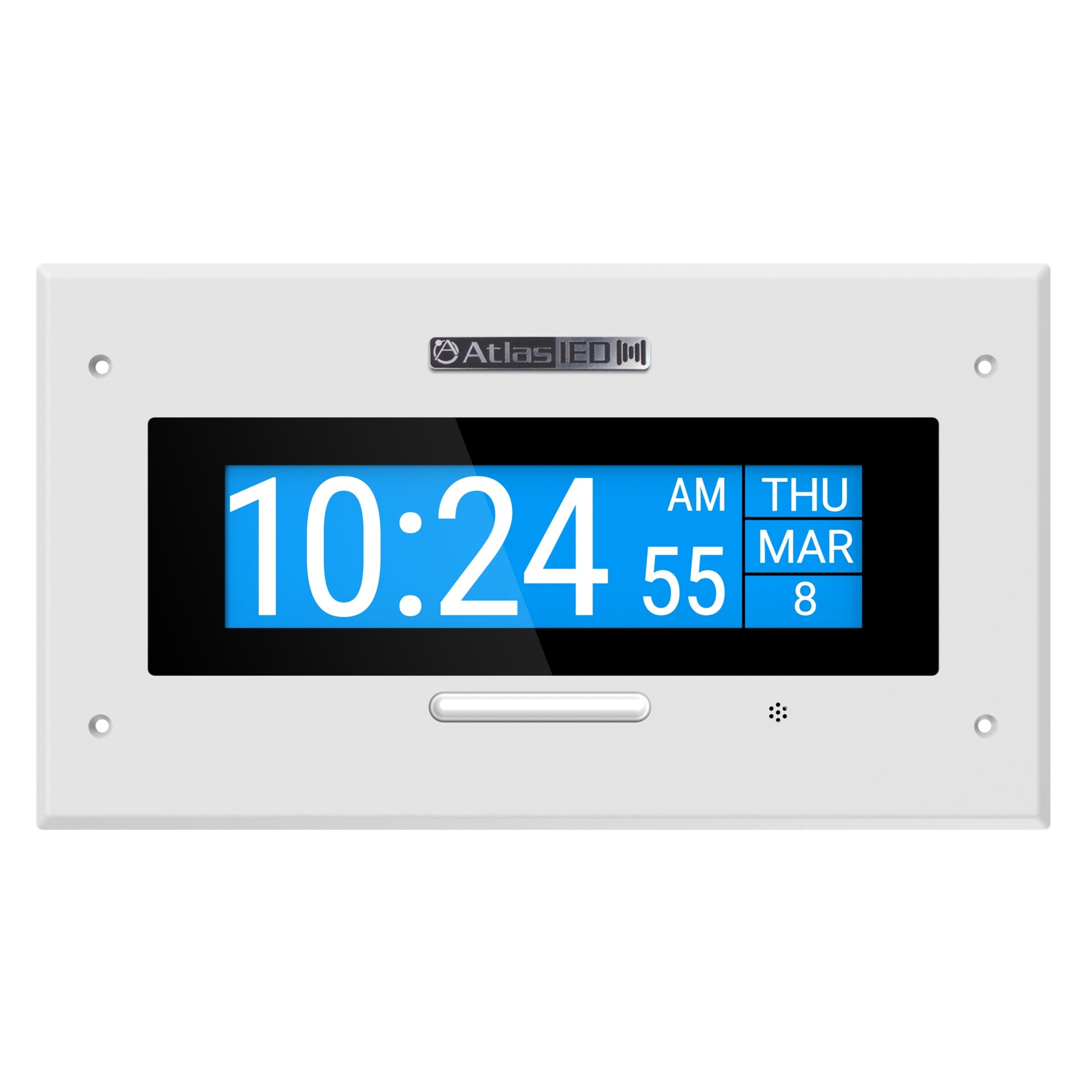

AtlasIED IP-DMF PoE+ Indoor Wall Mount LCD Endpoint With Talkback Mic
AtlasIED IP-DMF PoE+ Indoor Wall Mount LCD Endpoint With Talkback Mic
SoundPro Item: 122961 | Part Number: IP-DMF
Usually ships in 5-7 business days
- SIP And Proprietary Auto-Registration Simplifies Large-Scale Enterprise Deployment
- PoE+ Powered Amplifier Drives Two Analog Speakers Without External Equipment
- NTP-Synchronized LCD Clock Eliminates Need For A Separate Master Clock System
- Color-Synced LCD Background Supports Coded Alerting For Normal, Warning, And Emergency
- Front-Panel LED Flashers Deliver ADA Title II Compliant Visual Notification
- Half-Duplex And Full-Duplex Paging Supported Via Integrated Talkback Microphone
- GPI And Relay Contacts Unify Third-Party System Connectivity At The Endpoint
The AtlasIED IP-DMF is designed for AV integrators and IT/facilities teams deploying enterprise-class mass notification and intercom systems in commercial environments. It fits directly into existing VoIP infrastructure — registering natively with Singlewire InformaCast, Syn-Apps Revolution, and AtlasIED applications, or as a standard SIP device on any SIP server or hosted call platform. This makes it a practical choice for organizations that want to extend communication reach beyond desktop phones into hallways, classrooms, warehouses, or public corridors where ambient noise or physical distance limits traditional telephony.
The IP-DMF addresses installations where both audio and visual signaling are required under ADA Title II compliance mandates. The high-resolution multi-color LCD transitions from NTP-synchronized clock display in standby to scrolling text notifications during active alerts, while front-panel LED flashers provide visual confirmation to room occupants. Background display colors can be synchronized to InformaCast or Revolution notification profiles, enabling consistent color-coded communication across normal, warning, and emergency scenarios — a meaningful operational advantage in K-12, healthcare, government, and transportation hub deployments.
The integrated PoE+-powered amplifier supports two 8Ω analog speaker outputs, allowing the unit to drive local audio without an external amp. Balanced line-level inputs and outputs enable integration with existing audio systems, and two GPI contacts plus one relay output unify third-party system connectivity. Auto-registration via SLP, DHCP Option 72, or IEDNet+ simplifies deployment at scale across enterprise voice VLANs, with Call Manager publisher-subscriber SIP failover maintaining call processing continuity during WAN outages.
