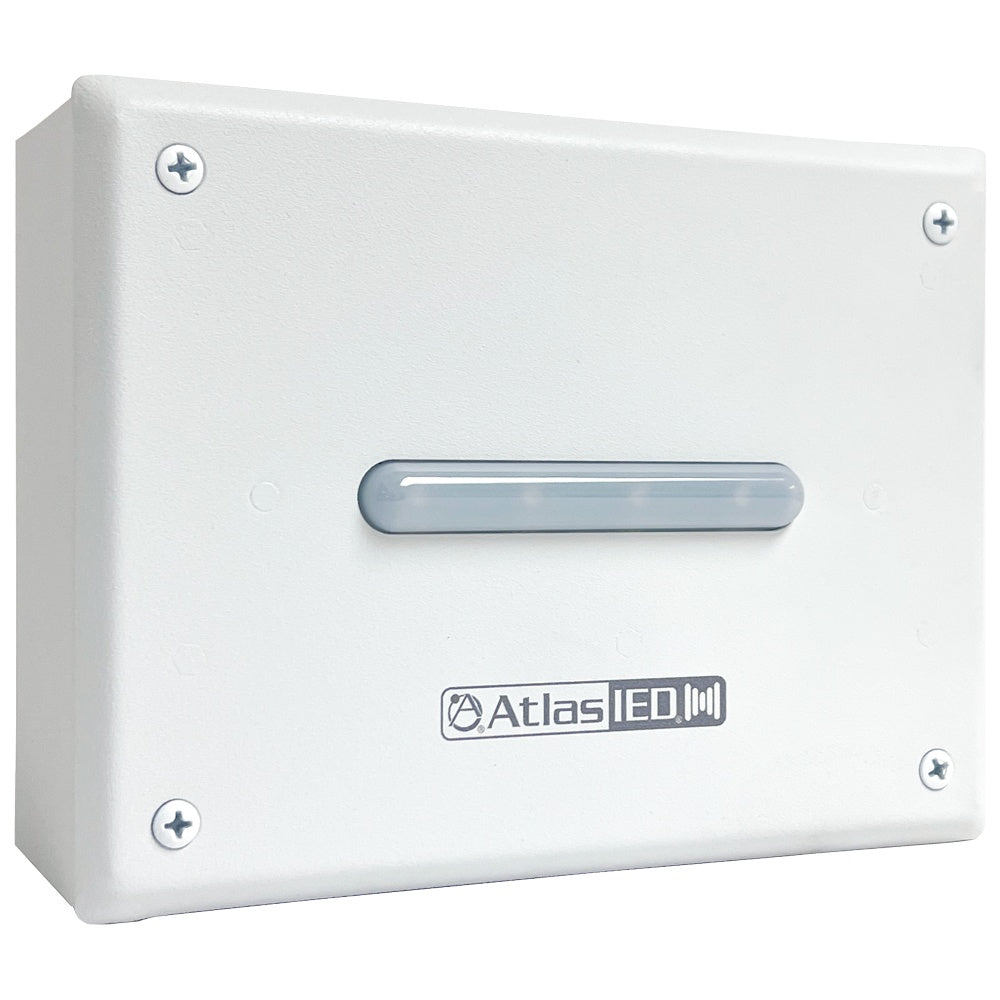

AtlasIED IP-F Indoor Wall Mount PoE+ LED Visual Alert Endpoint
AtlasIED IP-F Indoor Wall Mount PoE+ LED Visual Alert Endpoint
SoundPro Item: 203444 | Part Number: IP-F
Usually ships in 5-7 business days

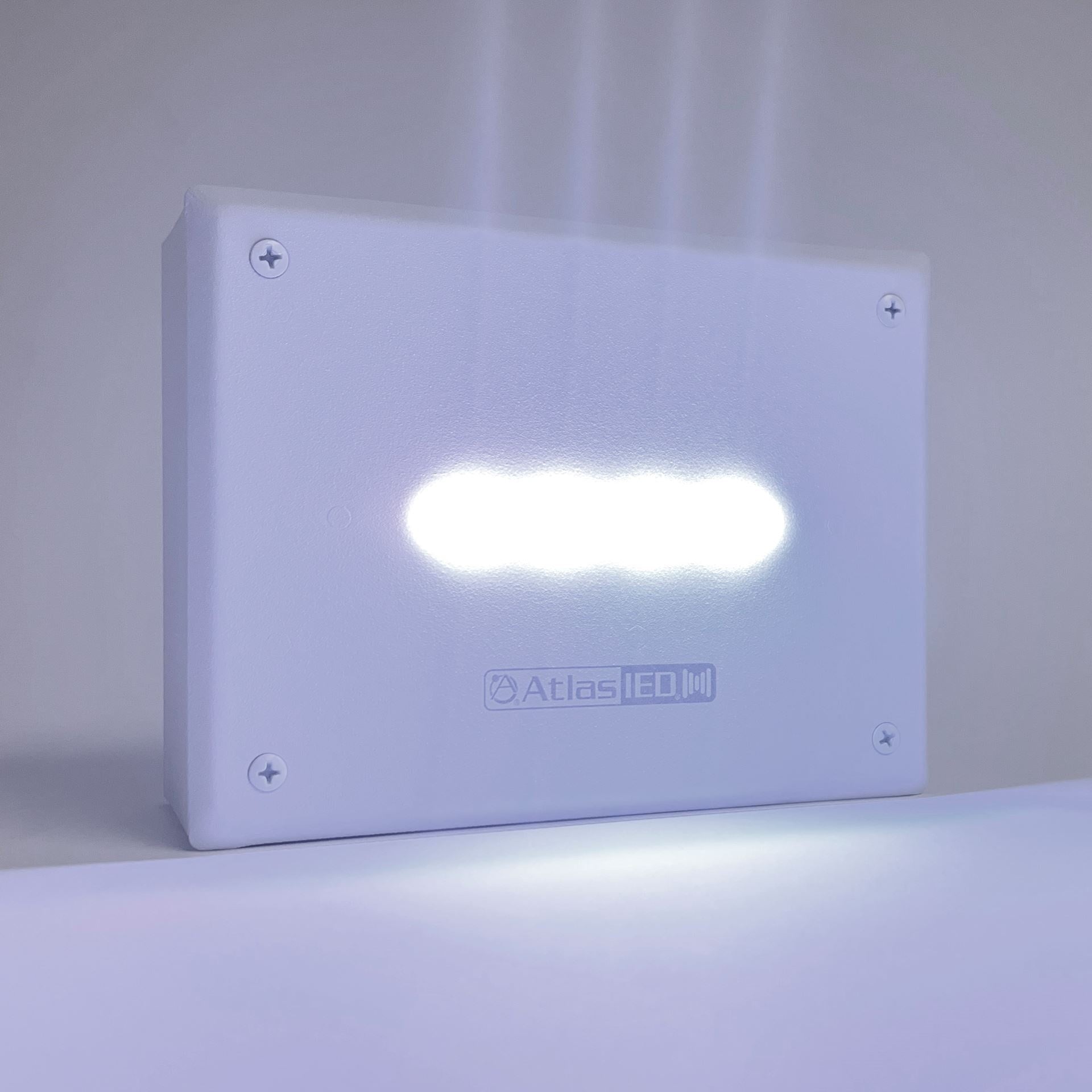

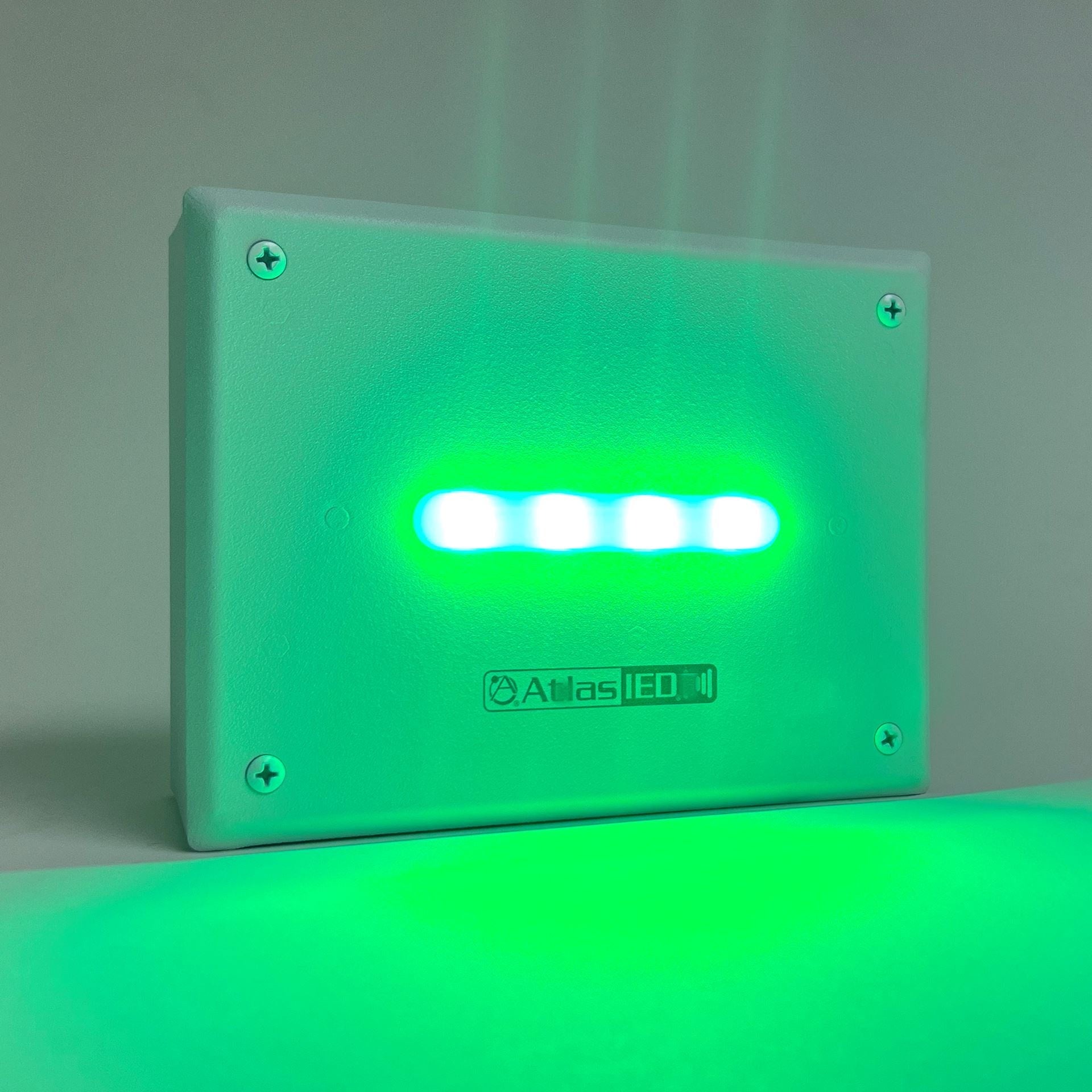

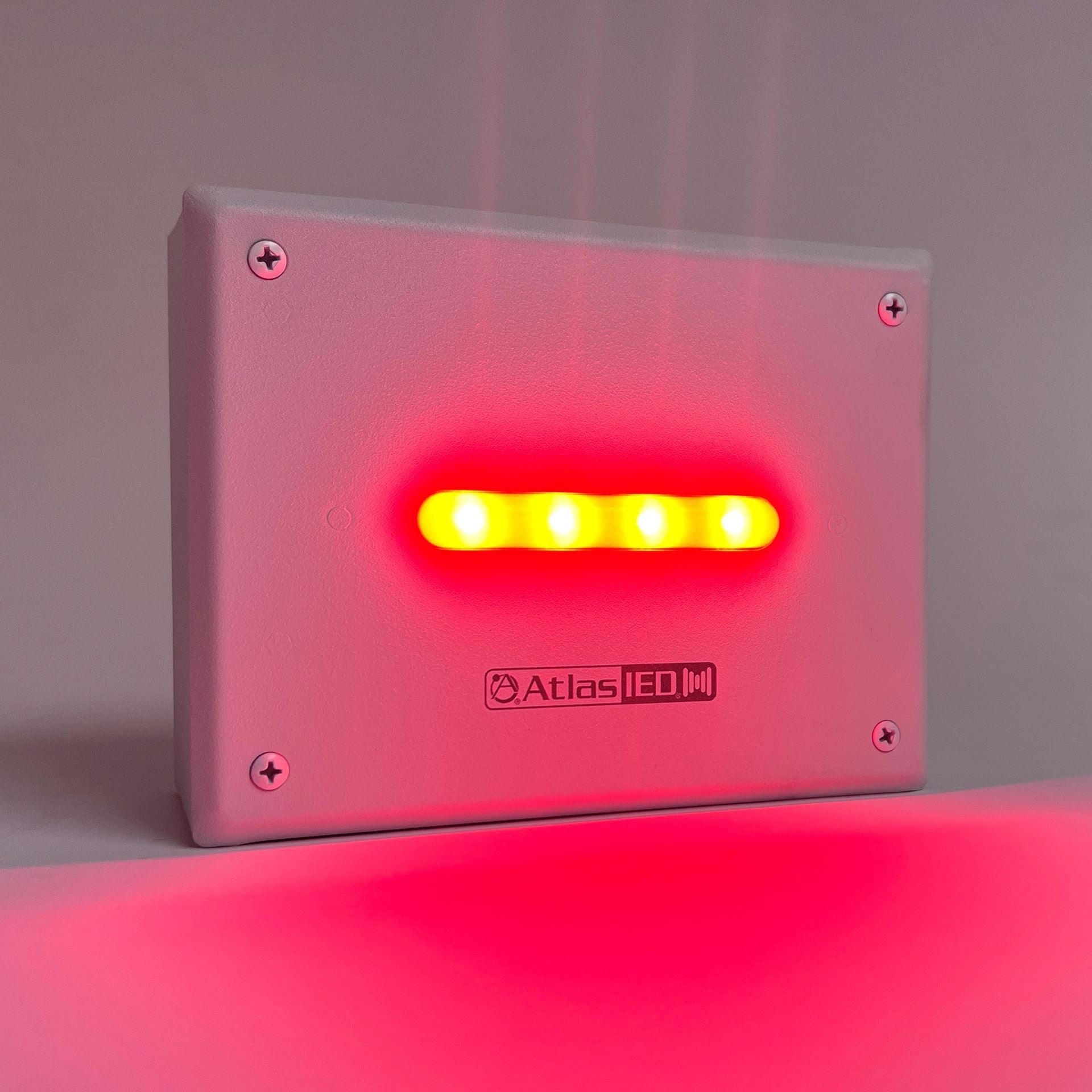

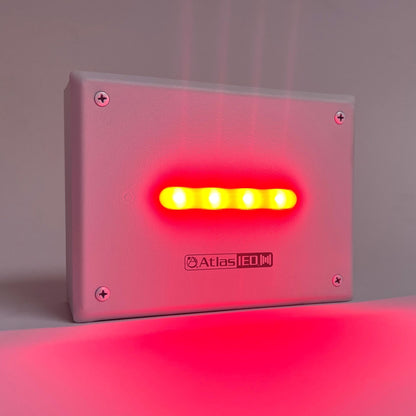

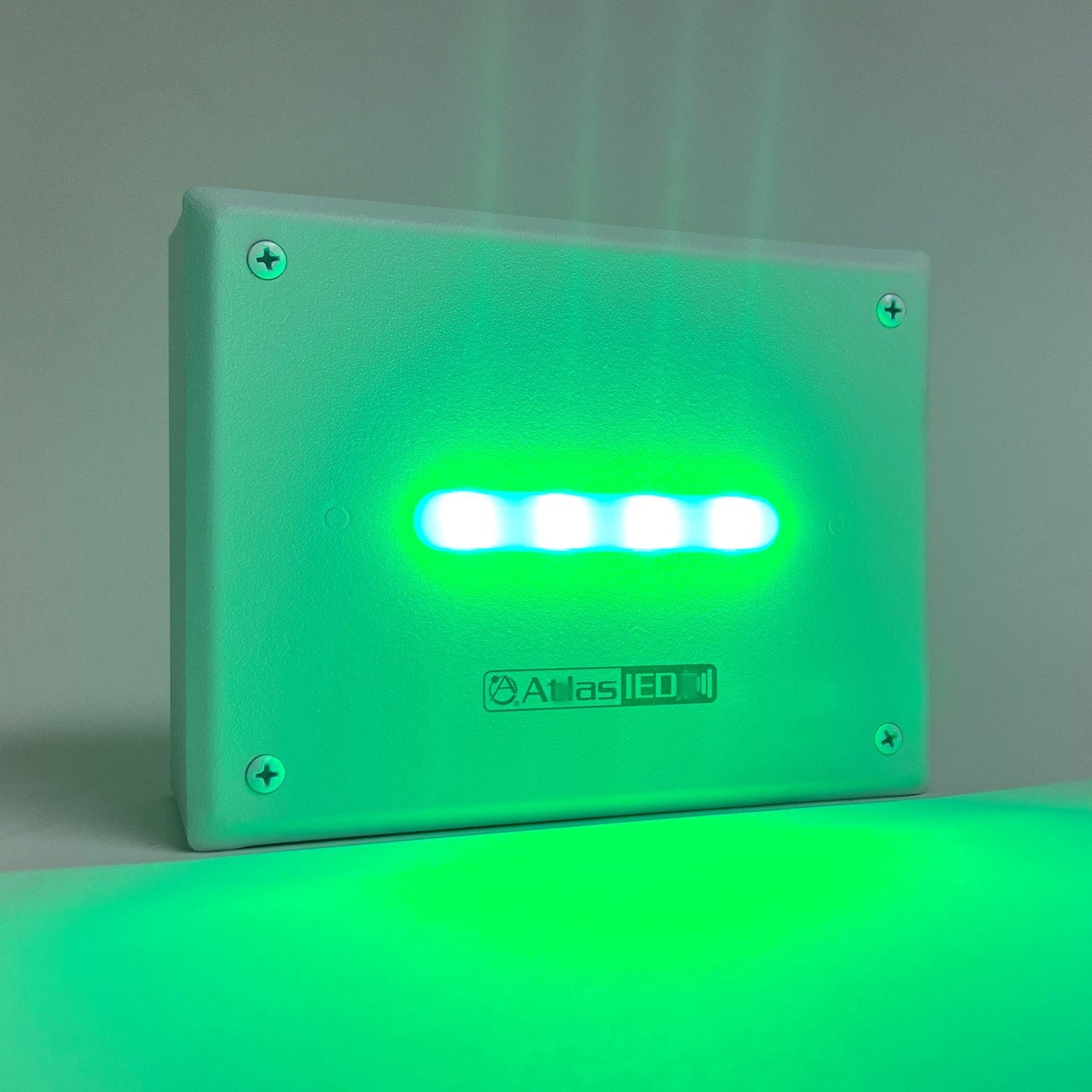

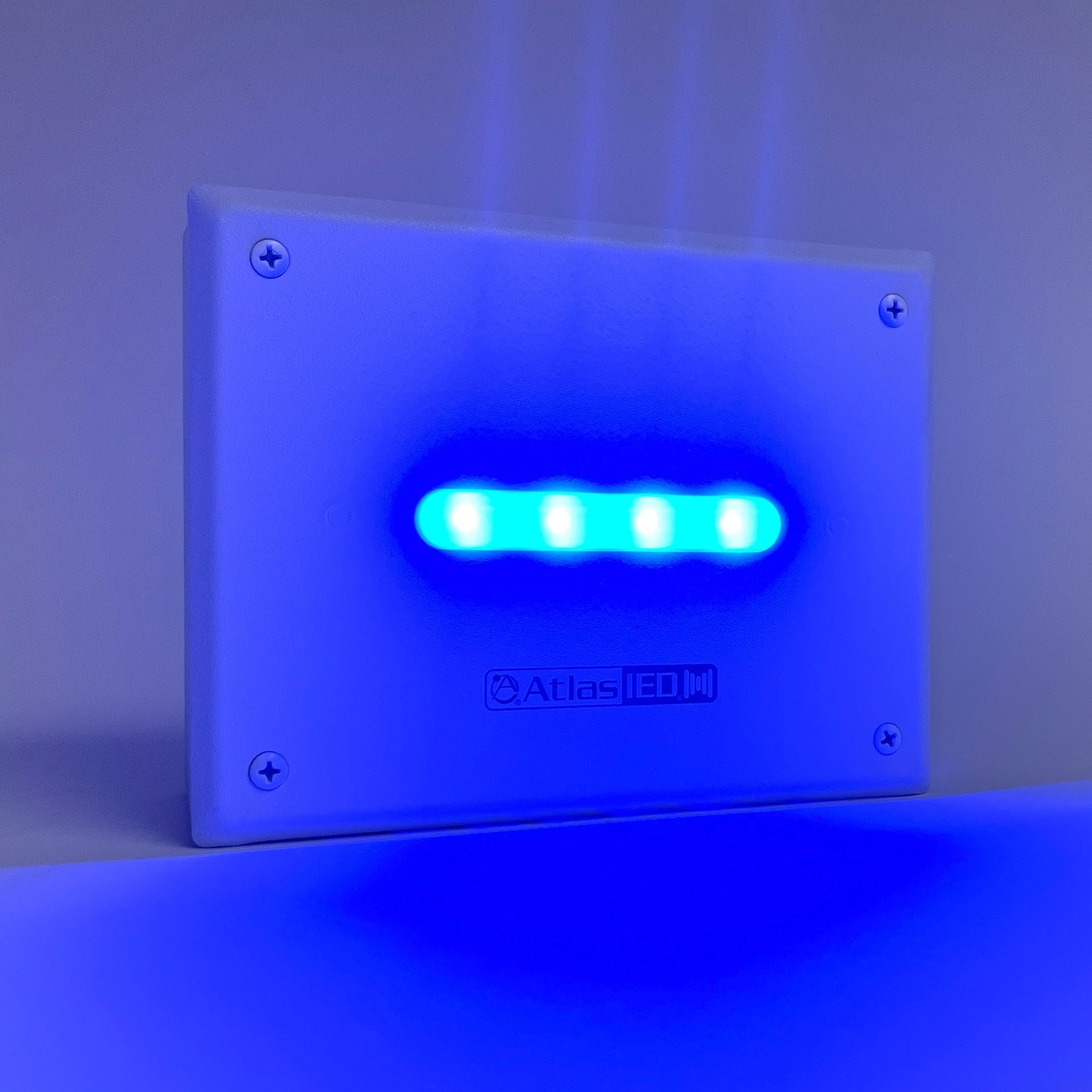

- Multicolored LED Flasher Supports Color-Coded Alert Profiles For Normal, Warning, And Emergency Events
- ADA Title II Compliant Visual Signaling For Hearing-Impaired And High-Noise Environments
- Native Registration With Singlewire InformaCast And Syn-Apps Revolution Notification Platforms
- SIP Failover Support For Cisco Call Manager Publisher-Subscriber Redundancy
- Integrated PoE+ Amplifier Drives Up To Two Analog Speakers For Combined Audio-Visual Alerting
- Balanced Auxiliary Audio Line-In And Line-Out For Flexible Signal Routing
- General Purpose Inputs And Relay Output Enable External Device Integration
The AtlasIED IP-F is designed for AV integrators and facilities teams deploying IP-based mass notification or intercom systems in environments where audio alone is insufficient. It functions as a standalone visual alerting endpoint in schools, healthcare facilities, manufacturing floors, and large public spaces where ADA Title II compliance or hearing-impaired accommodation is a requirement. The multicolored LED flasher enables color-coded alert profiles for normal, warning, and emergency states, giving operators a visual language that extends beyond audio reach.
The IP-F registers natively within Singlewire InformaCast and Syn-Apps Revolution notification platforms, as well as directly to any SIP server or VoIP communications manager including Cisco Call Manager. It supports publisher-subscriber SIP failover for remote location call processing redundancy, making it a reliable endpoint even during WAN outages. This positions it well for distributed campus deployments where centralized call processing continuity is critical.
Beyond visual signaling, the onboard PoE+ amplifier adds audible announcement capability by supporting up to two analog 8Ω speakers, eliminating the need for a separate amplifier in smaller zones. General purpose inputs, a relay output, and balanced auxiliary audio I/O round out the integration options, making the IP-F a capable, self-contained node within AtlasIED IPX-based or third-party IP intercom and paging infrastructures.
Downloads
Downloads
- IP F Data Sheet
- IPX Series Firmware Release Notes
- AtlasIED Discover Quick Start Guide (9 pages)
- IPX Endpoint Firmware Update Guide (1 page)
- IPX Endpoint Quick Start Guide
- IPX Endpoint FAQ (5 pages)
- IP Speakers UK Declaration of Conformity (1 page)
- Intertek Authorization to Mark (2 pages)
- IP CB Cert (2 pages)
- IP Speakers EC Declaration of Conformity (1 page)
- IPX Product Overview (3 pages)
