AtlasIED M1000A35 Self-Contained Active Sound Masking System
AtlasIED M1000A35 Self-Contained Active Sound Masking System
SoundPro Item: 124368 | Part Number: M1000A35
Usually ships in 5-7 business days
- UL2043 Plenum Rated For Above-Ceiling Installation Compliance
- Dual-Amplifier Design Supports Internal Speaker And External Passive Speakers Simultaneously
- Variable Hi-Cut Filter Tailors Masking Spectrum To Room Acoustics
- VCA GPIO Port Enables Remote Level Adjustment Via External 10k Pot
- Class D Topology Amplifier Reduces Power Draw Without Sacrificing Output
- Non-Repeatable Pink Noise Generator Prevents Listener Fatigue And Adaptation
- Optional ATMASKSC Controller Adds Precision Commissioning Control
The AtlasIED M1000A35 is engineered for AV integrators and facilities professionals tasked with improving speech privacy in open offices, healthcare environments, and commercial spaces. The unit operates as a fully self-contained active masking system, eliminating the need for external signal processors or separate amplifier racks in smaller deployments. A single suspension-point installation and included hanger brackets keep ceiling mounting straightforward, reducing on-site labor for integrators.

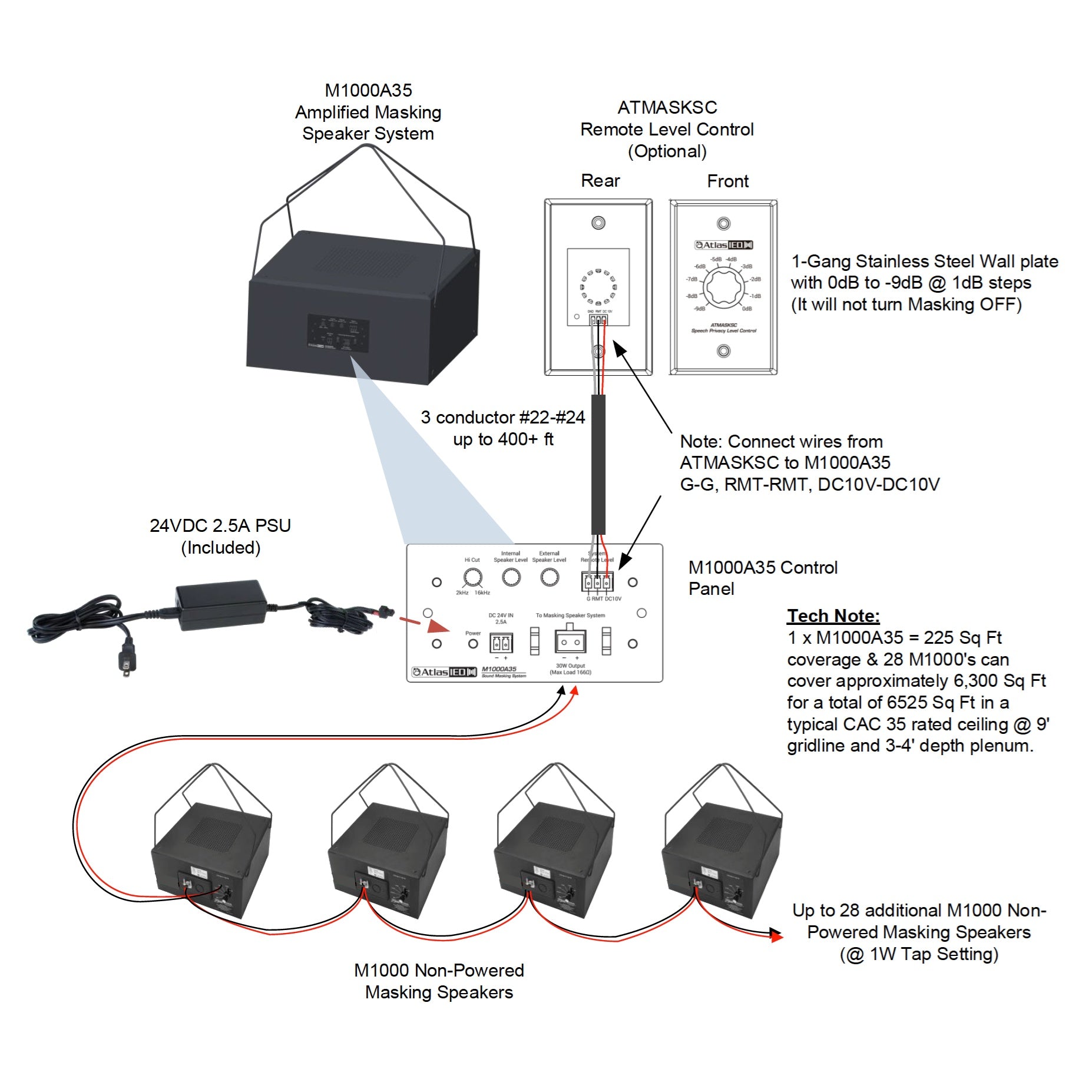

Where the M1000A35 distinguishes itself from basic masking speakers is its dual-amplifier architecture: the internal channel drives the onboard wide-range driver, while the 30-watt secondary output feeds additional passive masking speakers such as the M1000, M1000R, and M2000 series — scaling coverage well beyond what a standalone unit can achieve. Each channel carries independent level control, and the contoured non-repeatable pink noise signal passes through a specialized variable hi-cut filter so the masking spectrum can be tuned to the specific acoustic character of the space during commissioning.

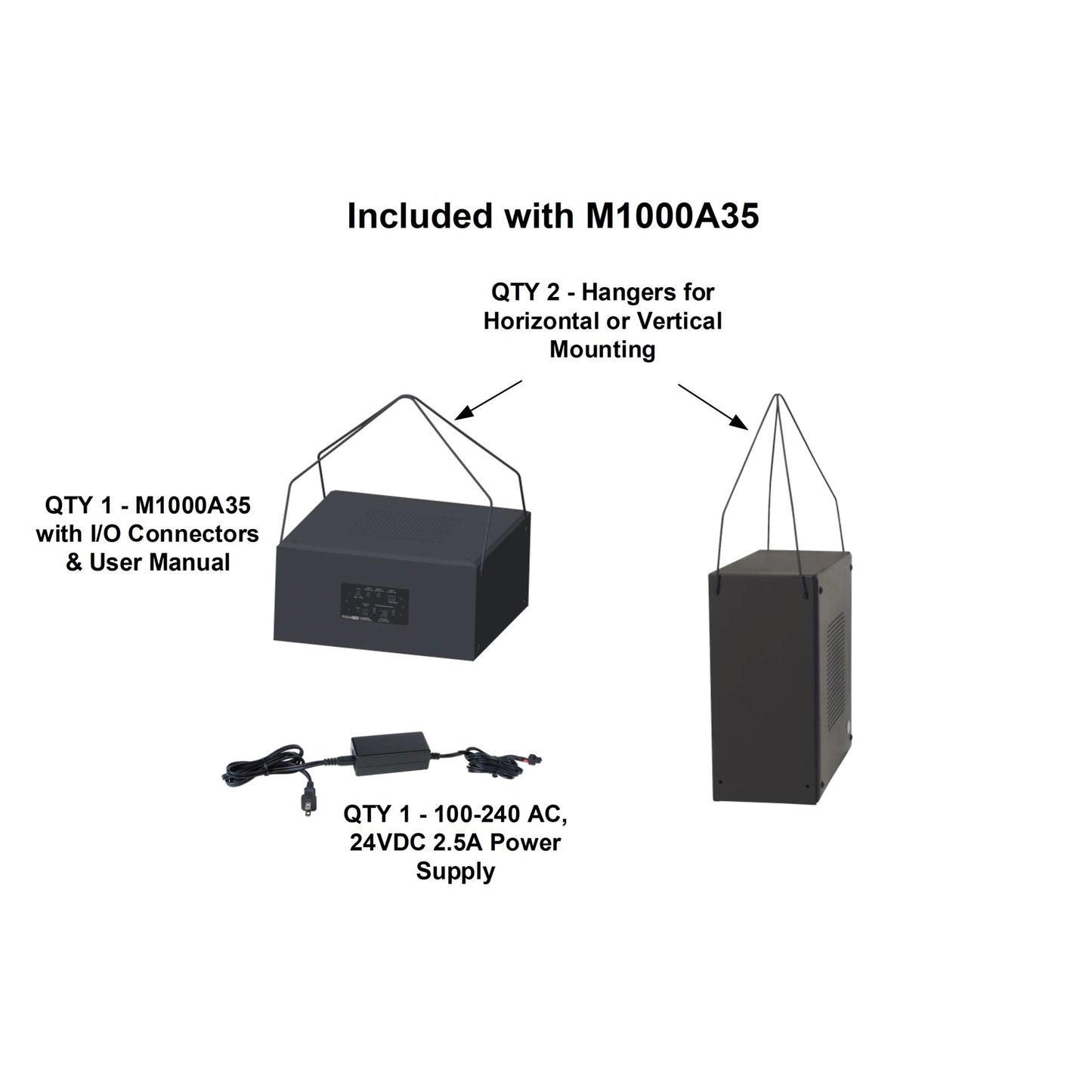

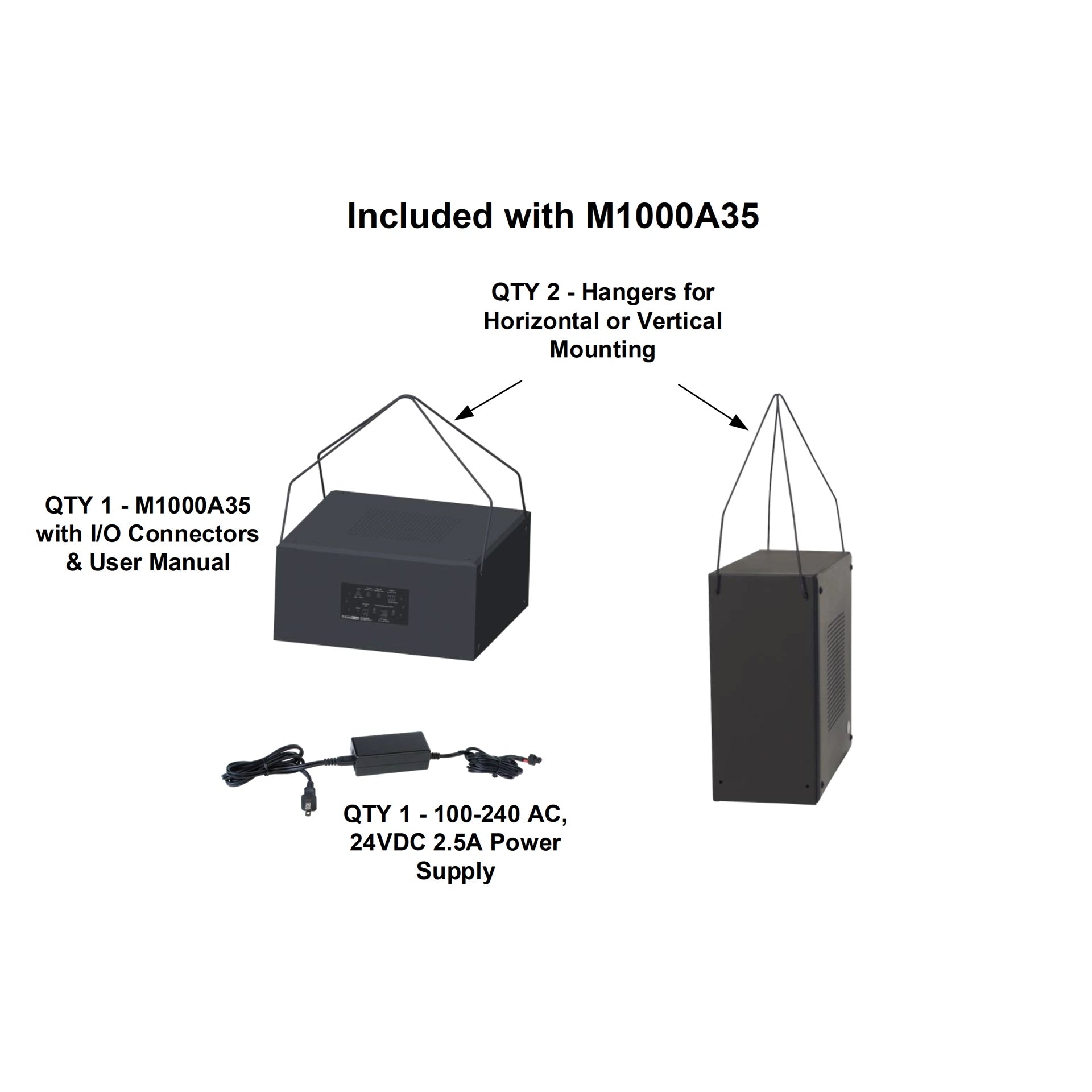

For installations requiring remote adjustment, the VCA GPIO port accepts an external 10k pot, and the optional ATMASKSC commissioning controller provides 1dB precision steps without risk of accidental system shutoff. The Class D topology amplifier and UL2043 plenum rating make this unit compliant for above-ceiling placement, while the included 100–240V universal in-line power supply simplifies international and multi-site deployments.
Specifications
