AtlasIED M1000R-W Dual Cone Sound Masking Speaker | Round | Standard | White
AtlasIED M1000R-W Dual Cone Sound Masking Speaker | Round | Standard | White
SoundPro Item: 17384 | Part Number: M1000R-W
Usually ships in 5-7 business days

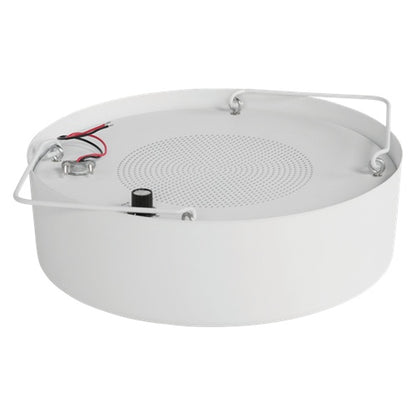

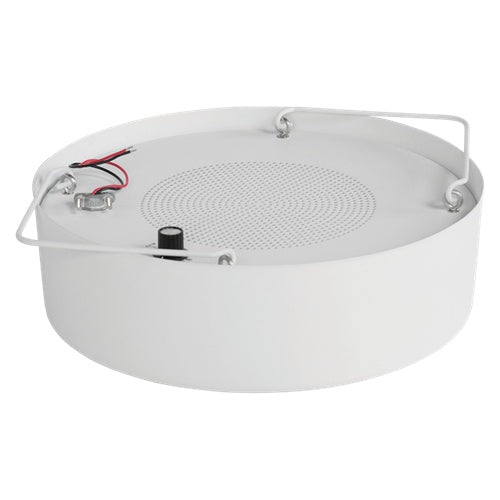

- Sleek Round Low-Gloss White Enclosure Designed For Visible Open Plenum Mounting

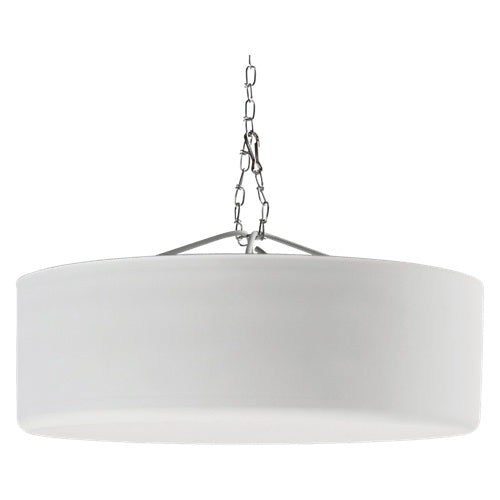

- Balanced Enclosure Design Maintains Level Orientation When Suspended From Chain
- Factory-Assembled Transducer And Transformer Eliminate Field Integration Errors
- External Tap Selector Enables System-Level Power Tuning Without Opening Enclosure

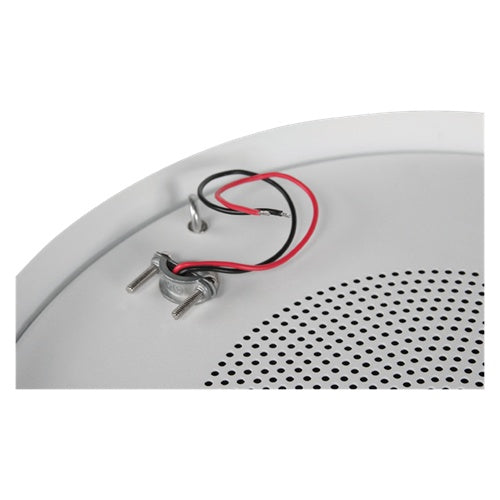

- Integral Wire Strain Relief Ensures Secure And Reliable Speaker Cable Termination
- UL 1480 And UL 2043 Safety Listing Satisfies Commercial Plenum Code Requirements
- Large Enclosure Volume Supports Accurate Low-Frequency Masking Spectrum Reproduction
The AtlasIED M1000R-W is engineered specifically for sound masking deployments in contemporary open-ceiling office environments where speaker aesthetics and speech privacy performance are equally critical. Its low-gloss white round enclosure integrates cleanly with exposed ductwork, lighting fixtures, and other overhead infrastructure, making it a practical choice for corporate offices, healthcare facilities, and open-plan workspaces where visible speakers must complement the architectural finish.

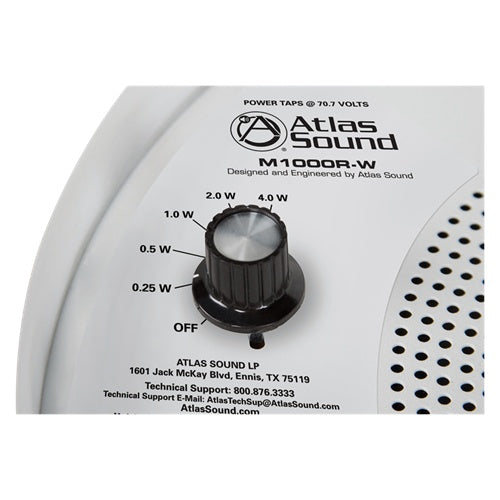

Factory-assembled into a 382 cubic inch round enclosure, the high-efficiency 8" paper cone transducer is paired with a low insertion loss 70.7V transformer, eliminating field assembly and reducing installation errors. The external tap selector switch provides five discrete power settings — 0.25, 0.5, 1, 2, and 4 watts — plus an OFF position, allowing system-level tuning without accessing internal components. The included 78" suspension chain system simplifies mounting and height adjustment, while the integral wire strain relief on the enclosure top secures speaker cable termination reliably.
Tested and listed to both UL 1480 and UL 2043, the M1000R-W is approved for use in air handling plenum spaces, satisfying code requirements common in commercial installations. Note that a separate masking signal generator and 70.7V amplifier are required for system operation and are not included.
