AtlasIED MW100 Wireless Microphone Kit for Install Audio | Handheld

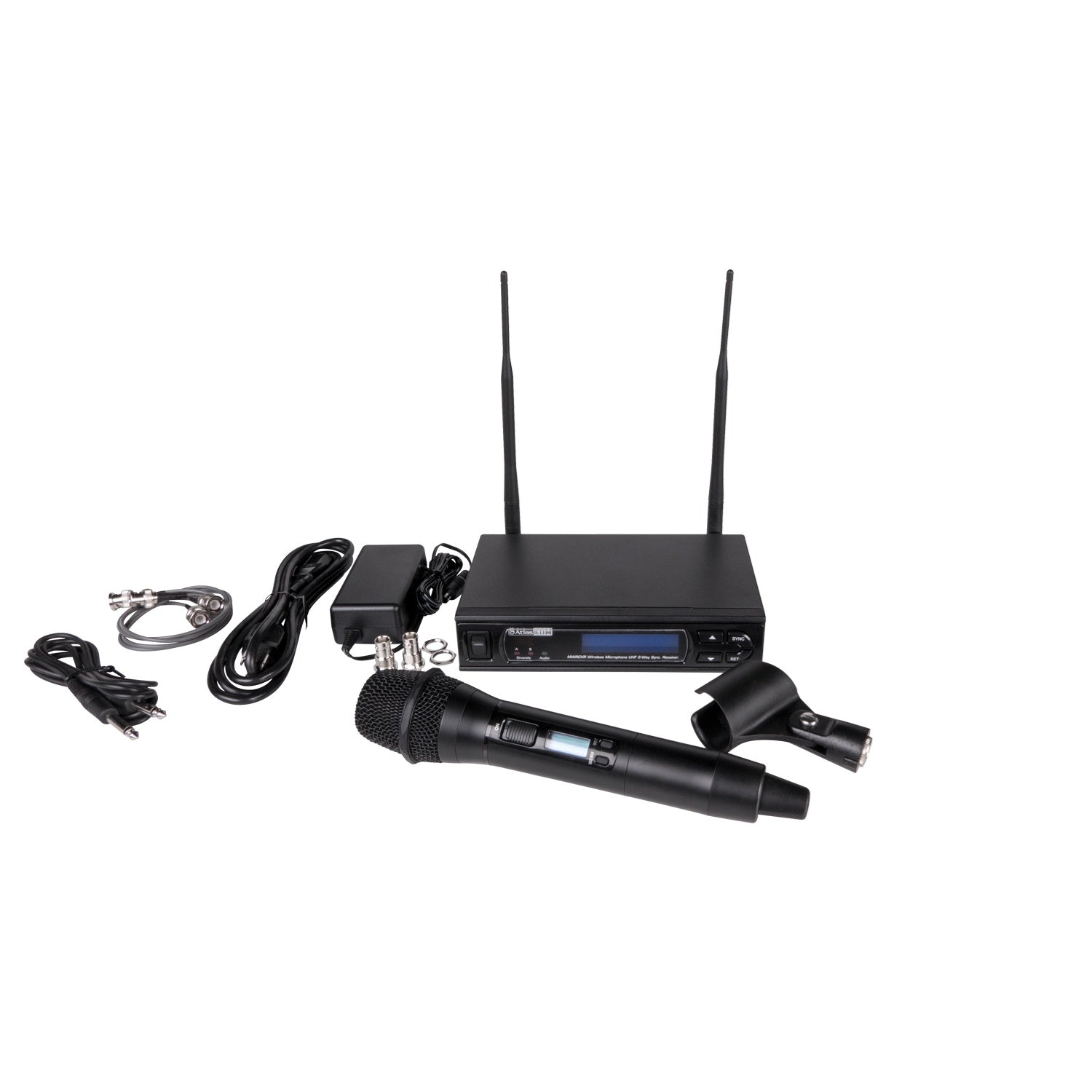

The AtlasIED MW100 Wireless Microphone Kit is engineered for AV integrators deploying reliable wireless audio in fixed-installation environments such as classrooms, conference rooms, lecture halls, and corporate presentation spaces. Each kit ships as a turnkey package — receiver, transmitter, microphone, antennas, cables, and power supply — so integrators can commission a system without sourcing additional components.

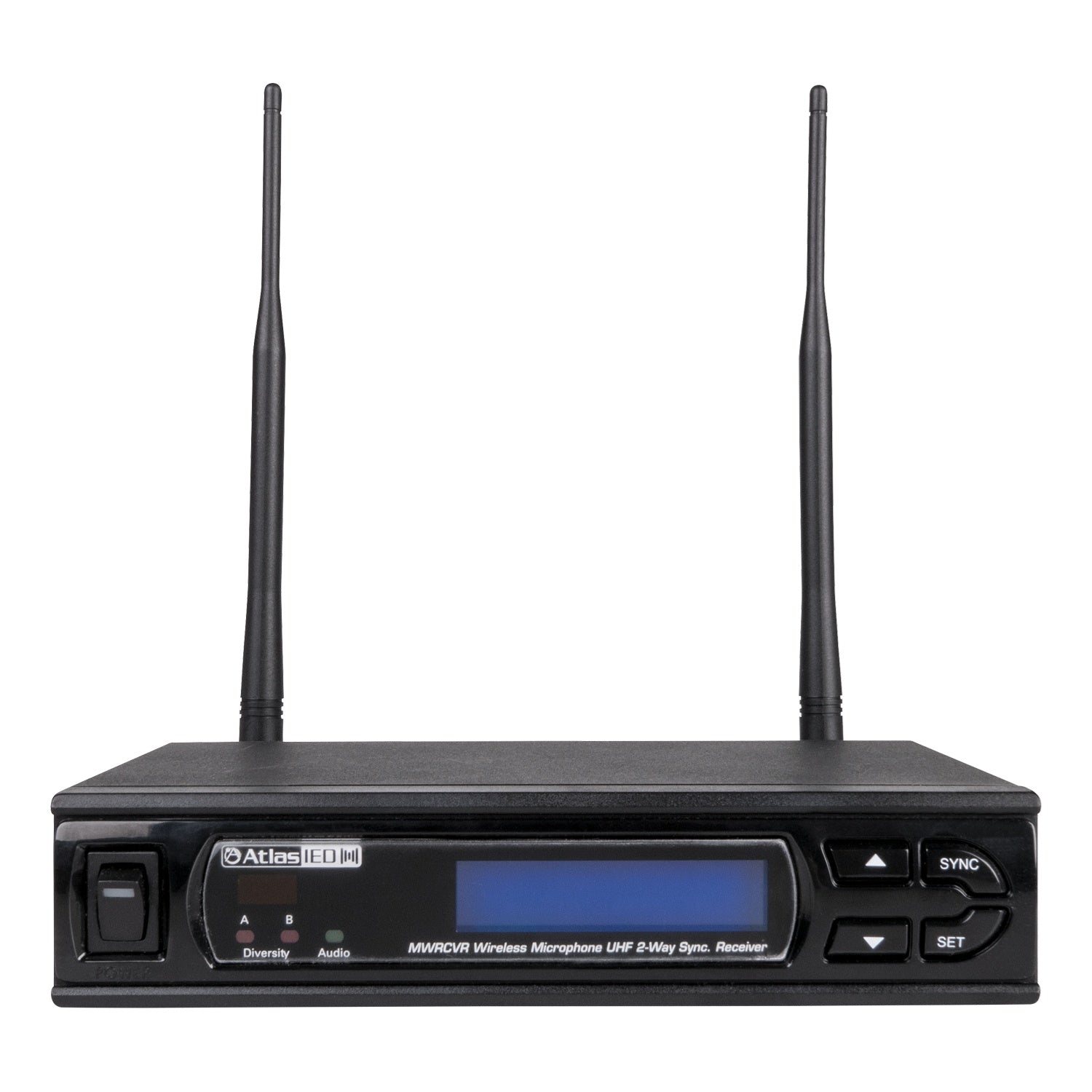

The included MWRCVR receiver operates across a 25MHz frequency band with 100 usable frequencies assignable via patented 2-way communication technology, giving installers flexibility to avoid interference in dense RF environments. Dual antennas minimize dropouts, an IR sensor streamlines pairing, and both a balanced XLR and an unbalanced 1/4" output accommodate connection to a wide range of installed amplifiers and DSPs, including AtlasIED power amplifiers. A mic/line output switch adapts the receiver to downstream signal chain requirements without additional hardware.

The MWBPT beltpack transmitter supports both standard alkaline and rechargeable NiMH AA batteries, delivering up to 16 hours of runtime — sufficient for full-day conference or lecture use without battery swaps. An integrated LCD on both the receiver and transmitter displays channel, frequency, and battery status, reducing troubleshooting time during setup and live operation. High and low impedance gain controls and a detachable belt clip round out the transmitter's installer-friendly feature set.
