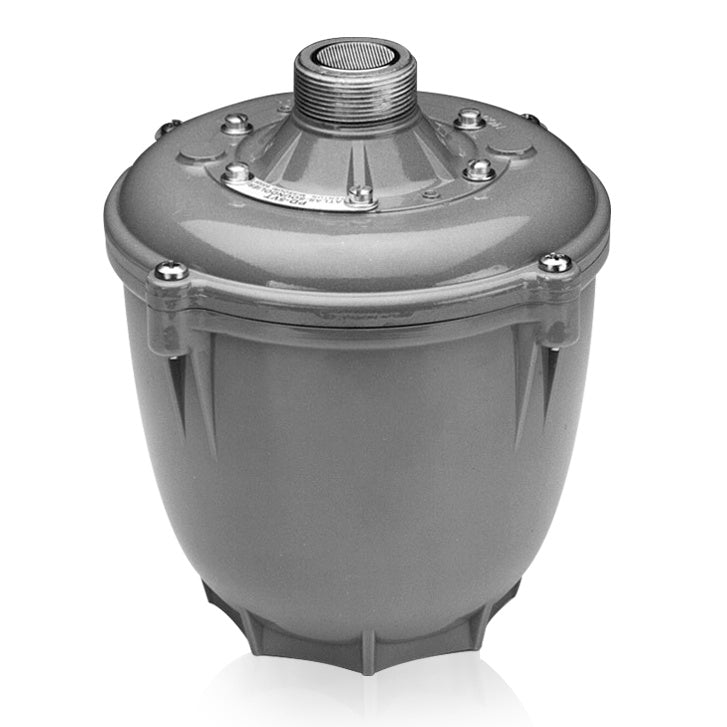

AtlasIED PD-5VT Compression Driver for Large Format Horn Speakers

AtlasIED PD-5VT Compression Driver for Large Format Horn Speakers

SoundPro Item: 18216 | Part Number: PD-5VT

$308.99
$384.99 $308.99
Your Price Sold out
MSRP: $384.99 | MAP: $308.99

Usually ships in 5-7 business days

  • Multi-Tap 70.7V Transformer Built In For Direct Constant-Voltage System Integration
  • Adaptable To 25V Audio Systems For Flexible Distributed Audio Compatibility
  • Standard 1 3/8"-18 Male Coupling Thread Enables Direct Large Format Horn Mounting
  • Ceramic Magnet Assembly Provides Reliable Magnetic Structure For Consistent Output
  • Varnish-Impregnated Tropic-Sealed Transformer Resists Moisture In Outdoor Deployments
  • Corrosion-Resistant Screw Terminals With Strain-Relief Cover Protect Field Connections
  • Baked Epoxy Finish Supports Long-Term Indoor And Outdoor Installation Durability
Log in or register for YOUR best price

The AtlasIED PD-5VT is designed for AV integrators and sound contractors specifying compression drivers for large-format horn-based paging and distributed audio installations. With a 2-inch voice coil, ceramic magnet assembly, and a plane wave frequency response extending from 190Hz to 4.2kHz, it delivers intelligible speech reproduction in demanding environments including warehouses, industrial facilities, transportation hubs, and outdoor venues.

The built-in varnish-impregnated, tropic-sealed transformer provides multi-tap 70.7V line-level matching directly at the driver, simplifying wiring and eliminating the need for external transformers in constant-voltage distributed systems. The unit is also adaptable to 25V audio system operation, adding flexibility for legacy or mixed-topology installations. Selectable power taps allow precise level matching across zones without additional passive components.

Where competing drivers require separate transformer housings or custom mounting adapters, the PD-5VT threads directly onto any large-format horn with a standard 1 3/8"-18 male coupling, reducing installation time and hardware complexity. Its grey baked-epoxy finish and corrosion-resistant screw-type terminals with a transparent strain-relief cover make it suitable for both indoor and outdoor deployment where durability is a priority.

Downloads

View full details

Specifications

Audio
Frequency Response
190Hz - 4.2kHz
Sensitivity
111.2 dB avg (190 - 4,200 Hz)
Power Taps
2.5, 5, 10, 10, 20, 40W @ 70.7V
Power Rating
40W
Voice Coil
2"
Dimensions
Height
6 7/8" (17.46 cm)
Width
6 3/8" (16.19 cm)
Construction
Magnet Type
Ceramic
Transformer
Varnish-impregnated, tropic-sealed, multi-tap 70.7V line-matching
Finish
Grey baked epoxy
Mounting Thread
1 3/8"-18 male coupling
Shipping
Shipping Weight
7.00 lbs (3.18 kg)
Identifiers
Warranty
60 months from date of purchase
