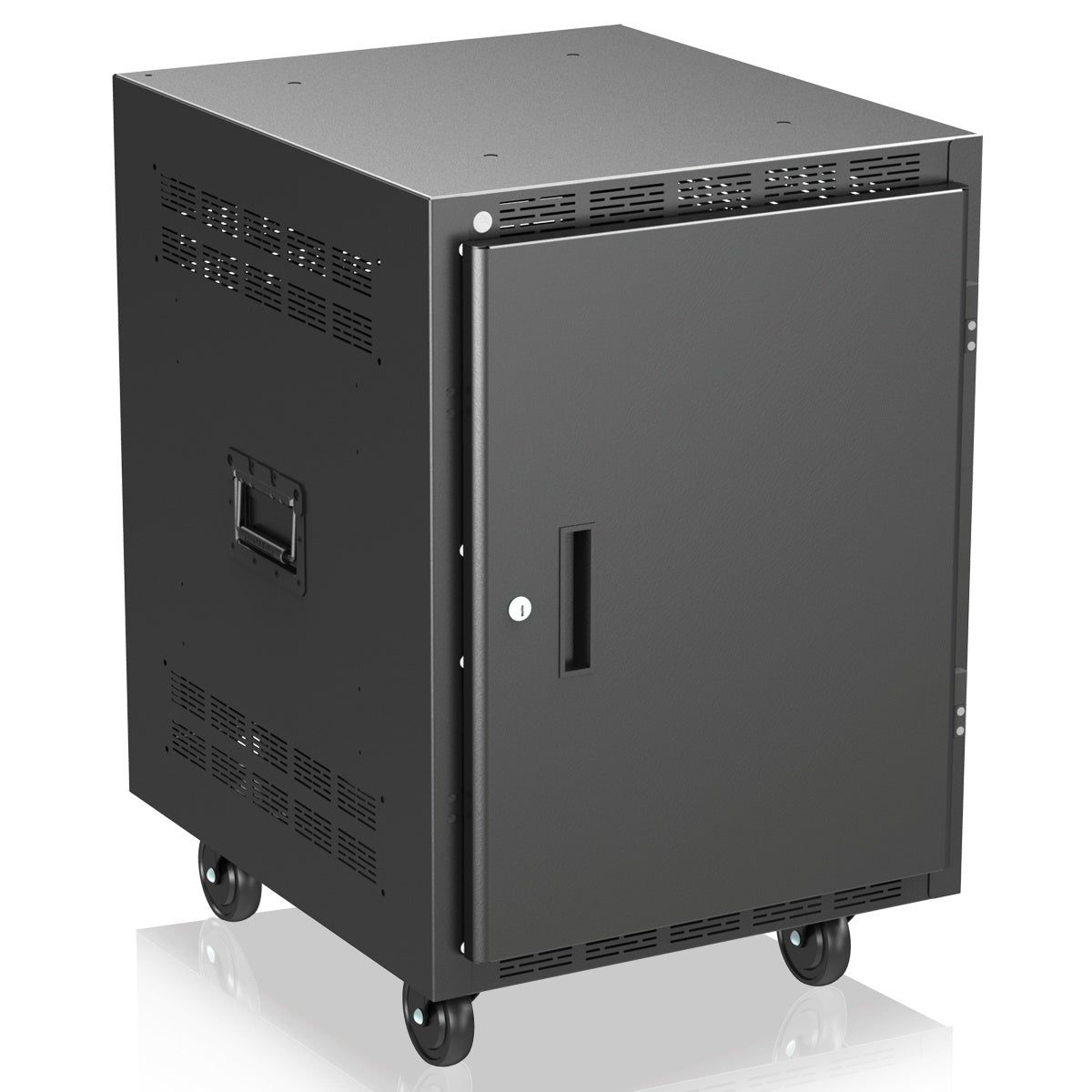

AtlasIED 14RU Mobile Equipment Rack With Caters and Side Handles | 30" | Casters, Side Handles, and Solid Doors

AtlasIED 14RU Mobile Equipment Rack With Caters and Side Handles | 30" | Casters, Side Handles, and Solid Doors

SoundPro Item: 19105 | Part Number: RX14-30SFD

$1,279.99
$1,596.99 $1,279.99
Your Price Sold out
MSRP: $1,596.99 | MAP: $1,279.99

Usually ships in 5-7 business days

  • Welded 16-Gauge CRS Construction Meets EIA Standards For Long-Term Structural Integrity
  • Adjustable 11-Gauge Front Mounting Rails Tapped 10–32 On Standard EIA Spacing
  • Slotted Front-To-Rear Rail Supports Enable Rail Depth Adjustment And Vertical Cable Management
  • Perforated Flanges, Sides, And Rear Door Promote Airflow And Heat Dissipation
  • Recessed Rubber-Padded Steel Road Handles On Each Side For Safe Two-Person Transport
  • Three Rear Base Flange Wire Isolation Holes Provide Clean External Cable Entry
  • Optional RR14 Rear Rails And SFD14 Front Door Available For Expanded Configuration
Log in or register for YOUR best price

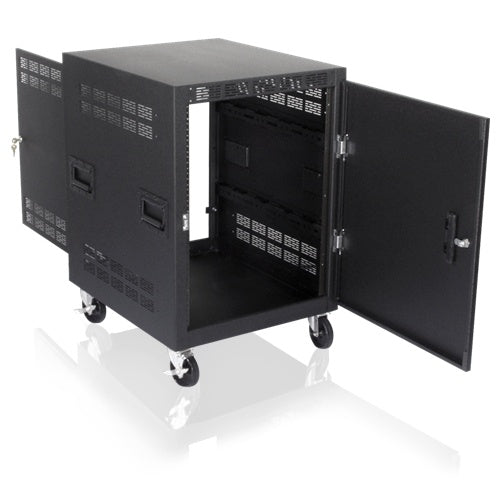

The AtlasIED 14RU mobile equipment rack is engineered for AV integrators, systems contractors, and touring production teams who need a rugged, mobile rack solution that can handle real workloads. Built from welded 16-gauge cold-rolled steel with an 11-gauge adjustable front rail pair tapped 10–32 on standard EIA spacing, it provides a stable, professional-grade mounting environment for amplifiers, signal processors, patch bays, and other rackmount equipment.

Mobility is addressed with four oversized heavy-duty casters — two locking — rated at 175 lb. each for a 700 lb. total capacity, making this rack suitable for loaded touring rigs and permanent installs alike. Recessed, rubber-padded steel road handles on each side allow safe two-person transport between venues or within a facility without improvised gripping points. Front-to-rear rail supports include slotted cutouts that simplify rail depth adjustment and create managed vertical raceways for clean cable runs — a practical advantage in dense, cable-intensive installs.

Wire access through three rear base flange isolation holes, perforated flanges and panels for heat dissipation, and compatibility with optional RR14 rear mounting rails and the SFD14 front door give integrators meaningful flexibility as rack configurations evolve. The #962 black epoxy finish is purpose-built for environments where appearance and durability both matter.

Downloads

View full details

Specifications

Dimensions
Rack Units
14
Height
33 9/16" (85.25 cm)
Width
22 5/16" (56.68 cm)
Depth
30" (76.2 cm)
Usable Depth
28.5" (72.39 cm)
Construction
Frame Gauge
16-Gauge CRS
Mounting Rail Gauge
11-Gauge CRS
Rail Tapping
10–32
Rail Spacing
Standard EIA 5/8"-5/8"-1/2"
Finish
#962 Black Epoxy
Caster Count
4
Caster Type
Heavy-Duty, Oversized (2 Locking)
Load Capacity Per Caster
175 lbs
Total Load Capacity
700 lbs
Wire Isolation Holes
3 (Two 1 1/2" diameter, one oblong 1 1/2" x 3")
Front Door Clearance Depth
1"
Equipment Protrusion Clearance
Up to 1 1/2"
Warranty
Warranty Period
60 months from date of purchase
