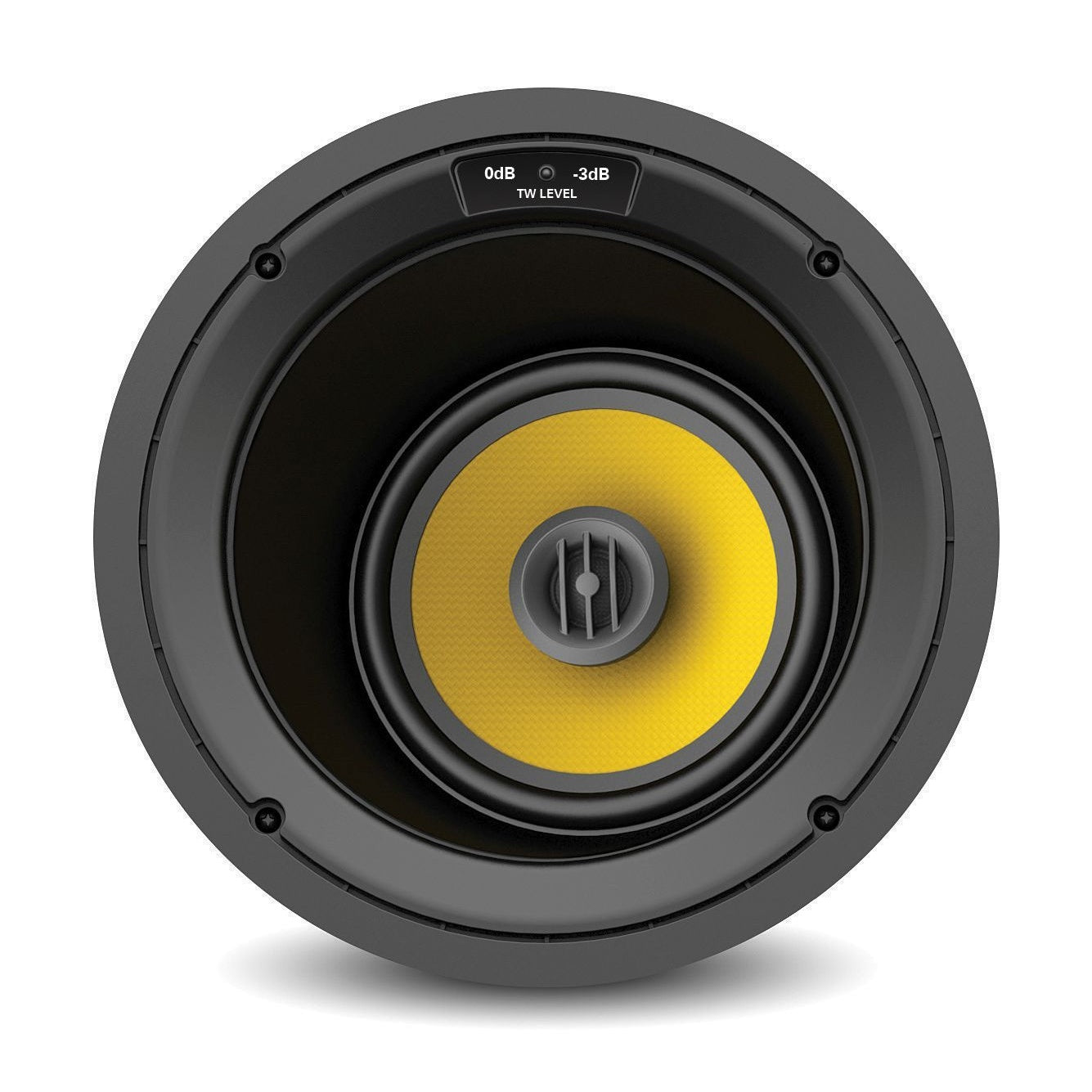

AtlasIED T625ACW 6.5" 2-Way Angled In-Wall In-Ceiling Speaker

The AtlasIED T625ACW is a 6.5-inch 2-way in-wall and in-ceiling speaker engineered for residential and light commercial audio installations where power handling, imaging accuracy, and low visual profile matter. Its 15-degree angled baffle makes it a practical choice for high-ceiling environments where direct-firing placement would otherwise compromise stereo imaging or coverage uniformity — a common challenge in open-plan rooms, dedicated home theater builds, and multi-room distributed audio systems.

Integrators and install teams will find the T625ACW well-suited for front, center, or rear channel positions in home theater configurations, as well as background music zones in commercial settings. The 12dB/octave highpass and 6dB/octave lowpass crossover network handles the handoff at 4kHz cleanly, while the front-mounted tweeter level control gives installers a post-deployment trim option without pulling the speaker. Mylar highpass capacitors and high-temperature voice coil wire on both drivers support extended operation at rated power without thermal degradation.

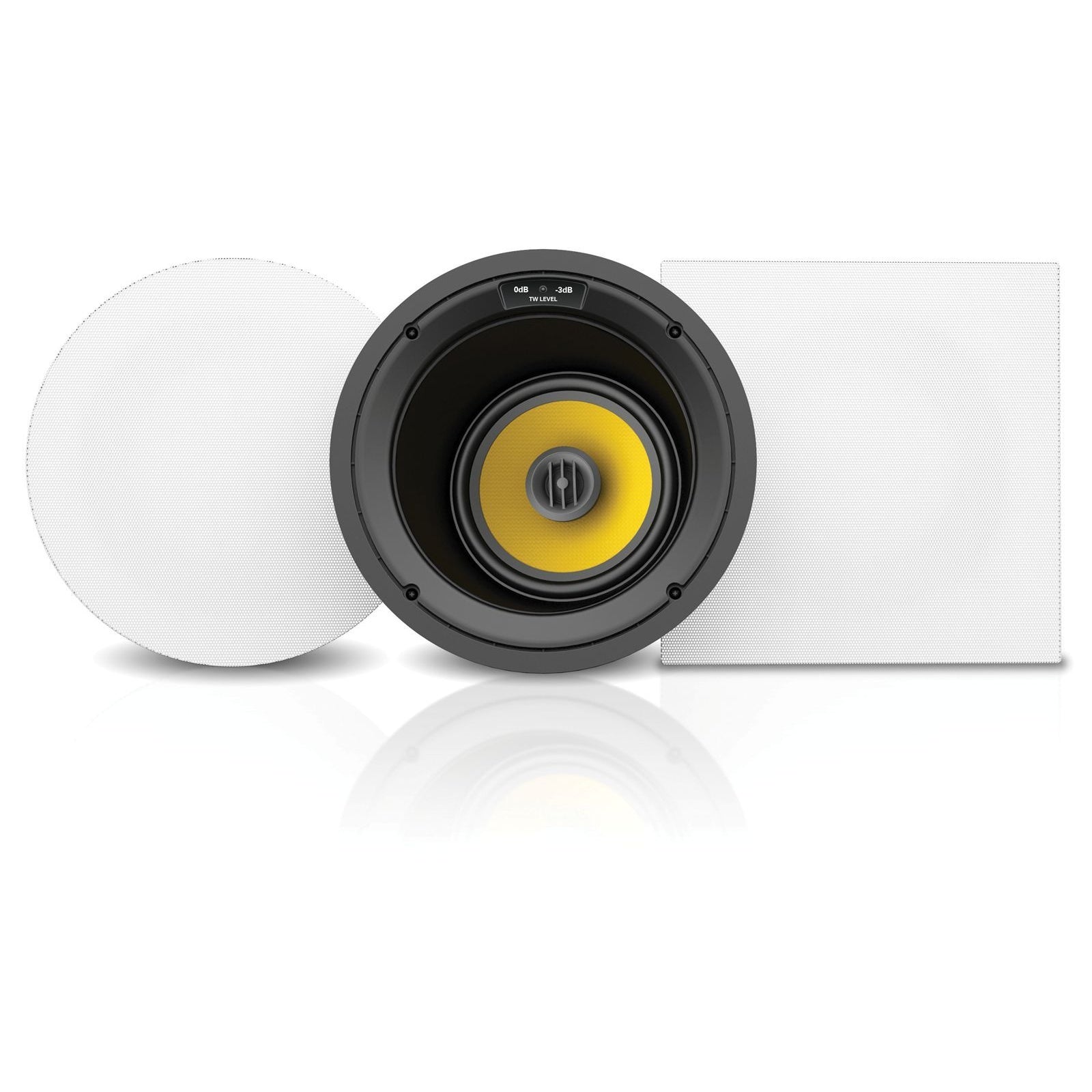

The compression-style input terminal accepts up to 8-AWG wire, accommodating longer runs common in distributed audio installations. Paintable magnetic grilles — available in both round and square formats — allow the speaker to disappear into ceilings or walls after installation, reducing visual impact in finished spaces where aesthetics are a client priority. Sold as a single unit, allowing integrators to specify quantities precisely for any channel configuration.
