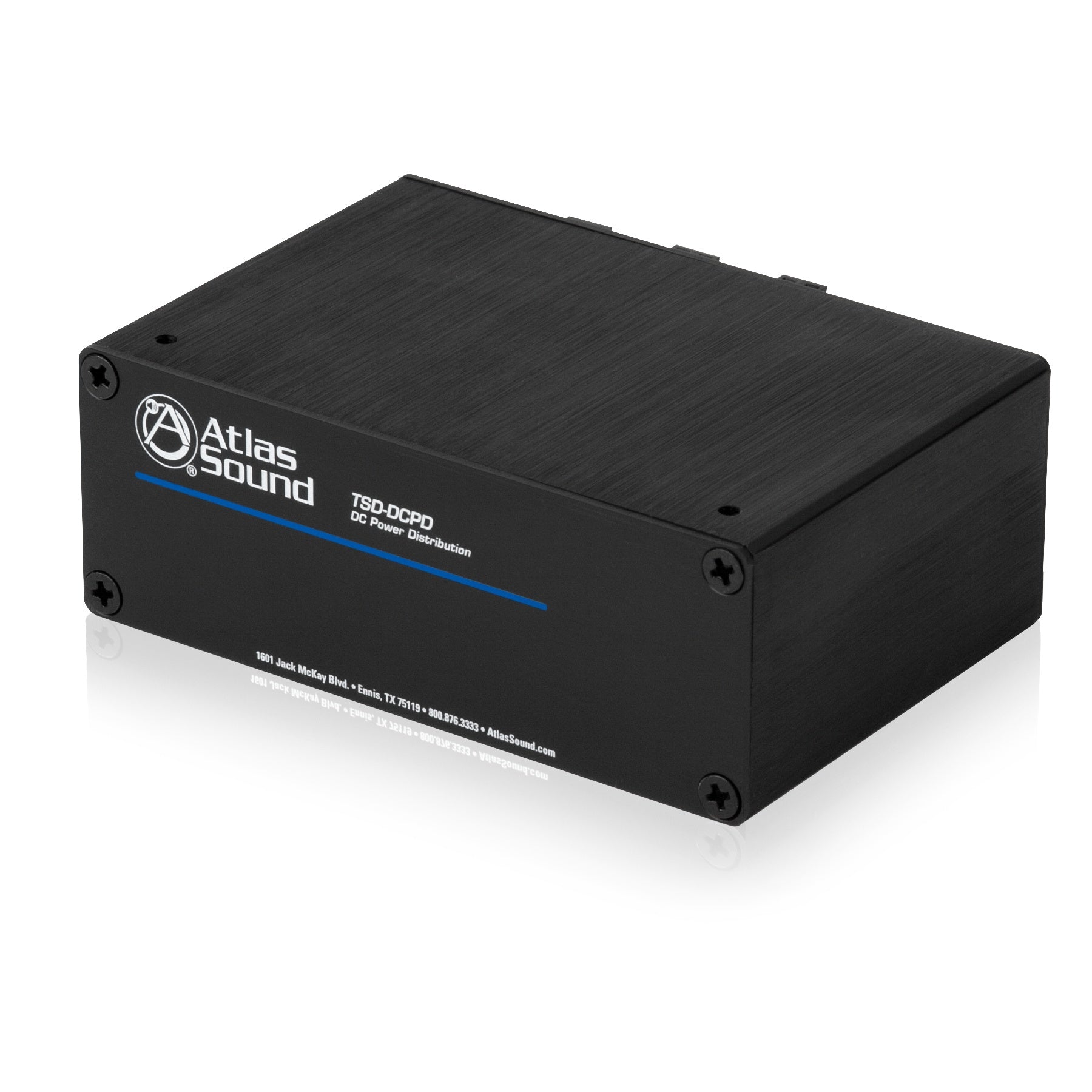

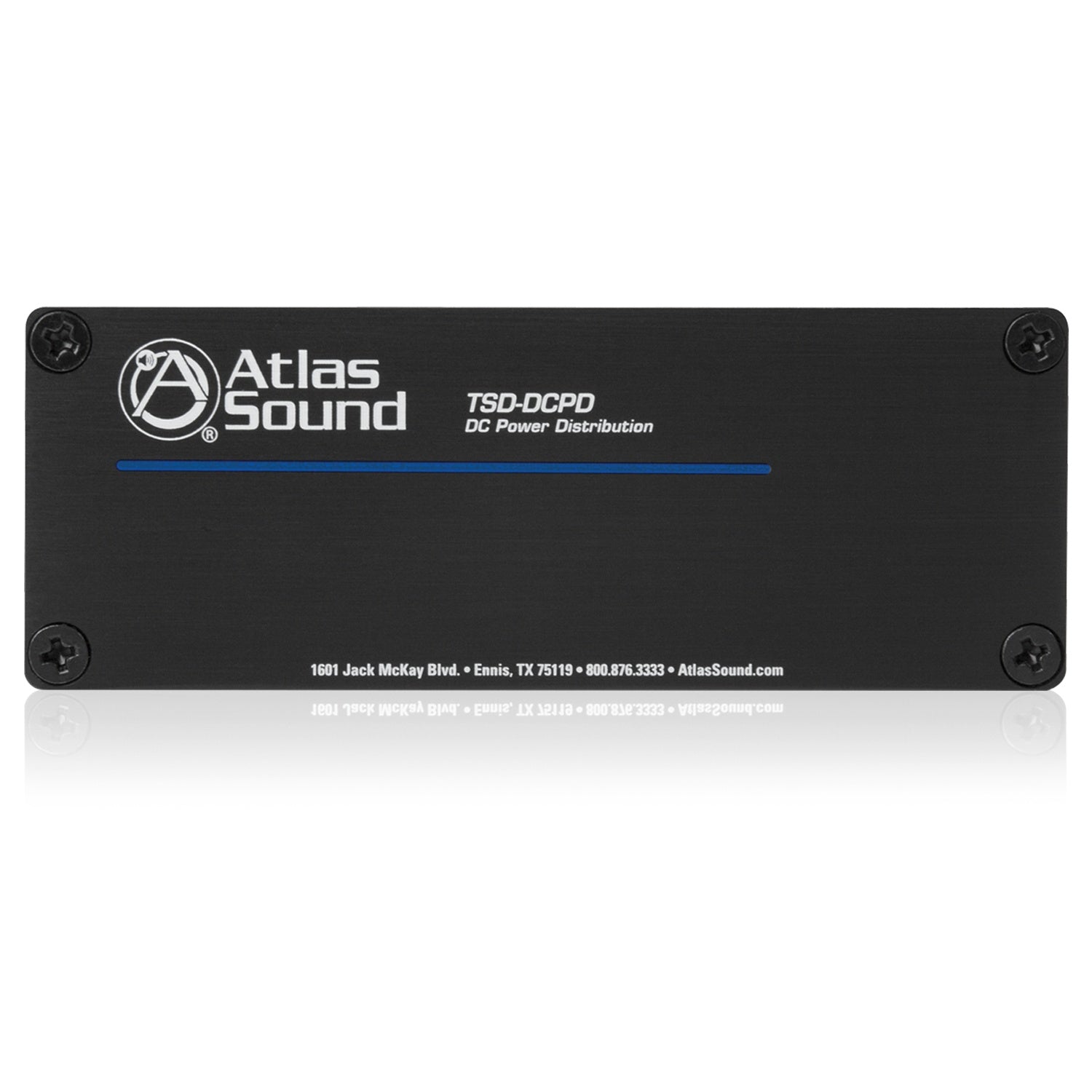

AtlasIED TSD-DCPD DC Power Distribution for TSD Devices

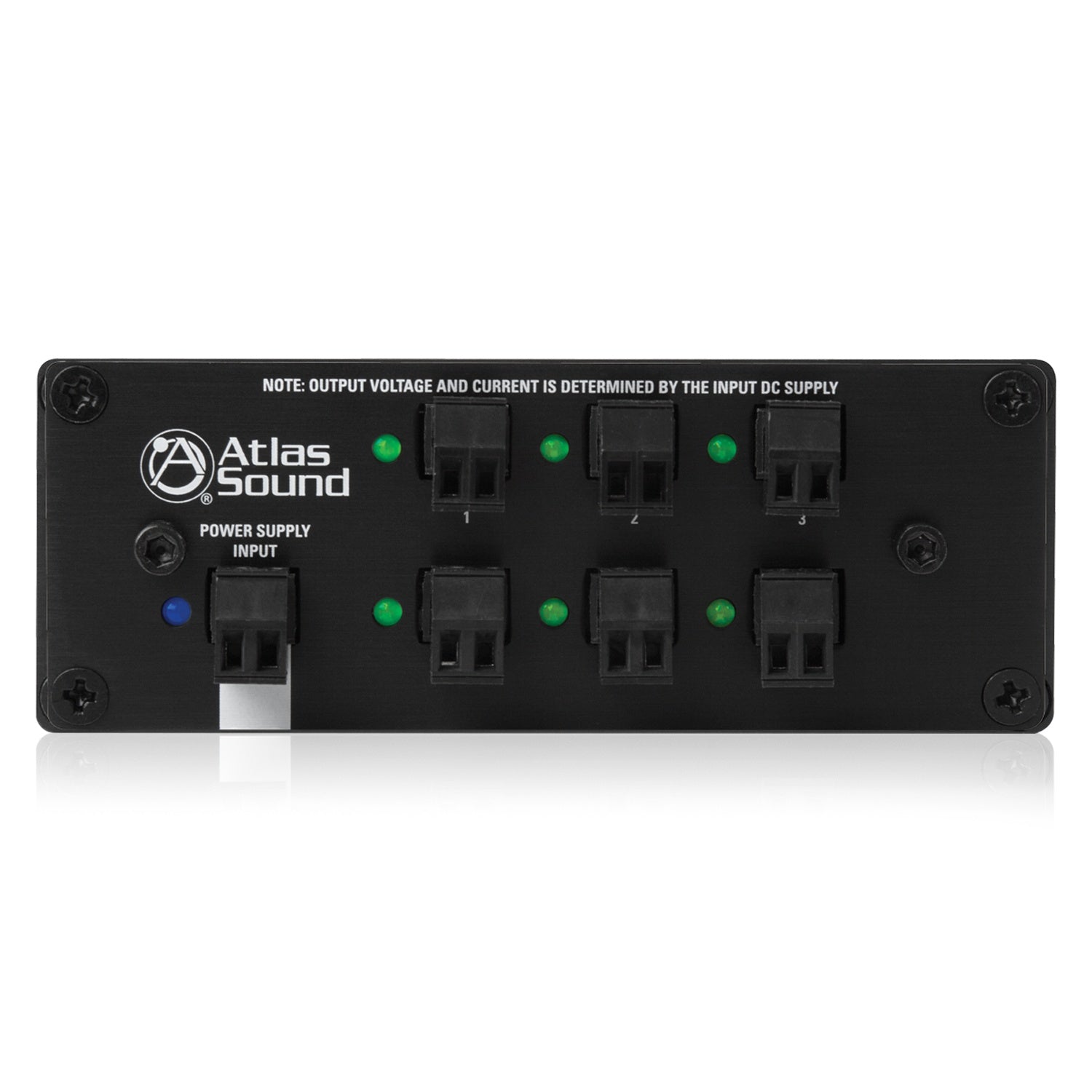

The AtlasIED TSD-DCPD is engineered for systems integrators and installed AV technicians who deploy multiple TSD-series devices and need a clean, consolidated power solution. Rather than dedicating individual power supplies to each device, the TSD-DCPD accepts a single 9–24V DC input and fans it out to six fully independent, isolated outputs — reducing cable management overhead and eliminating competition for power strip outlets in equipment racks.

In commercial AV installations such as conference rooms, classrooms, and distributed audio systems, rack cleanliness and power reliability are non-negotiable. The TSD-DCPD addresses both: per-channel DC filtering prevents noise from one device from coupling into another, while the compact footprint minimizes rack unit consumption. The unit itself draws only 20mA, keeping the overall power budget lean, though integrators must account for attached TSD device current draw when selecting the appropriate external PSU — AtlasIED's TSD Power Calculator is the recommended tool for that determination.

The power supply is sold separately, giving integrators flexibility to right-size the PSU based on the specific combination of TSD devices in the system. For projects requiring more than one TSD-DCPD, that same calculator approach scales cleanly, making this unit a practical building block in larger, multi-zone installed AV infrastructures.
