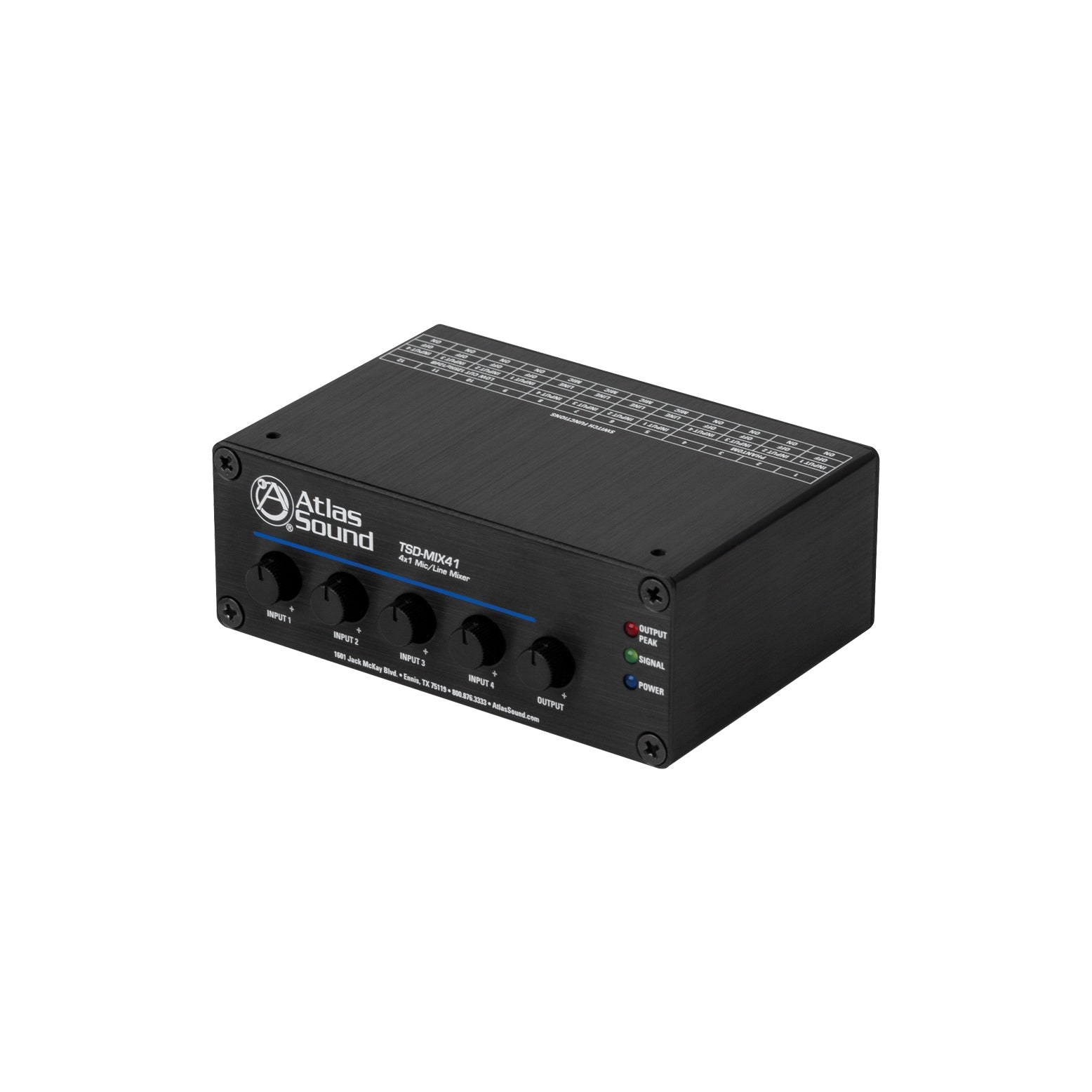

AtlasIED TSD-MIX41 4x1 Mic and Line Mixer for Install
AtlasIED TSD-MIX41 4x1 Mic and Line Mixer for Install
SoundPro Item: 20011 | Part Number: TSD-MIX41
Usually ships in 5-7 business days
- Four Balanced Mic/Line Inputs Support Flexible Source Configurations Per Channel
- Professional Mic Preamps With Switchable Phantom Power For Condenser Microphones
- High-Pass Filter On Every Input Reduces Low-Frequency Rumble And Feedback
- High-Gain Balanced Output Drives Long Cable Runs In Installed Environments

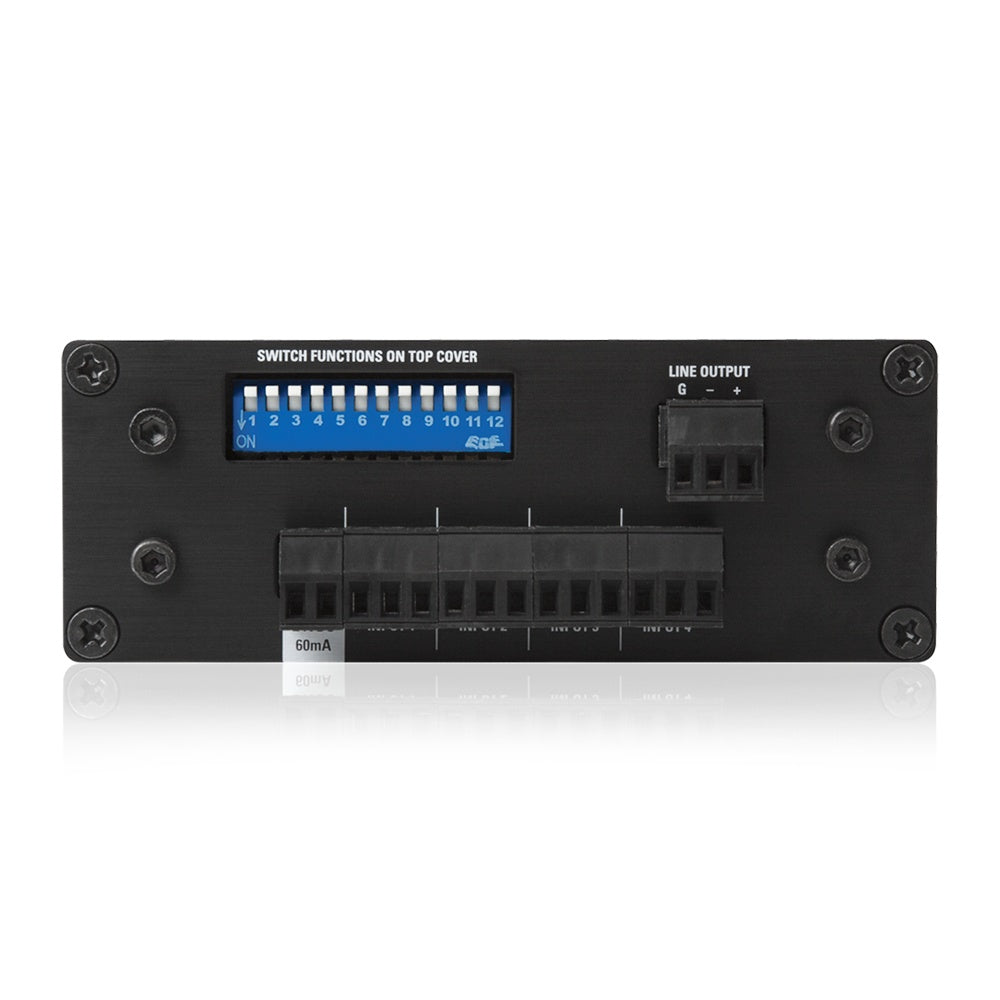

- Removable Phoenix-Style Connectors Simplify Termination And Future Serviceability

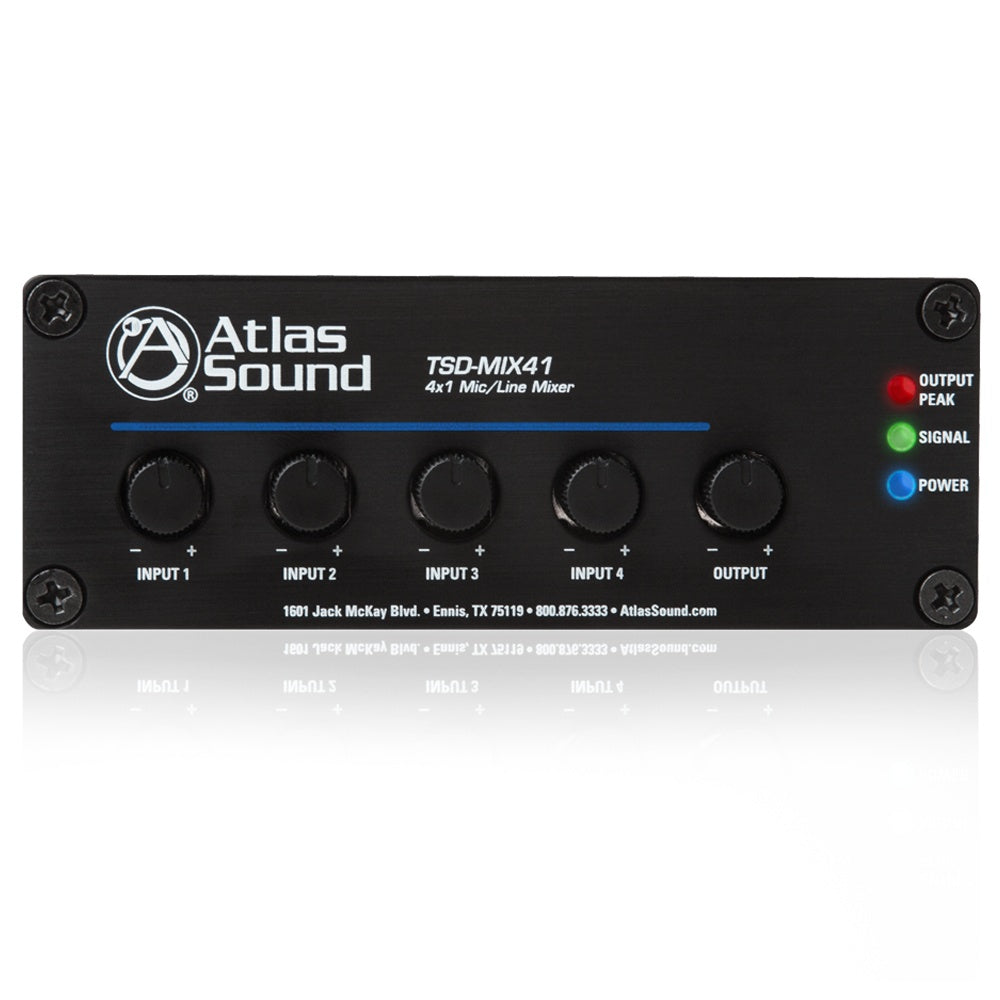

- Security Covers Protect Front Panel Controls In Public-Facing Installations
- Peak And Signal Indicator LEDs Enable Fast Level Monitoring Without External Tools
The AtlasIED TSD-MIX41 is designed for systems integrators and AV professionals who need a compact, reliable submixing solution in permanent installations. Whether combining choir microphones to a single console channel in a house of worship, managing multiple podium or boundary mics in a conference room, or distributing background music sources in a restaurant or school, this unit handles the job without requiring a full mixing console in the signal chain.
Each of the four inputs includes a professional-grade mic preamp with up to 50dB of gain, individually switchable 24V phantom power for condenser microphones, and a 12dB/octave high-pass filter at 125Hz to eliminate low-frequency rumble and feedback before it reaches downstream equipment. The balanced line output is engineered to drive long cable runs — a critical requirement in installed environments where the mixer may be rack-mounted or wall-mounted at distance from the amplifier or DSP.
Removable Phoenix-style connectors simplify termination and future serviceability, while security covers over front-panel controls prevent tampering in public-facing spaces. The TSD-MIX41 integrates directly with AtlasIED amplifiers and is compatible with the full TSD power supply ecosystem, allowing multiple units to share a single supply when system current budgets permit.
