AtlasIED TSD-ML22VCA 2-Channel Mic/Line Preamp With True VCA
AtlasIED TSD-ML22VCA 2-Channel Mic/Line Preamp With True VCA
SoundPro Item: 20015 | Part Number: TSD-ML22VCA
Usually ships in 5-7 business days
- True VCA Architecture Delivers Efficient Volume Control Versus Transformer-Based Attenuators
- Dual Independent Channels Support Two Discrete Zones Or A Stereo Source
- Switchable Phantom Power Enables Use Of Condenser Microphones
- Defeatable High-Pass Filter Preserves Speech Clarity By Reducing Low-Frequency Feedback

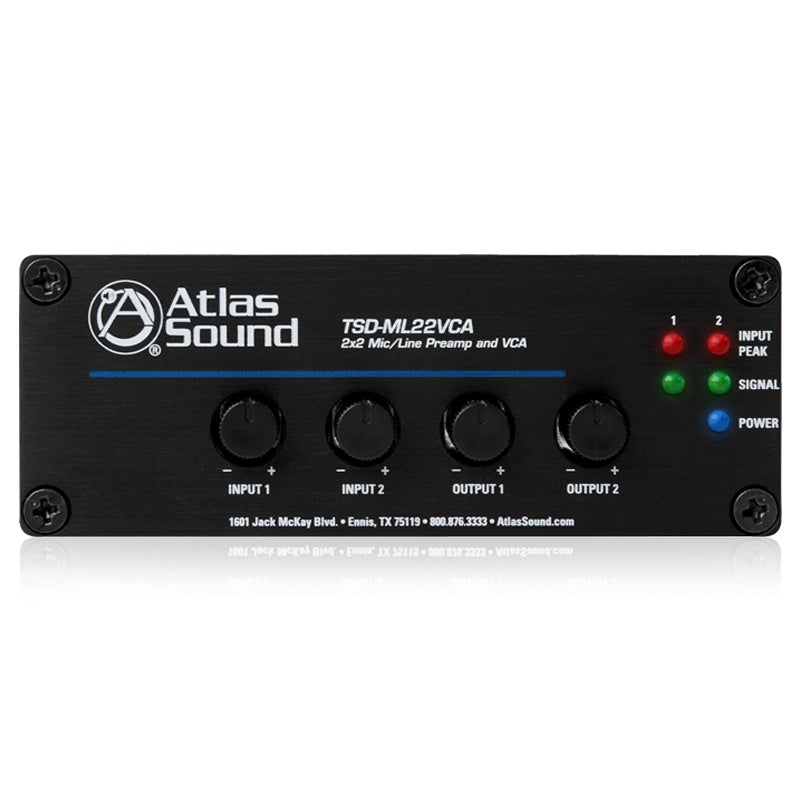

- Input Signal And Peak LEDs Allow At-A-Glance Level Monitoring
- High Gain Output Drives Long Balanced Lines Without Signal Degradation
- Security Covers On All Front Panel Controls Protect Settings In Public Installations
The AtlasIED TSD-ML22VCA is built for AV integrators designing installed audio systems where clean mic capture and reliable zone-level control must coexist in a compact, rack-friendly module. Unlike transformer-based attenuators, the true VCA topology handles high-power music applications with greater efficiency and lower signal degradation, making it a practical choice for sports bars, hotels, restaurants, and multi-zone commercial installations where music and paging share the same infrastructure.

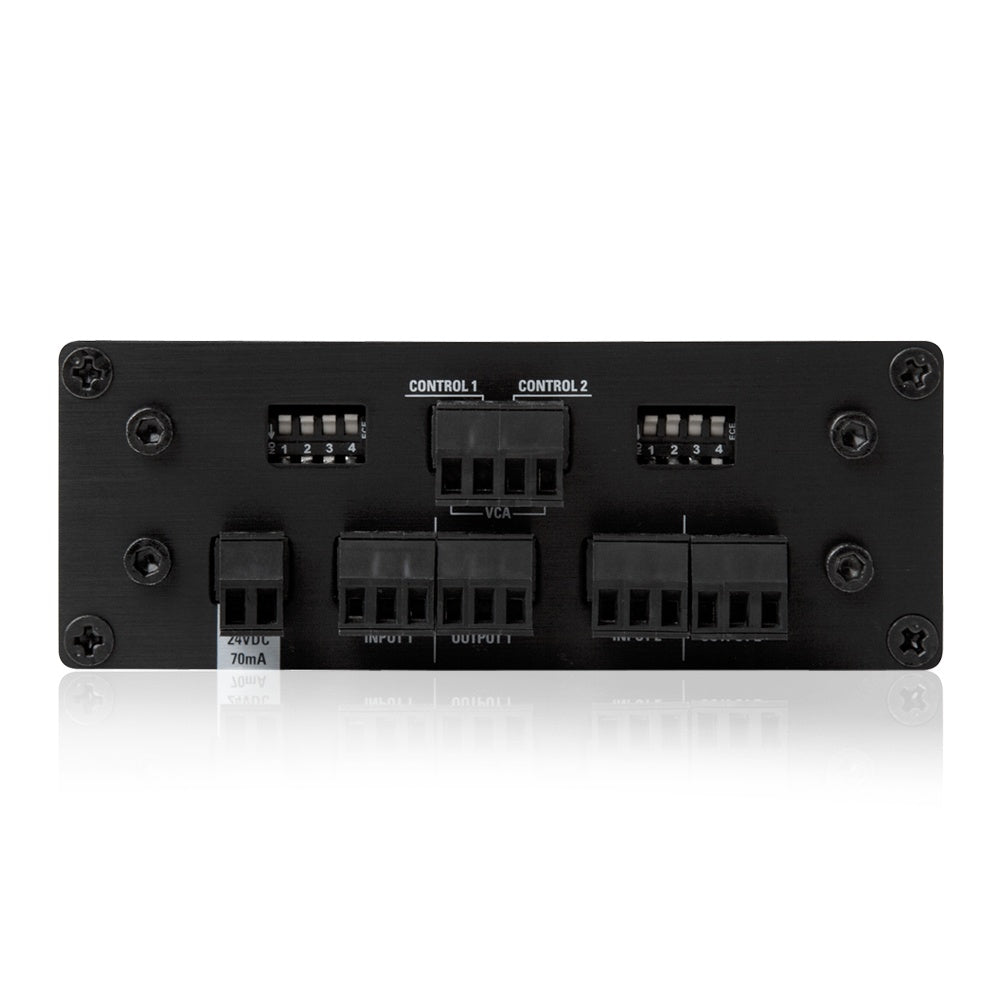

Each of the two channels accepts mic or line-level signals via Phoenix-style connectors, giving installers clean termination without breakout cables. The onboard mic preamps include switchable phantom power for condenser microphones and a defeatable high-pass filter to cut low-frequency rumble and feedback below the vocal range, keeping speech intelligibility intact. Input signal and peak LEDs provide at-a-glance level monitoring without requiring additional metering hardware.
The TSD-ML22VCA is designed to integrate within the broader AtlasIED TSD ecosystem. It draws only 70mA, so it is compatible with any TSD power supply—sold separately—and multiple units can share a single supply when sized correctly using the TSD Power Calculator. Security covers on all front panel controls protect settings in public-facing environments where tampering is a concern.
