AtlasIED TSD-PA10VG TSD Power Amplifier | 4Ω/25V/70.7V/100V | 10W | Mono
AtlasIED TSD-PA10VG TSD Power Amplifier | 4Ω/25V/70.7V/100V | 10W | Mono
SoundPro Item: 47600 | Part Number: TSD-PA10VG
Usually ships in 5-7 business days

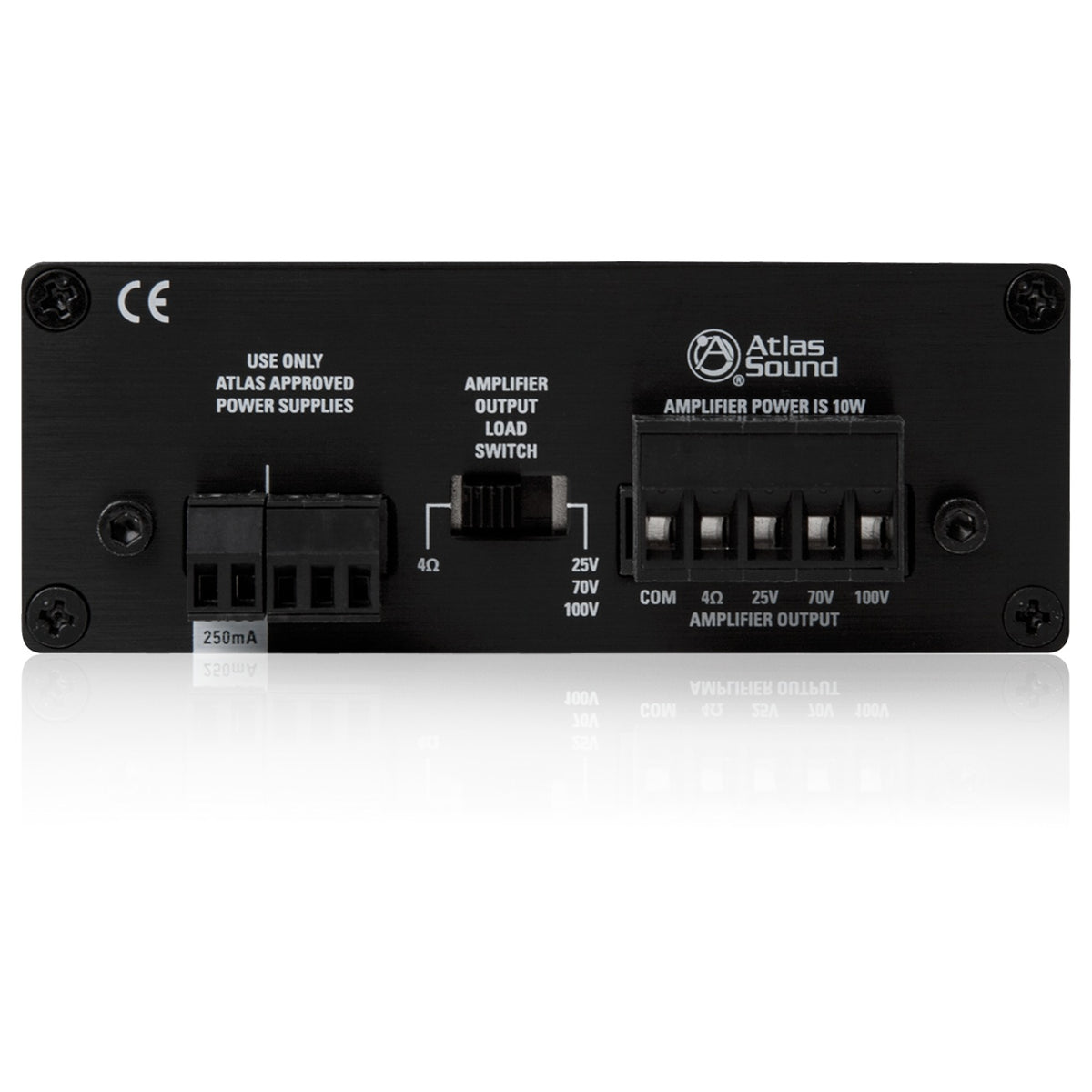

- Multi-Voltage Output Supports Both Low-Impedance And Constant-Voltage Speaker Systems
- Removable Knob And Included Security Cover Locks Gain After Commissioning

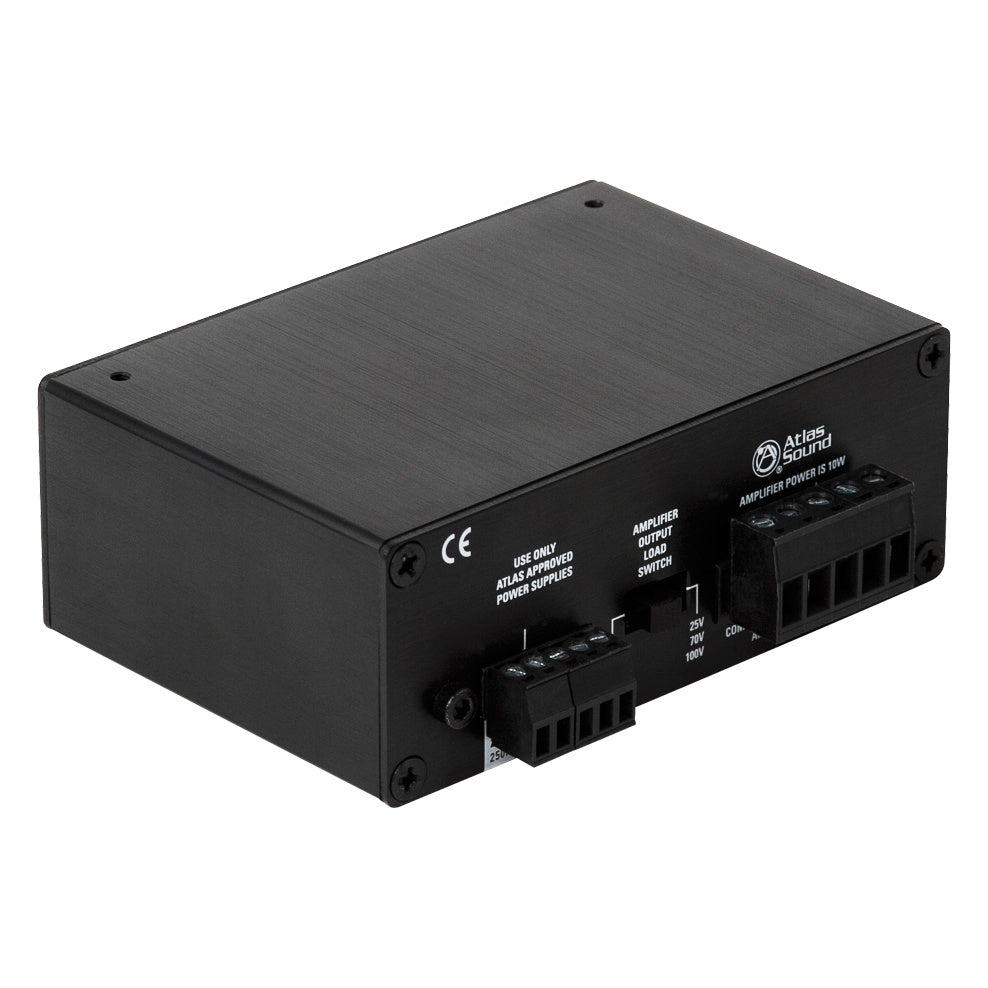

- Phoenix Style I/O Connectors Simplify Field Termination And Serviceability

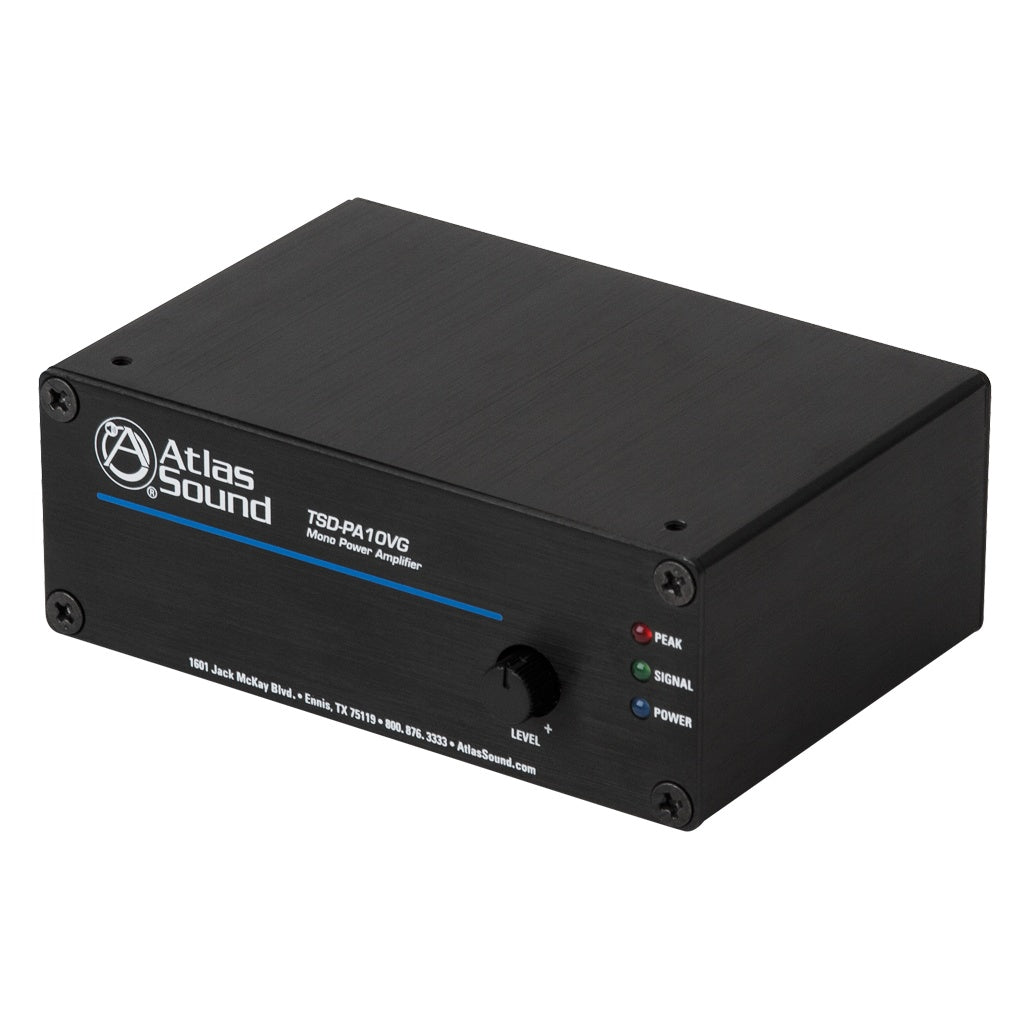

- Input Signal And Peak Indicator LEDs Aid System Monitoring During Installation
- Cable Management System Keeps Rack And Wall Installs Organized
- Shared External Power Supply Architecture Reduces Hardware Overhead In Multi-Zone Deployments
- Balanced Input Rejects Noise On Long Signal Runs In Installed Environments
The AtlasIED TSD-PA10VG is engineered for installed audio professionals who need a reliable, low-cost mono amplifier capable of running both low-impedance and constant-voltage distributed speaker systems from a single compact unit. Its multi-voltage output makes it equally suited for small 4Ω zones and larger 25V, 70.7V, or 100V distributed networks — eliminating the need to stock separate amplifiers for different system architectures.
Integrators working in houses of worship, hospitality environments, office suites, or educational facilities will find this amplifier particularly well-suited for secondary zones such as overflow rooms, restrooms, foyers, and corridors where full-rack amplifiers are impractical. It also supports sound masking deployments, with enough headroom to drive up to 17 masking speakers tapped at 0.5W each on a 70.7V line — a significant capacity for a unit this size.
The front-panel level control with removable knob and included tamper-resistant cover allows technicians to set gain during commissioning and lock it down for end-user environments. Removable Phoenix-style I/O connectors simplify field termination, and the unit's cable management system keeps installs clean. Power is supplied externally via AtlasIED TSD-series power supplies, allowing multiple TSD units to share a single supply based on current draw — an efficient approach for multi-zone installations.
