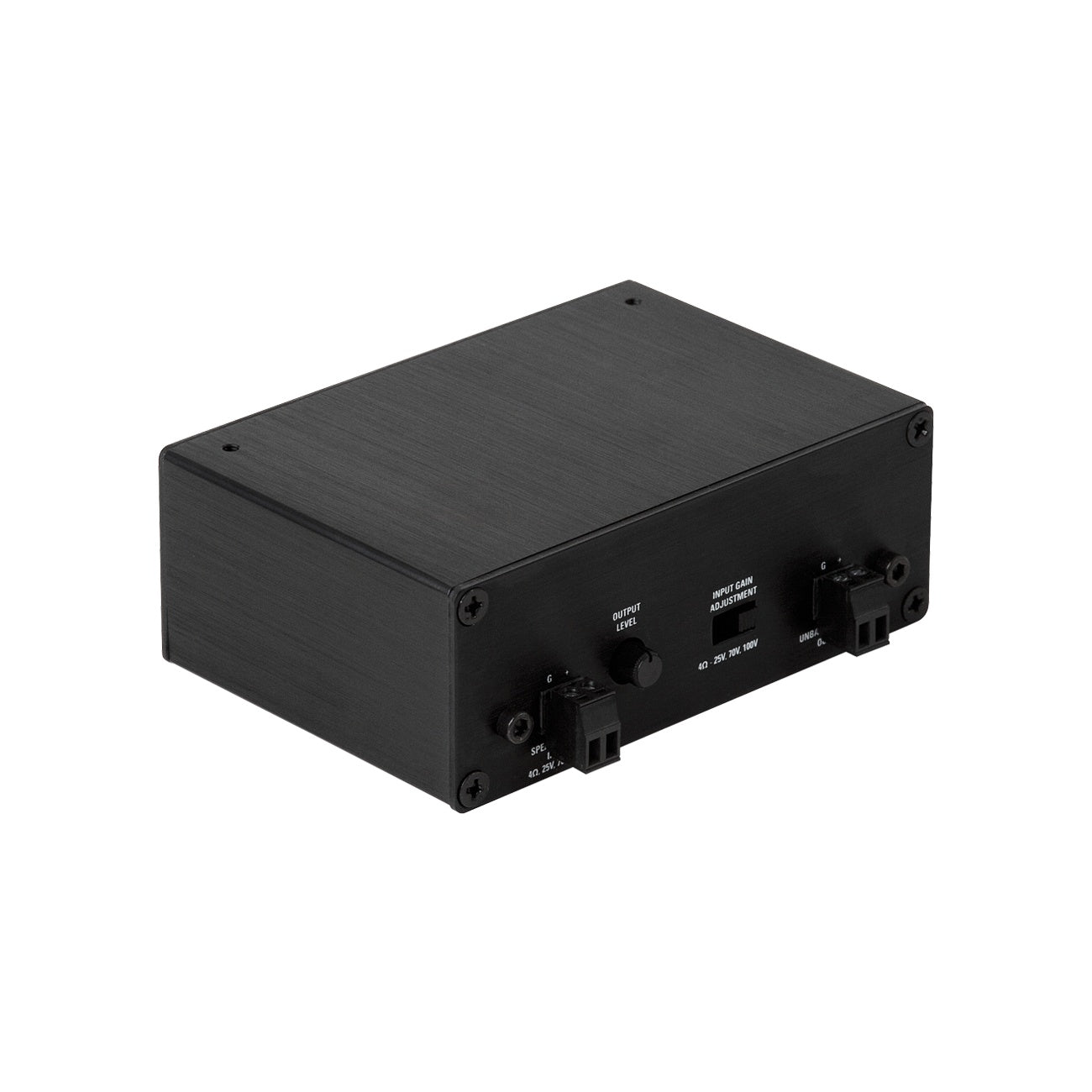

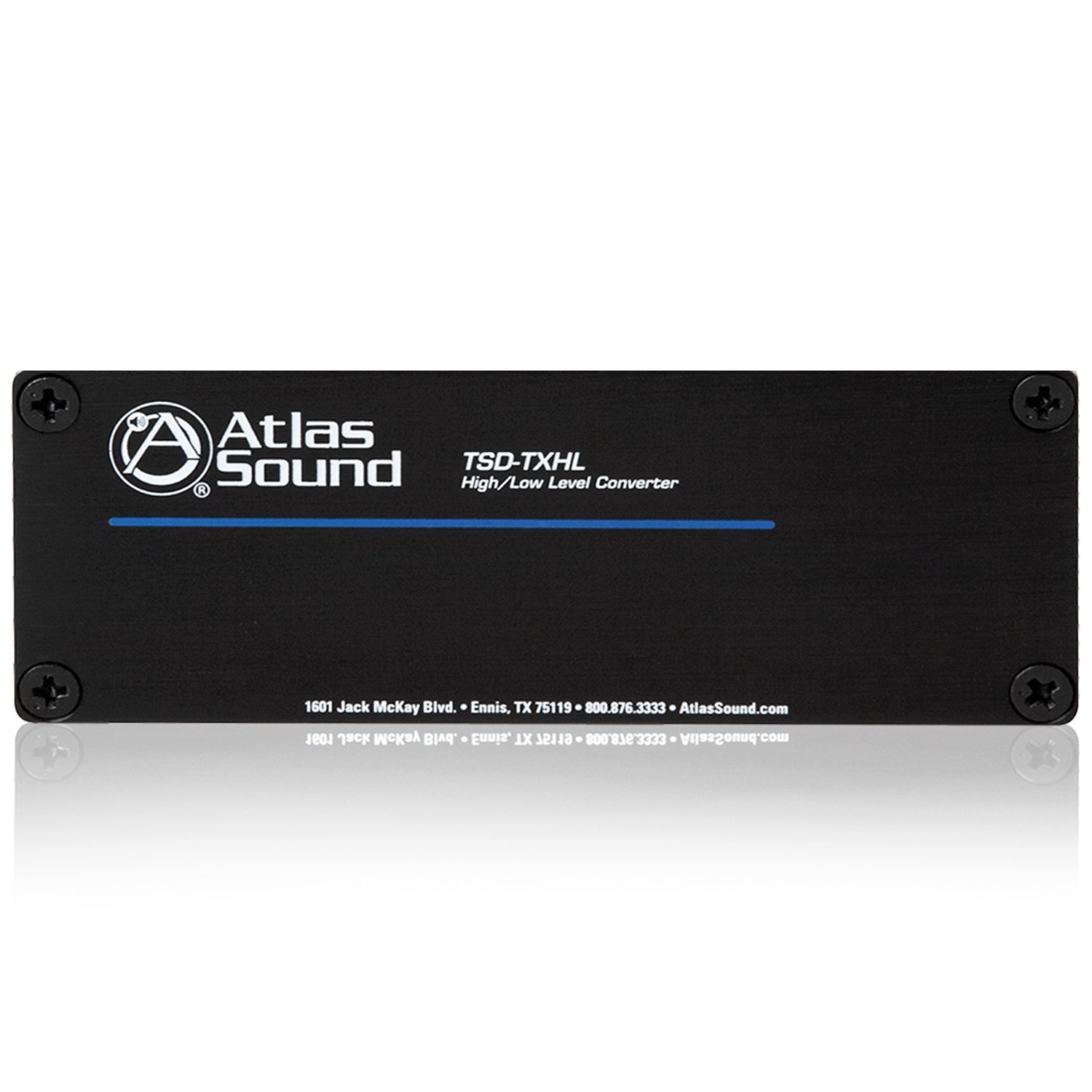

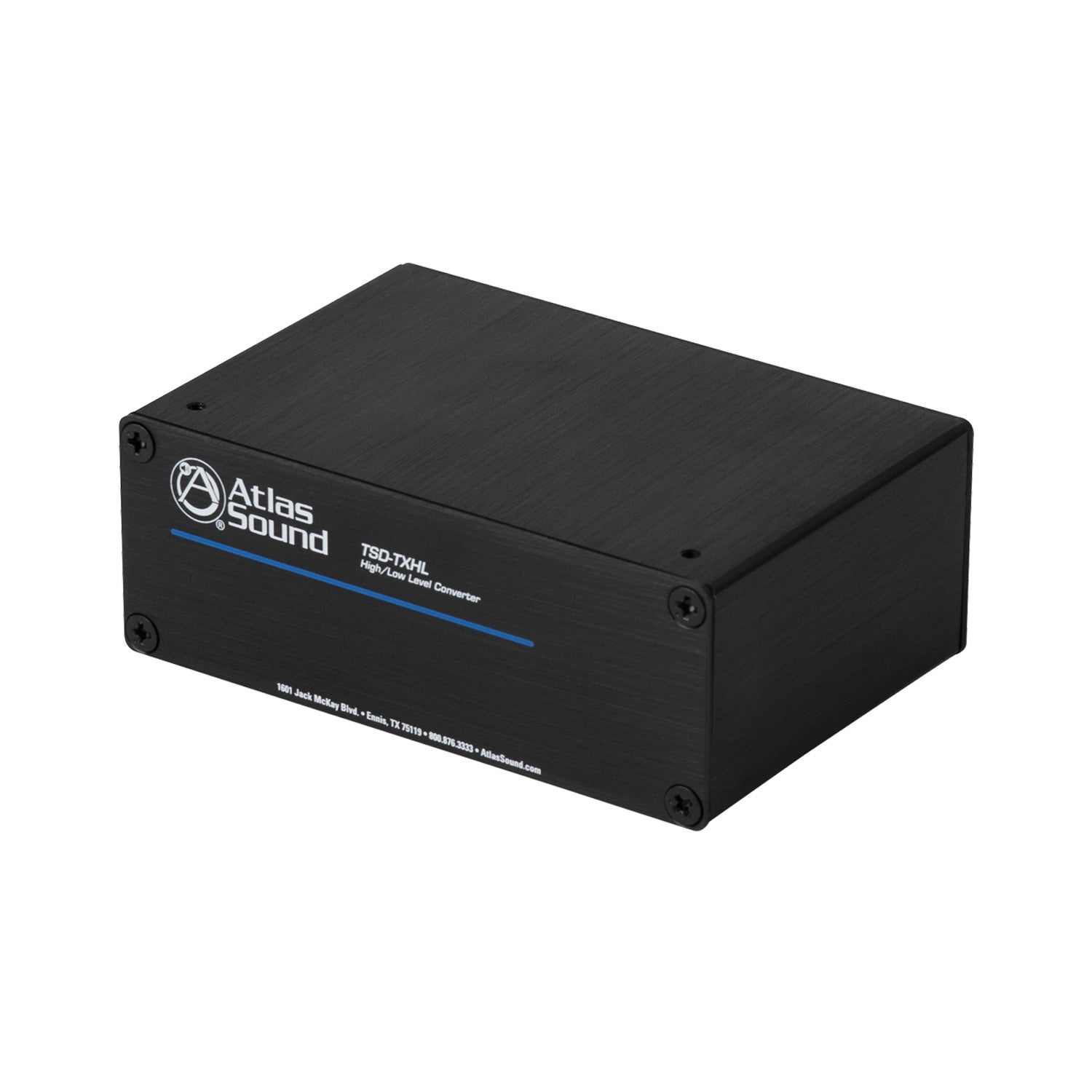

AtlasIED TSD-TXHL High to Low Level Converter for Distributed Audio
AtlasIED TSD-TXHL High to Low Level Converter for Distributed Audio
SoundPro Item: 20027 | Part Number: TSD-TXHL
Usually ships in 5-7 business days
- Interfaces With 4Ω, 8Ω, 25V, 70V, And 100V Speaker Lines For Broad Compatibility
- Isolated Transformer Adds No Measurable Load To The Existing Speaker Line

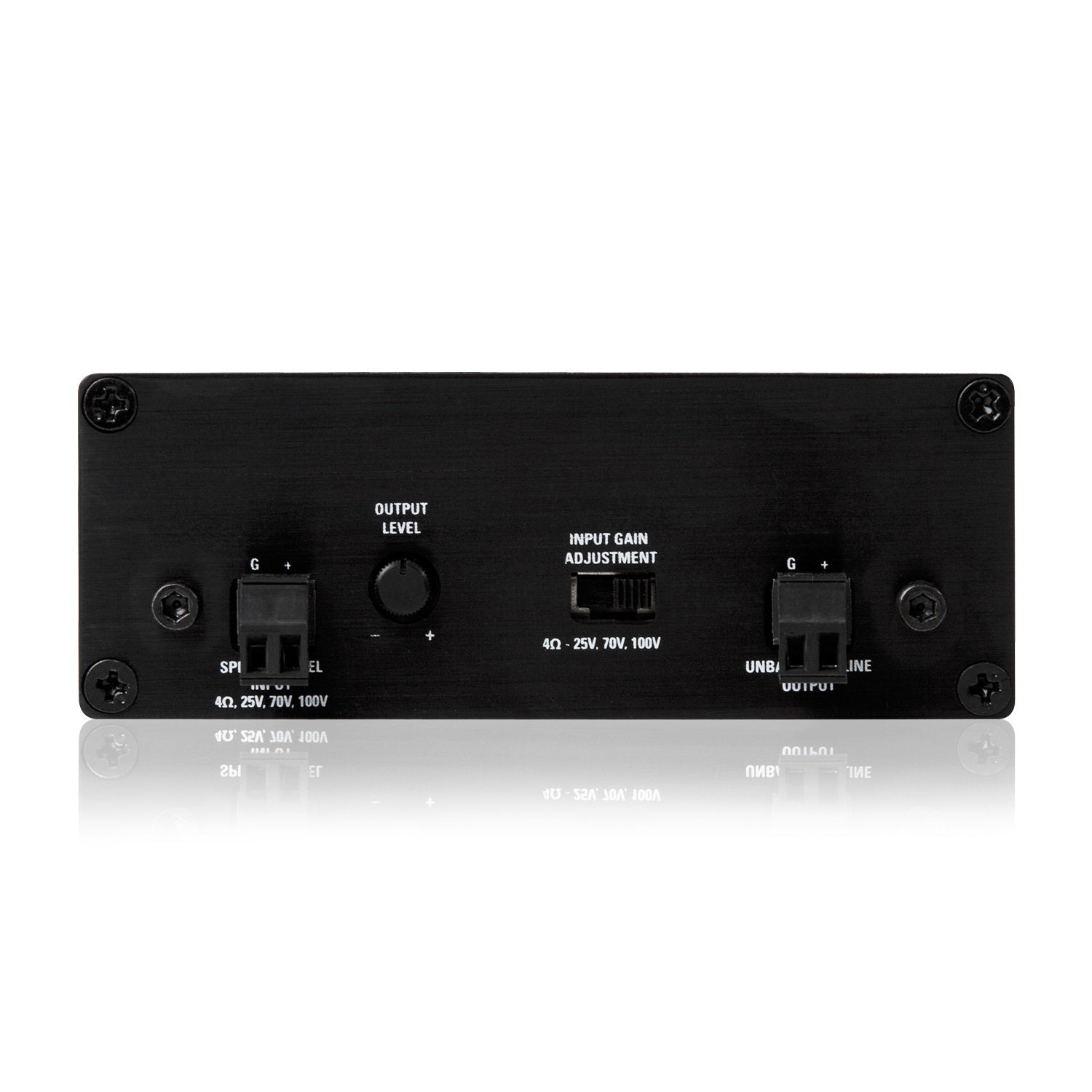

- Trim Level Control And Input Gain Switch Allow Precise Downstream Matching
- Removable I/O Connectors Simplify Installation And Future Serviceability
- No External Power Required Reduces Wiring And Eliminates AC Outlet Dependency
- Compatible With AtlasIED CP And PA Series Amplifiers For Seamless Integration
The AtlasIED TSD-TXHL is built for installed audio integrators who need to add amplified zones to an existing distributed speaker system without running new signal wiring. By accepting high-level input directly from 4Ω, 8Ω, 25V, 70V, or 100V speaker lines, the unit delivers a clean unbalanced line-level output to drive remote amplifiers or signal processors — making zone expansion practical in retrofits, multi-room installs, and commercial paging systems alike.
The isolated transformer at the core of this converter is the key design advantage: it draws no measurable load from the speaker line, meaning the primary amplifier's performance and zone coverage remain unaffected. A trim level control and input gain adjustment switch allow the integrator to precisely match the output to the sensitivity of any downstream amplifier or device, including AtlasIED's CP and PA series. Removable I/O connectors simplify installation and future servicing without disturbing the speaker line.
Because the TSD-TXHL requires no external power supply, it reduces conduit runs, eliminates an AC outlet requirement at the remote location, and lowers the overall cost of zone additions in commercial, hospitality, retail, and institutional environments. It is a practical, low-impact solution for audio systems professionals managing multi-zone distributed audio expansions.
Specifications
