AtlasIED UHT70C-U51-8 8" In-Ceiling Fire Signaling Speaker With 70V Transformer
AtlasIED UHT70C-U51-8 8" In-Ceiling Fire Signaling Speaker With 70V Transformer
SoundPro Item: 20102 | Part Number: UHT70C-U51-8
Usually ships in 5-7 business days
- UL 1480 Listed For Fire-Protective Signaling System Compliance
- Fire-Retardant Moisture-Proof Cone Ensures Reliable Emergency Voice Intelligibility
- Factory-Mounted 70.7V Transformer Simplifies Distributed System Integration
- Multi-Tapped Transformer Allows On-System Power Level Selection
- Dual Whizzer Cone Design Extends High-Frequency Response For Speech Clarity
- DC Blocking Capacitor And Color-Coded Leads Reduce Installation Errors

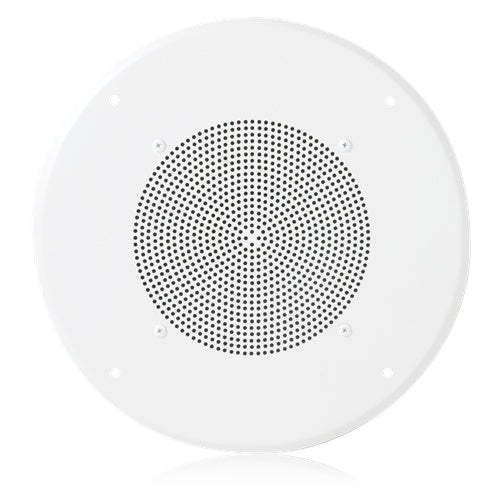

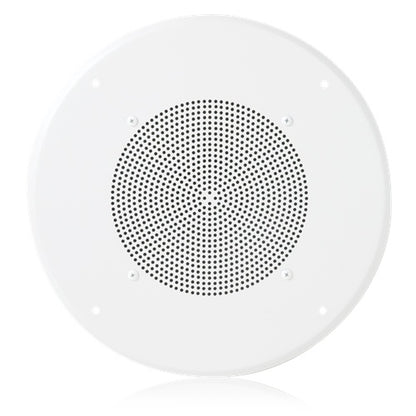

- U51-8 Baffle Provides Unobtrusive Ceiling Appearance For Life Safety Applications
The AtlasIED UHT70C-U51-8 is engineered for life safety and emergency voice evacuation systems in commercial, institutional, and public assembly installations. Integrators and systems contractors specify this unit where UL 1480 compliance is mandatory, including schools, hospitals, office buildings, and transit facilities requiring fire-protective signaling loudspeakers.

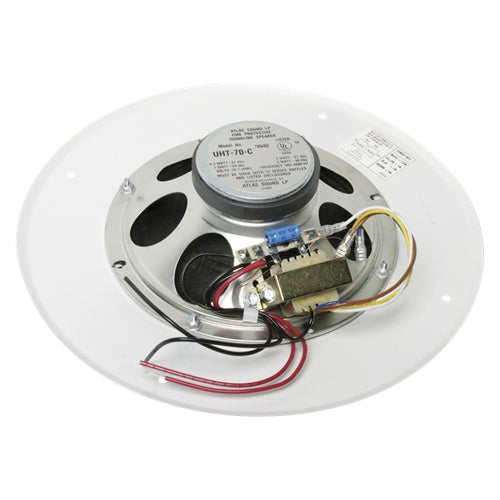

This complete assembly pairs an 8" single voice coil driver with a dual whizzer cone and 10 oz. ceramic magnet for extended frequency response and high speech intelligibility across emergency alarm and voice instruction scenarios. The factory-mounted 70.7V transformer with multi-tap power selection simplifies distributed audio system wiring and allows contractors to optimize SPL and coverage without field modifications. The included U51-8 baffle delivers an unobtrusive ceiling appearance that integrates cleanly into commercial ceiling grids.
Fire-retardant and moisture-proof cone construction meets UL fire-protective signaling requirements, while the DC blocking capacitor and 6" color-coded leads accelerate installation and reduce wiring errors. The package must be installed with UL-approved enclosures to maintain UL compliance. A 60-month warranty backs long-term reliability in installed life safety deployments.
