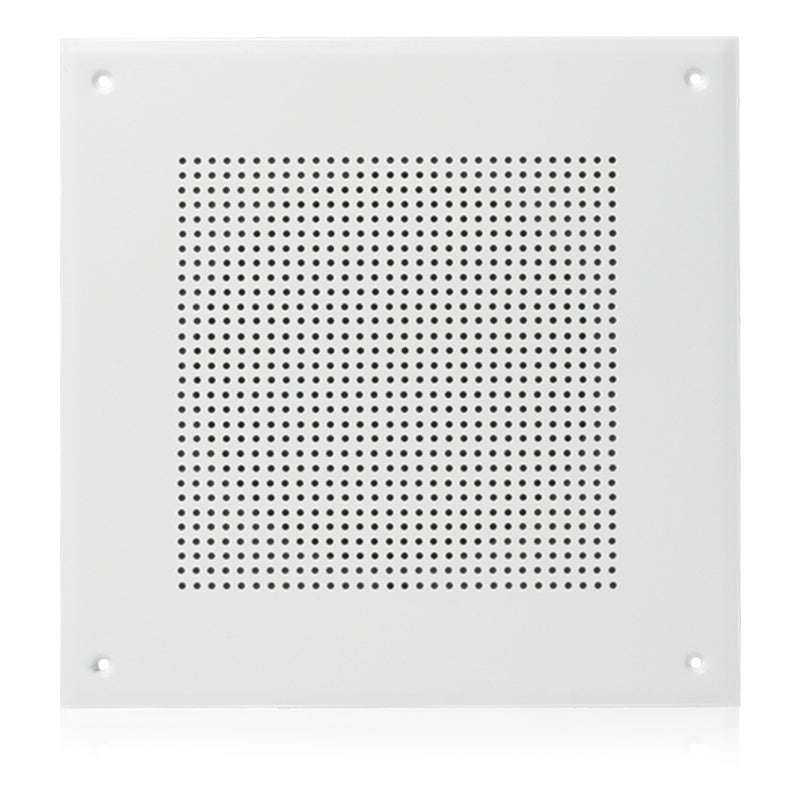

AtlasIED UKT70-2C-U161-8 8" Dual Voice Coil In-Ceiling Fire Signaling Speaker
AtlasIED UKT70-2C-U161-8 8" Dual Voice Coil In-Ceiling Fire Signaling Speaker
SoundPro Item: 20105 | Part Number: UKT70-2C-U161-8
Usually ships in 5-7 business days
- UL 1480 Listed Construction Meets Fire-Protective Signaling System Requirements
- Dual Voice Coil Driver With Whizzer Cone Extends Frequency Response For Clear Voice Reproduction
- Fire-Retardant And Moisture-Proof Cone Ensures Reliable Operation In Commercial Environments
- Factory-Mounted Dual 70.7V Transformers Simplify Distributed Audio System Integration
- Multi-Tapped Power Options Allow Flexible Zone Coverage Across 70V Amplifier Systems
- DC Blocking Capacitors And Color-Coded Leads Included For Code-Compliant Field Installation
- Unobtrusive Ceiling Baffle Design Suits Life Safety Aesthetics In Occupied Spaces
The AtlasIED UKT70-2C-U161-8 is engineered for life safety integrators and fire alarm system contractors who require UL-listed in-ceiling audio coverage for emergency signaling and voice evacuation applications. The package ships complete with a factory-mounted dual 70.7V transformer, 6" color-coded leads, DC blocking capacitors, and a U161-8 baffle, reducing field assembly time and ensuring code-compliant installation from the start.
At the core is an 8" dual voice coil driver with a whizzer cone and 10 oz. ceramic magnet, delivering the extended frequency response and intelligibility margins required by NFPA and UL 1480 for fire-protective signaling systems. The fire-retardant, moisture-proof cone construction supports reliable operation in the environmental conditions typical of commercial and institutional installations. Multi-tapped transformer options allow system designers to match coverage zones to distributed 70V amplifier systems without additional transformer hardware.
This speaker is the right choice over non-listed alternatives when the authority having jurisdiction requires documented UL 1480 compliance. Integrators specifying life safety audio for schools, hospitals, office buildings, or public assembly spaces can rely on this package for consistent intelligibility and regulatory acceptance. Note that UL requirements mandate use with UL-approved enclosures; AtlasIED offers a selection of companion enclosures for complete compliant assemblies.
