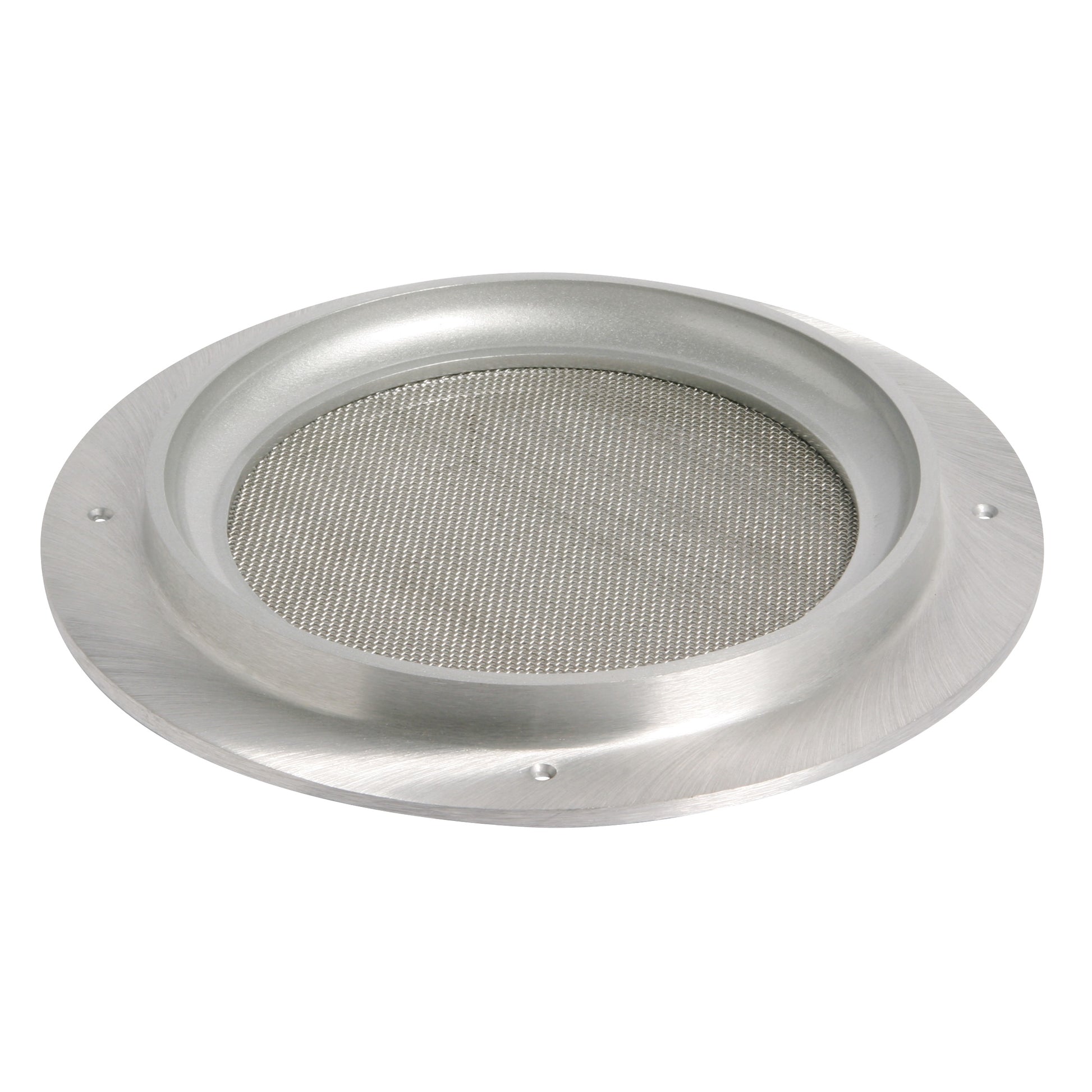

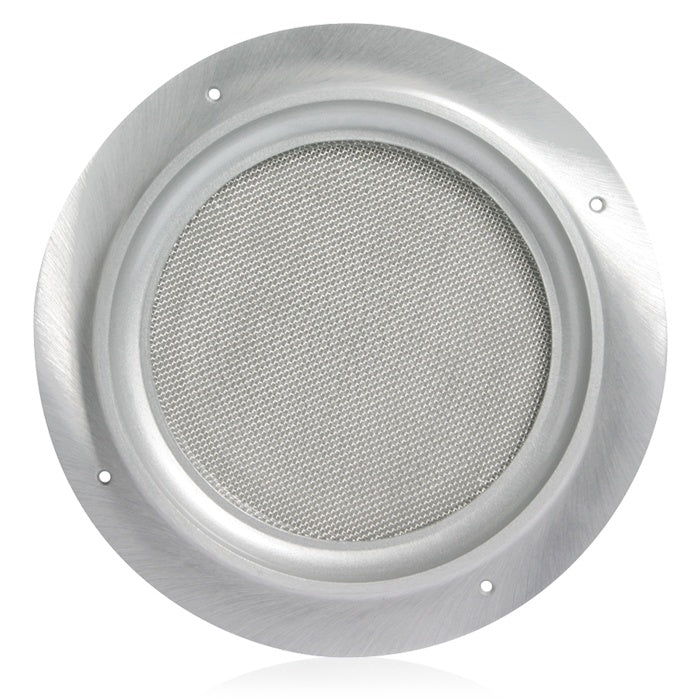

AtlasIED VP60R Recessed Vandal-Proof Baffle for 8" Speakers
AtlasIED VP60R Recessed Vandal-Proof Baffle for 8" Speakers
SoundPro Item: 20450 | Part Number: VP60R
Usually ships in 5-7 business days
- Cast Aluminum Alloy Trim Ring Delivers Twice The Strength Of Conventional Cast Aluminum Baffles
- Stainless Steel Woven Wire-Mesh Screen Provides Direct Impact Protection For The Speaker
- Sealant-Reinforced Mesh Screen Resists Tearing And Bending Under Forced Contact
- Welded Stud Mounting System Securely Retains Speaker Behind Perforated CRS Plate
- Tamperproof Heat-Treated Alloy Screws With Supplied Wrench Prevent Unauthorized Removal
- Countersunk Mounting Holes Add A Second Layer Of Installation Security
- Compatible With 8" Cone Speakers And APF Series Re-Entrant Horns For Application Flexibility
The AtlasIED VP60R is engineered for installed audio applications where speaker protection and security are non-negotiable — transit terminals, correctional facilities, stadiums, and other high-traffic or high-risk environments. It accommodates a standard 8" cone loudspeaker or an APF Series re-entrant horn (horn installation requires adapter plate FAMT-6), giving integrators flexibility across a range of system designs.
The trim ring is cast from an aluminum alloy rated at 44,000 P.S.I. tensile strength, providing a measurable structural advantage over conventional cast aluminum hardware. A 3/4" shielding collar guards the speaker cone from direct contact, while the driver mounts to welded studs behind a perforated 22-gauge CRS plate. A stainless steel woven wire-mesh screen, positioned in front of the plate and reinforced with sealant on the inside, delivers a layered defense against impact, tearing, and forced entry.
Installation is secured with tamperproof heat-treated alloy screws using a supplied special wrench, with countersunk mounting holes for additional resistance to removal. The satin aluminum finish with acrylic coating suits both functional and aesthetically considered installs, making the VP60R a complete solution for recessed, vandal-resistant speaker deployment.
Specifications
