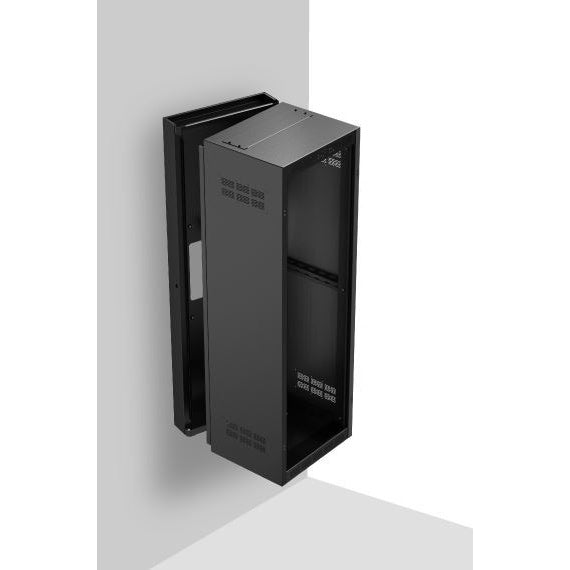

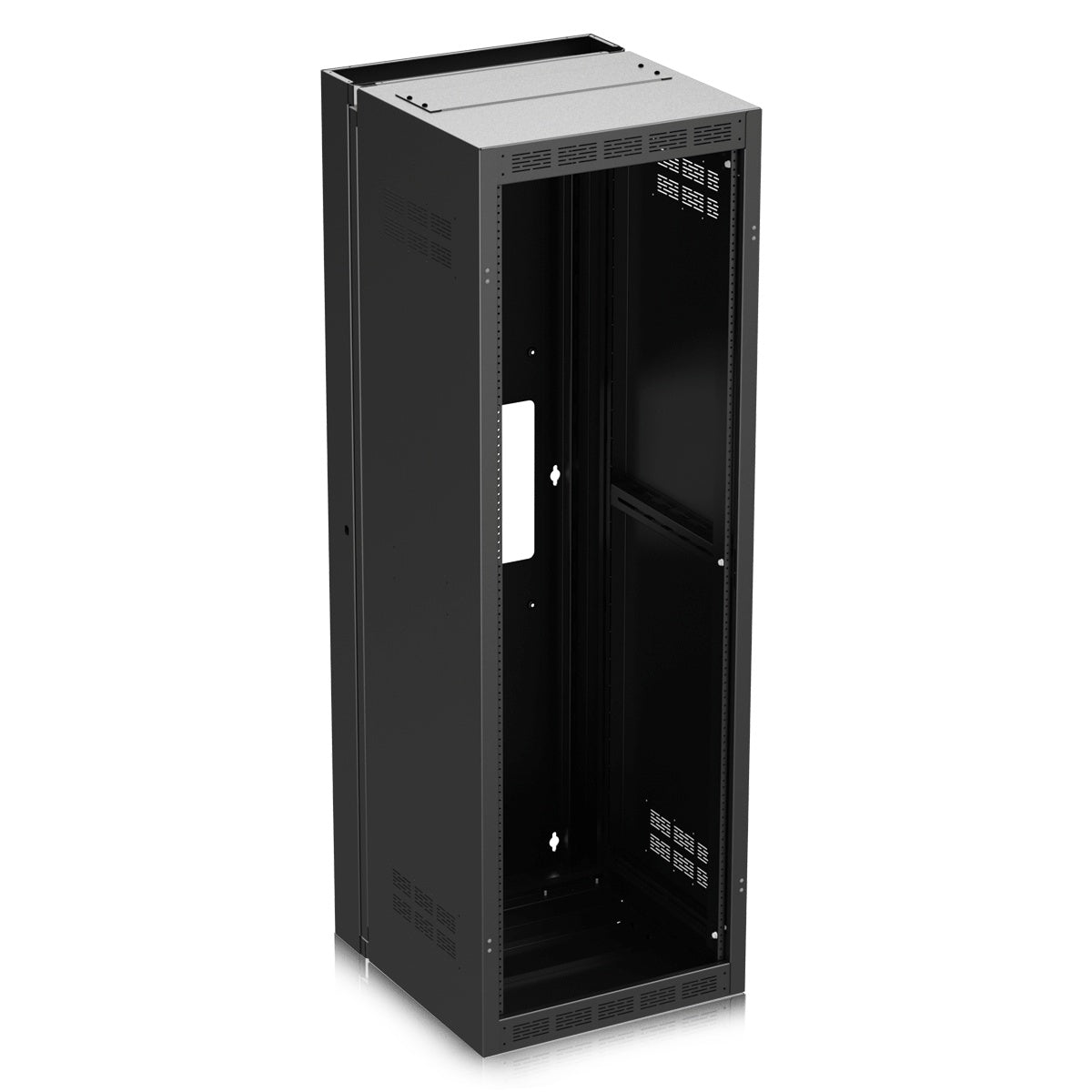

AtlasIED WMA35-23 35RU Wall Cabinet With Adjustable Rails
AtlasIED WMA35-23 35RU Wall Cabinet With Adjustable Rails
SoundPro Item: 20736 | Part Number: WMA35-23
Usually ships in 5-7 business days
- Integral Alignment Frame Eliminates Center Section Sag Across Full Travel Range
- Continuous Slot Hat-Channel Rails Allow Full Front-To-Back Depth Adjustment
- Mirror Image Back Pan Supports Left Or Right Hinging Regardless Of Wall Orientation
- Boss Detents On Rear Section Accept Custom Sub-Plates For Accessory Mounting
- Back Pan Ships Separately On Same Pallet To Enable Phased Trade Installation
- Perforated Side Vents And Removable Panels Support Active Fan Ventilation
- Includes One Set Of Plated Rack Rails And 100 Captive-Washer Rack Screws
The AtlasIED WMA35-23 is engineered for systems integrators and AV contractors who need a permanent, high-density wall rack solution in installed environments such as command centers, houses of worship, corporate AV rooms, and broadcast facilities. At 35 rack units and 23.5 inches of total depth, this cabinet supports fully populated signal processing, amplification, and control equipment without the structural compromise of lighter-duty wall enclosures.
The welded 16-gauge steel construction and integral alignment frame eliminate center-section sag through the cabinet's full travel range — a critical advantage over bolted-together alternatives when mounting heavy DSPs or power amplifiers. The hat-channel rail system allows continuous front-to-back rail adjustment with fixed securing holes, giving contractors precision rack depth configuration on site. The mirror-image back pan accommodates left or right hinging regardless of wall orientation, and boss detents on 12-inch centers let field crews install custom sub-plates for power or accessory mounting without drilling new attachment points.
Thirty-two conduit knockouts — sixteen on the top and sixteen on the bottom of the rear section — support organized structured wiring and wireless antenna routing. Perforated side vents and removable 3RU top and bottom panels accommodate Atlas EFP Series fan panels for active thermal management. The back pan ships separately on the same pallet, enabling other trades to pre-install the rear section before the center section arrives on site, reducing installation time and coordination overhead.
Specifications
